radiant WNRKH532WH Smart Tru-Universal 3-Way Dimmer Kit Wireless Wired 120V White Polycarbonate Satin
Documents
Installation Instructions
Supporting Document
Instruction Sheet
Brochure
Premium Content
Downloads

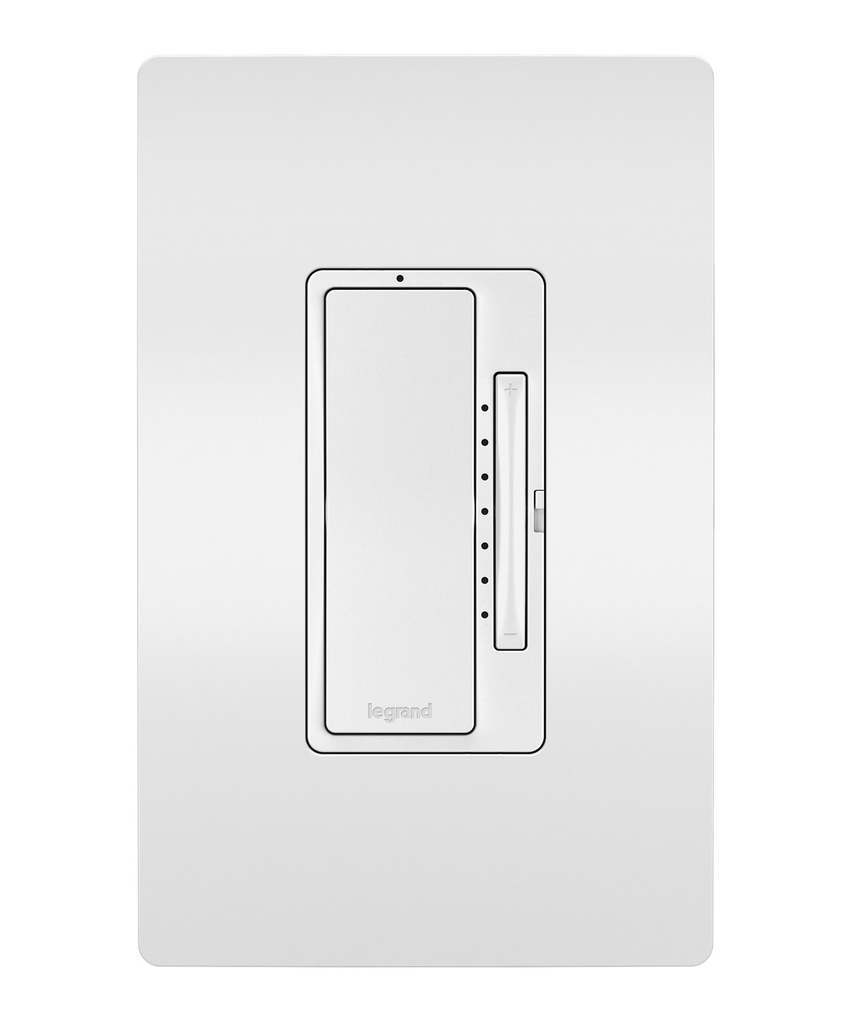

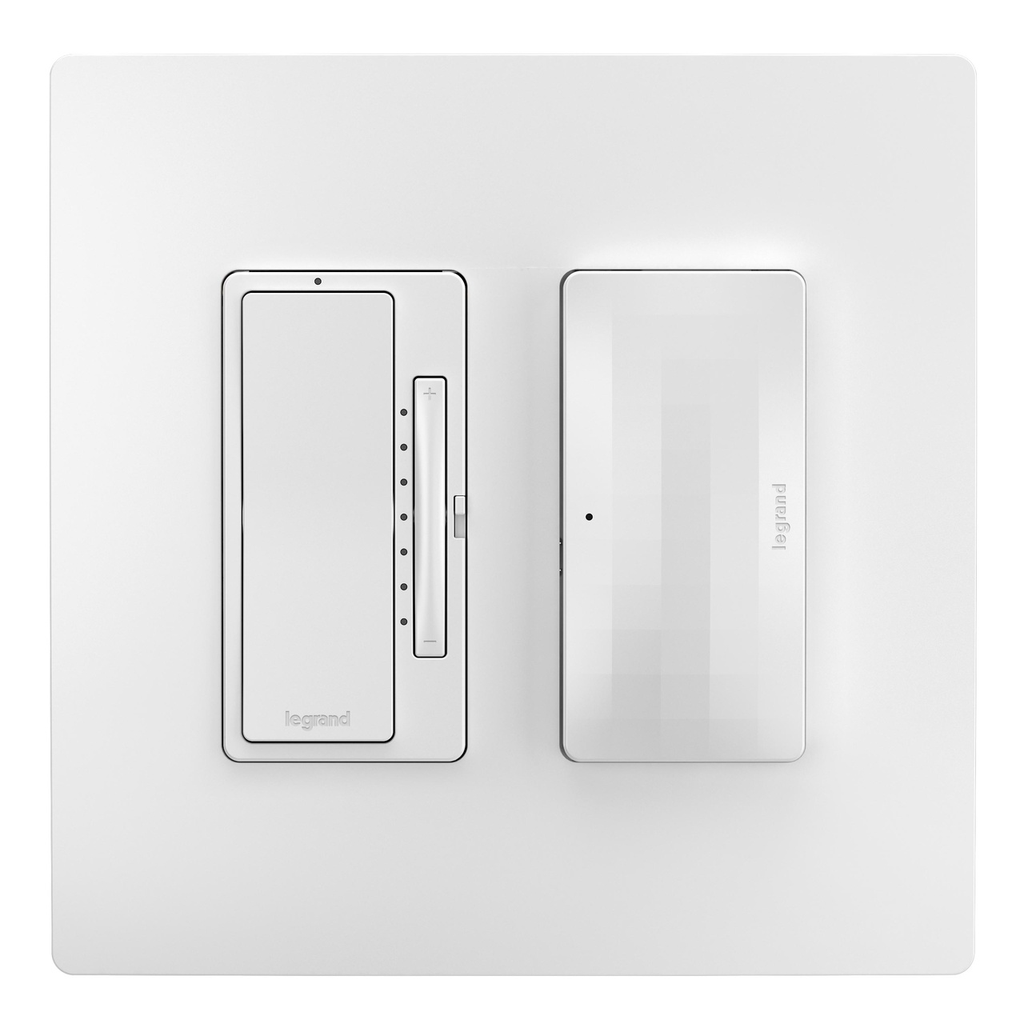

The radiant® Smart 3-Way Dimmer Gateway Kit with Netatmo offers a modern solution for those looking to control their lighting with versatility and ease. This kit features a Smart Tru-Universal Dimmer that seamlessly replaces existing switches or dimmers, requiring only a neutral wire for installation. With compatibility across a wide range of dimmable bulbs, including LED, CFL, incandescent, and halogen, it provides flexibility to fit various lighting needs within your home. Equipped to transform your lighting experience, this system allows users to adjust brightness through smartphones and tablets using the intuitive Legrand Home + Control app, enabling features such as scheduling, scene setting, and energy monitoring. The included Wireless Smart Dimmer enhances functionality with long-lasting battery power and easy wall mounting, ensuring you can create a cohesive lighting environment throughout your space. Designed for compatibility with major smart home systems, including Amazon Alexa and Google Assistant, this kit not only elevates your lighting control capabilities but also integrates beautifully with the stylish design that the radiant® collection is known for, complete with a screwless wall plate for a polished finish.
- UL Listed, cULus Listed safety certifications
- Requires neutral wire for installation
- Works with virtually any 120V dimmable bulb (LED, CFL, incandescent, halogen)
- Selectable dimming phase for bulb compatibility optimization
- Wireless and wired connection options for flexible installation
- Control and dim lights via smartphone and tablet using Legrand Home + Control app
- Scheduling, scene setting, and energy monitoring through mobile app
- Compatible with Amazon Alexa, Google Assistant, and Apple HomeKit smart home systems
- Robust mesh network that strengthens with each added device for reliable performance

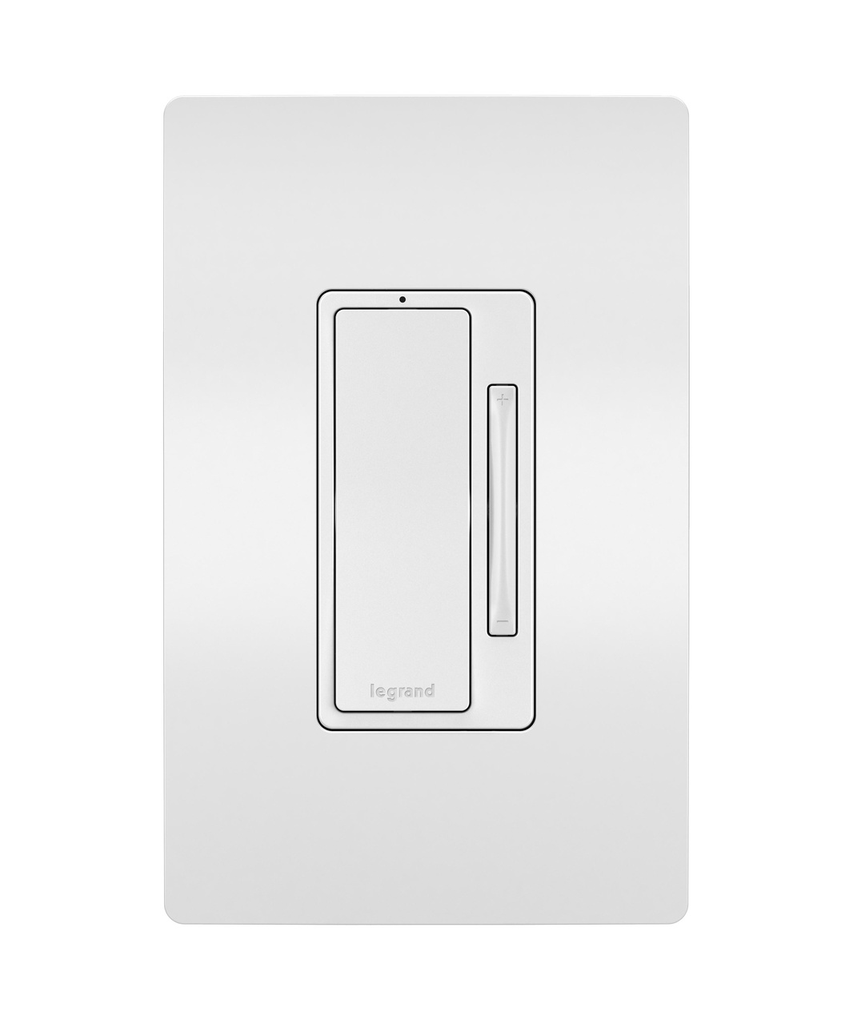

- Wireless Smart Dimmer with long-lasting battery and easy wall or surface mounting
- Voltage: 120 VAC
- Load Rating: 120V 1600 VA (MLV), 16A (Fluorescent), 450W (CFL), 450W (LED), 5A (Fan Control), 700W (ELV, Halogen, Incandescent), 8A (EFL)
- Frequency Rating: 60 Hz
- Bulb Compatibility: CFL, Fluorescent, Halogen, Incandescent, LED
- Number of Poles: Single Pole 3-Way
- Requires Neutral Wire: Yes
- Connection: Wireless, Wired
- Switch Type: Paddle
- Material: Polycarbonate
- Color: White
- Finish: Satin
- Mounting Type: Box
- Wire Size: #14 - #10 AWG
- Compliance: UL Listed, cULus Listed, RoHS Compliant, FCC Compliant, IC Certified
- Dimming Phase: Selectable
- Environmental Conditions: 95% relative humidity, non-condensing
- Number of Gangs: 1
- Application Sector: Commercial, Multi-Dwelling Unit, Residential
- Indoor/Outdoor: Indoor
- Works With: Apple Home Kit, Google Home, Amazon Alexa
- Product Line: Pass & Seymour
- Country of Origin: China
