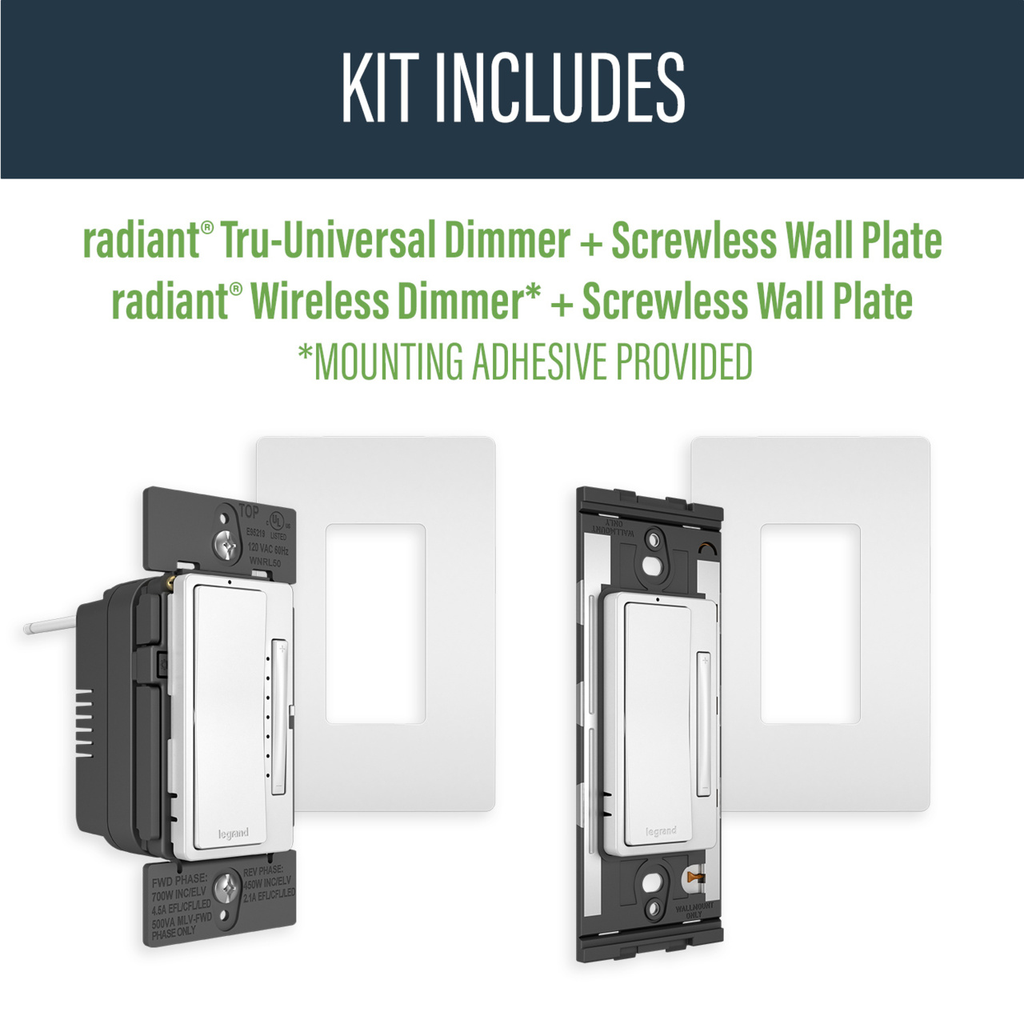

radiant WNREZK50WH Easy 3-Way Dimmer Kit 120V 700W Paddle Wireless Wired White Polycarbonate Satin

The radiant® Easy 3-Way Dimmer Kit offers versatile lighting control, seamlessly integrating both wired and wireless features to enhance your space. Designed for ease of installation, the first dimmer replaces any standard wired switch or dimmer in just 15 minutes, while the second wireless dimmer can be mounted anywhere, providing long-lasting battery-powered control without permanent fixtures. With compatibility for virtually any 120V dimmable bulb or fixture, it ensures a tailored lighting experience, whether you're using incandescent, LED, or CFL options. This kit also allows for smart functionality when paired with a Smart Gateway and Netatmo, enabling app-based control and synchronization with other smart devices. The included screwless wall plates lend a sophisticated finish and allow you to create a cohesive look when coordinated with other products from the radiant® collection. Compliant with cULus and FCC standards, the dimmer is built for safety and reliability in residential or commercial settings, making it an ideal choice for those looking to elevate their lighting solutions.

• Compliant with RoHS, FCC, and cULus safety standards
• Replaces any standard wired switch or dimmer in as little as 15 minutes
• Mounts to any wall for long-lasting, battery-powered wireless control
• Compatible with virtually any 120V dimmable bulb or fixture (excludes 0-10V)
• Enables smart app control with Netatmo gateway
• Pre-paired for instant multi-location lighting control
• Includes screwless wall plates for sleek integration
• Paddle switch type offers ergonomic operation
• Ready to install with no configuration needed
• Suitable for indoor use in residential and commercial spaces

• Voltage: 120 VAC
• Load Rating: 120V 250W to 700W depending on bulb type, 2.1A to 3.8A
• Load Type: Incandescent, LED, CFL, Halogen, Fluorescent
• Number of Poles: Single Pole, 3-Way, Multi-Location
• Connection: Wireless, Wired
• Switch Type: Paddle
• Mounting Type: Box, Wall
• Wire Size: #14 - #10 AWG
• Material: Polycarbonate
• Finish: Satin
• Indoor/Outdoor: Indoor
• Maximum Humidity: 95% (relative humidity, non-condensing)
• NEMA Rating: 5-15R
• Standard: RoHS, FCC, cULus
• Seismic Tested: No
• Requires Neutral Wire: Yes
• Frequency Rating: 60 Hz
• Country of Origin: China
• Application Sector: Residential, Commercial, Multi-Dwelling Unit
• Product Line: Pass & Seymour
• Warranty: 1-Year Limited Warranty
