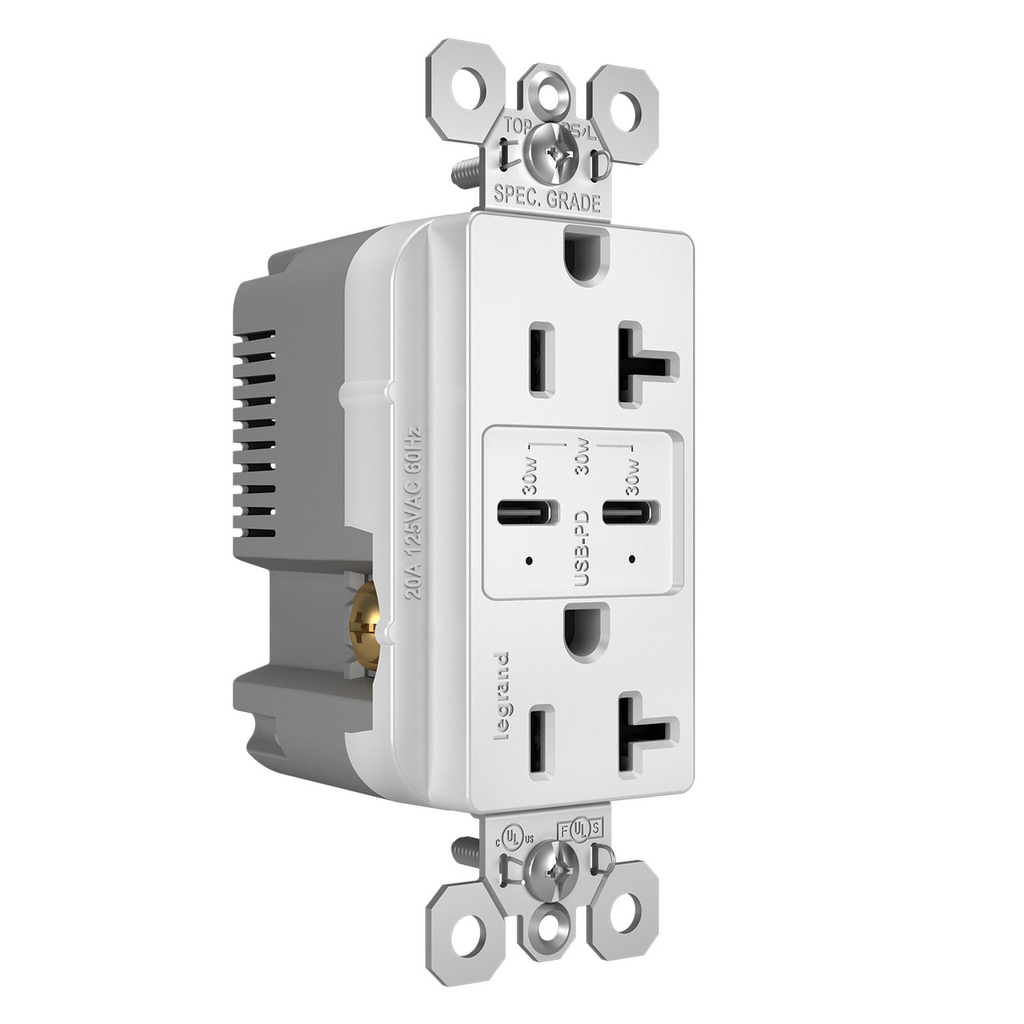

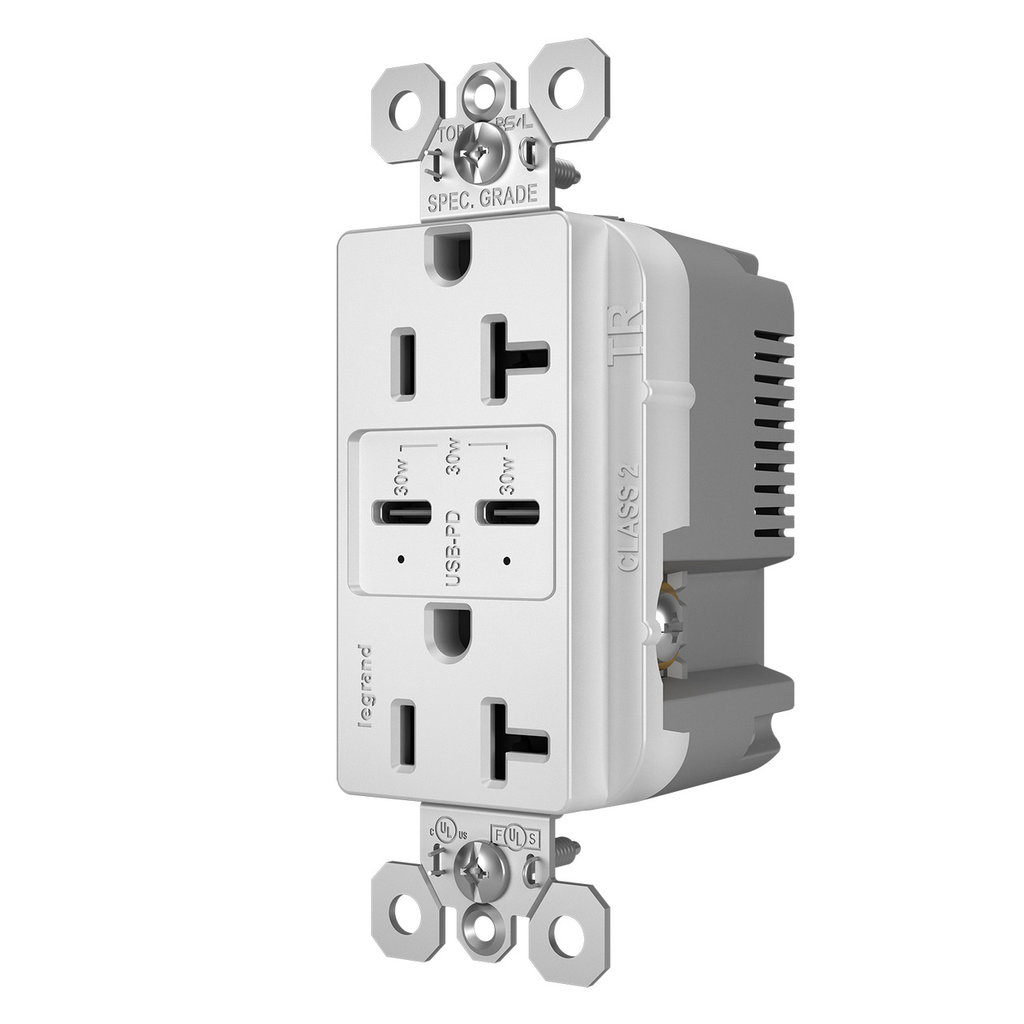

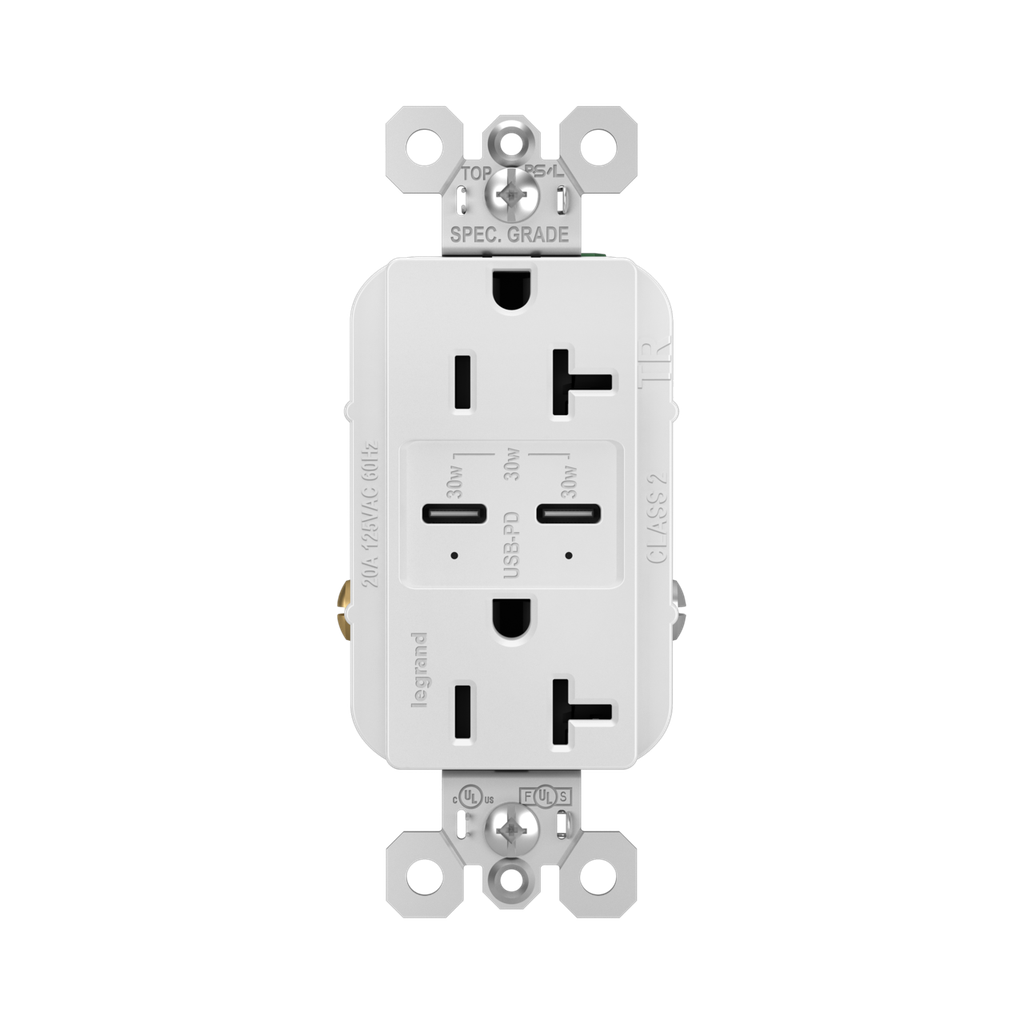

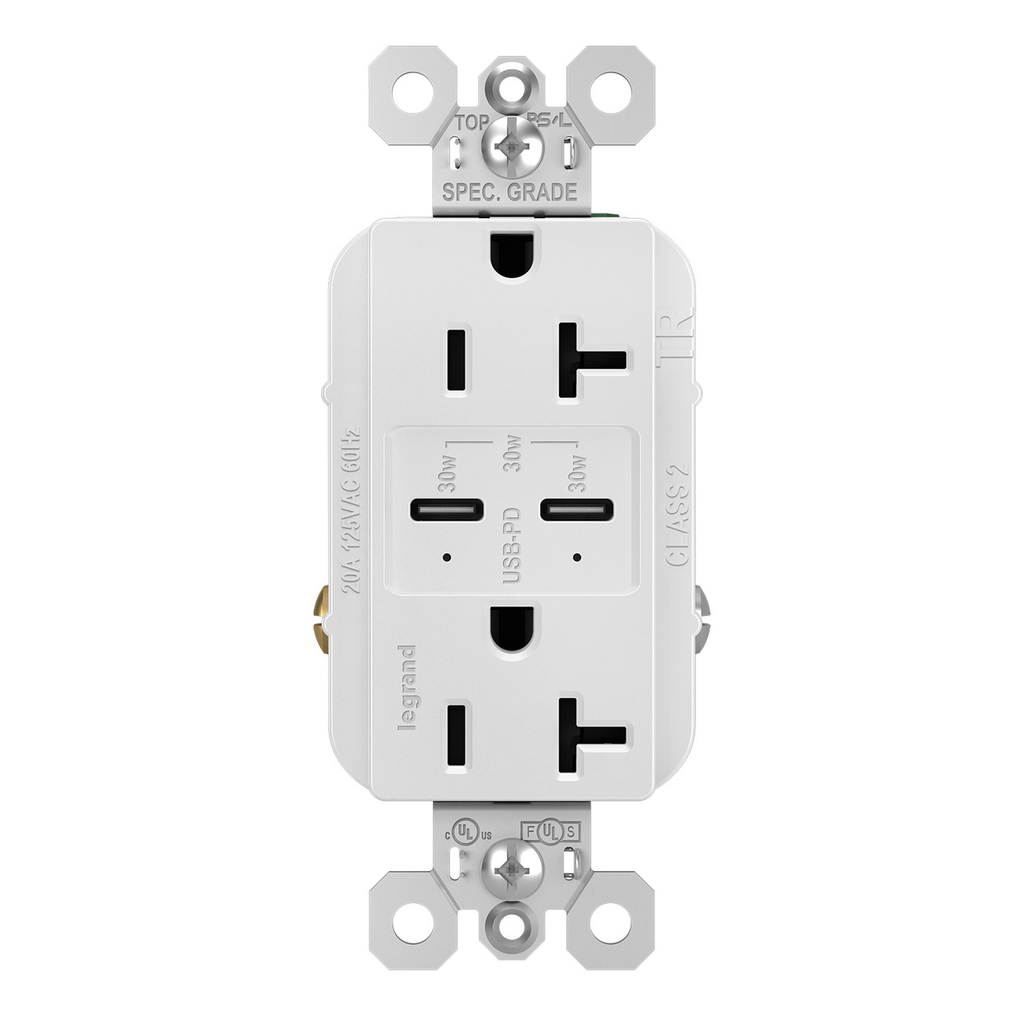

radiant TR20USBPDW USB-Charging Outlet 2-Port USB-C 30W 20A Tamper-Resistant White Satin
Specifications
Documents
Downloads
Elevate your charging experience with this innovative USB outlet, designed for functionality and style. Featuring two Type-C ports, it delivers a robust 30W of power, enabling users to charge the latest devices up to twice as fast, thanks to advanced Power Delivery technology. With its built-in overcurrent protection layers and patented tamper-resistant shutters, this outlet ensures that your devices remain safe while providing fast and efficient charging. Additionally, the thoughtful design includes a helpful indicator light to easily monitor charging status, glowing yellow during charging and switching to green once devices are fully charged. This versatile product not only enhances convenience in any indoor setting but also seamlessly fits into various aesthetics with its sleek satin white finish. Whether replacing a traditional outlet or upgrading your charging capabilities, this solution promises quick installation and long-lasting performance backed by a Lifetime Warranty.
- Patented tamper-resistant shutters for child safety
- Multiple layers of overcurrent protection to prevent device damage
- Delivers 30W power via two USB-C ports with advanced Power Delivery for fast charging
- Built-in intelligent charging detects precise power needs for optimal speed
- Indicator light shows charging status with yellow and green colors
- Scalloped cover design and side-only screw terminals for quick, secure installation
- Rated for 20A and 125V indoor commercial use
- Wide operating temperature range from -40° to 60°C for reliable performance
- Satin white finish complements modern decor
- Lifetime warranty ensuring long-lasting performance
- Amperage: 20 A
- Voltage: 125 V
- USB Wattage: 30 W
- USB Amperage: 6 A
- Number of Receptacles: 2
- Number of USBs: 2
- Operating Temperature: -40° to 60°C
- Number of Poles: Double Pole
- Frequency Rating: 60 Hz
- Wire Size: 14-10 AWG
- Mounting Type: Box

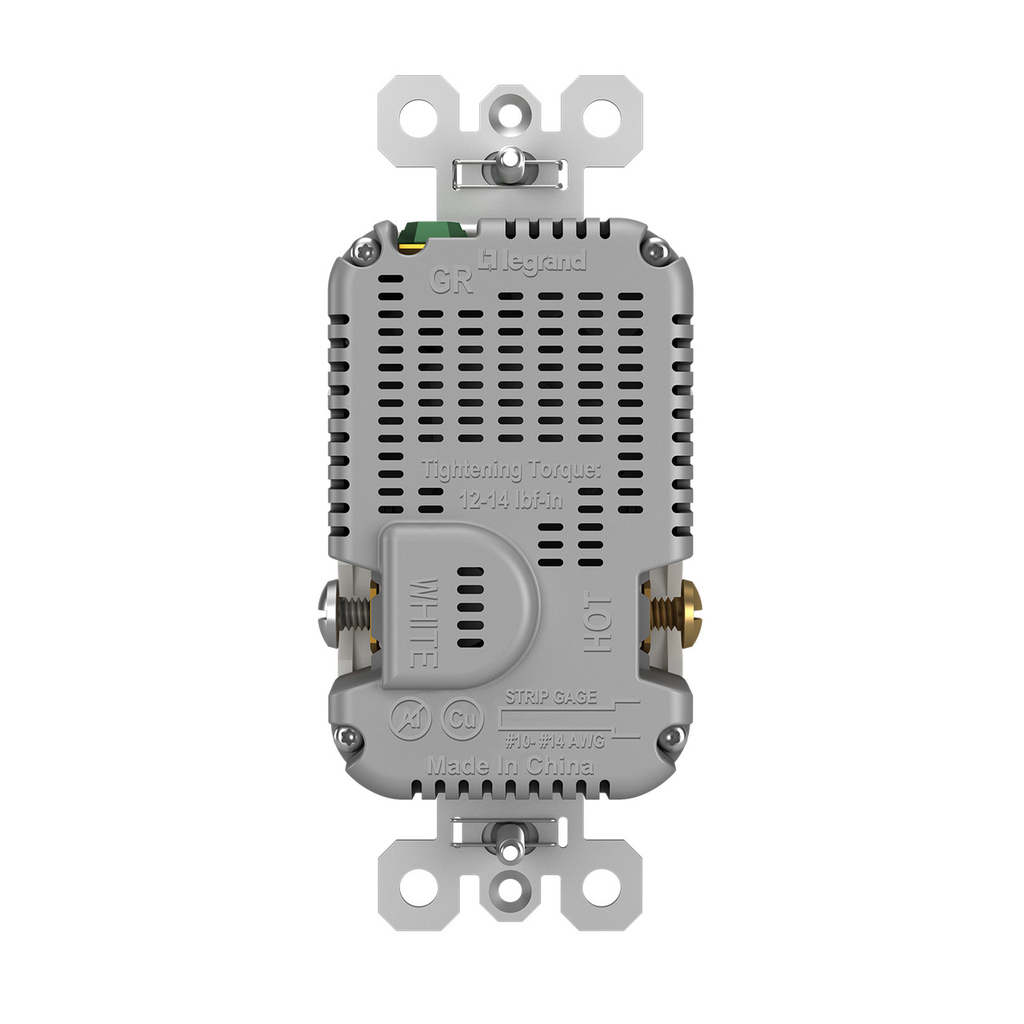

- Connection Location: Side Only
- Wire Connection Type: Screw Terminals
- Width: 1.69 in
- Depth: 1.42 in
- Height: 2.63 in
- Finish: Satin
- Color: White
- Is Tamper-Resistant: Yes
- Indoor/Outdoor: Indoor
- NEMA Configuration Code: 5-20R
- Number of Wires: 3
- Country of Origin: China
- Product Line: Pass & Seymour
- Environmental Conditions: 95% RH, non-condensing
- Application Sector: Commercial
