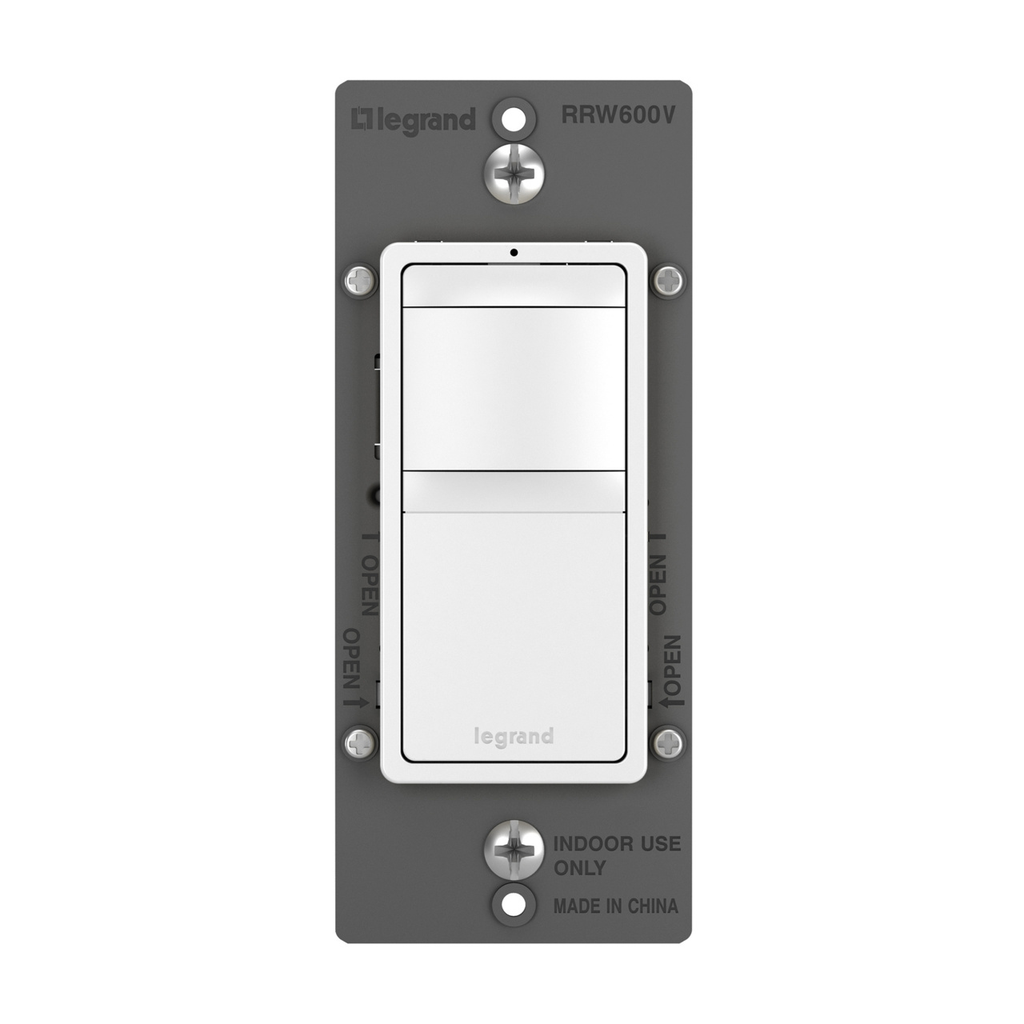

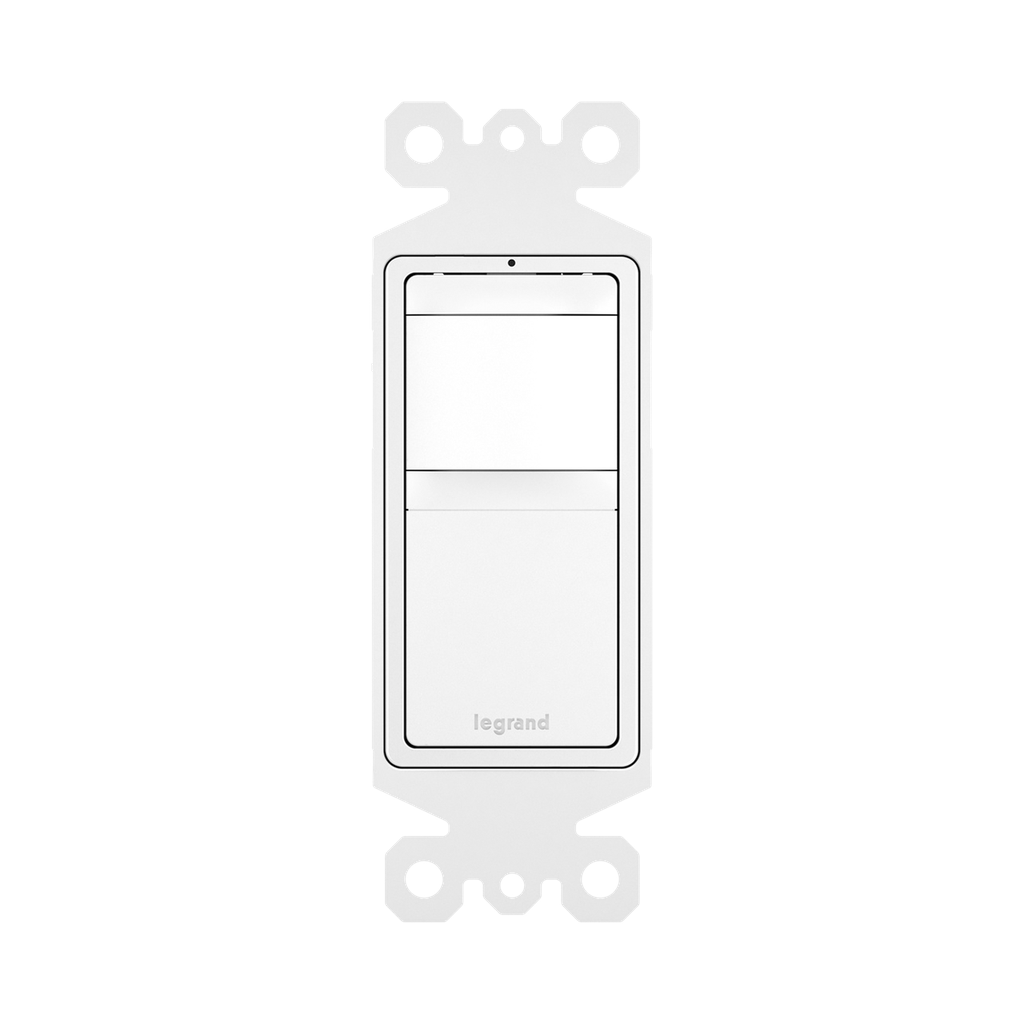

radiant RRW600VTC Vacancy Sensor Single-Pole 3-Way 120V 600W PIR 180° Coverage 600 sq ft Tri-Color Polycarbonate Steel

Elevate your lighting control with the radiant® Single-Pole 3-Way Vacancy Sensor in a sophisticated tri-color finish. Designed to seamlessly integrate with a variety of bulb types including LED, incandescent, and fluorescent, this versatile sensor switch features advanced passive infrared (PIR) technology that covers an impressive 180 degrees and is effective for areas up to 600 square feet. The manual ON/auto OFF functionality offers the convenience of automatic lighting in spaces like bathrooms, hallways, and garages, while an adjustable time delay allows you to set the lights to turn off between 30 seconds and 20 minutes after the last detected motion. Enhanced for easy installation, this option supports both single-pole and multi-location setups without the need for a neutral wire, making it a practical choice for any renovation project. Additionally, the soft-glow locator light provides visibility in dark environments, ensuring effortless access. With its sleek design and available finishes that align with modern aesthetics, updating your existing light switches has never been simpler or more stylish.

• UL Listed and cULus Listed for safety assurance
• Manual ON/Auto OFF vacancy sensor for energy savings
• Passive infrared (PIR) motion detection with 180° coverage up to 600 sq ft
• Adjustable time delay from 30 seconds to 20 minutes after no motion
• Works with LED, incandescent, fluorescent, CFL, MLV, ELV, and halogen bulbs
• No neutral wire required for easy installation in older homes
• Compatible with single-pole, 3-way, and multi-location wiring setups
• Soft-glow locator light for easy device location in the dark

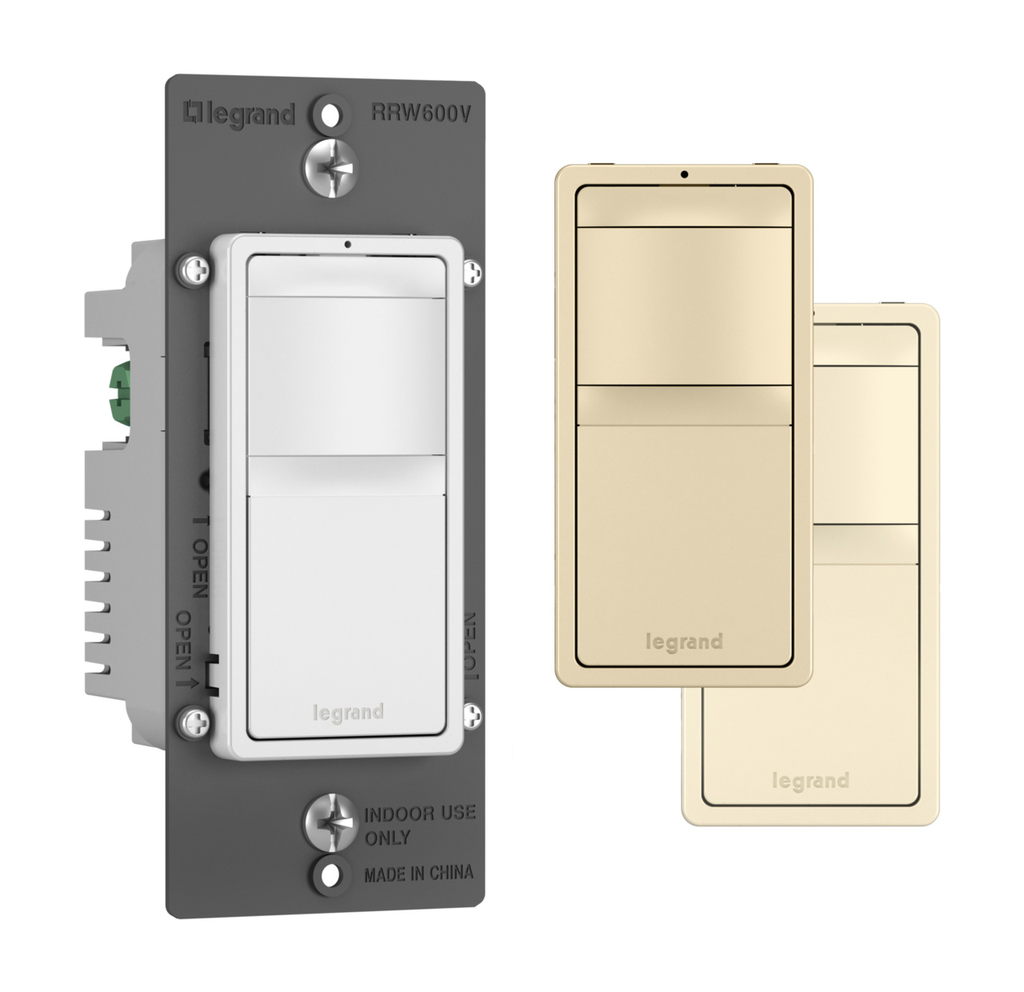

• Tri-color satin finish interchangeable faceplates for aesthetic customization

• Voltage: 120 VAC
• Load Rating: 120V 5A 600W (LED, Incandescent, Fluorescent, CFL, MLV, ELV, Halogen)
• Horsepower Rating: 1/6 HP @ 120 VAC
• Coverage Area: 600 sq ft
• Coverage Angle: 180°
• Sensor Technology: Passive Infrared (PIR)
• Sensor Type: Vacancy
• Sensing Range: Minor Motion 20 ft, Major Motion 35 ft
• Timer Duration: 30 seconds to 20 minutes
• Mounting Type: Wall Box
• Number of Poles: Single Pole 3 Way, Multi-Location
• Installation: Single Pole, 3-Way, Multi-location
• Neutral Required: No
• Wire Size: #14 - #10 AWG
• Wire Connection Type: Flying Leads
• Material: Polycarbonate, Steel
• Finish: Satin
• Color: Ivory, Light Almond, White
• Operating Temperature Range: 32-104°F (0-40°C)
• Operating Humidity: 0-95% RH, non-condensing
• Flammability Rating: UL94 V2
• Compliance: UL Listed, cULus Listed, California Title 24, RoHS
• Environmental Conditions: Indoor Use Only
• Indoor/Outdoor: Indoor
• Location Rating: Dry
• Country of Origin: China
• Product Line: Pass & Seymour
• Application Sector: Residential, Light Commercial, Hospitality, Multi-Dwelling Unit
