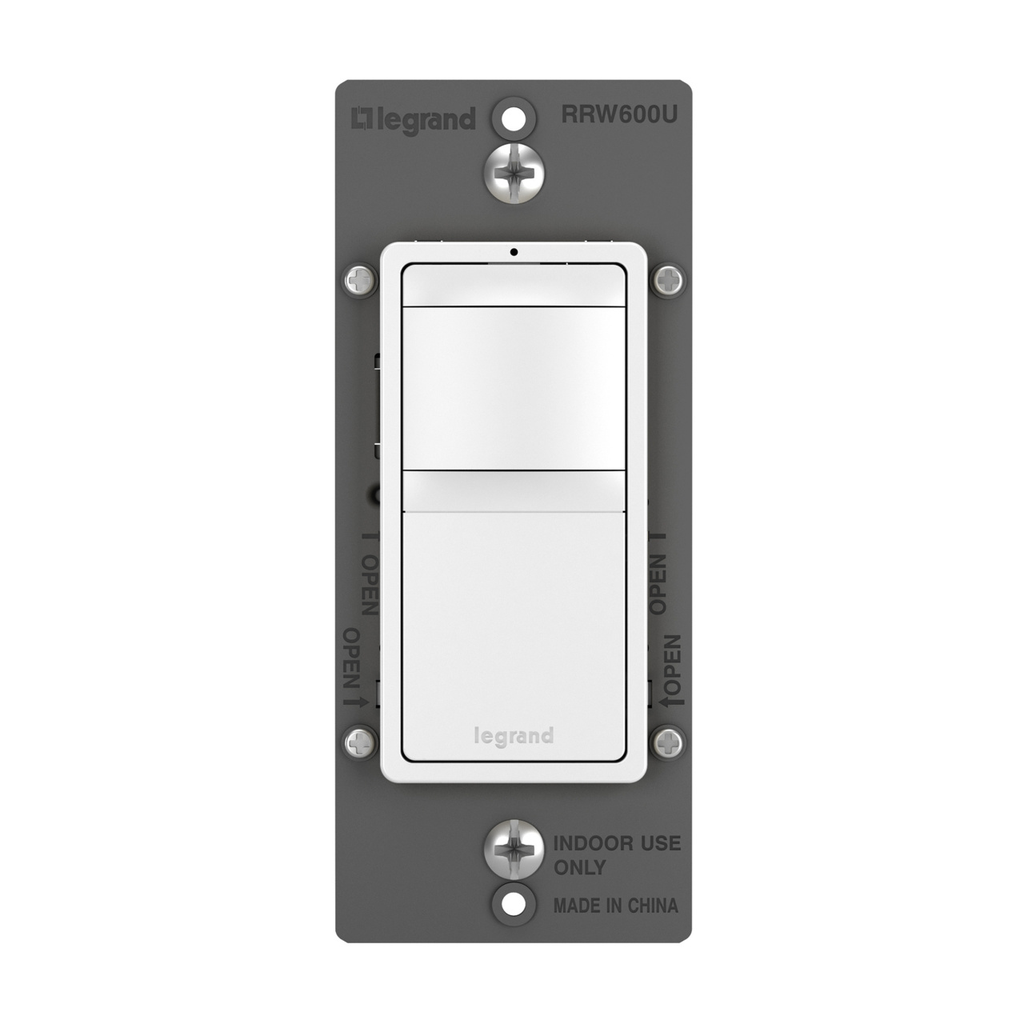

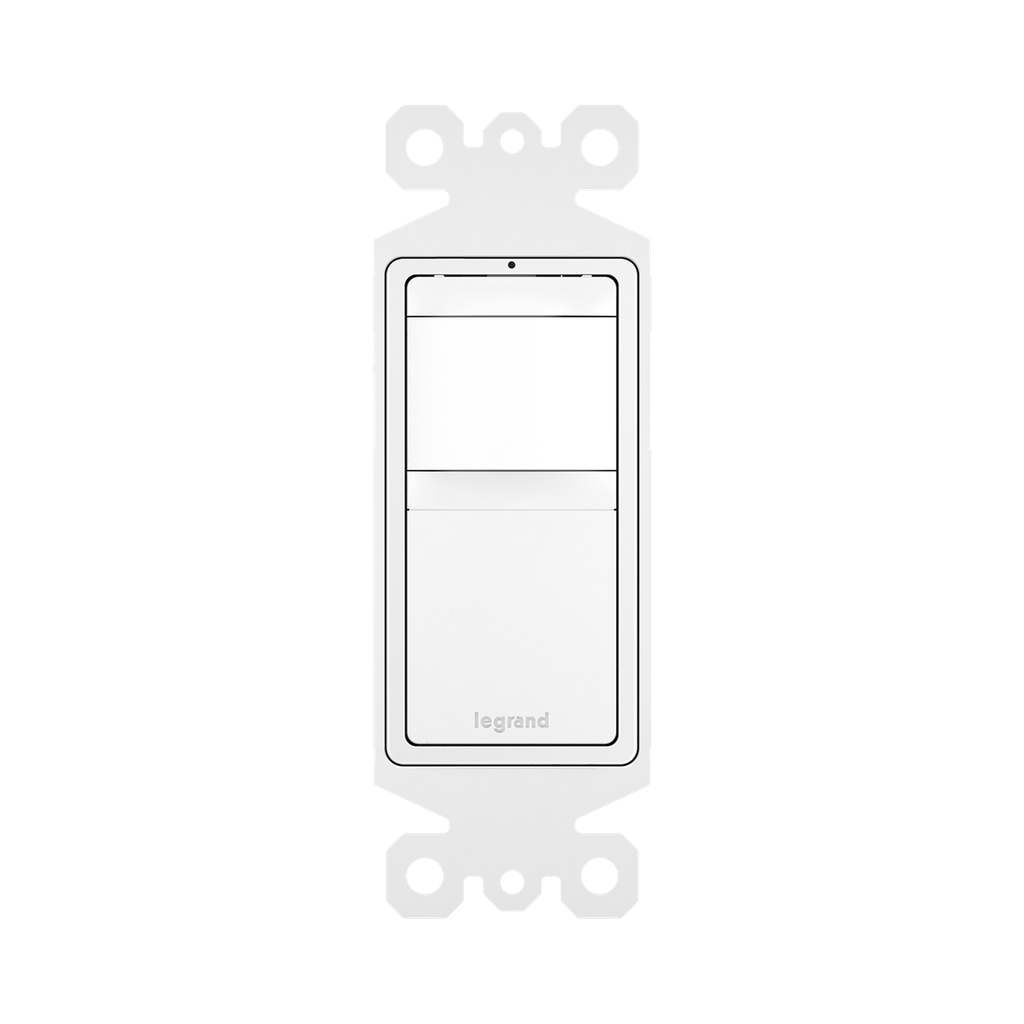

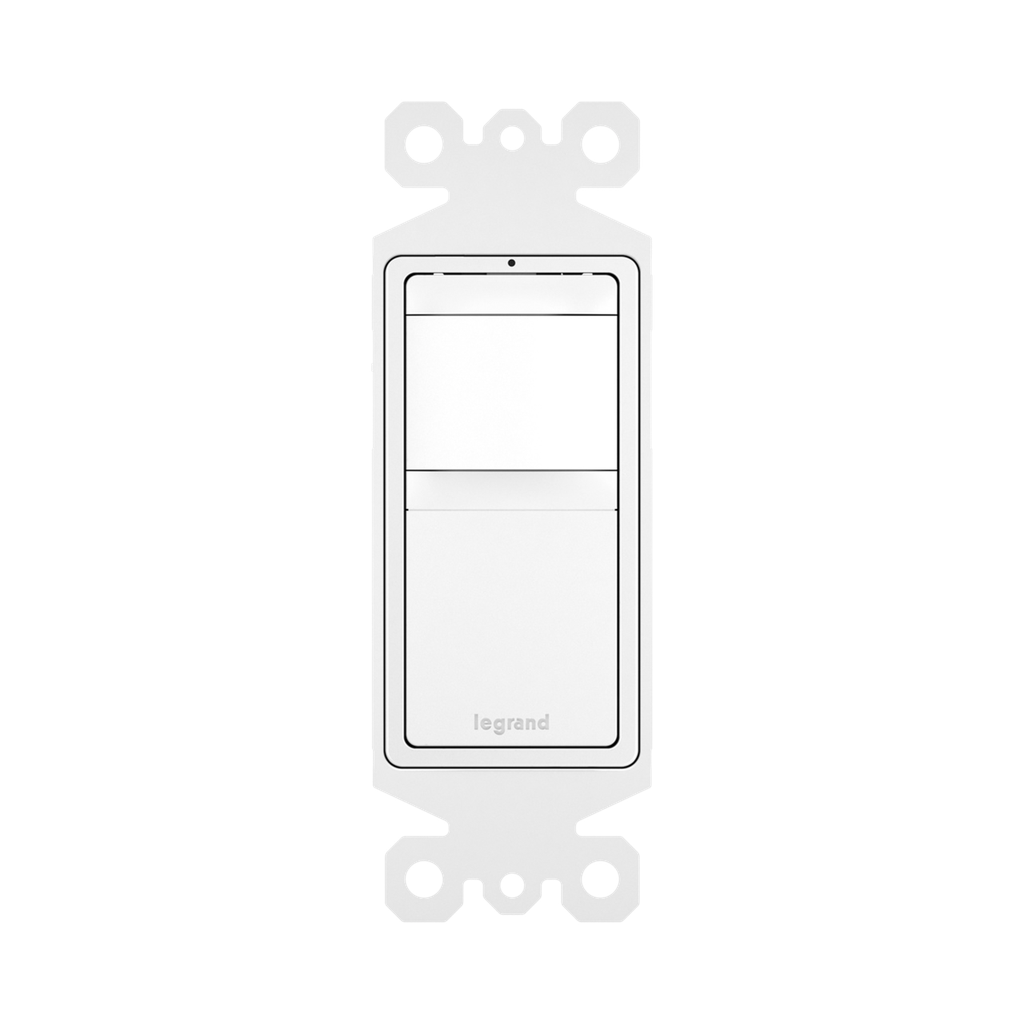

radiant RRW600UTC Occupancy Sensor Switch Single Pole 3-Way 180° Coverage 600 sq ft 120V 600W PIR Tri-Color Polycarbonate Steel Satin
Documents
Cutsheet
Supporting Document
Installation Instructions
Sell Sheet
Downloads

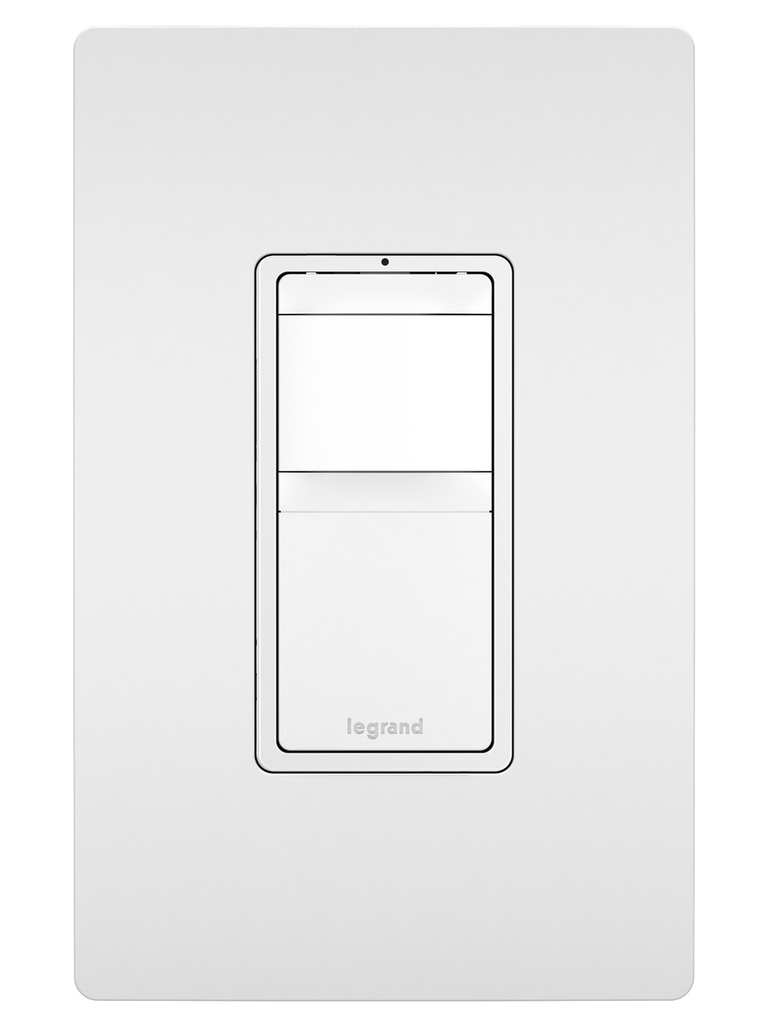

Elevate your indoor lighting control with this innovative occupancy sensor switch, designed with passive infrared (PIR) technology that offers 180-degree coverage over spaces up to 600 square feet. Ideal for varied applications such as bathrooms, hallways, and garages, it automatically turns lights on when you enter and off after you leave, enhancing convenience and promoting energy efficiency. This sensor switch features adjustable time delays ranging from 30 seconds to 20 minutes, allowing you to customize interaction based on your needs, while it supports both auto and manual operation modes. Installation is straightforward, accommodating single pole and multi-location setups without requiring a neutral wire. With compatibility across a wide range of bulb types—including LED, incandescent, and fluorescent—the occupancy sensor fits seamlessly into any existing system. Available in multiple finishes, from ivory to light almond, it not only enhances functionality but also adds a polished touch to your space, especially when paired with the sleek, screwless radiant® wall plate from the radiant® collection. UL and cULus listed for safety and performance, this switch ensures both reliability and sophisticated aesthetic appeal in your home.
- UL and cULus listed with California Title 24 compliance
- Passive infrared (PIR) sensor technology with 180° coverage up to 600 sq. ft.

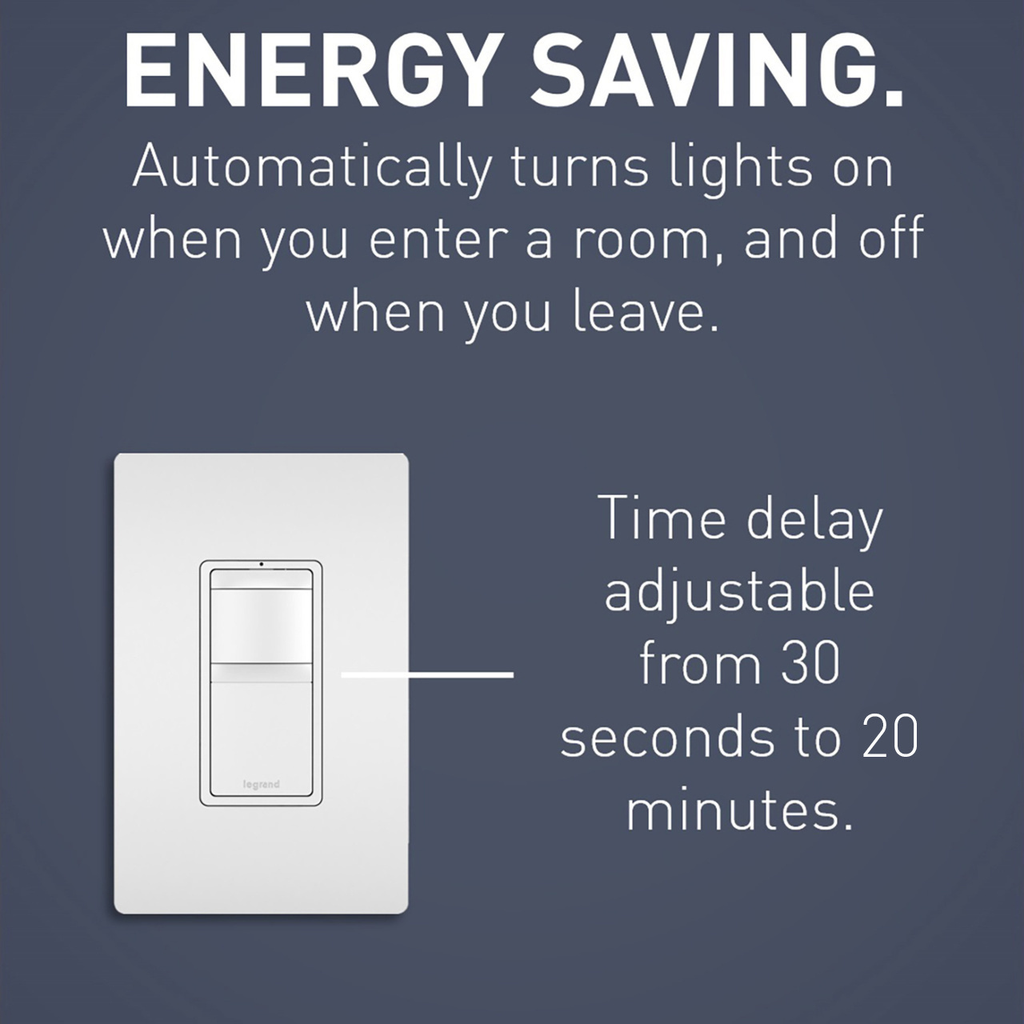

- Automatic lighting control with adjustable time delay from 30 seconds to 20 minutes
- Supports auto-on and manual-on modes for flexible operation
- Compatible with single pole, 3-way, and multi-location wiring setups
- No neutral wire required for easy installation
- Works with LED, incandescent, CFL, halogen, fluorescent, MLV, and ELV bulbs
- Durable polycarbonate and steel construction for indoor use
- Locator light emits soft glow when switch is off to aid visibility
- Available in multiple finishes to coordinate with home decor

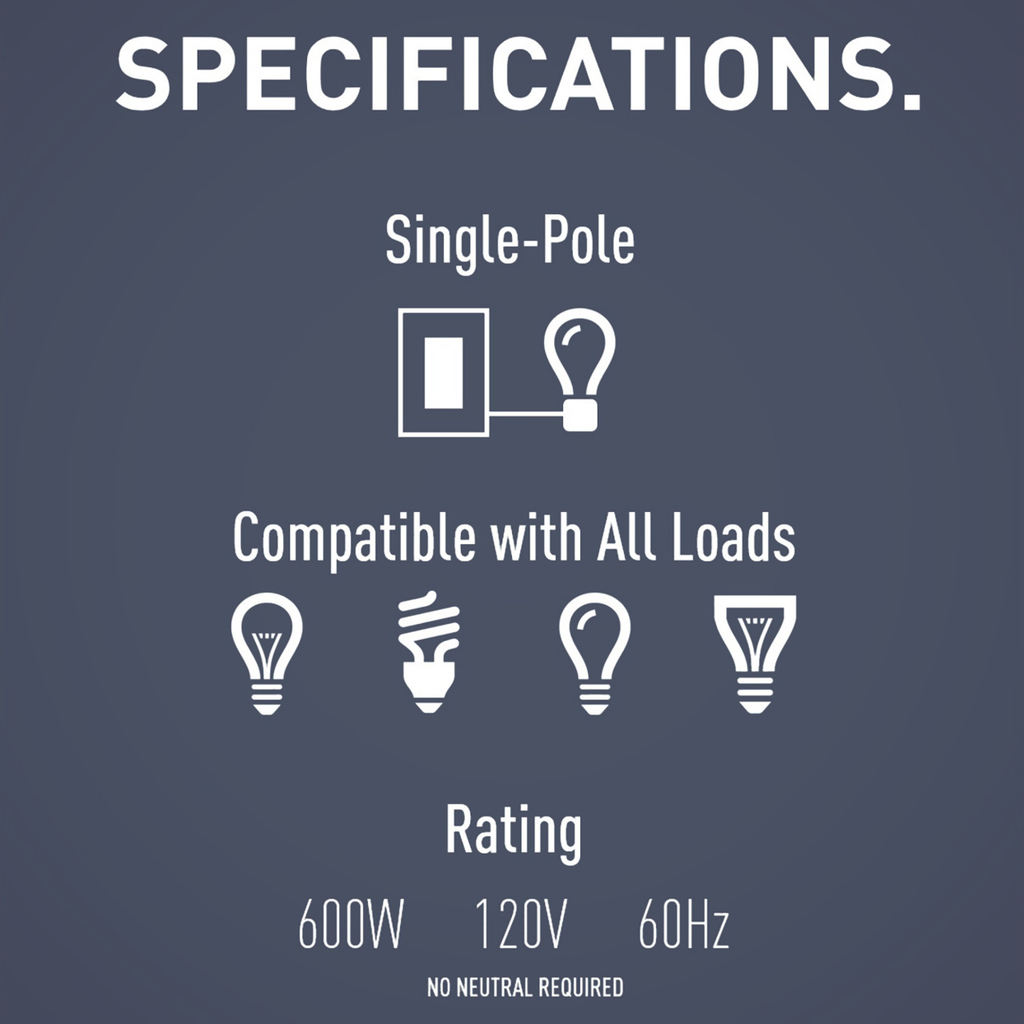

- Voltage: 120 VAC, 60 Hz
- Load Rating: 120V 5A 600W (LED, CFL, Incandescent, Halogen, Fluorescent), 600VA (MLV, Fluorescent), 120V 5A (ELV)
- Horsepower Rating: 1/6 HP @ 120 VAC
- Sensor Technology: Passive Infrared (PIR)

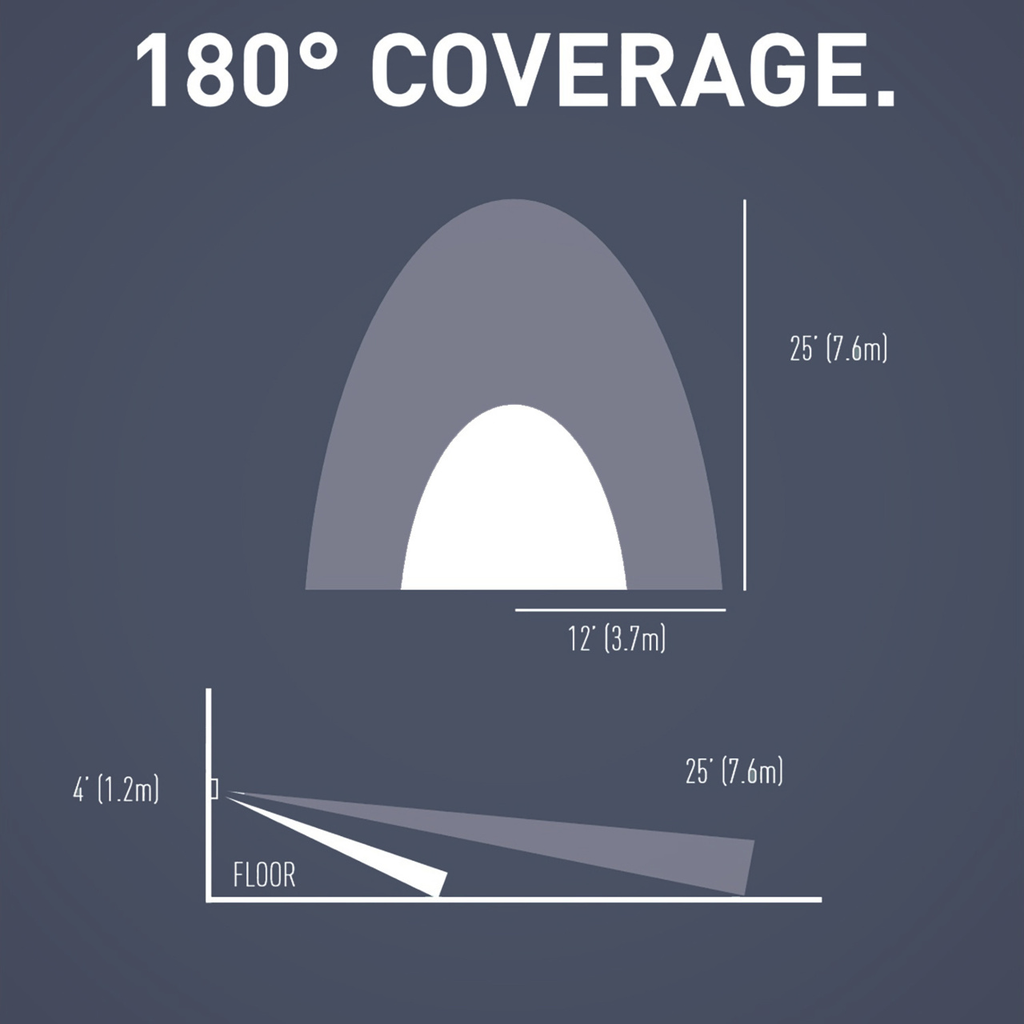

- Coverage: 180°, max 600 sq. ft
- Installation Type: Single Pole, 3-Way, Multi-Location
- Timer Duration: 30 seconds to 20 minutes (default 5 minutes)
- Operating Temperature: 32-104°F (0-40°C)
- Operating Humidity: 0-80% RH, non-condensing
- Installation Location: Wall Box
- Mounting Type: Wall Box
- Wire Connection Type: Flying Leads
- Wire Size: #14 - #10 AWG
- Number of Poles: Single Pole, 3-Way, Multi-Location
- Material: Polycarbonate, Steel
- Finish: Satin

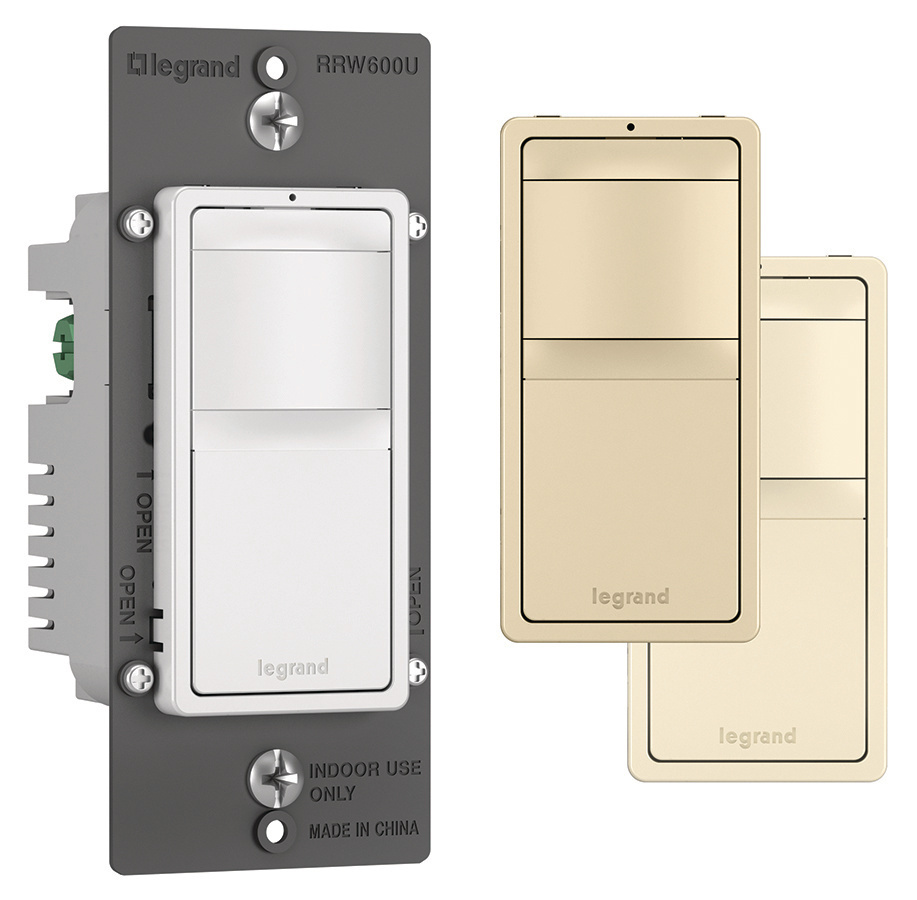

- Color: Ivory, Light Almond, White
- Location Rating: Dry, Indoor Use Only
- Standard: cULus
- Compliance: UL Listed, cULus Listed, RoHS Compliant, California Title 24 Compliant
- Flammability: UL94 V2
- Country of Origin: China
- Type: Switch
- Sensor Type: Occupancy, Vacancy
- Response Frequency: 60 Hz
- On Function: Selectable Auto/Manual
- Application Sector: Residential, Hospitality, Light Commercial, Multi-Dwelling Unit
