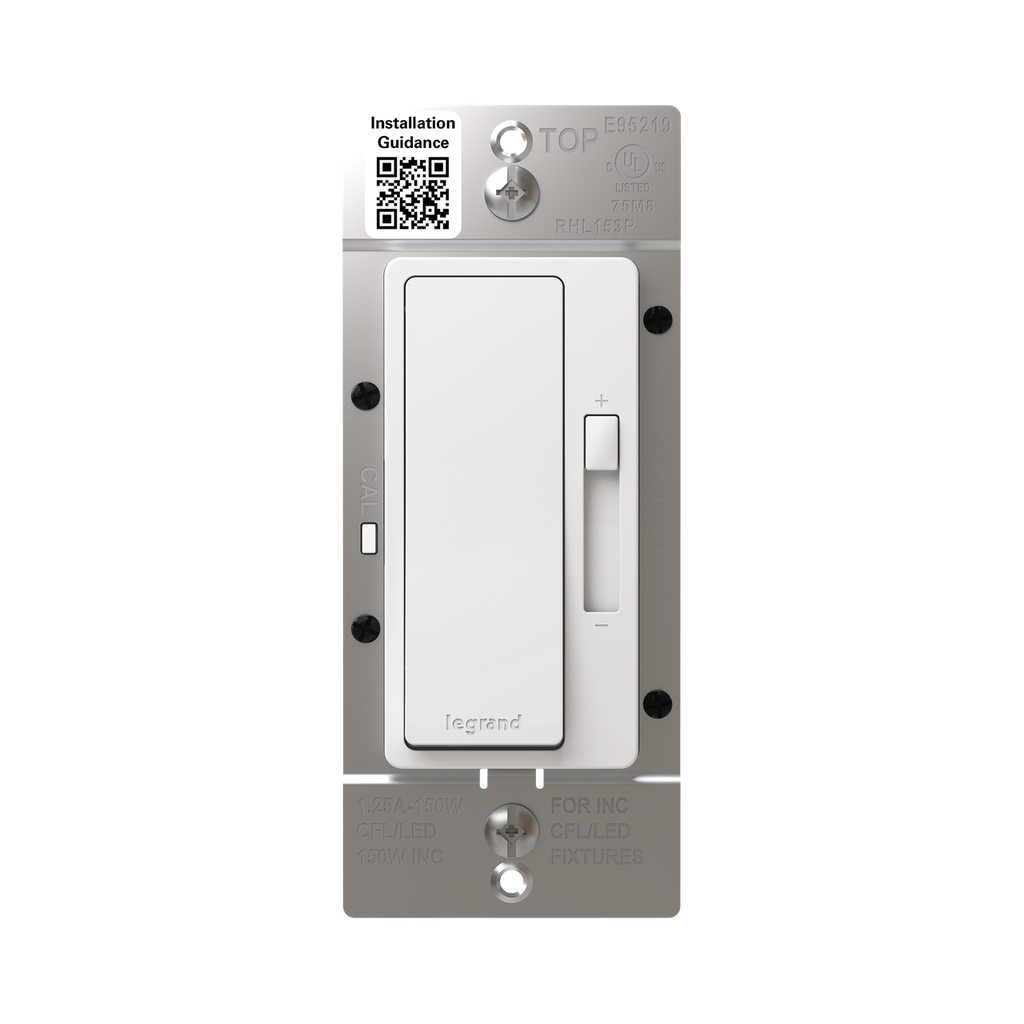

radiant RHL153PW LED Dimmer 150W Single Pole 3-Way Paddle Slider White Polycarbonate Steel
Documents
CAD Drawings
Downloads
Installation Instructions
The radiant® LED Advanced 150W Single Pole 3-Way Dimmer in white provides an innovative solution for controlling lighting in various settings, from residential to hospitality. This dimmer features a low-profile paddle switch that allows for smooth on/off operation paired with an ergonomic slider, enabling precise light level adjustments. Its advanced dimming technology ensures compatibility with dimmable LED bulbs, supporting up to 150W at 120VAC and effectively eliminating common issues such as flickering. Designed for ease of installation, this dimmer can replace any basic switch or dimmer within minutes without the need for a neutral wire, making it suitable for both new constructions and retrofit applications. The constant memory feature remembers your light settings even after a power outage, while the optional LED Burst Mode reduces turn-on delays for added convenience. With essential safety certifications, easy wiring options, and high-and-low end dimming limit adjustability, this dimmer not only enhances user experience but also ensures reliable and efficient lighting control.
- cULus, CSA, and RoHS certified for safety

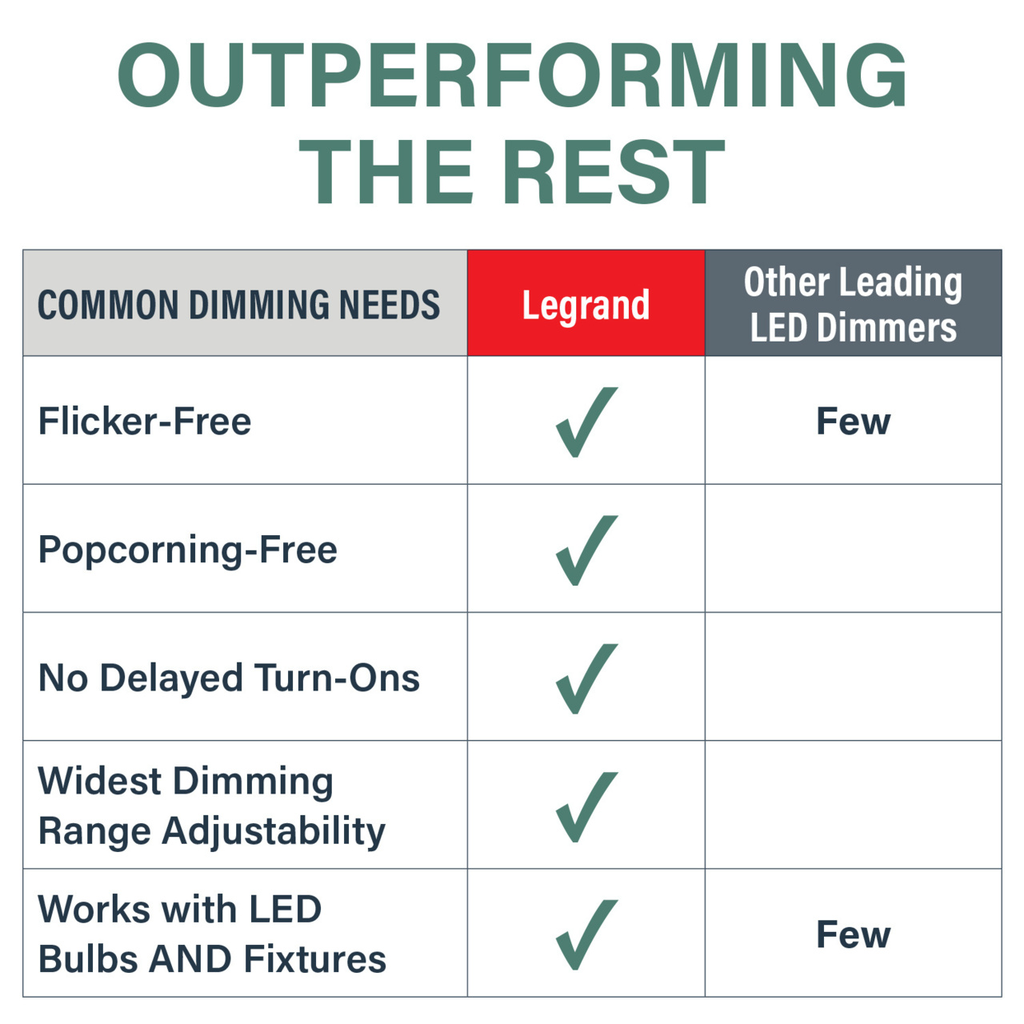

- Advanced dimming technology ensures flicker-free LED control
- Supports up to 150W load for LED, CFL, and incandescent bulbs
- No neutral wire required for easy retrofit and new construction installation
- Single pole and 3-way operation compatibility

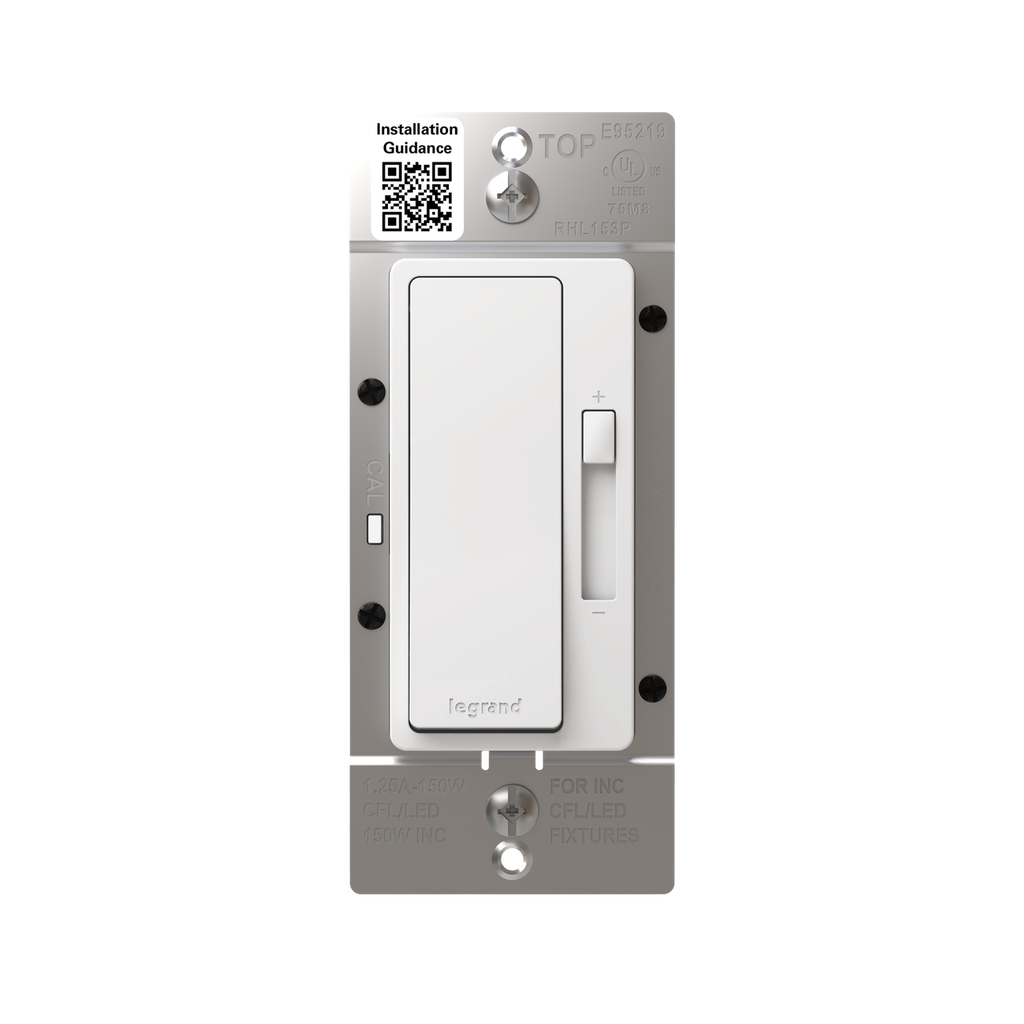

- Ergonomic paddle switch with separate slider for precise light adjustment

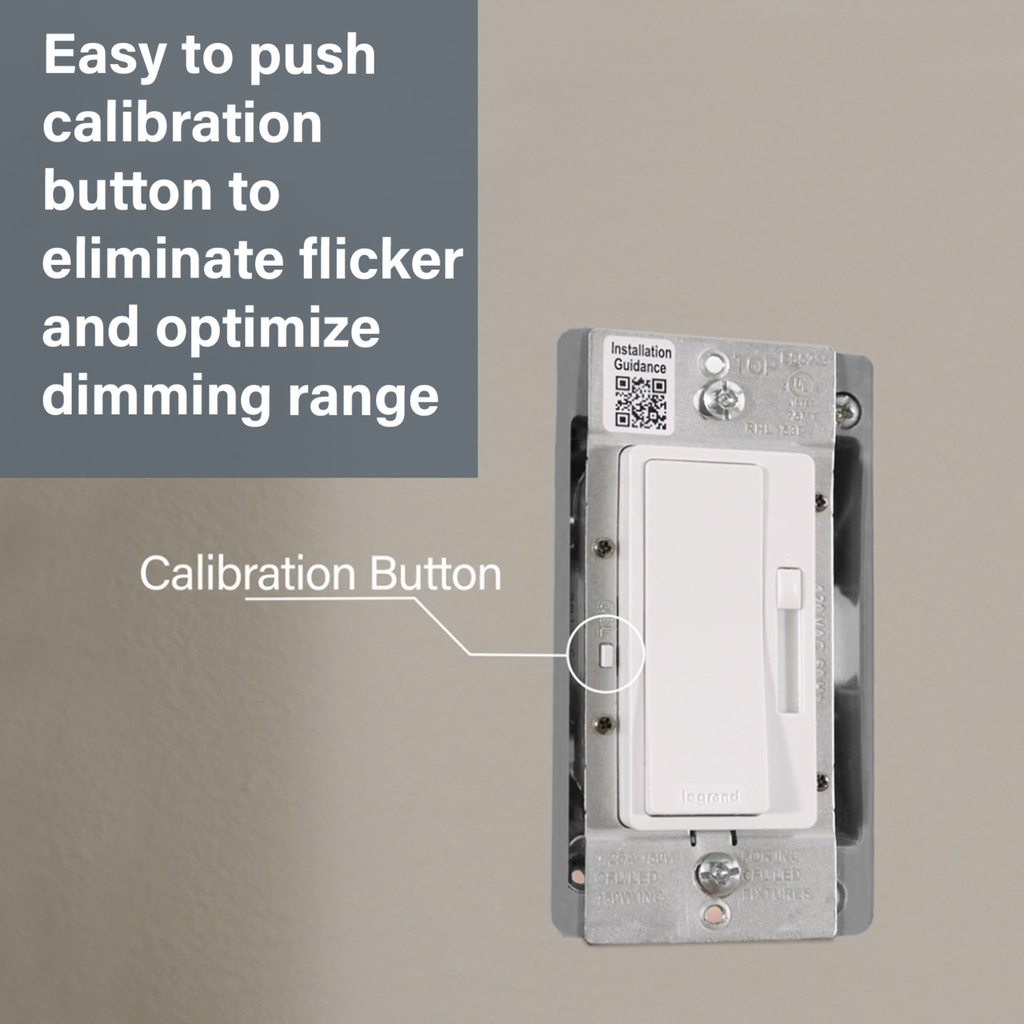

- Adjustable high- and low-end dimming limits to eliminate flicker
- Constant memory feature retains light settings after power loss
- Optional LED Burst Mode reduces turn-on delays and pop-on effects

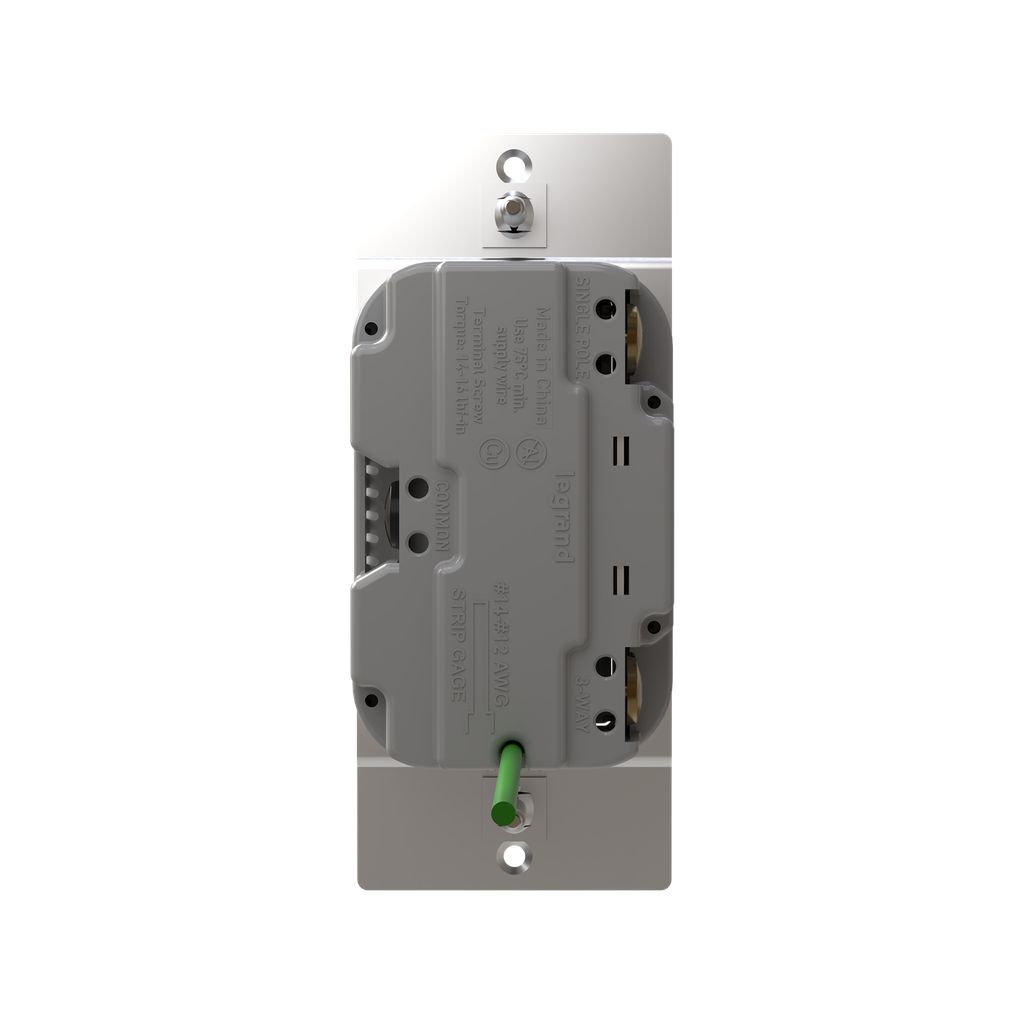

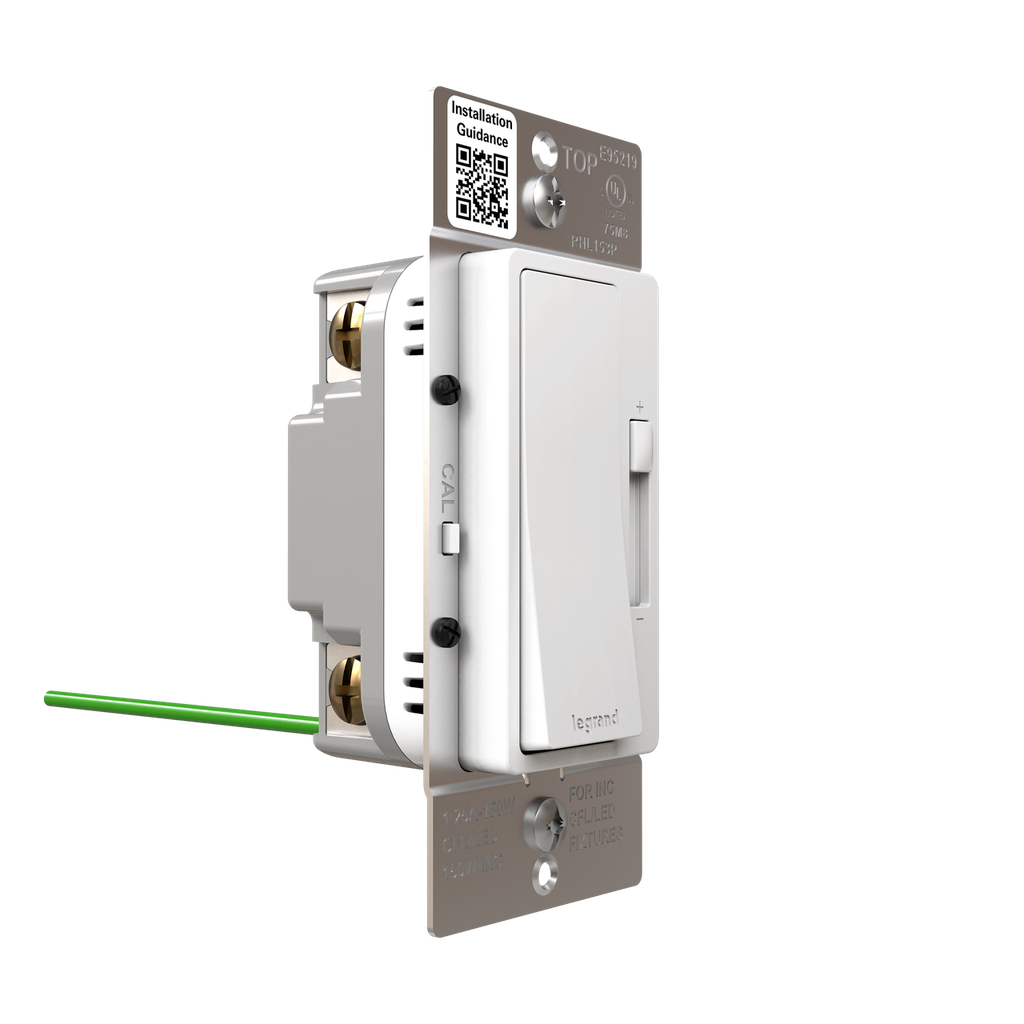

- Multiple wiring options including back-wire, screw, and pressure plate terminations

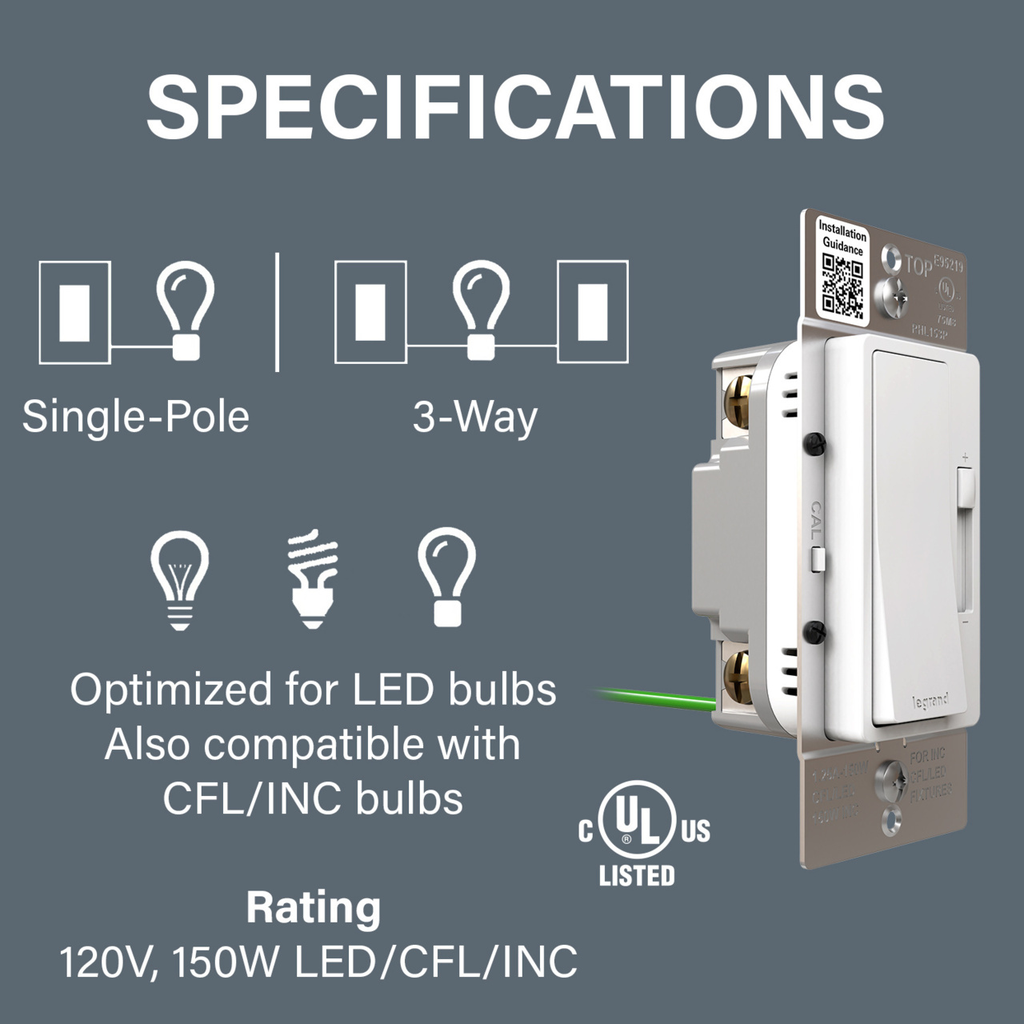

- Load Rating: 120V 1.25A 150W (LED, CFL, Incandescent)
- Voltage: 120 VAC
- Frequency: 60 Hz
- Dimming Compatibility: Forward Phase
- Number of Poles: Single Pole 3-Way
- Switch Type: Paddle, Slider
- Wire Size: #14 - #10 AWG solid & stranded
- Termination Method: Back-Wire, Screw & Pressure Plate
- Screw Torque Requirement: 14-16 lbf-in

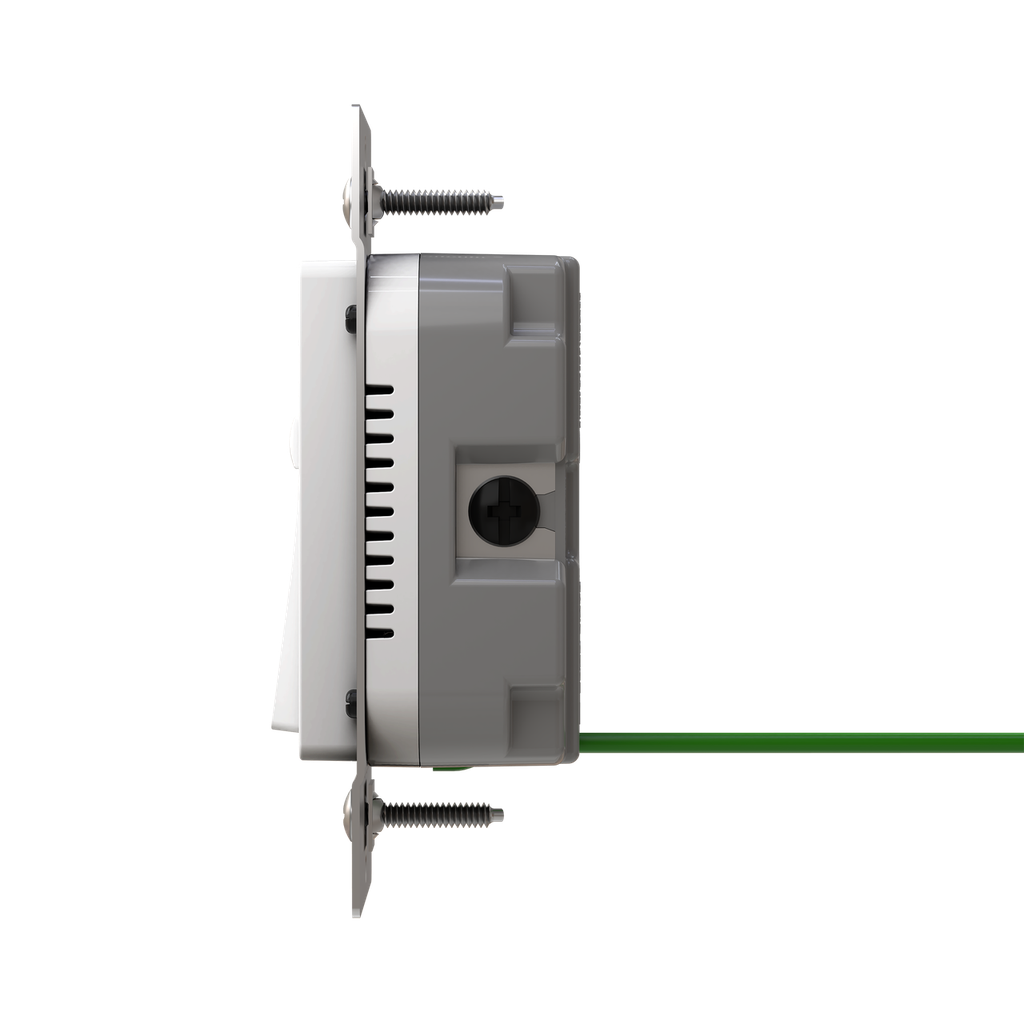

- Height: 4.19 in
- Width: 1.74 in
- Depth: 1.46 in
- Depth into Wall Box: 1.13 in
- Weight: 0.194 lb
- Mounting Type: Wall Box
- Material: Polycarbonate, Tin Plated Brass, Zinc Coated Cold-Rolled Steel, Plated Steel
- Finish: Satin
- Standard: cULus, CSA, RoHS
- Requires Neutral Wire: No
- Operating Temperature: -40°C to +40°C
- Environmental Conditions: 0 to 90% RH, non-condensing
- Flammability: UL94 V2
- Indoor/Outdoor: Indoor
- Color: White
- Country of Origin: China
- Application Sector: Residential, Hospitality
- Preset: Yes
- Product Line: Pass & Seymour
