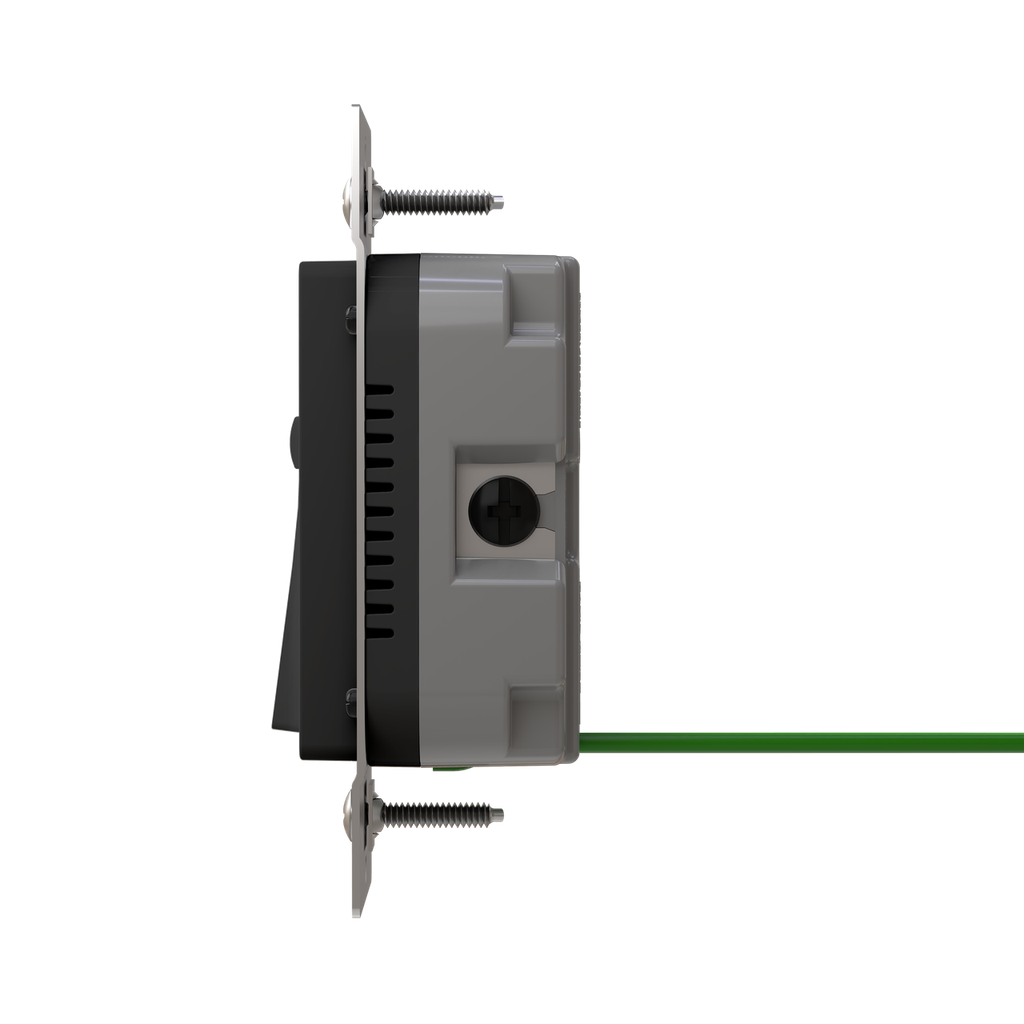

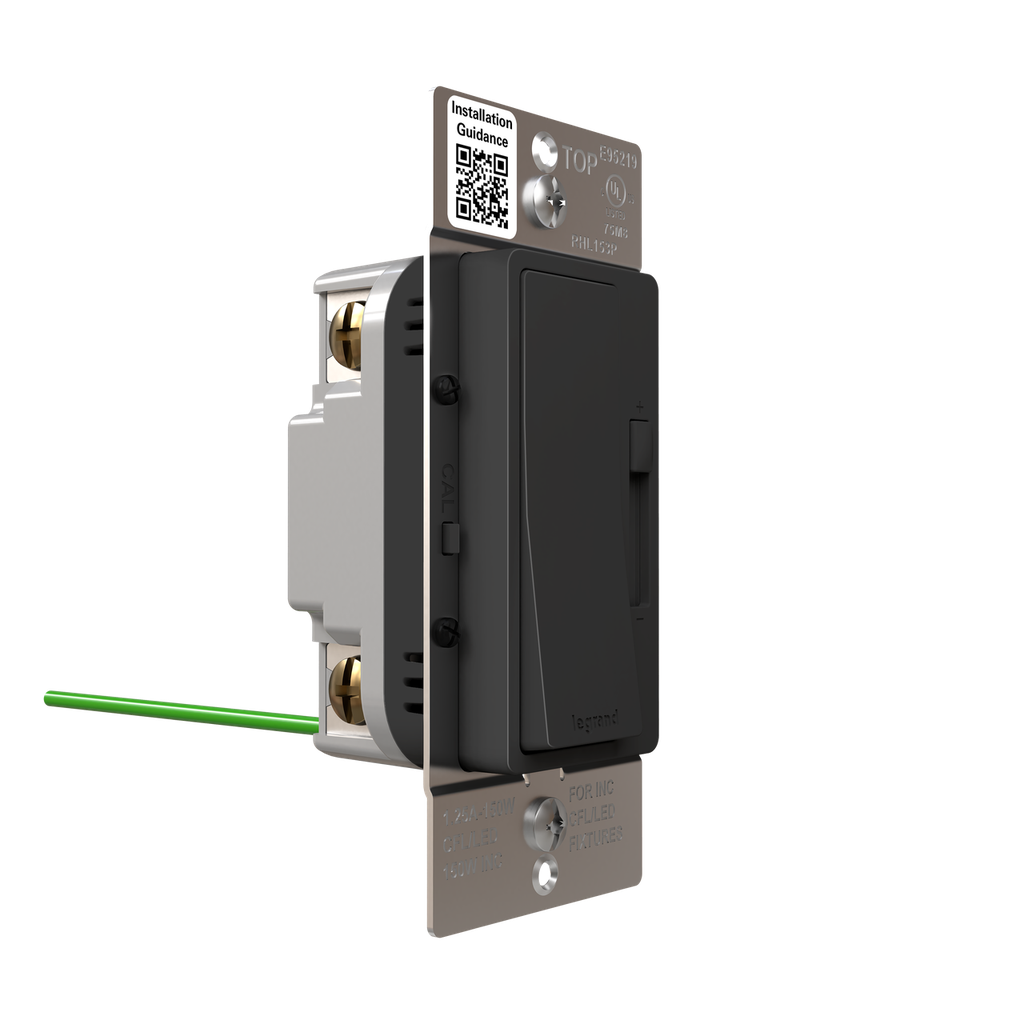

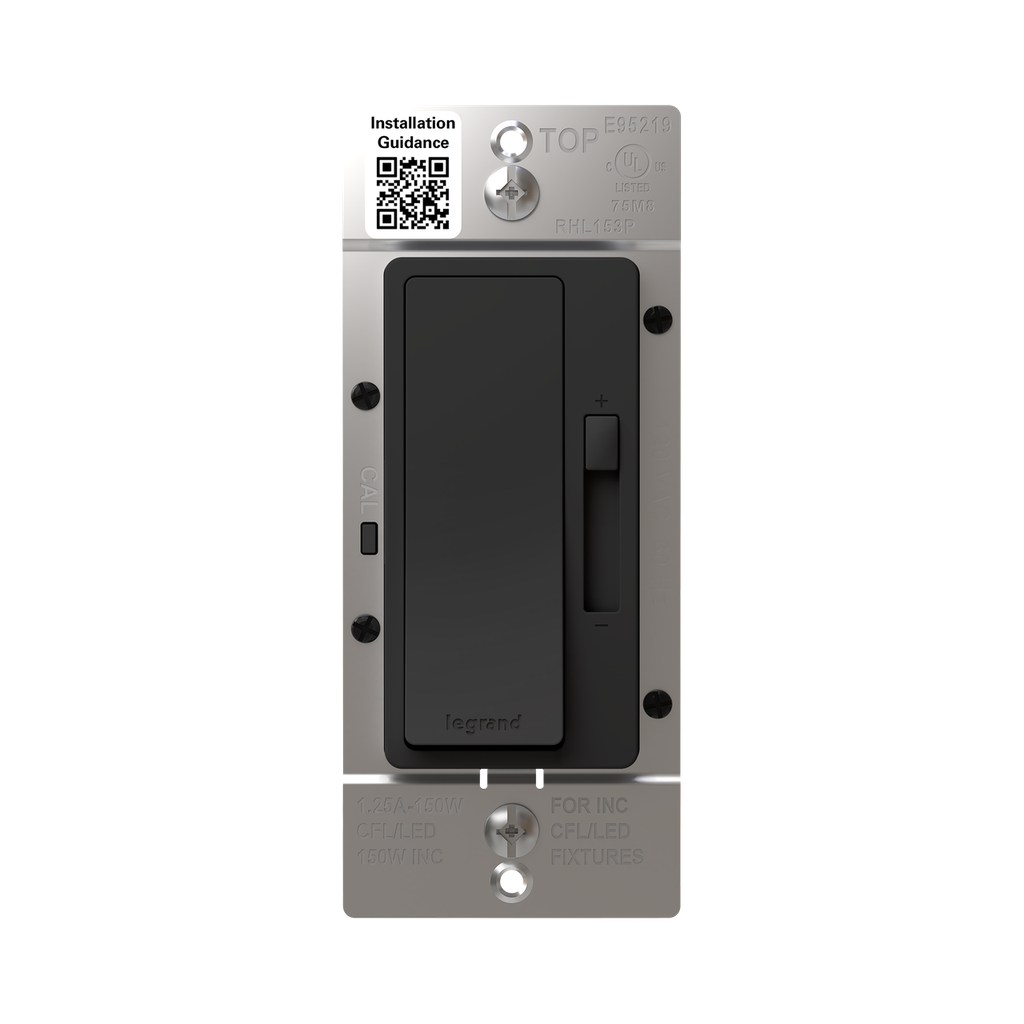

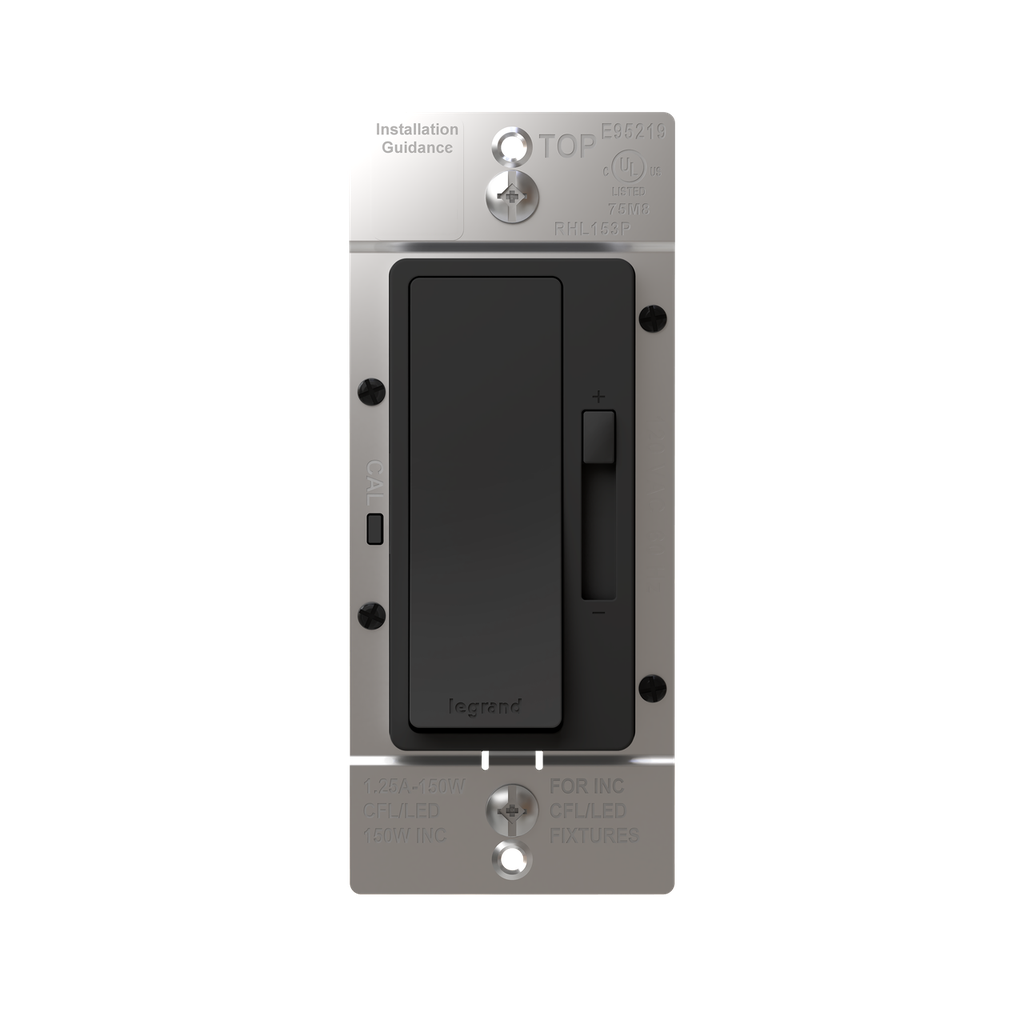

radiant RHL153PBK Single Pole 3-Way LED Dimmer 150W 120V Paddle Slider Black Polycarbonate Steel
Documents
Installation Instructions
Downloads
CAD Drawings

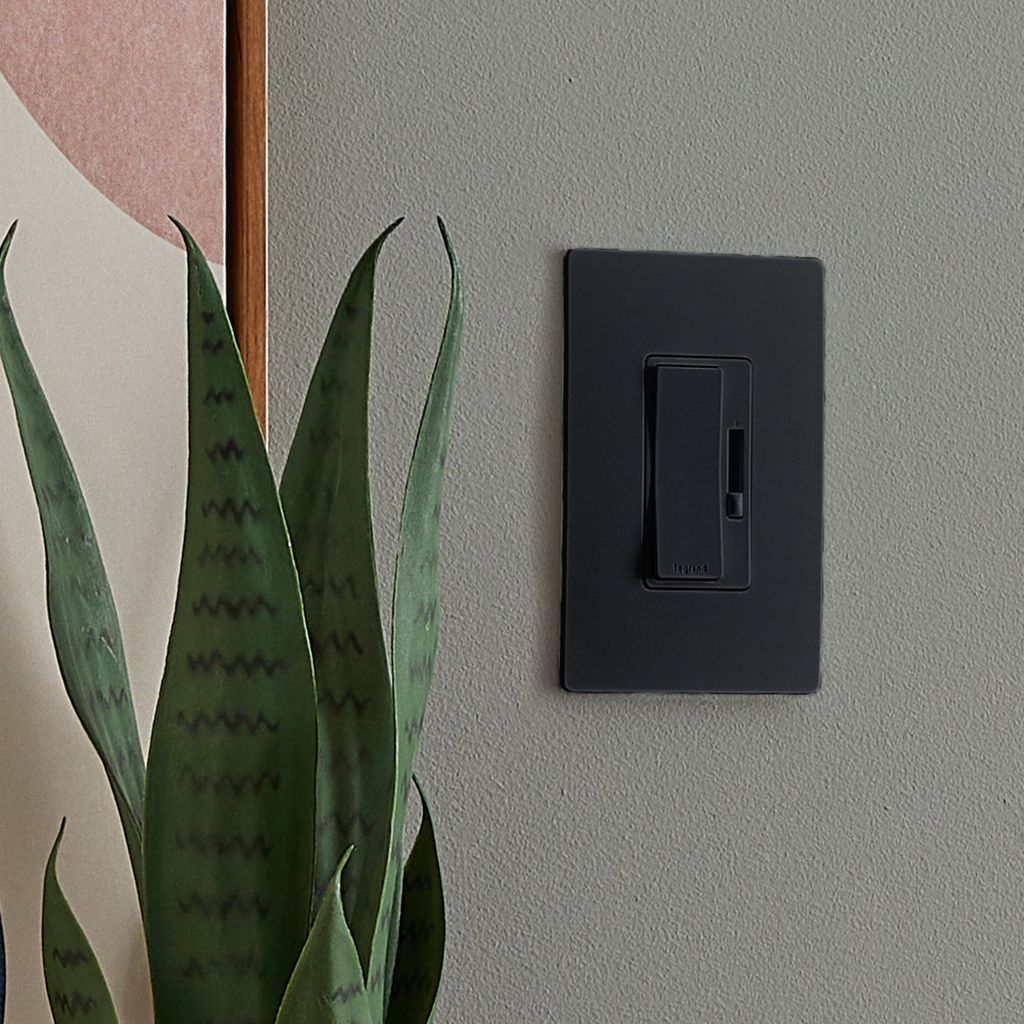

Experience enhanced lighting control with the radiant® LED Advanced 150W Single Pole 3-Way Dimmer in sleek black, designed to seamlessly replace any standard single-pole or 3-way switch in under 15 minutes, without the need for a neutral wire. This dimmer features advanced technology that maximizes LED compatibility, providing a smooth dimming experience while minimizing common LED issues like flickering. The low-profile paddle switch allows effortless on/off operation, paired with an ergonomic slider for precise light level adjustments to suit any mood. Accessibility is at the forefront of its design, as a QR code on the front face provides easy access to installation guides and videos for hassle-free setup. Additional conveniences include a constant memory feature that recalls your previous settings after a power interruption and an optional LED Burst Mode to eliminate start-up delays. Whether for residential or hospitality applications, this dimmer offers a reliable solution for controlling up to 150W of dimmable LED fixtures, making it an indispensable addition to your lighting system.
- Meets cULus, CSA, RoHS, and NEMA SSL-7A standards for safety and performance
- Specifically designed for dimmable LED bulbs up to 150W at 120VAC with flicker-free control
- No neutral wire required for easy retrofit in any home
- Advanced dimming technology optimized for LED compatibility, reducing common LED dimming issues
- Calibration button allows high- and low-end dimming range adjustment to eliminate flicker
- Optional LED Burst Mode reduces start-up delays and pop-ons
- Constant memory recalls previous dimmer and light settings after power failure

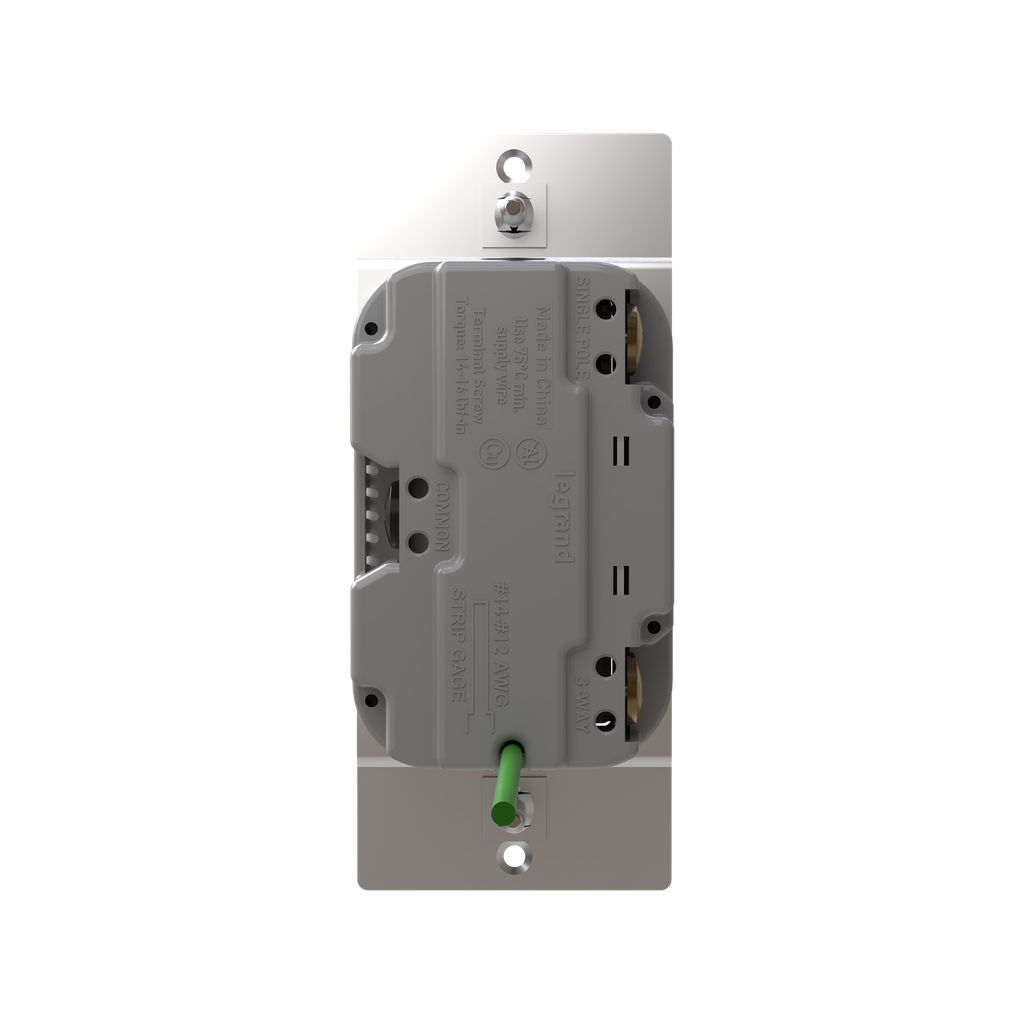

- Back-wire, screw, and pressure plate terminals enable reliable and easy wiring with ground wire lead
- Low-profile satin black polycarbonate paddle with ergonomic slider for smooth on/off and precise dimming
- Compatible with single-pole and 3-way switch configurations for versatile installation
- Load Rating: 120V 1.25A 150W (LED, CFL, Incandescent)
- Voltage: 120 VAC
- Amperage: 1.25 A
- Switch Type: Slider Paddle
- Number of Poles: Single Pole 3-Way
- Depth: 1.46 in
- Width: 1.74 in
- Height: 4.19 in
- Weight: 0.194 lb
- Mounting Type: Wall Box
- Material: Polycarbonate, Steel, Tin plated brass, Zinc coated cold-rolled steel
- Finish: Satin
- Requires Neutral Wire: No
- Dimming Technology: Advanced forward phase
- Calibration: High and low end adjustability with calibration button
- Burst Mode: Optional LED burst mode setting
- Wire Size: #14 - #10 AWG solid and stranded
- Wire Connection Type: Back-wire, screw, pressure plate (Screw Terminals)
- Screw Torque: 14-16 lbf-in
- Operating Temperature Range: -40°C to +40°C
- Flammability Rating: UL94 V2
- Standard: RoHS, NEMA (SSL-7A WD1 & WD6), cULus, CSA
- Application Sector: Hospitality, Residential
- Indoor/Outdoor: Indoor
- Color: Black
- Country of Origin: China
- Environmental Conditions: 0 to 90% RH, non-condensing
- Number of Switches: 1
- Preset: Yes
- Product Line: Pass & Seymour
- Jigsaw Channel Availability: Distribution, Retail
