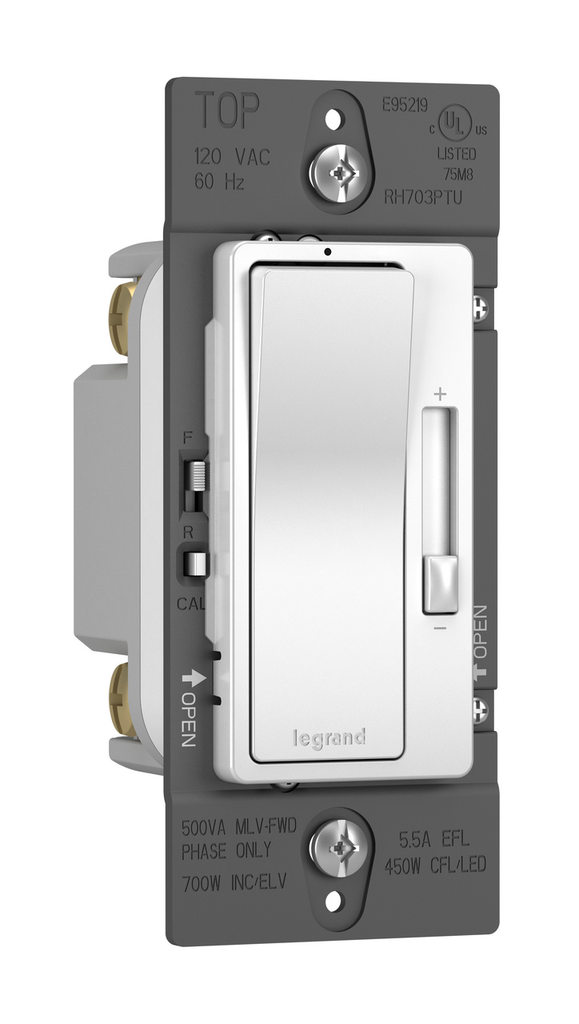

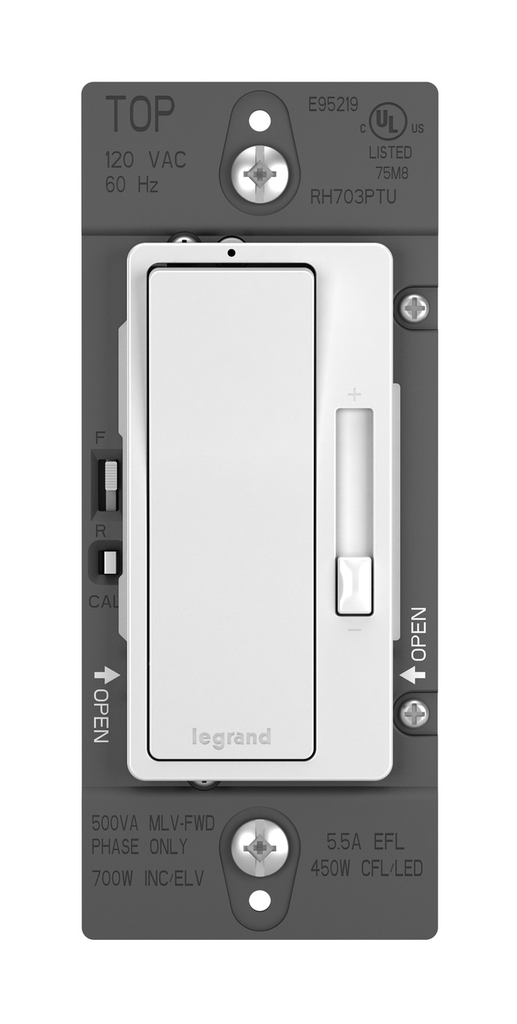

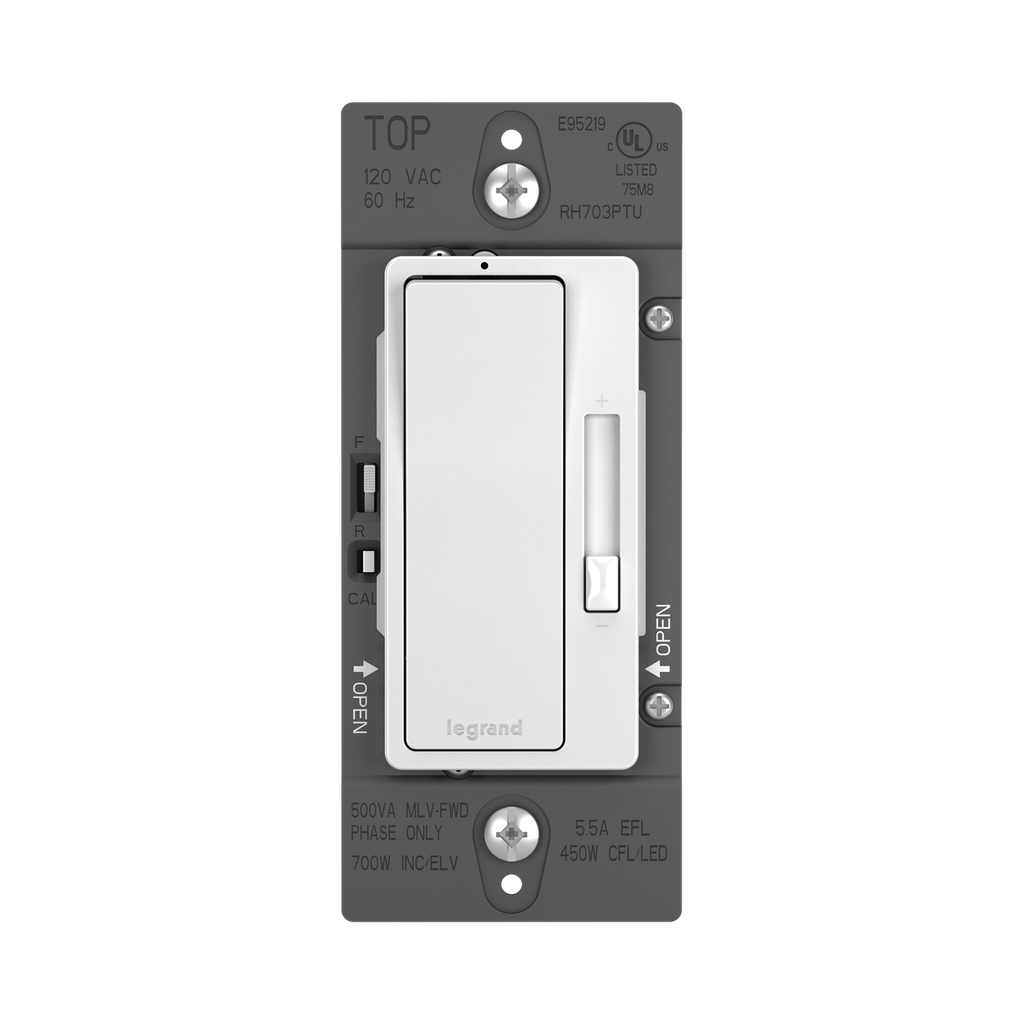

radiant RH703PTUW Tru-Universal Dimmer Single Pole 3-Way 120V 700W White Thermoplastic
Documents
Supporting Document
Sell Sheet
Installation Instructions
Cutsheet
Downloads
Enhance your lighting experience with the Tru-Universal Single Pole/3-Way Dimmer from radiant. This sophisticated dimmer switch is crafted from durable, high-impact thermoplastic, ensuring longevity while maintaining an elegant design suitable for any room. Featuring a low-profile paddle switch for easy On/Off control and a separate ergonomic slider for precise adjustments, this dimmer is not only user-friendly but also highly functional, catering to all your dimmable bulb needs—whether incandescent, LED, CFL, or fluorescent. Equipped with a soft-glow locator light to guide you in the dark and an innovative self-calibration feature that eliminates flicker, this dimmer enhances your living or work environment by returning lights to their previous level after being switched off or in case of a power outage. Versatile enough for both single-pole and 3-way applications, it's a seamless addition to any residential or light commercial space, pairing beautifully with radiant's screwless wall plates for a streamlined look. With its easy installation and maximum compatibility, this dimmer ensures control and sophistication in your lighting solutions.
- cULus, UL, and CSA listed for electrical safety assurance
- Self-calibrates to eliminate flickering and poor performance
- Locator light soft-glows to enable easy switch location in the dark
- Works with virtually any 120V dimmable bulb including incandescent, LED, CFL, fluorescent, ELV, MLV, and EFL
- Suitable for single pole and 3-way wiring configurations
- Low-profile paddle switch for smooth On/Off control

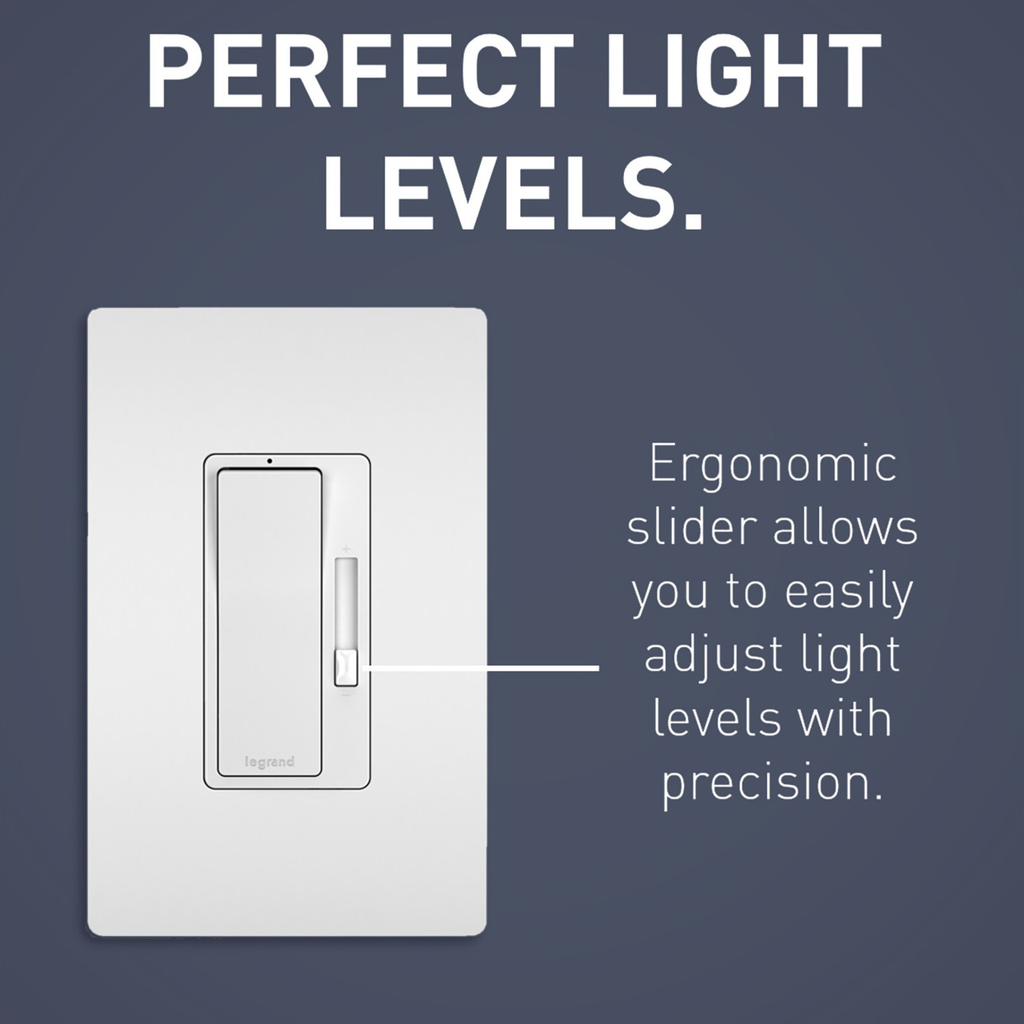

- Ergonomic slider allows precise brightness adjustments
- Durable high-impact resistant thermoplastic and polycarbonate construction
- Satin finish offers a sleek, modern appearance
- Complies with California Title 24 energy efficiency standards
- Voltage: 120 VAC
- Load Rating: 120V 5.5A (EFL), 120V 700W (Incandescent, Halogen, ELV), 120V 4.5A 450W (CFL, LED), 120V 500VA (MLV)
- Frequency: 60 Hz
- Number of Poles: Single Pole 3-Way
- Mounting Type: Wall Box
- Dimensions: Height 4.25 in, Width 1.75 in, Depth 1.25 in
- Load Type: Incandescent, Halogen, ELV, MLV, CFL, LED, EFL, Fluorescent
- Dimming Compatibility: Forward or Reverse Selectable Phase
- Wire Connection Type: Screw Terminals
- Wire Size: #14 - #10 AWG
- Material: Steel, Thermoplastic, Polycarbonate Lexan
- Finish: Satin
- Indoor/Outdoor: Indoor
- Environmental Conditions: Less than 95% humidity, non-condensing
- Standard: cULus Listed, UL1472, CSA-C22.2 No. 184.1-95, UL Listed, CSA Listed
- Compliance: California Title 24 Compliant
- Number of Switches: 1
- Switch Type: Paddle, Slider
- Application: Single Pole or 3-Way
- Color: White
- Country of Origin: China
