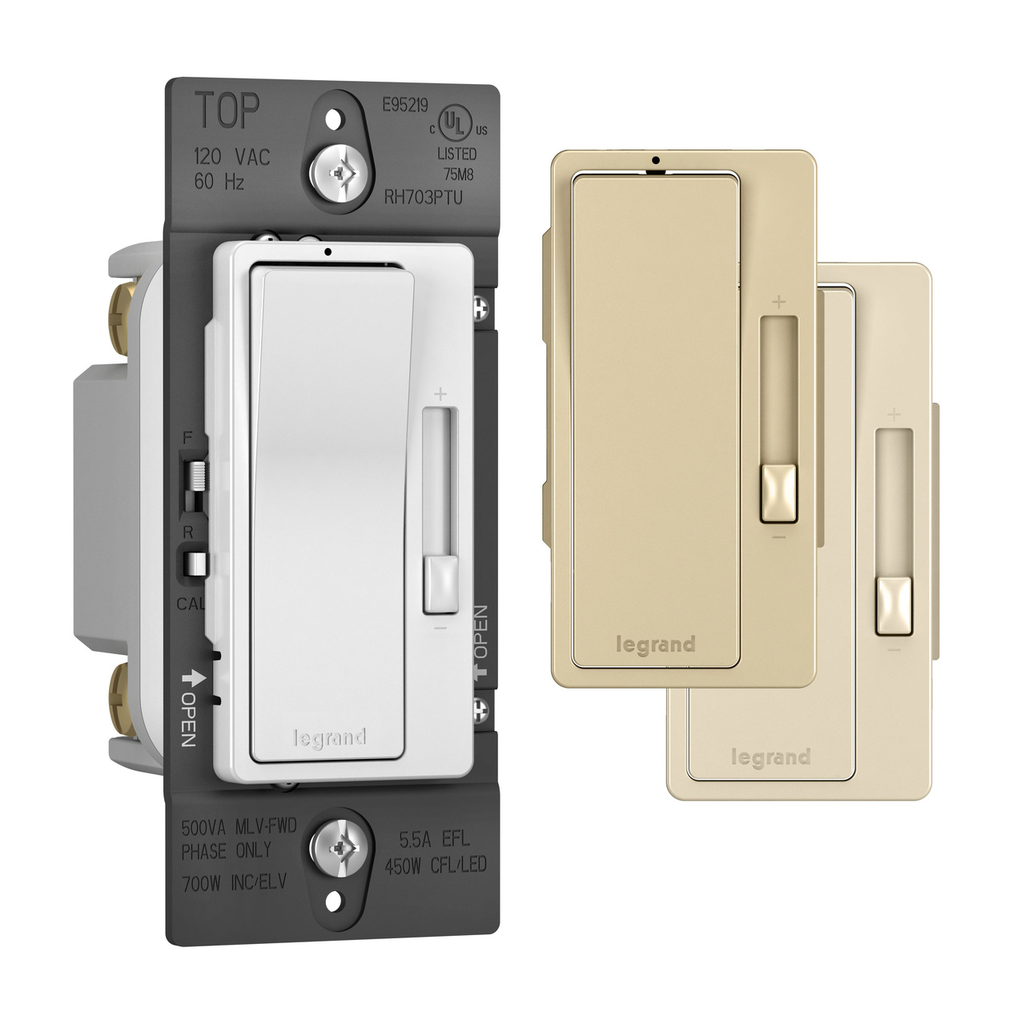

radiant RH703PTUTC Tru-Universal Dimmer Single Pole 3-Way 120V 700W Thermoplastic Tri-Color

The radiant® Tru-Universal Single Pole/3-Way Dimmer is an impressive choice for those looking to enhance their lighting control with ease and style. This dimmer self-calibrates based on the selected lighting type, automatically optimizing the minimum voltage to ensure flicker-free performance. Crafted from durable, high-impact resistant thermoplastic, it features a low-profile paddle switch that provides smooth On/Off functionality alongside an ergonomic slider for precise light adjustment. Compatible with a wide range of 120V dimmable bulbs and fixtures, this versatile dimmer can be used in both single-pole and 3-way configurations, making it suitable for various residential and light commercial applications. With its added benefits like constant memory for power outages, a locator light for nighttime visibility, and a selection of finishes to match your decor, this dimmer not only meets practical needs but also enhances overall space aesthetics. Enjoy a reliable and stylish solution for your lighting needs with this well-engineered and thoughtful design.

• UL, cULus, CSA certified and California Title 24 compliant for safety and regulatory adherence
• Works with virtually any 120V dimmable bulb including incandescent, halogen, ELV, MLV, LED, CFL, EFL
• Supports both single-pole and 3-way electrical configurations for versatile installation
• Self-calibrating technology for flicker-free dimming and optimized minimum voltage
• Constant memory retains light settings after power outages
• Durable, high-impact resistant thermoplastic housing for long-lasting use
• Low-profile paddle switch with ergonomic slider for smooth, precise light control
• Locator light emits a soft glow for easy switch identification in the dark
• Wall box mounting with screw terminal connections for secure installation
• Matte finish available in Ivory, Light Almond, and White to match decor

• Voltage: 120 VAC
• Load Rating: 120V 700W (Incandescent, Halogen, ELV), 120V 500VA (MLV), 120V 4.5A 450W (LED, CFL), 120V 5.5A (EFL)
• Frequency: 60 Hz
• Dimming Compatibility: Forward or Reverse Selectable Phase Control
• Number of Poles: Single Pole 3-Way
• Dimensions: 4.25 in H x 1.75 in W x 1.25 in D
• Mounting Type: Wall Box
• Wire Size: #14 - #10 AWG
• Connection: Screw Terminals
• Material: Steel, Thermoplastic, Polycarbonate Lexan
• Finish: Matte
• Indoor/Outdoor: Indoor
• Compliance: UL Listed, cULus Listed, CSA Listed, California Title 24
• Maximum Humidity: 95% relative humidity, non-condensing
• Requires Neutral Wire: Yes
• Load Type: Incandescent, Halogen, ELV, MLV, LED, CFL, EFL, Fluorescent
• Color: Ivory, Light Almond, White
• Country of Origin: China
• Application Sector: Residential, Commercial, Multi-Dwelling Unit, Light Commercial, Hospitality
• Brand: Pass & Seymour
