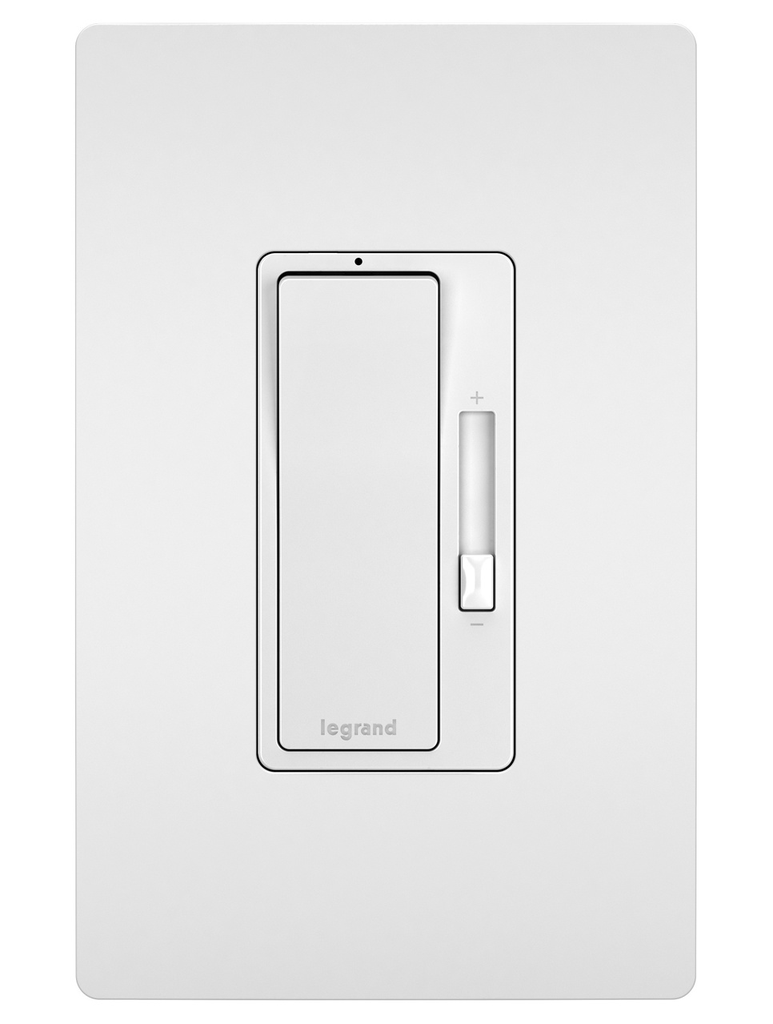

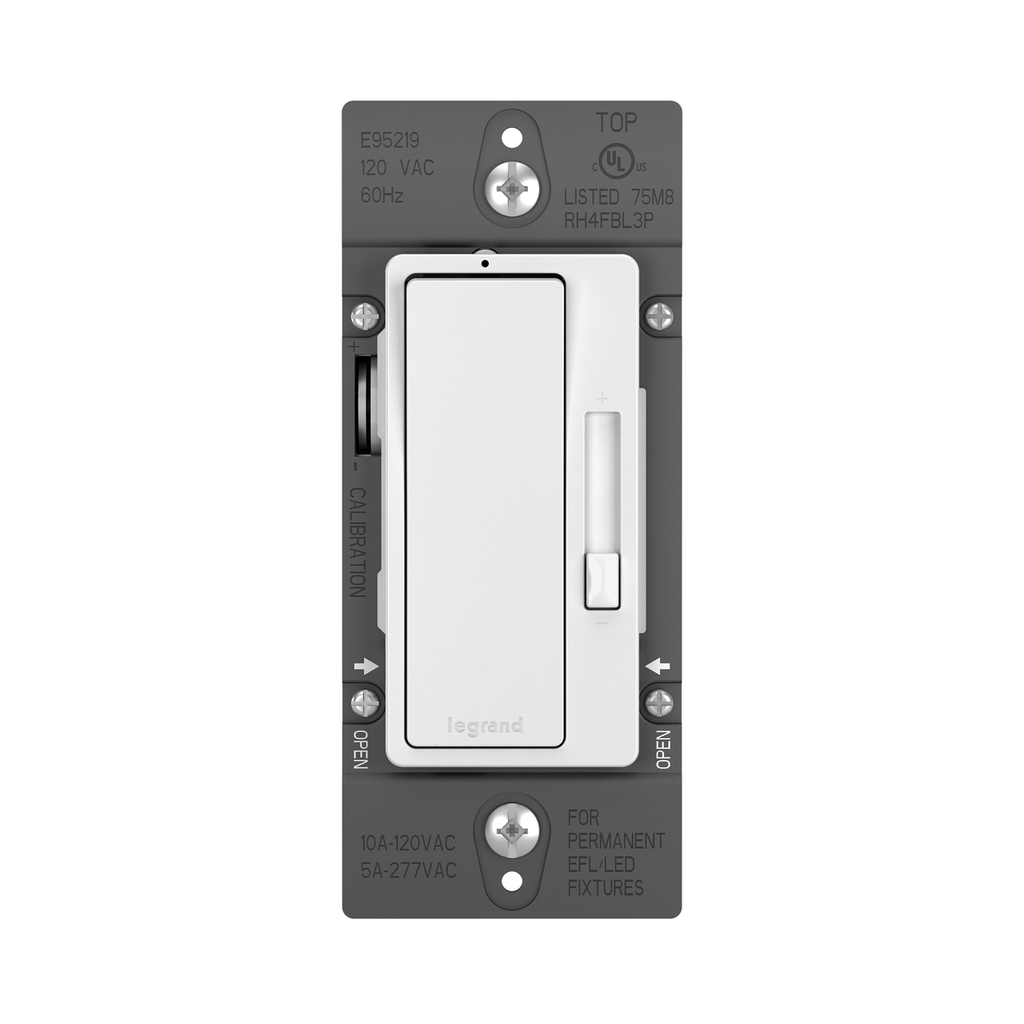

radiant RH4FBL3PTC 0-10V LED Fluorescent Dimmer Single Pole 3-Way 120/277V 10A Paddle Slider Thermoplastic Ivory Light Almond White Matte

Transform your space with the radiant® 0-10V LED/Fluorescent Dimmer, an innovative solution designed for both residential and commercial applications. This dimmer simplifies the lighting experience by replacing any basic switch or dimmer in single-pole and 3-way configurations, offering compatibility with 0-10V, 4-wire LED and fluorescent lighting systems at varying voltages. Featuring a low-profile paddle switch and an ergonomic slider, it allows for smooth on/off control and precise adjustment of light levels, while its constant memory feature ensures that your preferred lighting setting is restored automatically after a power outage. Crafted from durable, high-impact resistant thermoplastic, this dimmer is as resilient as it is stylish, available in multiple colors to complement your décor. Furthermore, the screwless radiant® Wall Plate finishes the look seamlessly, enhancing your interior with a clean and modern aesthetic. With added conveniences like a locator light for easy visibility in the dark and the ability to handle up to 10A for fluorescent or 5A for LED loads without derating in 2-gang applications, this dimmer exemplifies both form and function for today's dynamic lighting needs.

• cULus, UL, CSA listed and California Title 24 compliant for safety and energy efficiency
• Handles up to 10A fluorescent and 5A LED loads without derating in 2-gang applications
• Compatible with 0-10V, 4-wire LED and fluorescent lighting systems
• Supports single-pole and 3-way wiring configurations
• Low-profile paddle switch offers smooth on/off control and ergonomic slider for precise light adjustment
• Constant memory restores light level after power outage
• Locator light illuminates in the dark for easy visibility
• Durable, high-impact resistant thermoplastic construction
• Screwless wall plate provides clean, modern aesthetic
• Available in multiple colors to complement décor and match hardware trends

• Voltage: 120/277 VAC
• Load Rating: 120V 10A (Fluorescent), 277V 5A (LED, Fluorescent), 120V 10A (LED)
• Current Rating: 120V 10A, 277V 5A
• Control: 0-10V DC 30mA Sink
• Frequency: 60 Hz
• Mounting Type: Wall Box
• Height: 4.25 in
• Width: 1.75 in
• Depth: 1.25 in
• Dimensions: 4.25 in H x 1.75 in W x 1.25 in D
• Wire Size: #14 - #10 AWG
• Wire Connection Type: Flying Leads
• Number of Poles: Single Pole 3-Way
• Load Type: Fluorescent, LED
• Switch Type: Slider, Paddle
• Requires Neutral Wire: No
• Material: Steel, Thermoplastic
• Finish: Matte
• Enclosure Material: Polycarbonate
• Color: Ivory, Light Almond, White
• Indoor/Outdoor: Indoor
• Environmental Conditions: Less than 95% humidity, non-condensing
• Compliance: cULus Listed, UL Listed, CSA Listed, California Title 24 Compliant
• Country of Origin: China
• Application Sector: Commercial, Residential, Hospitality
• Warranty: Limited Lifetime Warranty
