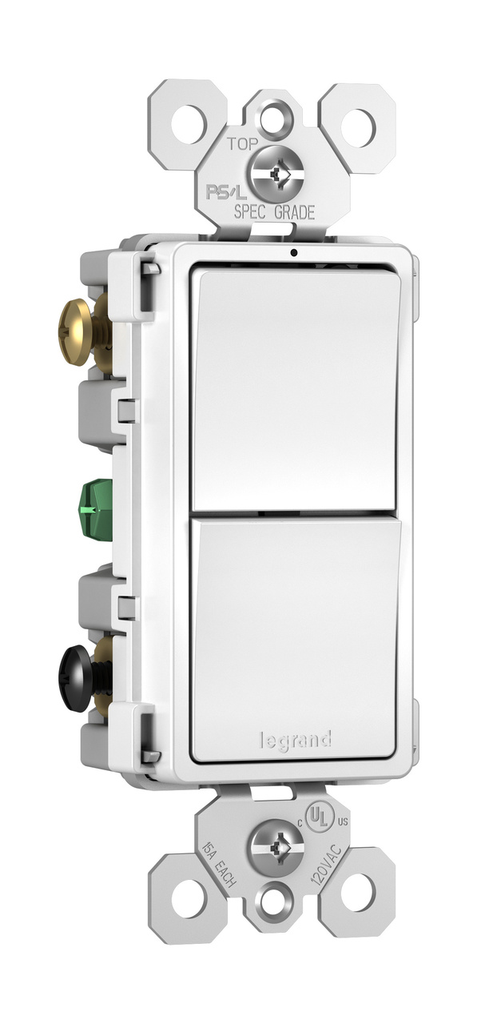

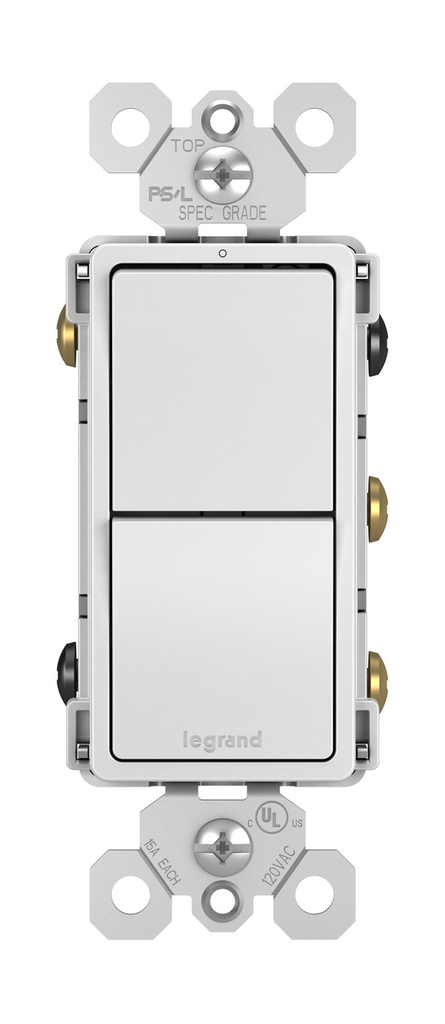

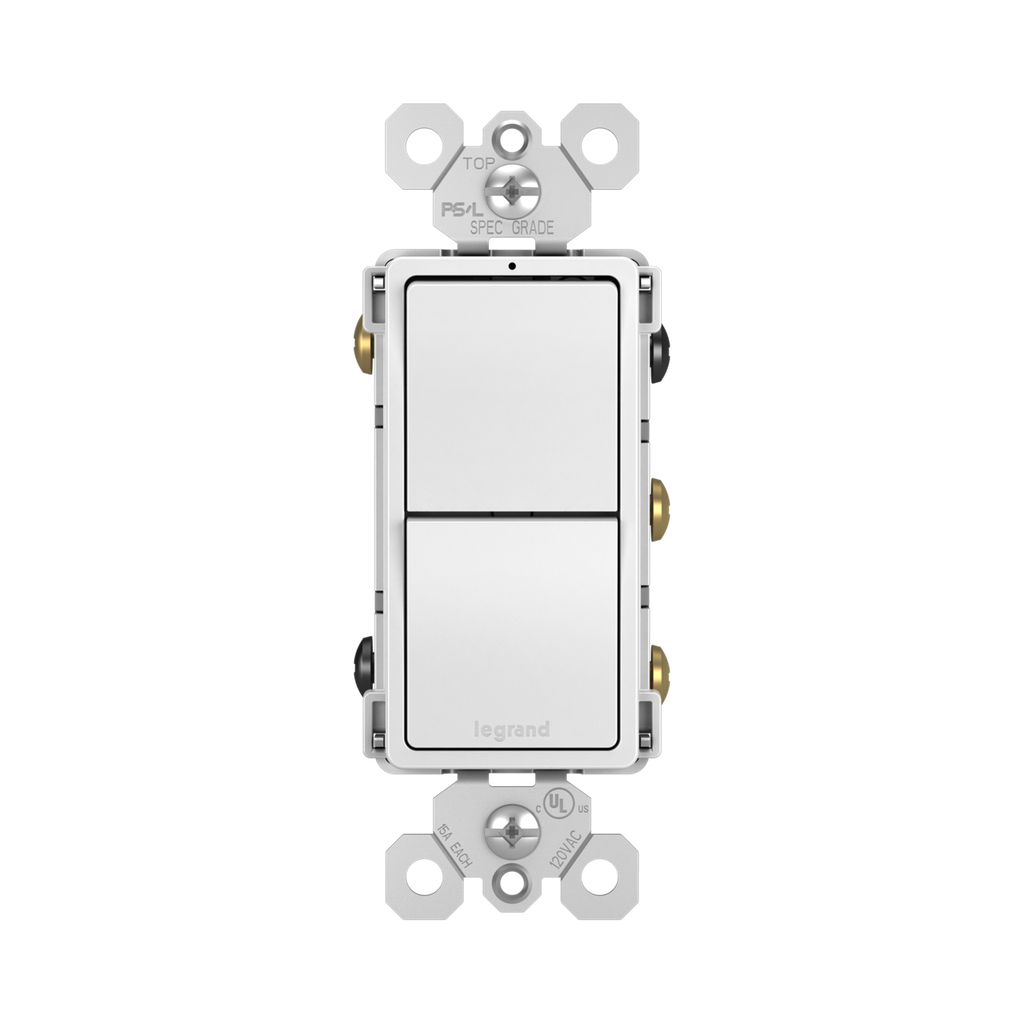

radiant RCD33W Two Single Pole 3-Way Paddle Switch 15A 120VAC Thermoplastic White Satin
Specifications
Documents
Installation Instructions
Downloads
Cutsheet
Designed to blend seamlessly with modern interiors, these radiant® two single pole/3-way switches showcase a space-saving style that enhances functionality without sacrificing aesthetics. Constructed from durable, high-impact resistant thermoplastic, they are built to withstand daily use while providing reliable performance. Their unique installation features, including a narrower back body and captivated mounting screws, allow for quick and easy setup in virtually any wall box. Additionally, the switches are part of the extensive radiant® Collection, offering color options and finishes that coordinate effortlessly with existing hardware and lighting trends. For an upgraded experience, you can add a patented Snap-In Light Module to transform a standard switch into an illuminated option in seconds. These switches not only meet cULus and UL standards but also provide compatibility with a range of load types, making them a versatile choice for residential applications.
- cULus and UL safety listed for compliance assurance
- Durable, high-impact resistant thermoplastic construction
- Compatible with a wide range of load types including LED, CFL, halogen, and incandescent
- Space-saving design with narrower back body for installation flexibility
- Captivated mounting screws prevent screw loss during installation
- Back and side wiring connections for versatile installation options
- Patented Snap-In Light Module option for easy illumination upgrade
- Paddle switch design for easy, intuitive operation
- Coordinated color and finish options to match existing hardware and lighting trends

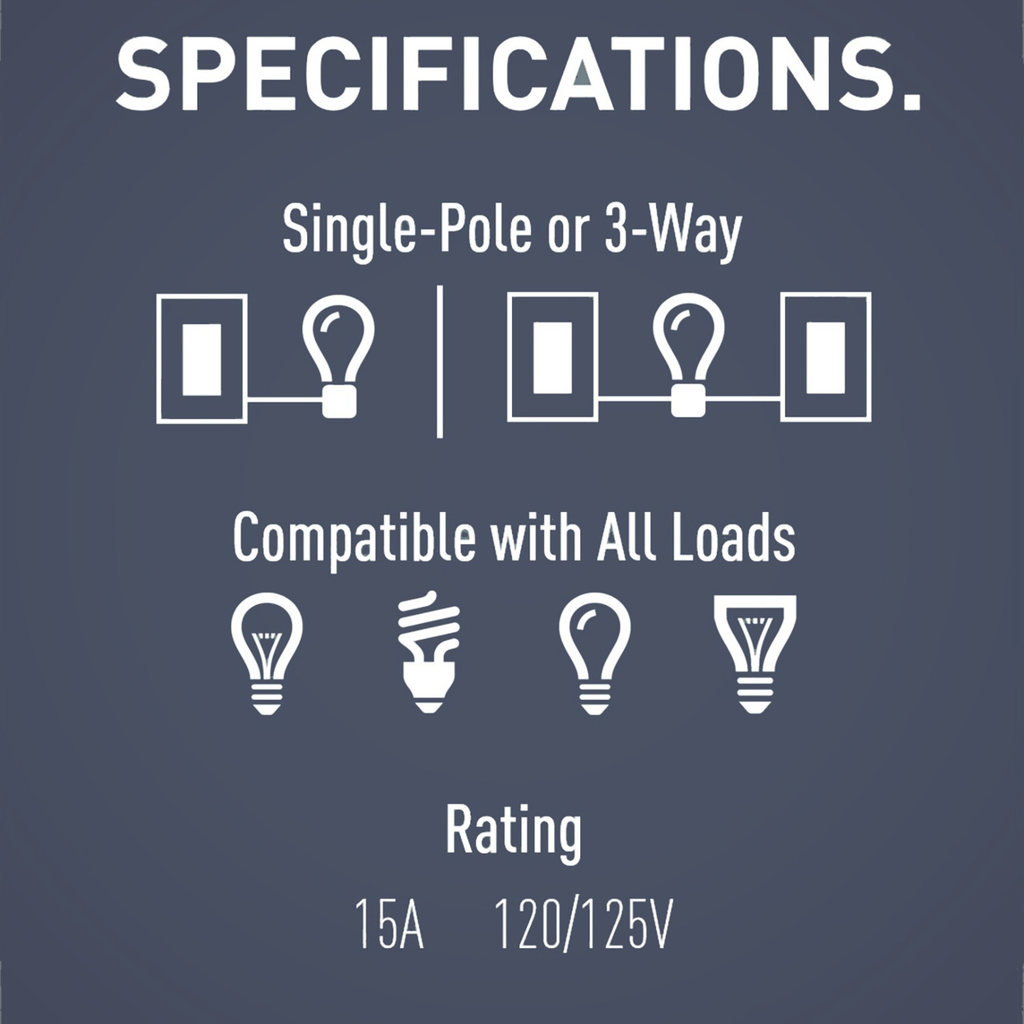

- Load Rating: 15 A @ 120/125 VAC
- Amperage: 15 A
- Voltage: 120/125 VAC
- Height: 3.81 in
- Width: 1.29 in
- Depth: 1.59 in
- Mounting Type: Wall Box
- Material: Thermoplastic
- Color: White
- Compliance: cULus Listed, UL Listed
- Connection Location: Back and Side
- Terminal Accommodation: #14 AWG - #12 AWG
- Load Type: Xenon, CFL, Halogen, LED, Universal, Fluorescent, Incandescent
- Switch Type: Paddle
- Throw Type: Single Throw
- Country of Origin: China
