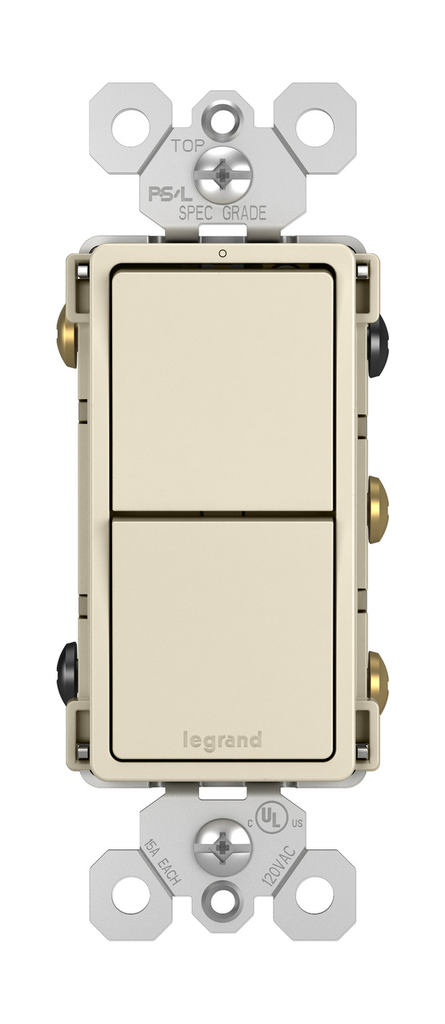

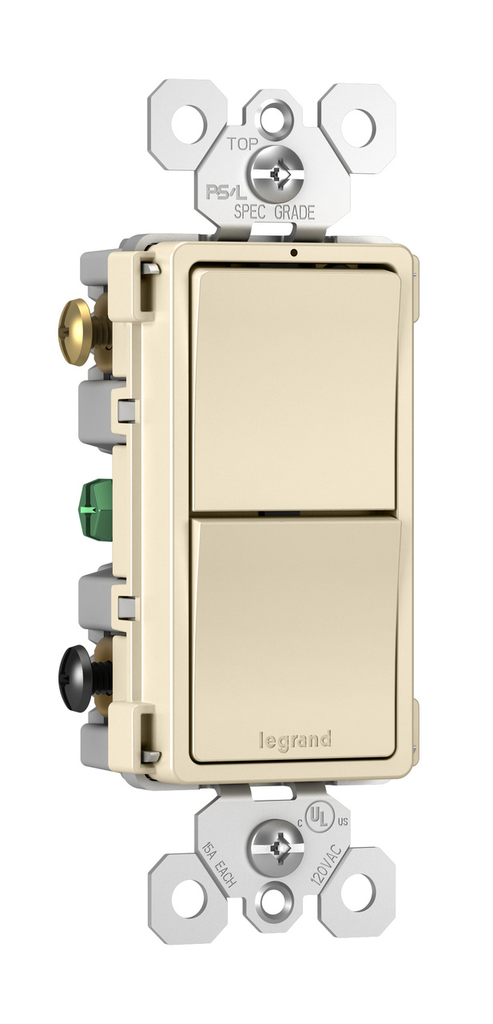

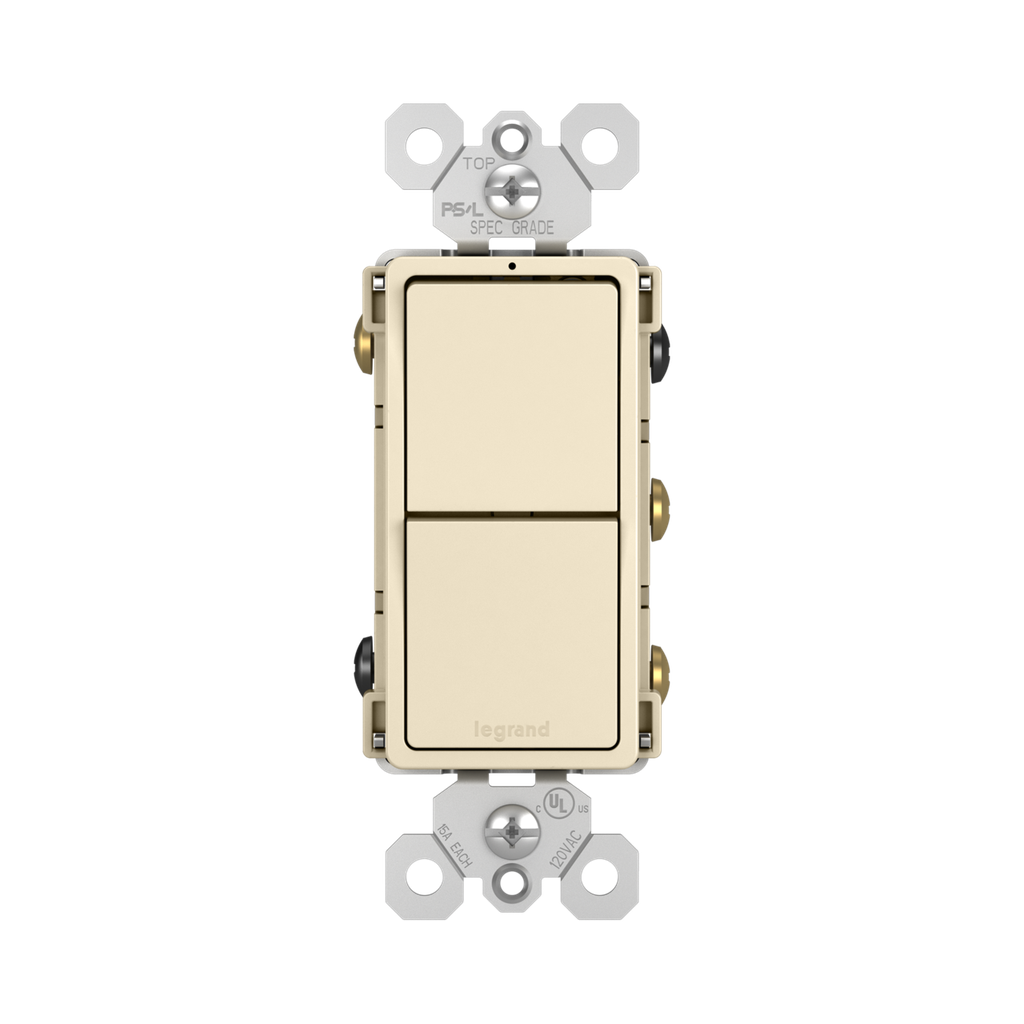

radiant RCD33LA Single Pole 3-Way Paddle Switch 15A 125VAC Light Almond Thermoplastic Satin
Specifications
Documents
Downloads
Cutsheet
Supporting Document
Installation Instructions
The radiant® Two Single Pole/3-Way Switches in a sophisticated Light Almond finish combine functionality and style for any residential setting. Engineered with ease of installation in mind, these switches feature a narrower back body and captivated mounting screws, making setup quick and straightforward. Their durable thermoplastic construction ensures long-lasting performance, while the innovative Snap-In Light Module (sold separately) enables instant transformation into illuminated switches. Emphasizing versatility, the radiant® Collection presents a range of color options and finishes that complement contemporary hardware and lighting trends. Whether you're upgrading existing fixtures or designing a new space, these switches provide installation flexibility and aesthetic appeal. With a variety of compatible add-ons and their elegant decorator style, these switches not only control your lighting effectively but also enhance the overall décor of your home.
- UL Listed and cULus Listed for safety and code compliance
- UL94 V2 flame retardant thermoplastic construction
- Compatible with LED, fluorescent, halogen, and incandescent loads
- Patented Snap-In Light Module transforms switch to illuminated
- Narrower back body and captivated mounting screws for easier installation
- Push wire and wire terminal connections at back and side for flexible wiring
- Light Almond satin finish complements contemporary decor
- Installation flexibility within radiant® Collection style options

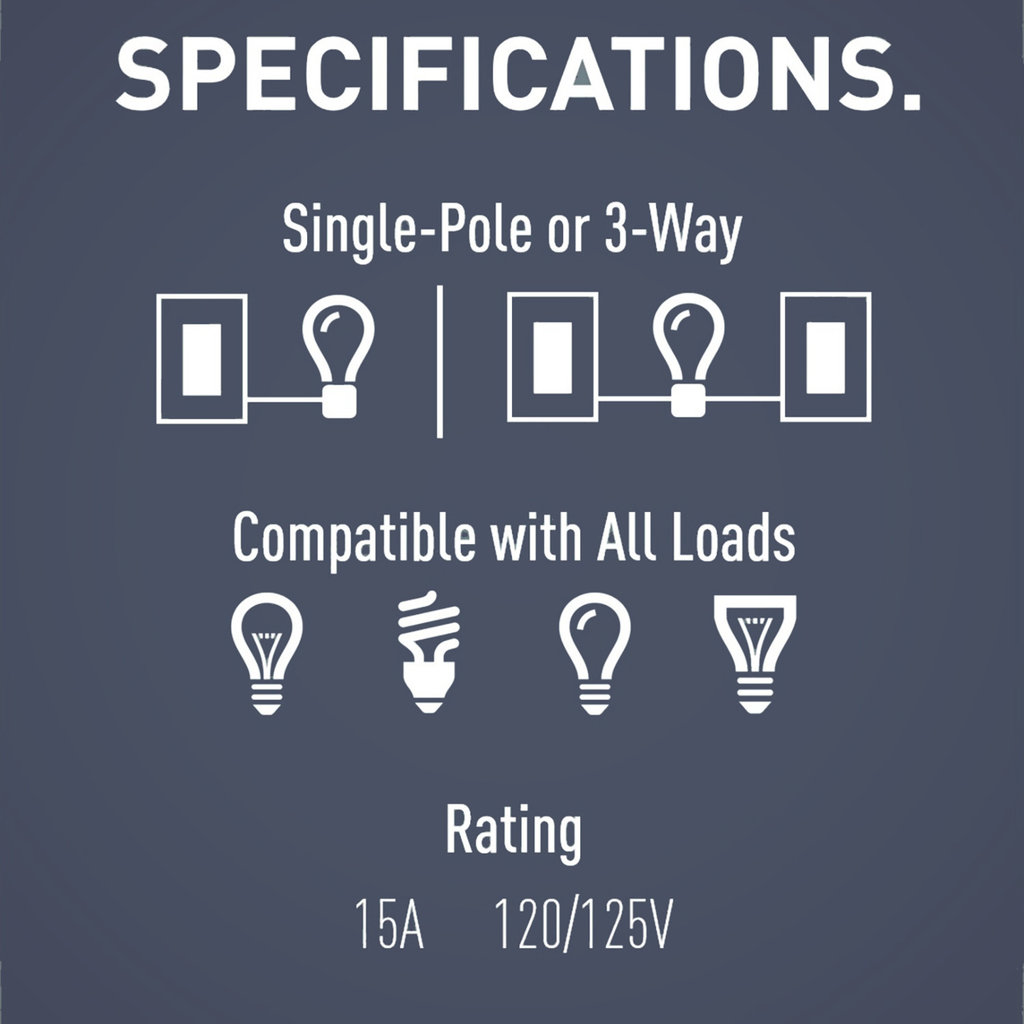

- Amperage: 15 A
- Voltage: 120/125 VAC
- Load Rating: 15 A @ 120/125 VAC
- Number of Poles: 3-Way
- Number of Switches: 1
- Number of Gangs: 1
- Dimensions: 3.81 in x 1.29 in x 1.59 in
- Height: 3.81 in
- Width: 1.29 in
- Depth: 1.59 in
- Wire Connection Type: Push Wire, Wire Terminal
- Connection Location: Back and Side
- Material: Thermoplastic
- Finish: Satin
- Mounting Type: Wall Box
- Standard: UL Listed, cULus Listed
- Environmental Conditions: UL94 V2
- Indoor/Outdoor: Indoor
- Requires Neutral Wire: Yes
- Load Type: Universal, LED, Xenon, Fluorescent, Halogen, Incandescent, CFL
- Color: Light Almond
- Country of Origin: China
