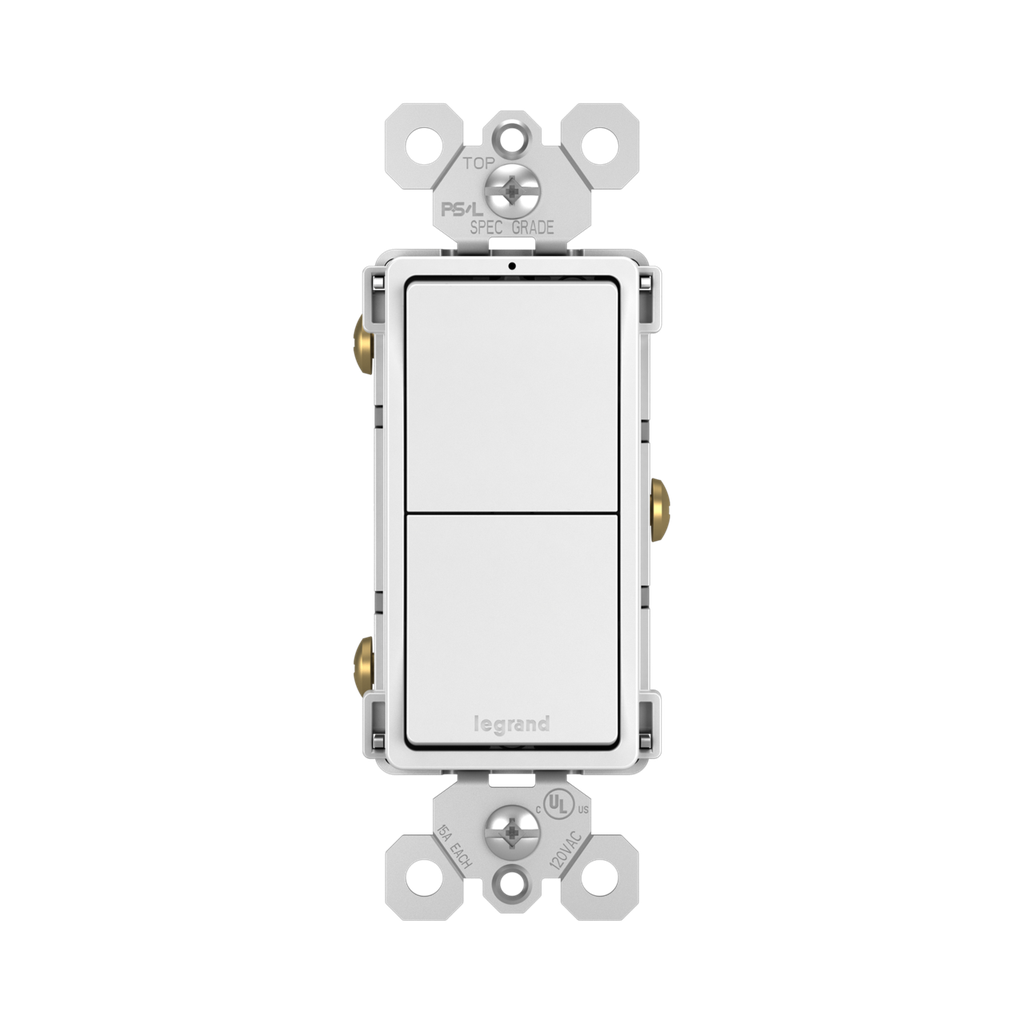

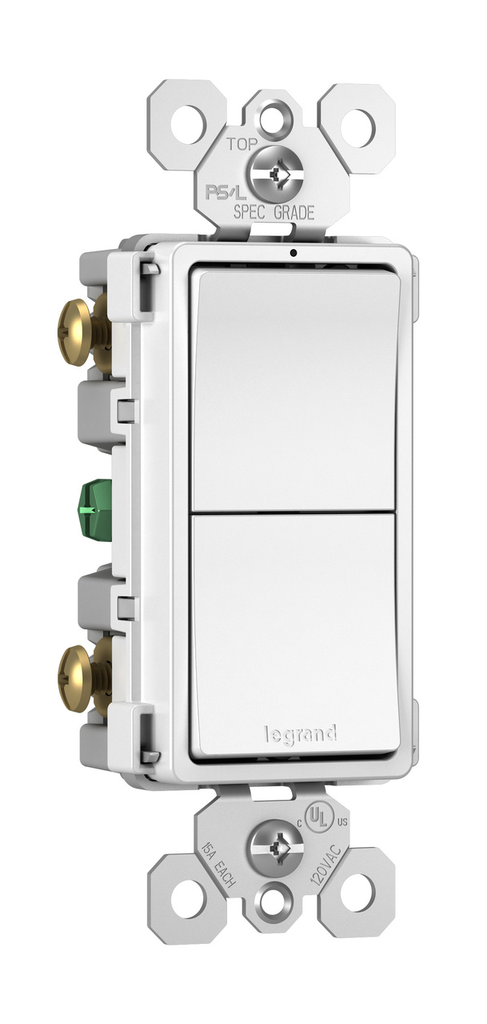

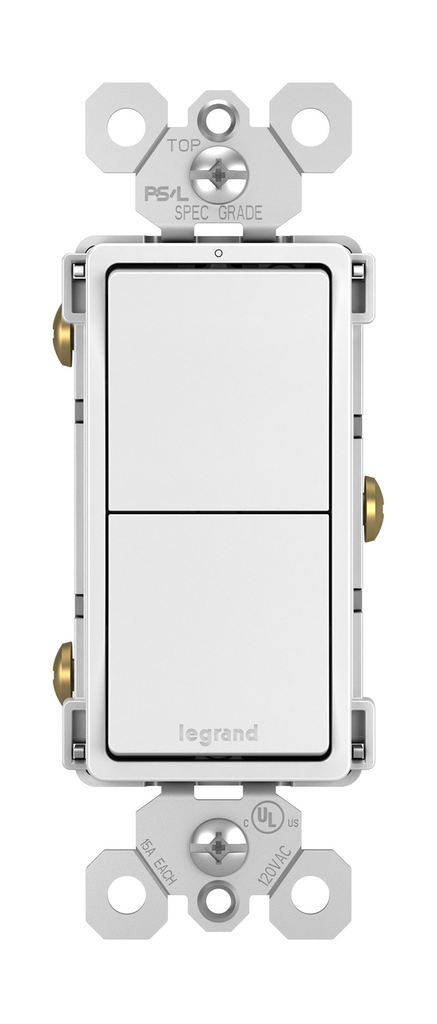

radiant RCD11W Two Single-Pole Switches 15A 120VAC Push Wire Thermoplastic White Satin
Specifications
Documents
Installation Instructions
Downloads
Supporting Document
Cutsheet
Featuring a sleek and contemporary design, these two single-pole switches from radiant enhance both functionality and aesthetic appeal in any residential setting. Engineered with durable, high-impact resistant thermoplastic, they ensure long-lasting performance while allowing for installation flexibility through their space-saving style. Not only are they compatible with various load types — including CFL, LED, and incandescent — but the patented Snap-In Light Module (sold separately) enables a quick transformation into an illuminated switch, adding a touch of convenience to your lighting setup. For a cohesive look, pair these switches with a screwless radiant wall plate and other designer outlets from the same collection, embracing modern trends in home décor.
- UL Listed and cULus Listed for safety assurance
- Compatible with CFL, LED, incandescent, and other load types
- Supports single pole and 3-way switch configurations
- Push wire and terminal connections for quick wiring
- Back and side wiring compatibility
- Durable high-impact resistant thermoplastic construction

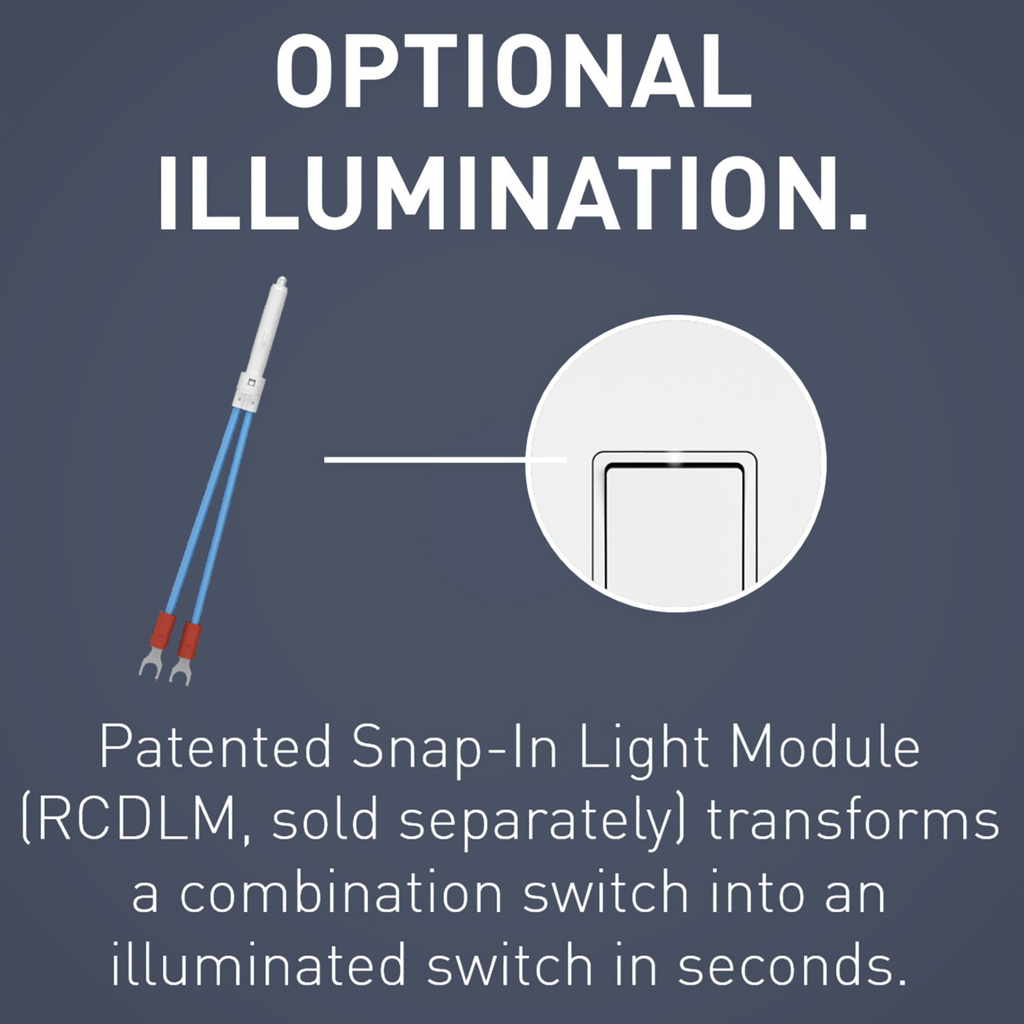

- Patented Snap-In Light Module for easy illumination upgrade

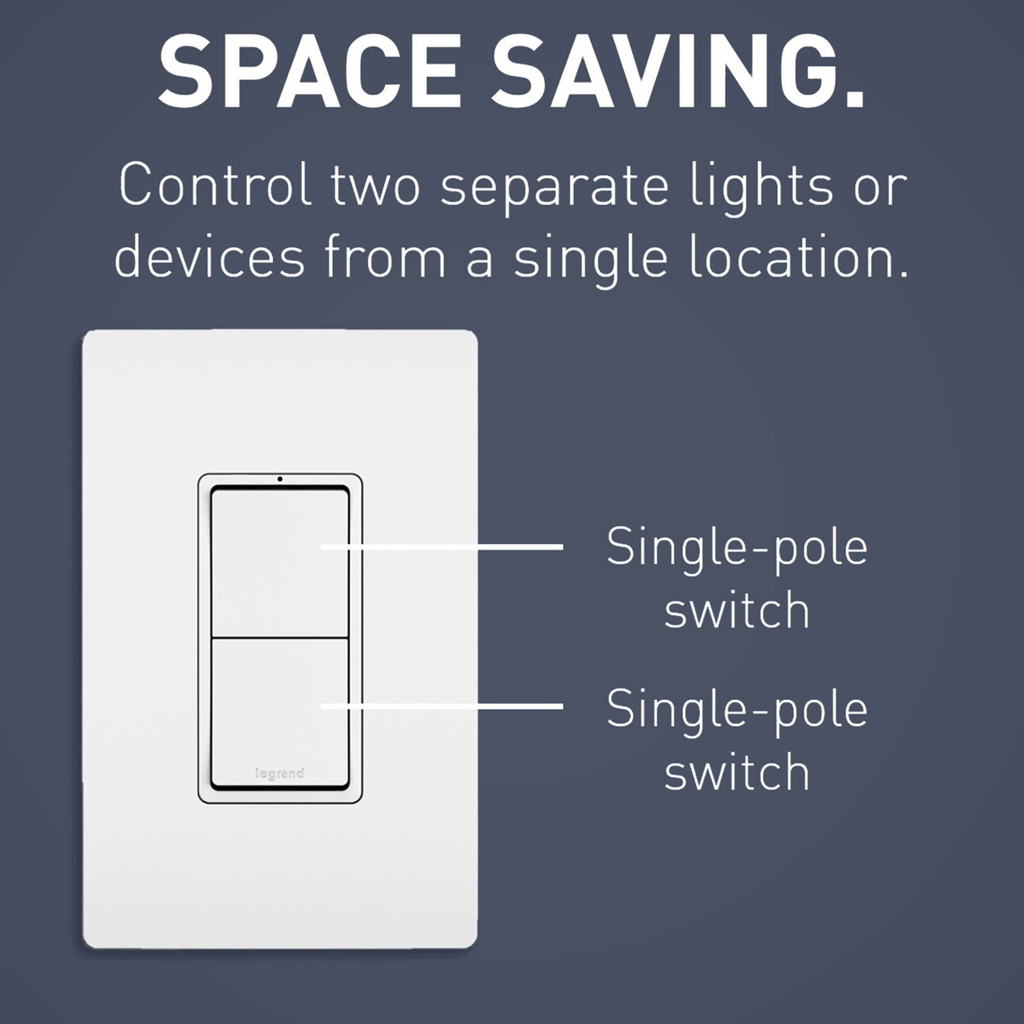

- Space-saving design for installation flexibility
- Designed to install easily with narrower back body and captivated mounting screws
- Satin finish for modern aesthetic appeal

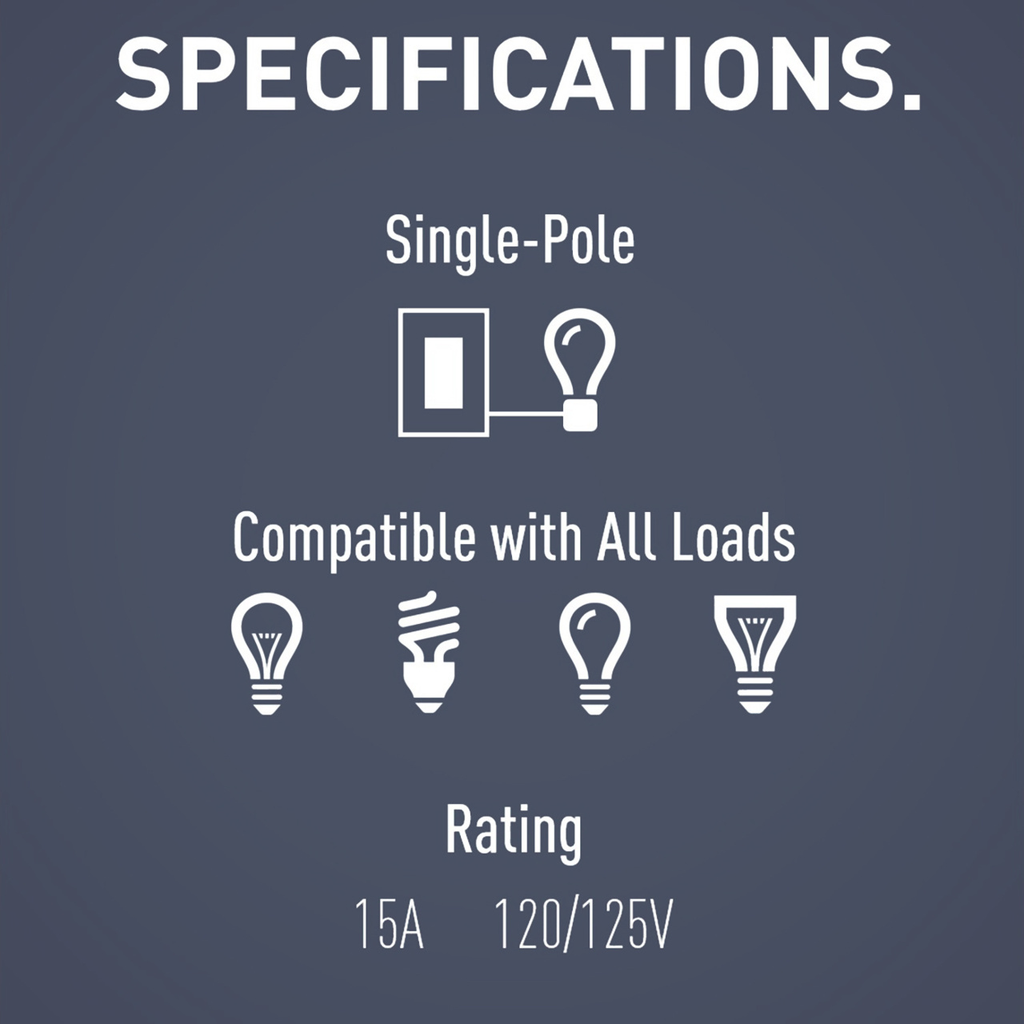

- Load Rating: 15 A @ 120/125 VAC
- Voltage: 120/125 VAC
- Amperage: 15 A
- Number of Switches: 2
- Number of Poles: Single Pole, 3-Way
- Throw Type: Single Throw
- Switch Type: Paddle, Two Single-Pole
- Mounting Type: Wall Box
- Connection Location: Back and Side
- Wire Connection Type: Push Wire, Wire Terminal
- Terminal Accommodation: #14 AWG - #12 AWG
- Depth: 1.59 in
- Width: 1.29 in
- Height: 3.81 in
- Number of Gangs: 1
- Material: High-impact resistant thermoplastic
- Finish: Satin
- Load Type: CFL, Halogen, Incandescent, Universal, Fluorescent, LED, Xenon
- Compatibility: Snap-In Light Module (RCDLM) compatible
- Operating Cycles: 50000
- Requires Neutral Wire: Yes
- Indoor/Outdoor: Indoor
- Environmental Conditions: UL94 V2
- Standard: UL Listed, cULus Listed
- Color: White
- Country of Origin: China
