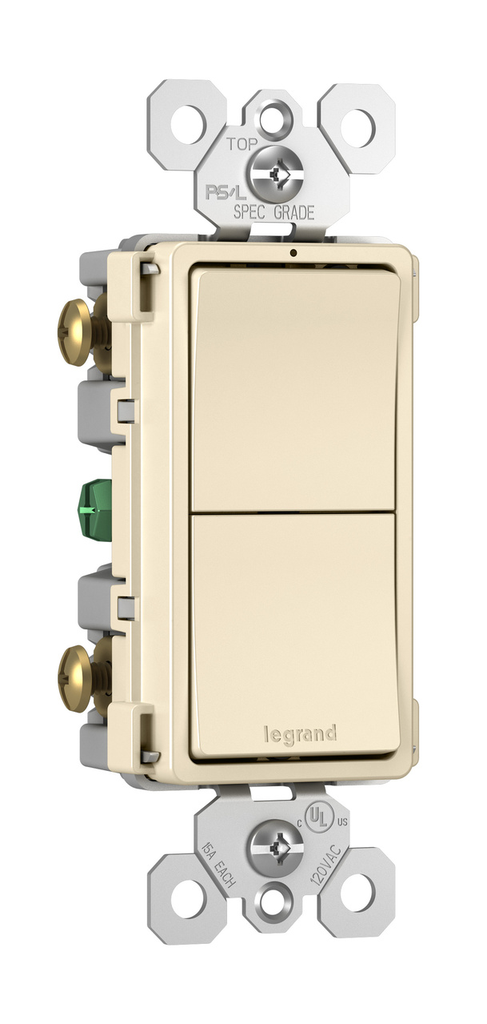

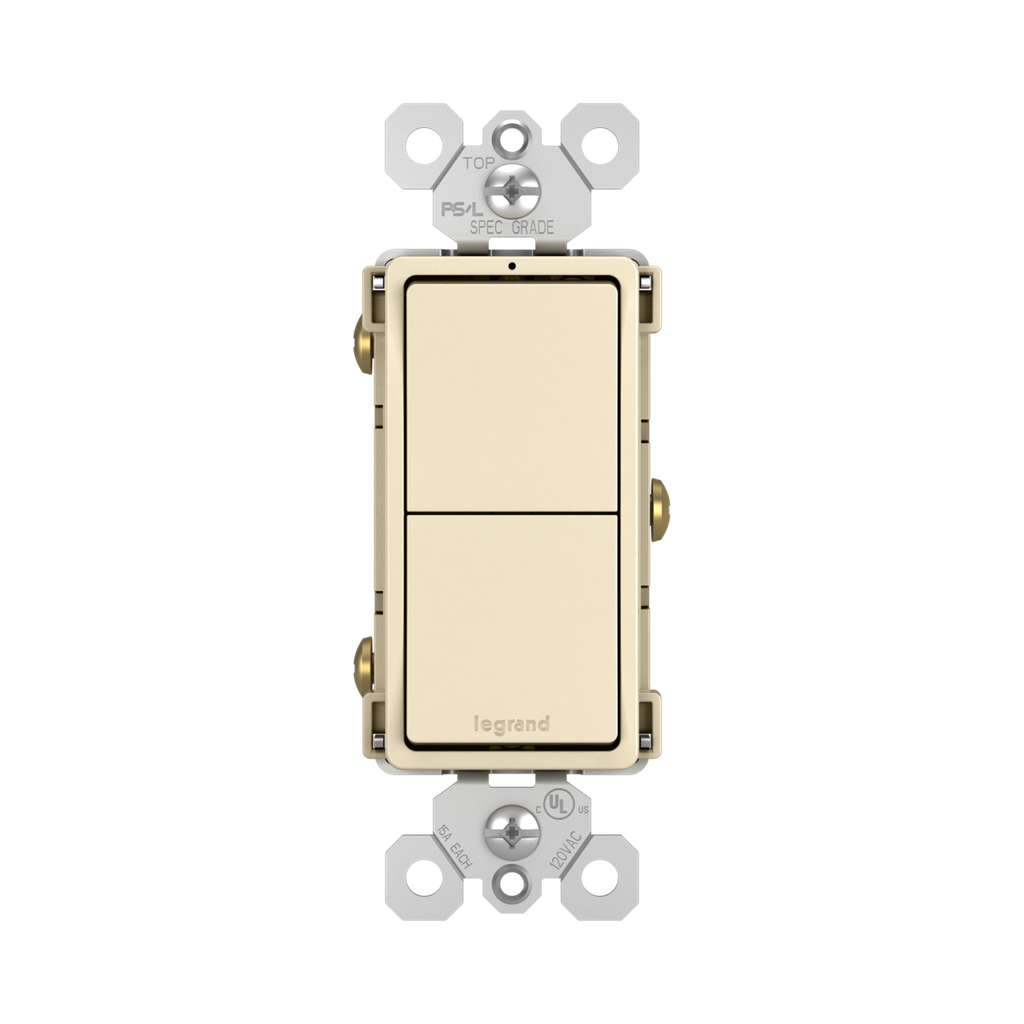

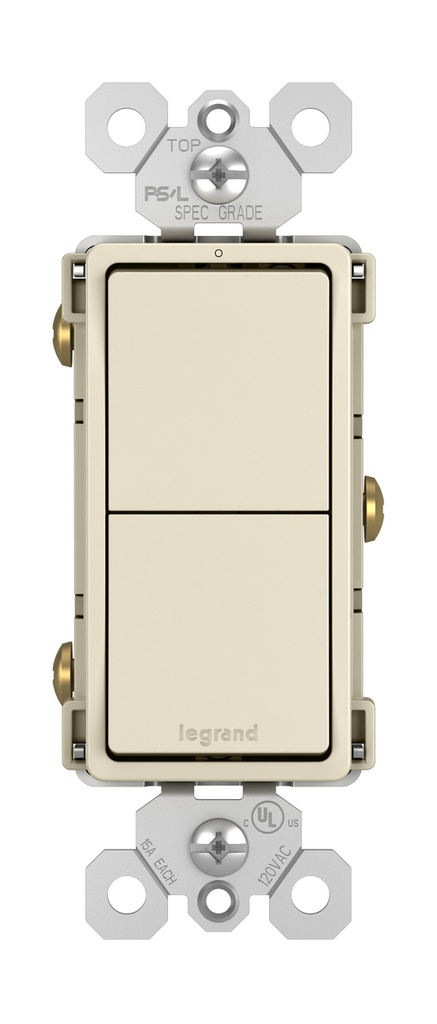

radiant RCD11LA Paddle Switch 15A 120VAC Single Pole Light Almond Thermoplastic
Specifications
Documents
Downloads
Cutsheet
Supporting Document
Installation Instructions
The radiant® Two Single-Pole Switches in a light almond finish combine both style and functionality, elevating your lighting controls with a sleek design that complements modern home aesthetics. Crafted from durable, high-impact resistant thermoplastic, these switches are built to last while offering easy installation thanks to their narrower back body and captivated mounting screws. Featuring UL and cULus listings, they ensure safety and reliability in residential settings. Not only do these switches facilitate a variety of load types, including incandescent, LED, CFL, and fluorescent, but they also provide the option to add a patented Snap-In Light Module, transforming a standard switch into an illuminated one. With a range of color choices available to match your decor, the radiant® collection offers the perfect blend of practicality and design, making it a versatile choice for any room in your home.
- UL and cULus listed for residential safety and reliability
- Supports single pole and 3-way wiring configurations
- Compatible with incandescent, LED, CFL, fluorescent, xenon, halogen, and universal loads
- Durable, high-impact resistant thermoplastic construction
- Narrower back body and captivated mounting screws for easy installation
- Wire terminals and push wire connections for #14 to #12 AWG wires
- Back and side wire connection locations for versatile installation

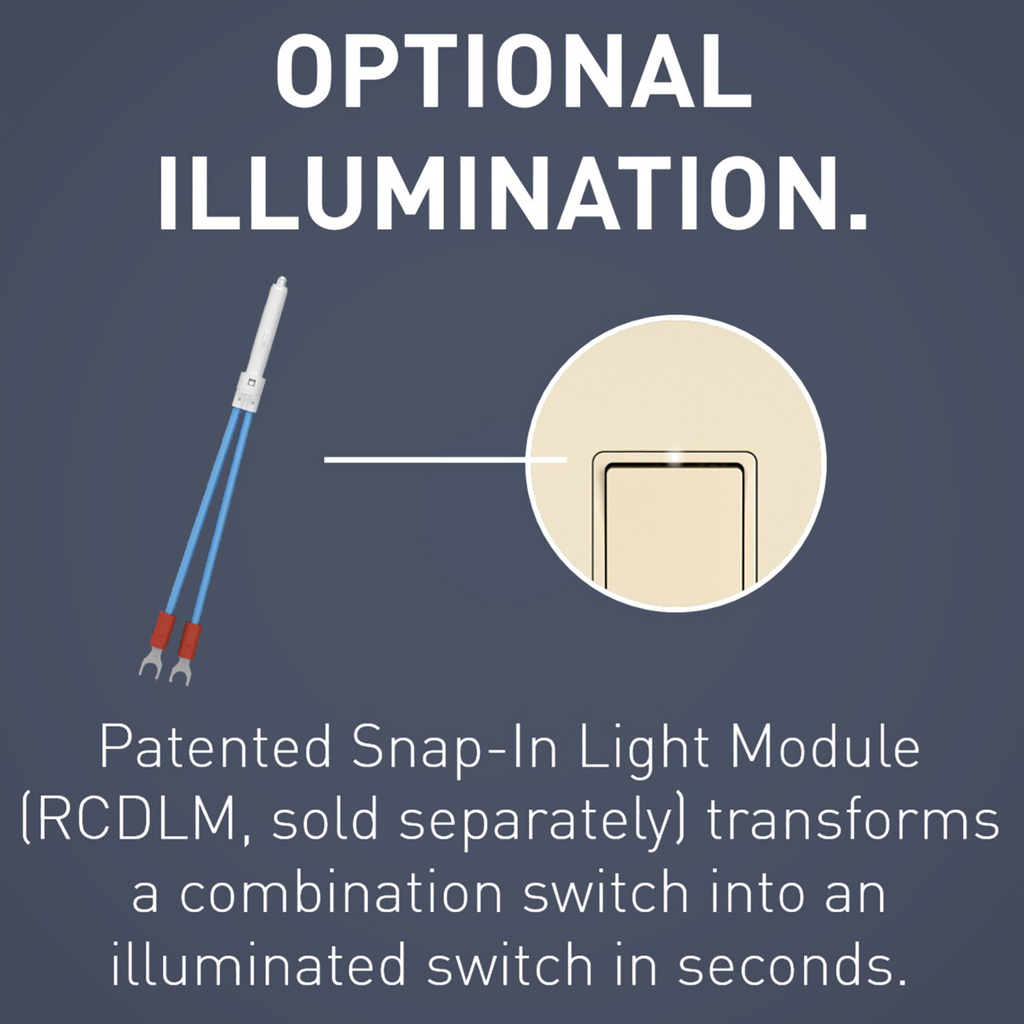

- Option to add patented Snap-In Light Module for illuminated switch functionality
- Satin finish in light almond color complements modern decor

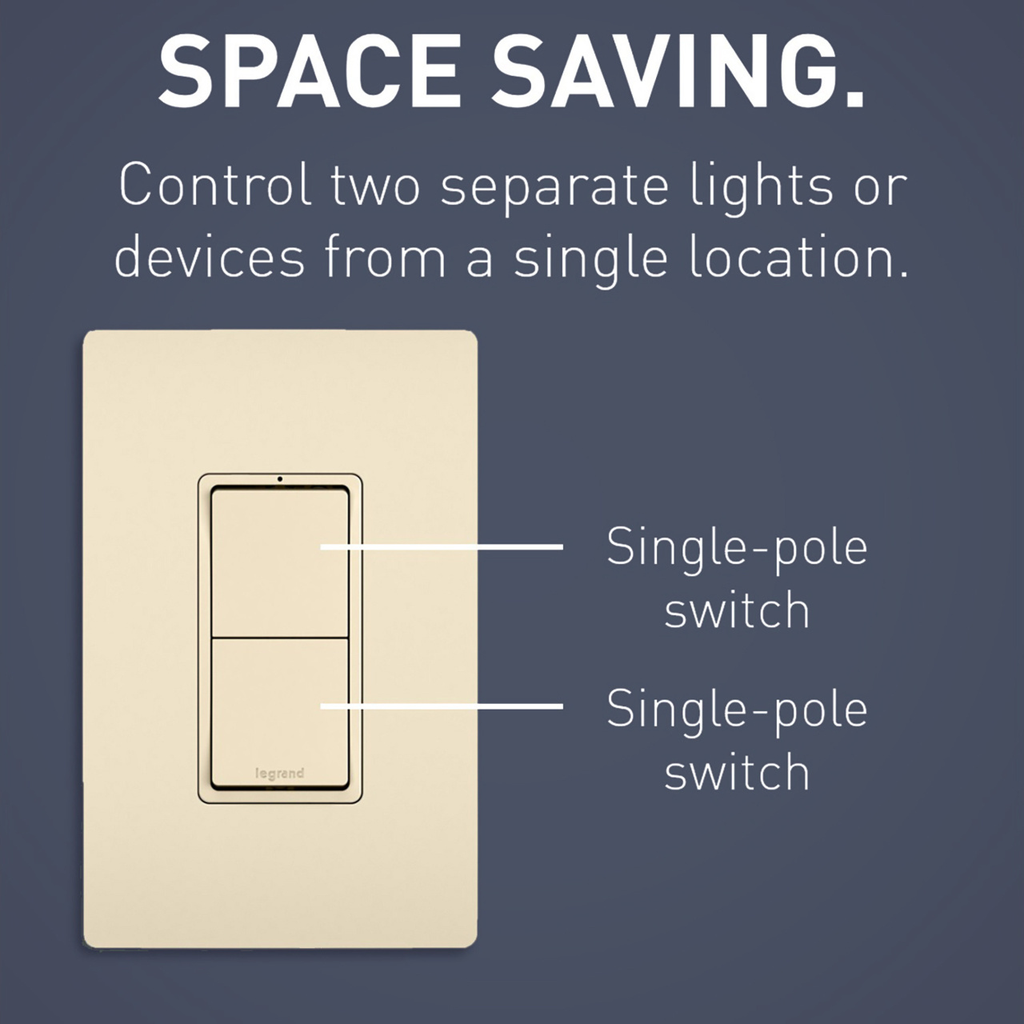

- Combines two single-pole switches in one device for enhanced lighting control

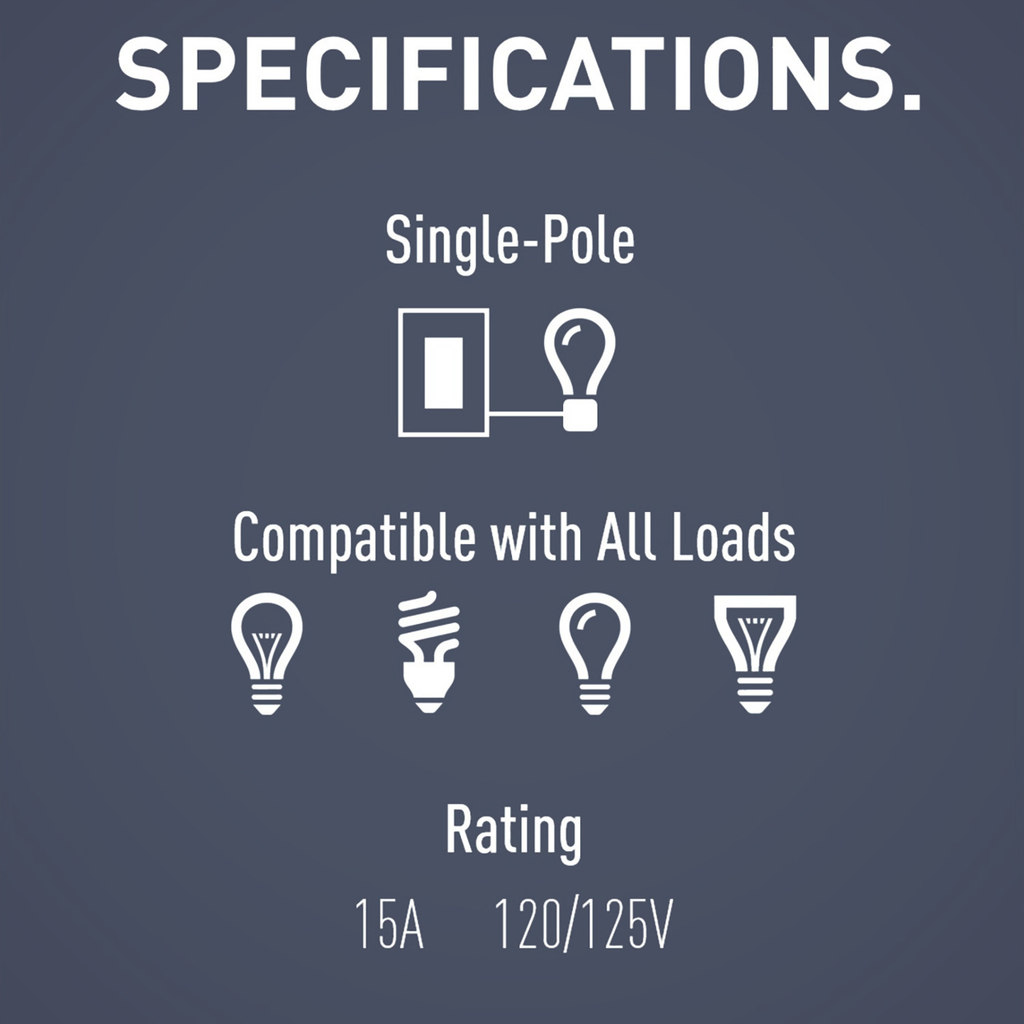

- Voltage: 120/125 VAC
- Amperage: 15 A
- Load Rating: 15 A @ 120/125 VAC
- Load Type: Incandescent, Fluorescent, CFL, LED, Xenon, Halogen, Universal
- Number of Poles: Single Pole, 3-Way
- Throw Type: Single Throw
- Mounting Type: Wall Box
- Wire Connection Type: Wire Terminal, Push Wire
- Terminal Accommodation: #14 AWG - #12 AWG
- Connection Location: Back and Side
- Dimensions: 3.81 in x 1.59 in x 1.29 in
- Height: 3.81 in
- Width: 1.29 in
- Depth: 1.59 in
- Material: Thermoplastic
- Finish: Satin
- Environmental Conditions: UL94 V2
- Standard: cULus, UL Listed
- Indoor/Outdoor: Indoor
- Requires Neutral Wire: Yes
- Number of Gangs: 1
- Number of Switches: 2
- Color: Light Almond
- Country of Origin: China
- Product Line: Pass & Seymour
- Switch Type: Paddle
