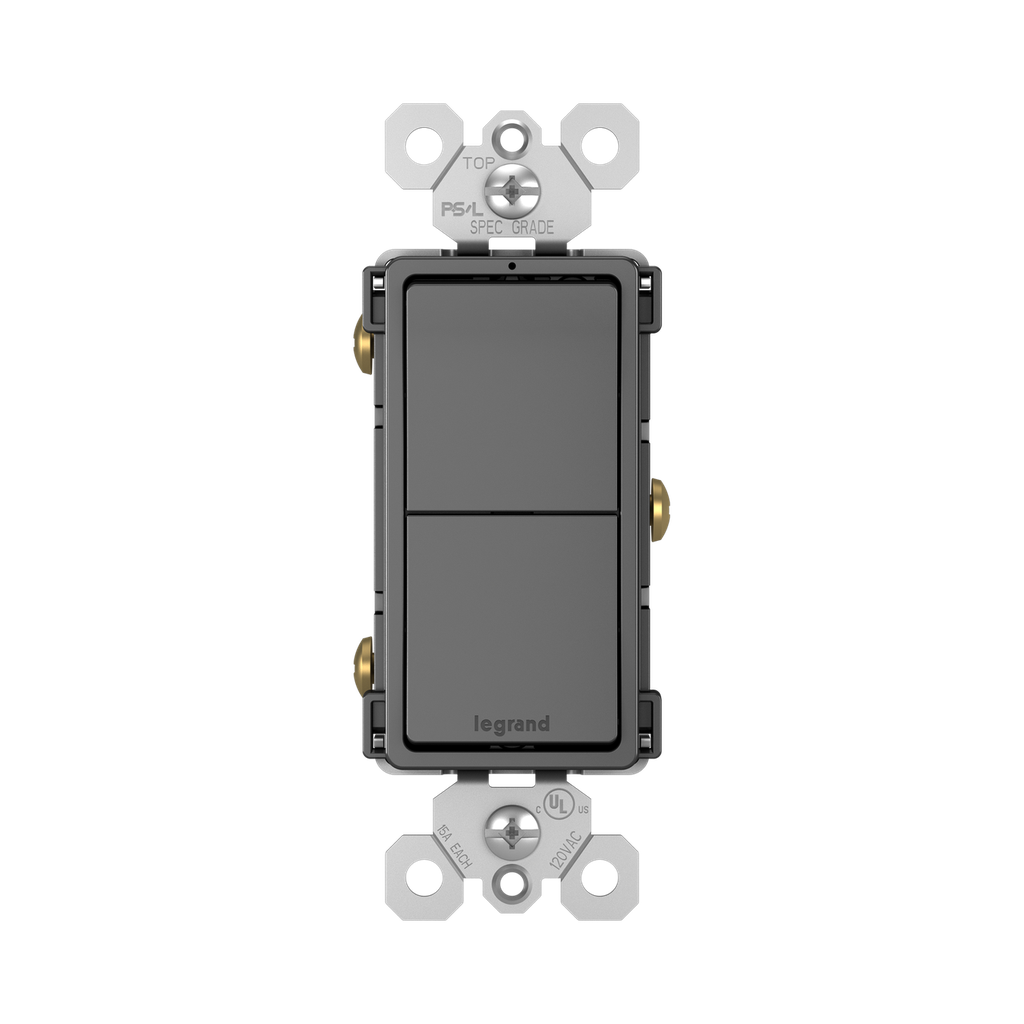

radiant RCD11BK Two Single-Pole Paddle Switches 15A 120VAC Black Thermoplastic

The radiant® Two Single-Pole Switches in sleek black offer a blend of functionality and style, making them an excellent choice for modern residential applications. Crafted from durable, high-impact resistant thermoplastic, these switches are designed for longevity and performance, featuring a patented Snap-In Light Module that allows for easy transformation into illuminated switches. With their space-saving design and narrow back body, installation is straightforward, supported by captivated mounting screws for added convenience. Compatible with various load types including incandescent, LED, fluorescent, and CFL, these switches also come with flexible wire connection options, catering to diverse electrical setups. To enhance your interior aesthetic, the radiant® collection provides additional color options and accessories, including screwless wall plates that ensure a cohesive look throughout your space. UL and cULus Listed for safety and reliability, these switches represent a sophisticated choice for anyone looking to combine effective design with versatile functionality.

• UL and cULus Listed for safety and reliability
• Requires neutral wire for safe and reliable operation
• Compatible with incandescent, LED, fluorescent, and CFL loads
• Controls two separate lights or devices from one location
• Durable, high-impact resistant thermoplastic construction
• Narrower back body for easier installation in tight spaces
• Captivated mounting screws for secure, convenient installation
• Patented Snap-In Light Module enables easy illuminated switch conversion
• Flexible wiring with back and side connection terminals
• Satin finish for sleek, modern aesthetic

• Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
• Load Rating: 15 A @ 120/125 VAC
• Voltage: 120 VAC, 125 VAC
• Amperage: 15 A
• Number of Poles: Single Pole, 3-Way
• Number of Switches: 2
• Throw Type: Single Throw
• Switch Type: Single-Pole, Paddle
• Height: 3.81 in
• Width: 1.29 in
• Depth: 1.59 in
• Mounting Type: Wall Box
• Connection Location: Back and Side
• Terminal Accommodation: #14 AWG - #12 AWG
• Wire Connection Type: Wire Terminal, Push Wire
• Material: Thermoplastic
• Finish: Satin
• Requires Neutral Wire: Yes
• Indoor/Outdoor: Indoor
• Color: Black
• Country of Origin: China
