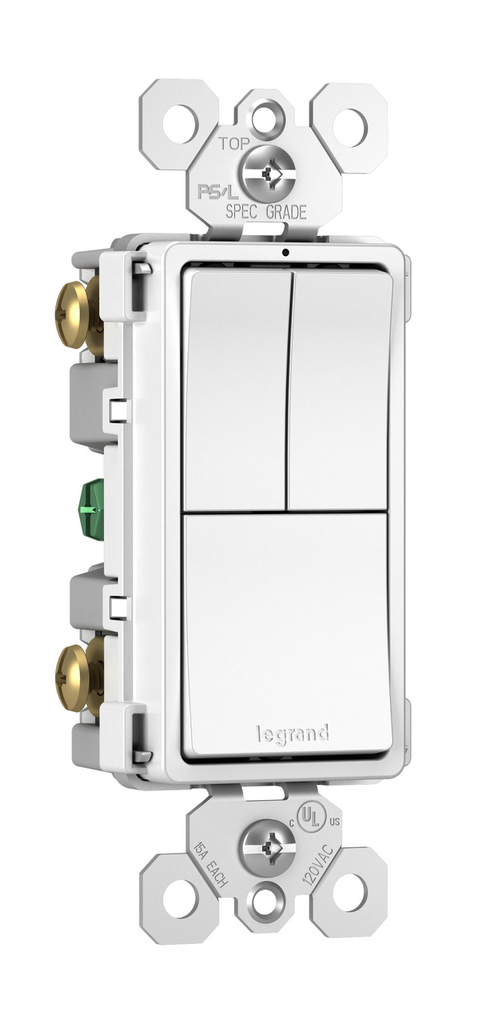

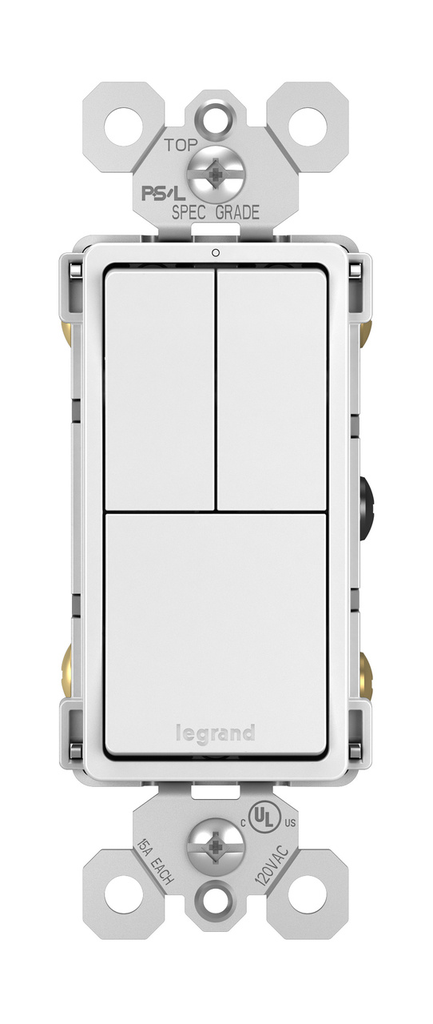

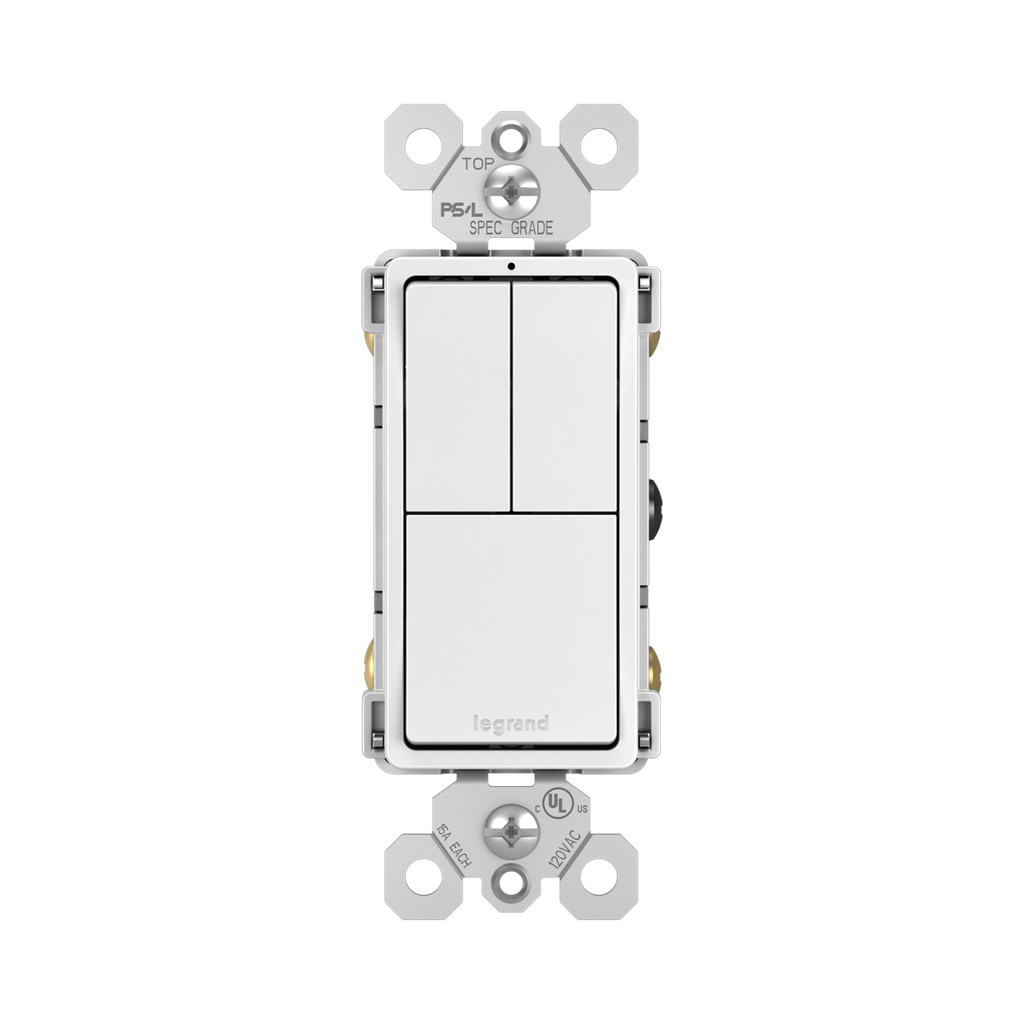

radiant RCD113W Combination Switch Two Single-Pole Single Pole 3-Way 15A 120VAC Thermoplastic White Satin
Specifications
Documents
Downloads
Cutsheet
Supporting Document
Installation Instructions
Offering a blend of style and practicality, this combination of two single-pole switches and a single pole/3-way switch from the radiant® Collection is thoughtfully designed for modern residential needs. Its high-impact resistant thermoplastic construction ensures durability, while the space-saving design enhances installation flexibility in various settings. The patented Snap-In Light Module, sold separately, allows for a swift transformation of the combination switch into an illuminated version, adding a layer of convenience and visibility. Certified with cULus and UL listings, this switch system is not only safe but easy to install, featuring a narrower back body and captivated screws for effortless mounting. Available in a sleek white finish and designed to pair perfectly with various radiant® wall plates, this product seamlessly integrates with your home’s aesthetic while accommodating diverse lighting needs with its compatibility for LED, fluorescent, halogen, and incandescent loads. With additional color options available, it provides versatile solutions for any contemporary space.
- UL Listed and cULus Listed for safety assurance
- High-impact resistant thermoplastic construction for durability

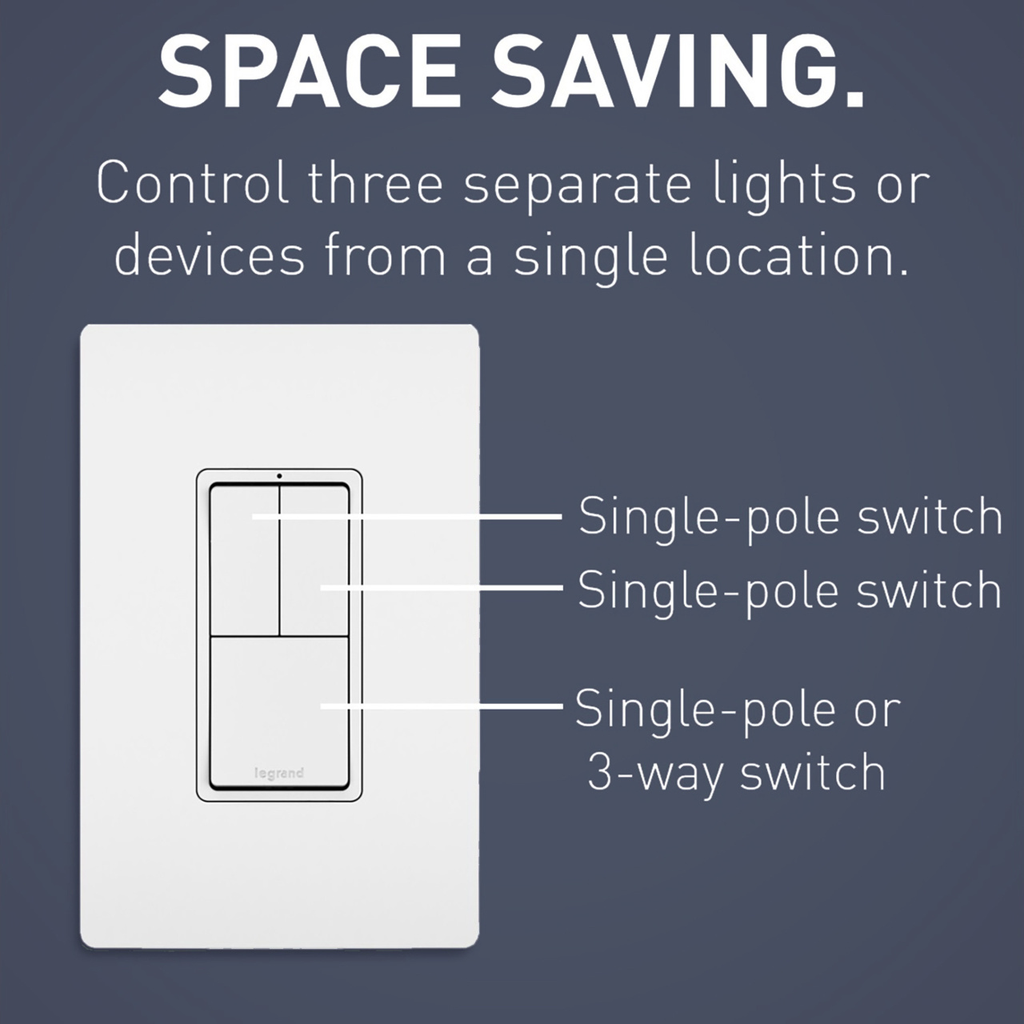

- Combination of two single-pole and one single pole/3-way switch for versatile lighting control
- Compatible with LED, fluorescent, halogen, xenon, incandescent, CFL, and universal loads
- Easy installation with narrower back body and captivated screws
- Back and side wire connections for flexible wiring
- Space-saving design for flexible installation
- Wall box mounting type for standard installation

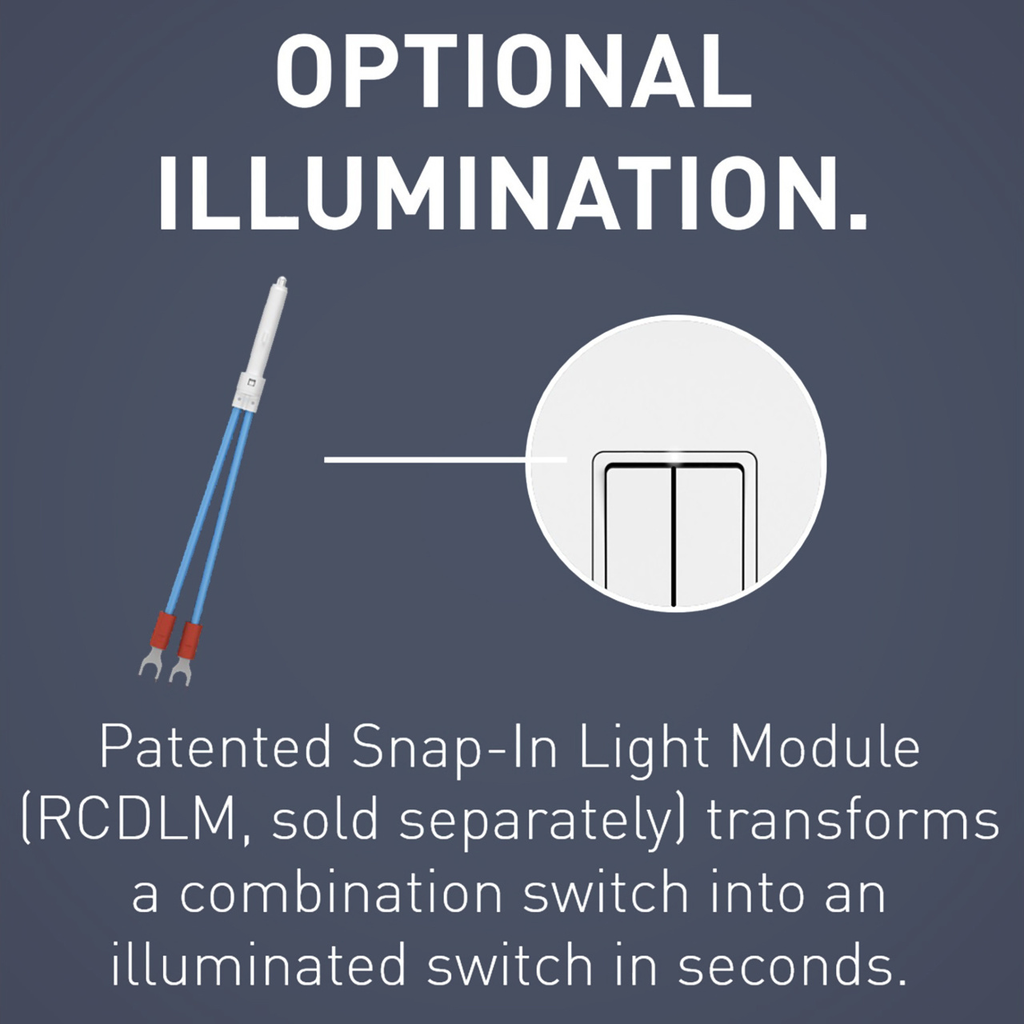

- Patented Snap-In Light Module transforms switch into illuminated version
- Satin white finish for modern aesthetic integration

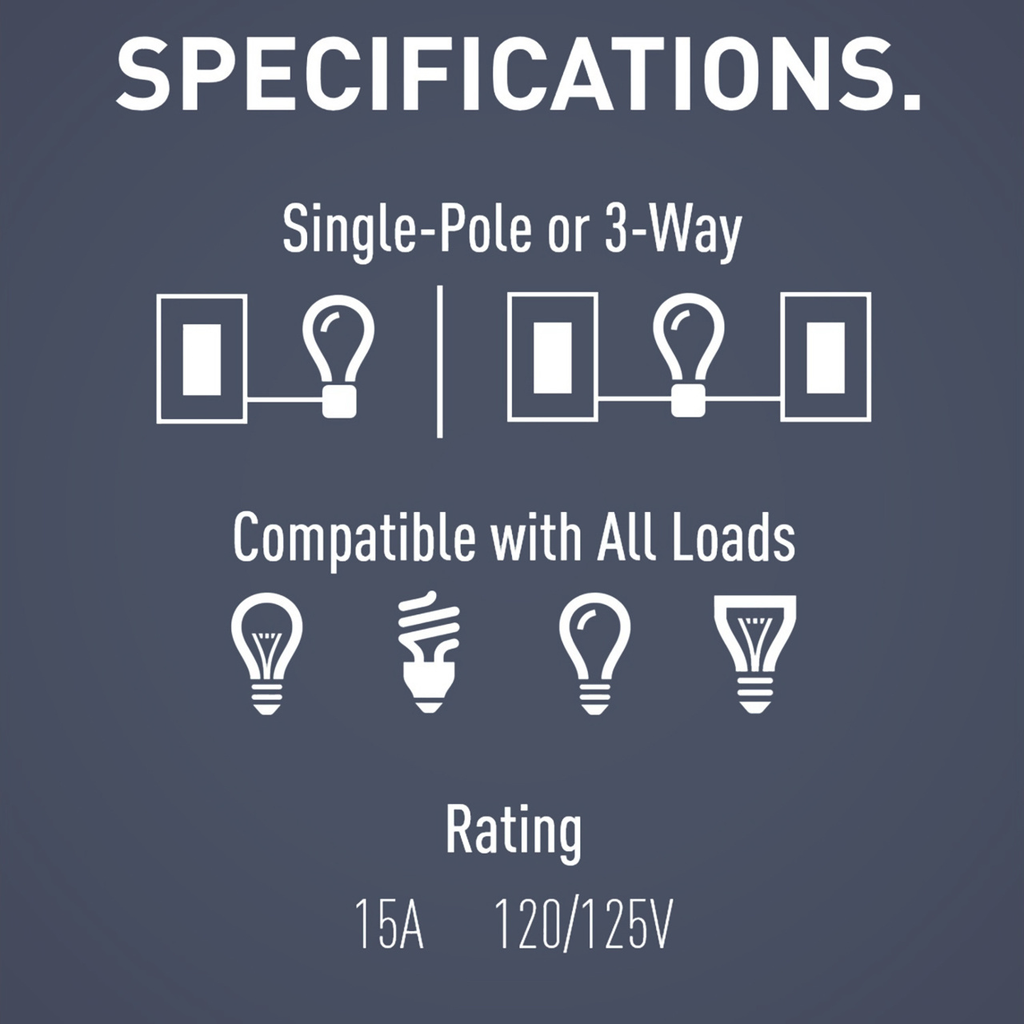

- Amperage: 15 A
- Voltage: 120/125 VAC
- Load Rating: 15 A @ 120/125 VAC
- Load Type: Fluorescent, Halogen, Xenon, LED, Universal, Incandescent, CFL
- Size: 3.81 in x 1.29 in x 1.59 in (H x W x D)
- Connection Location: Back and Side
- Mounting Type: Wall Box
- Number of Poles: Single Pole, 3-Way
- Wire Connection Type: Wire Terminal, Push Wire
- Requires Neutral Wire: Yes
- Material: Thermoplastic, High-impact resistant
- Finish: Satin
- Environmental Conditions: UL94 V2
- Compliance: UL Listed, cULus Listed
- Standard: UL Listed, cULus
- Color: White
- Country of Origin: China
- Operating Environment: Indoor
