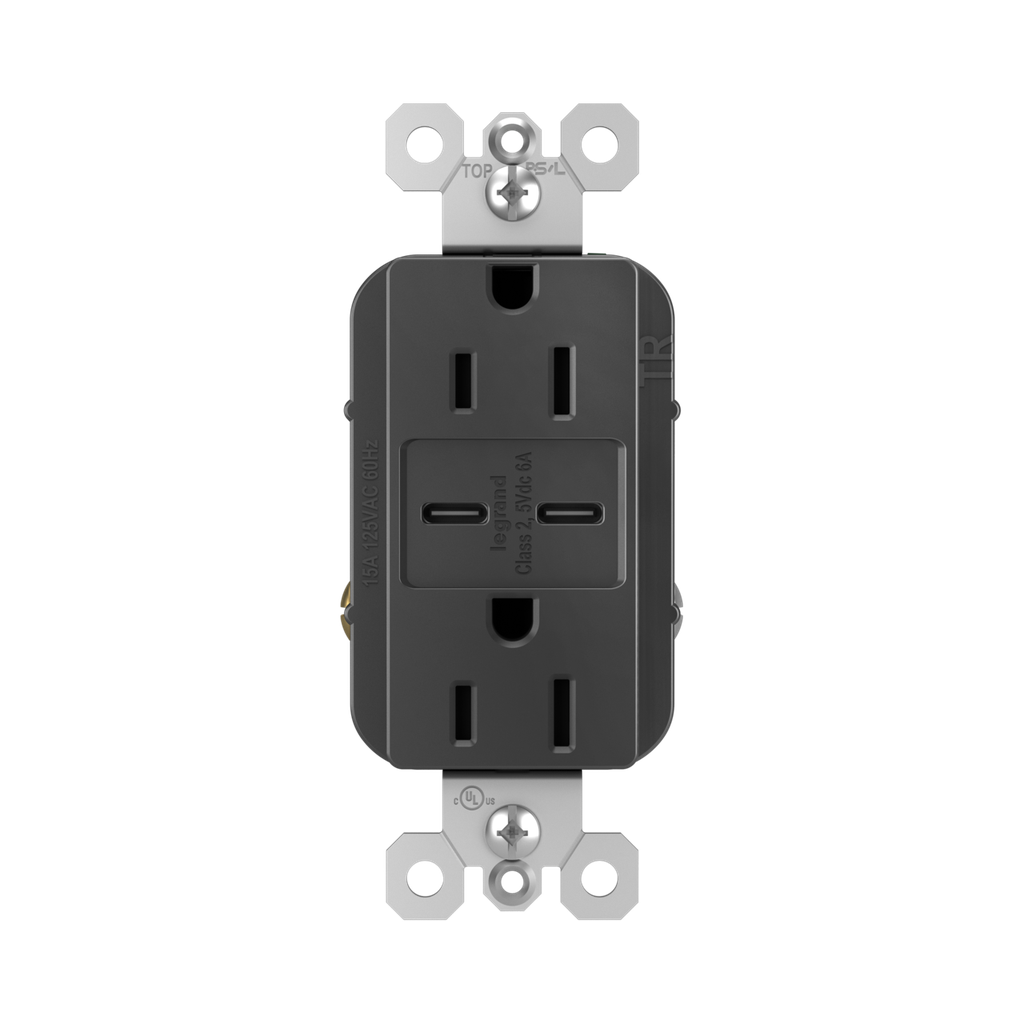

radiant R26USBCC6BK USB Outlet 2 USB Type-C 15A Tamper-Resistant Black Satin
Specifications
Documents
Sell Sheet
Supporting Document
Downloads
White Papers & Tech Bulletins
Installation Instructions
The radiant® 15W USB Outlet offers a seamless charging solution, featuring two USB Type-C connections designed to accommodate the latest mobile devices with impressive efficiency. With an industry-leading 6.0A of power coupled with Smart Chip technology, it maximizes charging speed for each device without the need for bulky adapters, ensuring fast and convenient charging. This tamper-resistant outlet is built with safety in mind, utilizing an innovative shutter system to protect children from improper insertion of foreign objects. Its elegant design, available in sleek black and additional finishes, allows it to blend effortlessly with contemporary interiors, making it an ideal choice for both residential and hospitality environments. Easy to install in as little as 10 minutes, it simplifies the process of upgrading any traditional outlet while enhancing the look of your space.
- Tamper-resistant design with innovative shutter system for child safety
- UL and cULus listed for compliance and safety assurance
- Industry-leading 6.0A power with Smart Chip technology for fast USB charging
- Two USB Type-C ports supporting latest mobile devices
- Easy installation with screw terminal connections in standard box mounting
- Constructed from durable polycarbonate, nylon, brass, and zinc-plated steel materials
- Operates reliably in wide temperature range from -40°C to +60°C
- Designed to withstand 1500V dielectric voltage for electrical safety
- Sleek black satin finish blends with modern interiors
- Suitable for residential and hospitality environments
- Voltage: 5.0 V
- Amperage: 15.0 A
- Power Output: 15 W USB Wattage
- USB Ports: 2 Type-C
- Number of Receptacles: 2
- Wire Connection Type: Screw Terminals
- Dimensions: 4.18 in (H) x 1.693 in (W) x 1.35 in (D)
- Mounting Type: Box
- Material: Polycarbonate, Nylon, Brass, Zinc-Plated Steel
- Finish: Satin
- Tamper-Resistant: Yes
- Color: Black
- Compliance: UL Listed, cULus Listed
- Environmental Conditions: 95% RH, non-condensing
- Operating Temperature Range: -40°C to +60°C
- Maximum Working Voltage: 125 V
- Dielectric Withstand Voltage: 1500 V minimum
- Country of Origin: China
