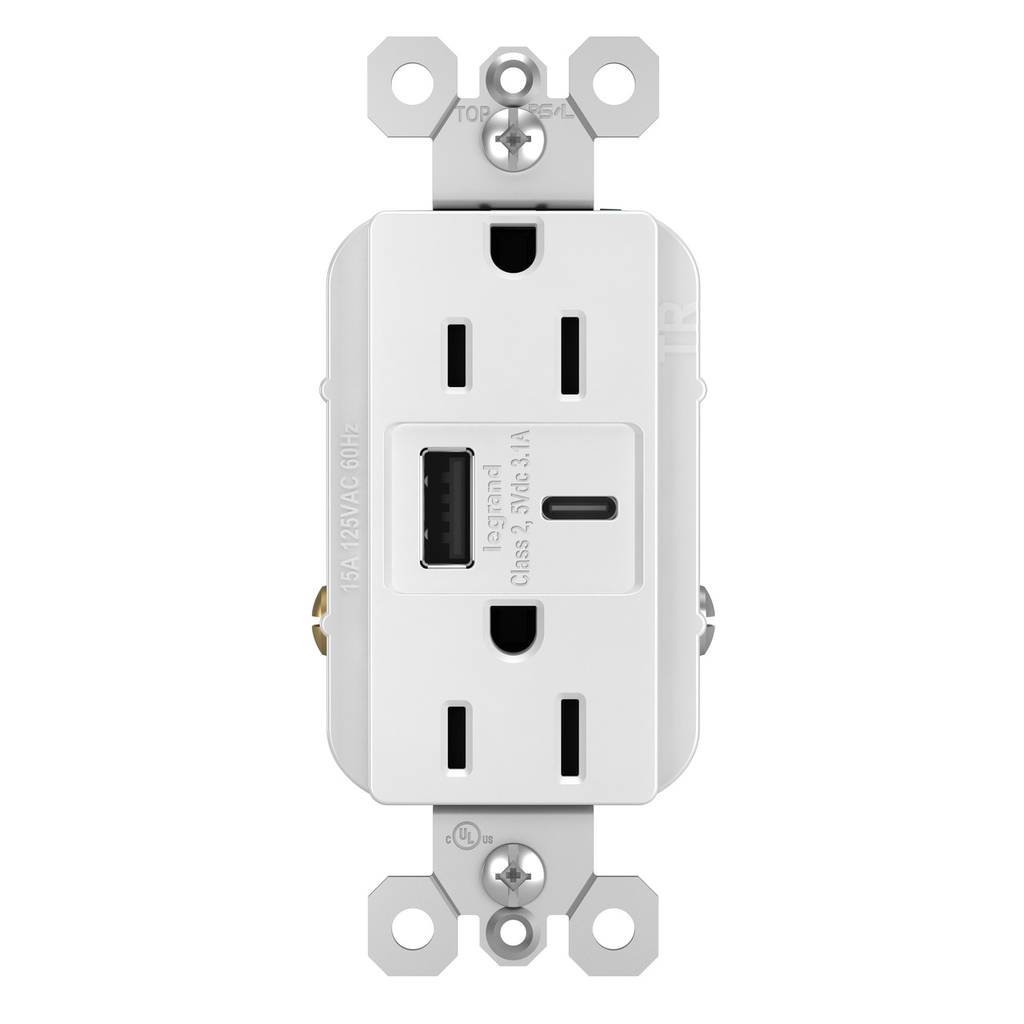

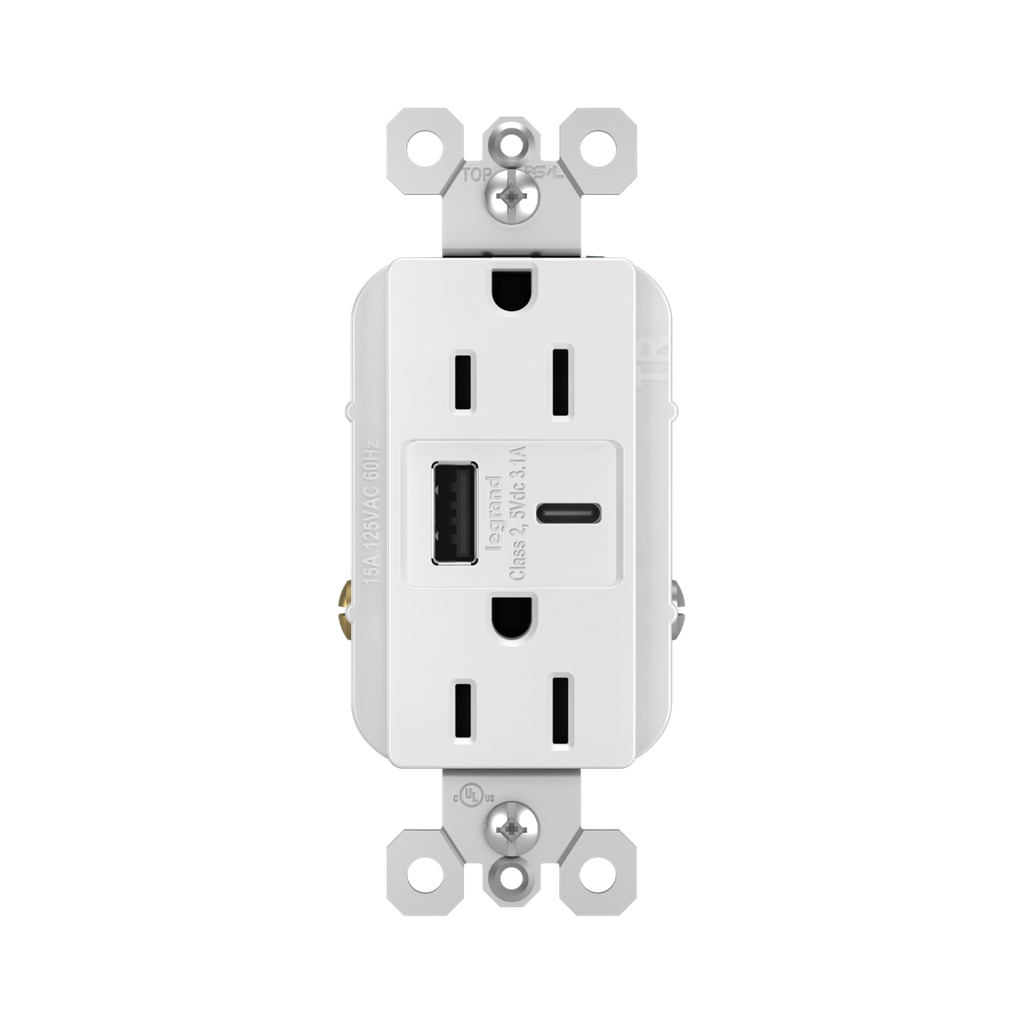

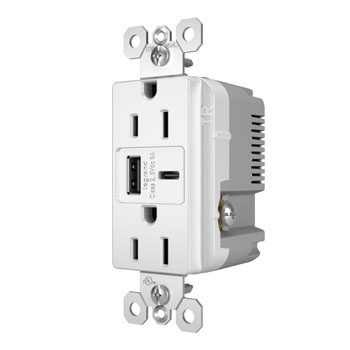

radiant R26USBACW USB Charging Outlet 15A 3.1A Tamper-Resistant Satin White

Enhancing your space with both functionality and style, this innovative outlet features a convenient dual USB charging capability, accommodating both traditional USB Type-A and modern USB Type-C devices. Featuring a tamper-resistant design, it provides safety for homes with children, incorporating patented shutter technology for added peace of mind. Installation is quick and easy, allowing you to replace a traditional outlet in as little as ten minutes, making it a seamless upgrade for any room. With a contemporary satin white finish, it complements any décor and pairs well with a sleek screwless wall plate from the radiant® Collection, creating a cohesive look across your living space. Crafted with quality and backed by a limited lifetime warranty, this outlet brings together style, safety, and convenience for everyday use.

• Tamper-resistant design with patented shutter technology for enhanced child safety
• UL and cULus listed for safety and code compliance
• Operates safely within a wide temperature range from -40°C to +60°C
• Dual USB Type-A and Type-C charging ports for versatile device compatibility
• Overall 3.1A USB charging capability for fast device charging
• Quick and easy installation with screw terminals and internal pressure plates
• Durable polycarbonate face and nylon back body for reliable long-term use
• Back and side wire termination options support solid and stranded wires including copper-clad aluminum
• Satin white finish complements contemporary décor and pairs with screwless wall plates
• Replaces a traditional outlet easily, in as little as 10 minutes

• Amperage: 15.0 A
• Voltage: 125 V
• USB Wattage: 15.0 W
• USB Amperage: 3.1 A
• Number of USBs: 2
• Dimensions: 4.18 in x 1.693 in x 1.35 in
• Mounting Type: Box
• Material: Polycarbonate (Face), Nylon (Back Body), CDA 260 Brass (Line Contacts), Zinc-Plated Steel (Mounting Strap and Terminal Screws)
• Wire Connection Type: Screw Terminals, Internal Pressure Plates
• Number of Wires: 3
• Color: White
• Tamper-Resistant: Yes
• Finish: Satin
• Country of Origin: Vietnam
• Environmental Conditions: 95% relative humidity, non-condensing
• Indoor/Outdoor: Indoor
• Application Sector: Multi-Dwelling Unit, Residential, Hospitality
• Dielectric Withstand Voltage: 1500 V
• Operating Temperature: -40°C to +60°C
• Maximum Temperature Rise: 30°C after 50 cycles
