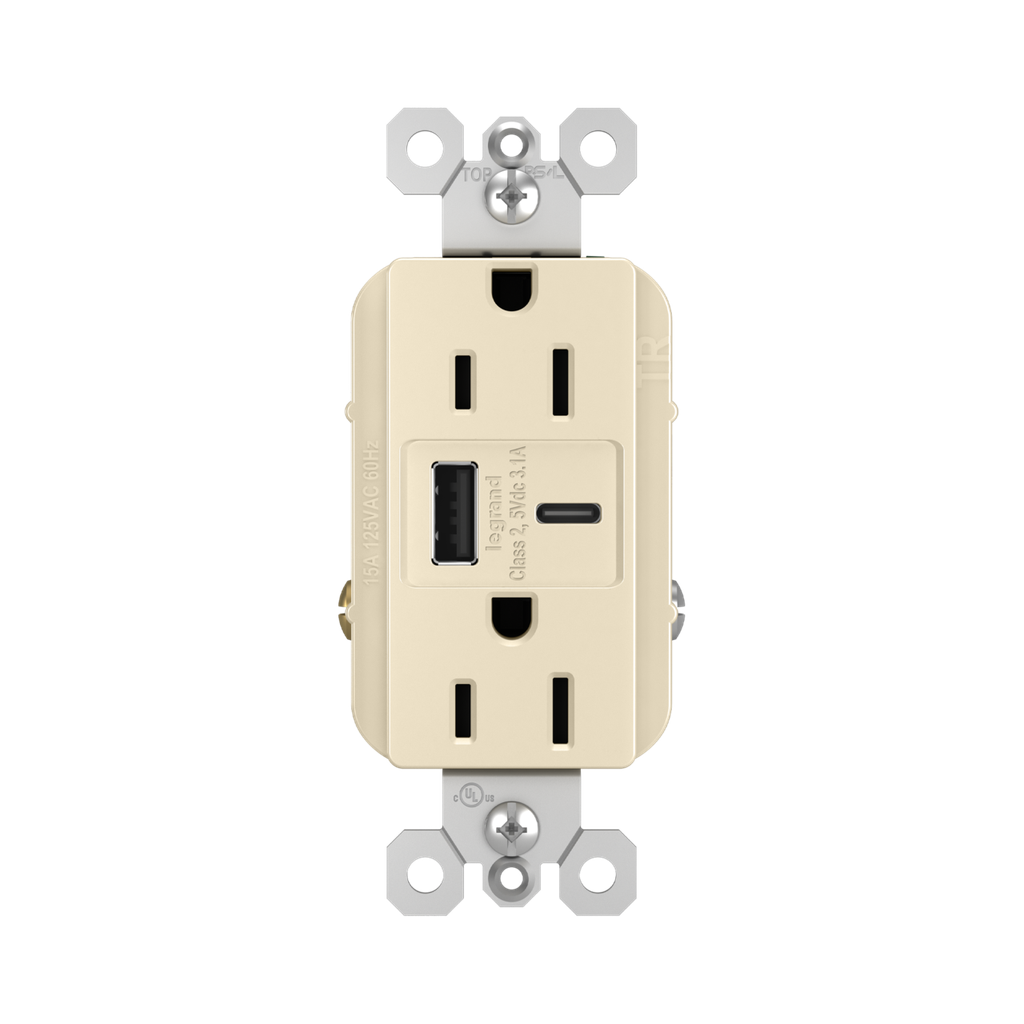

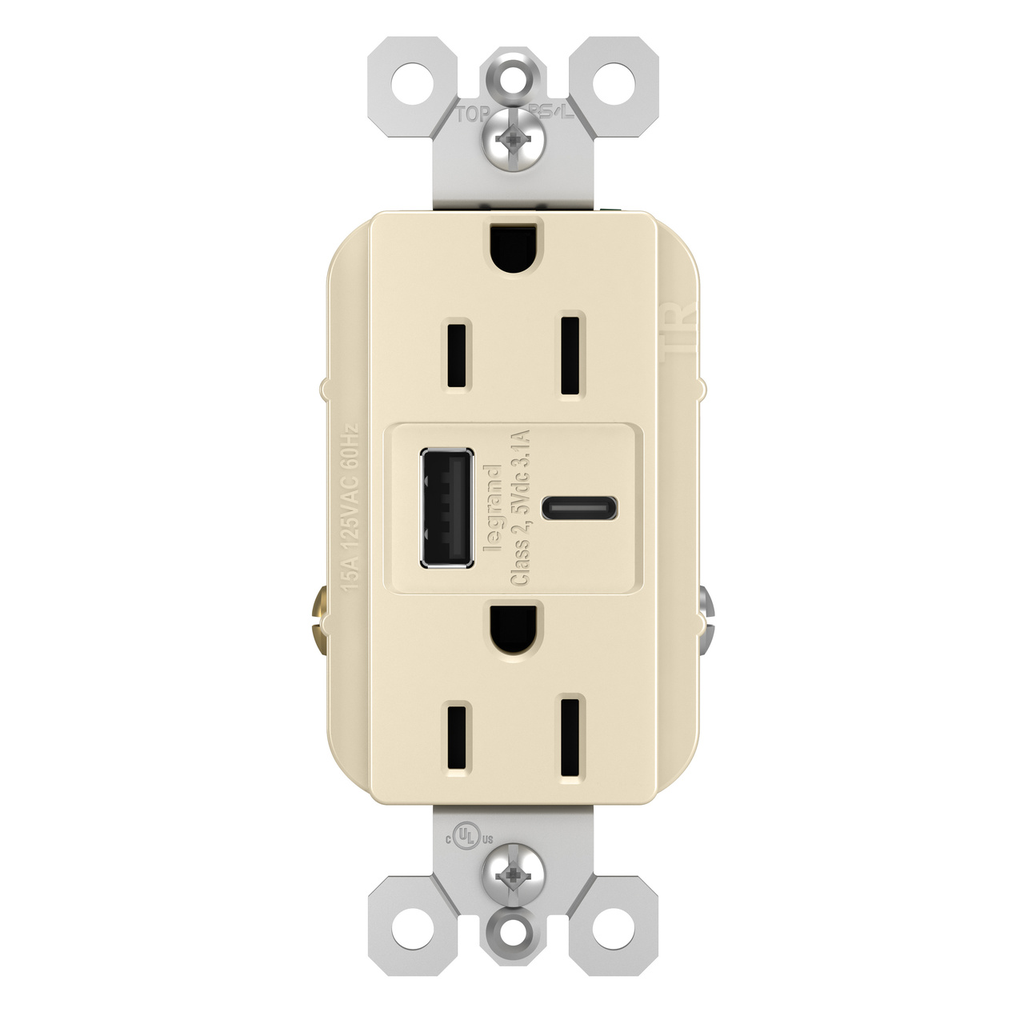

radiant R26USBACLA Decorator Outlet 15A Tamper-Resistant 3.1A USB-A USB-C Light Almond Satin

Offering a blend of functionality and safety, this USB outlet features a patented tamper-resistant shutter system that effectively prevents unauthorized access and mishaps, making it a reliable choice for homes with children. With dual charging capabilities that accommodate both traditional USB Type-A and the more modern USB Type-C, it ensures that all your devices can easily stay powered without the hassle of bulky adapters. Designed for seamless integration into your space, the light almond finish complements a variety of decor styles, while its sleek design can be paired with a coordinated screwless wall plate for a polished look. Installation is straightforward, taking as little as ten minutes, and with high-quality manufacturing backed by a lifetime warranty, this outlet not only enhances convenience but also adds a layer of assurance to your electrical setup.

• Patented tamper-resistant shutter system for child safety
• Tamper-resistant AC receptacles compliant with NEC
• Certified to withstand 1500V dielectric voltage for enhanced safety
• Dual USB ports with Type-A and Type-C for versatile device charging
• 3.1A total USB charging capability for fast power delivery

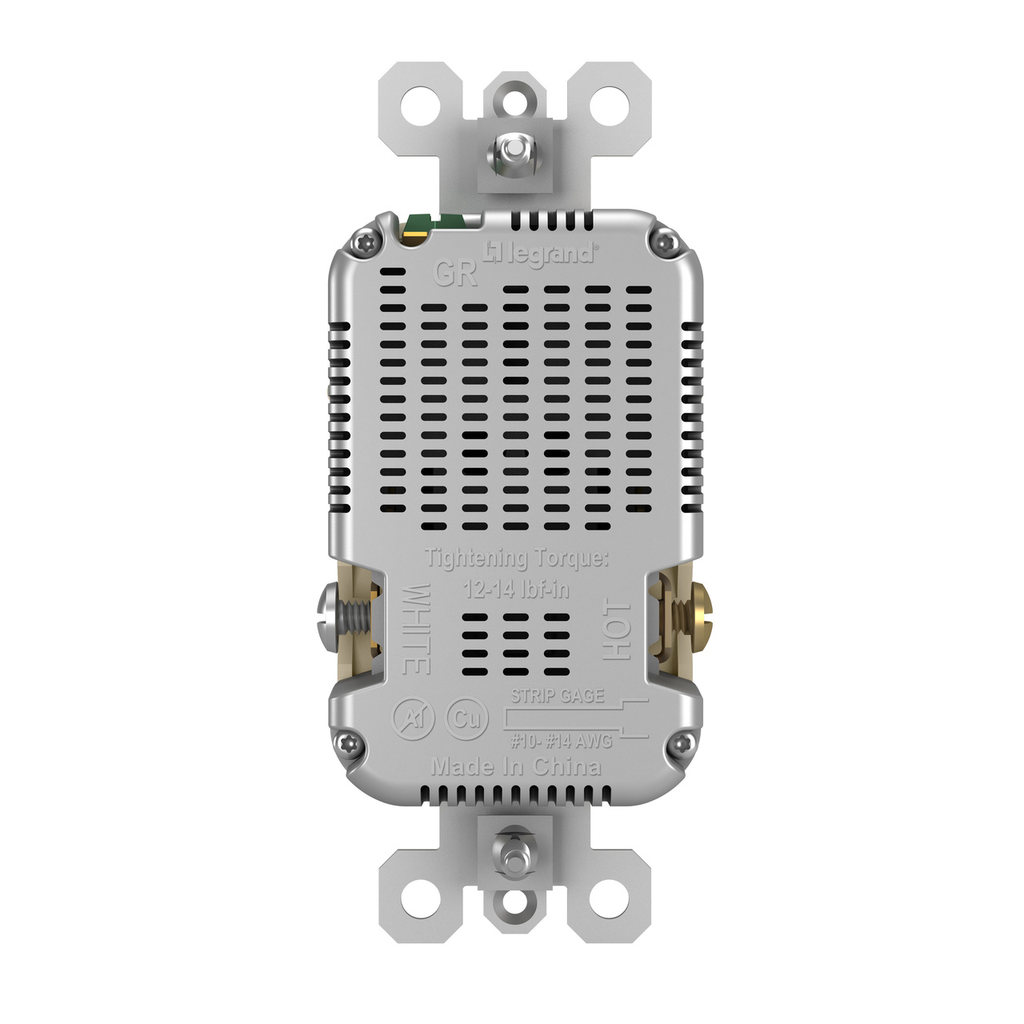

• External back-wire pressure-plate and posted side-wire terminal screws for easy installation
• Supports #14–#10 AWG solid and stranded wires including copper-clad aluminum
• Durable polycarbonate face and nylon back body for lasting use
• Satin light almond finish for decorative integration
• Replaces a traditional outlet easily, in as little as 10 minutes

• Voltage: 5.0 V
• Amperage: 15.0 A
• USB Charging Current: 3.1 A total
• USB Wattage: 15.0 W
• USB Ports: Type-A and Type-C
• Tamper-Resistant: Yes
• Operating Temperature: -40°C to +60°C
• Dielectric Withstand Voltage: 1500 V minimum
• Maximum Temperature Rise: 30°C after 50 cycles at full-rated current
• Terminal Accommodation: #14–#10 AWG solid & stranded wires, Copper-clad aluminum and copper wire
• Length: 4.18 in
• Width: 1.693 in
• Depth: 1.35 in
• Material Face: Polycarbonate
• Material Back Body: Nylon
• Material Line Contacts: CDA 260 Brass
• Material Mounting Strap: 0.049 in Zinc-Plated Steel
• Material Terminal Screws: Tri-Drive Zinc-Plated Steel with Clear or Black Chromate
• Material Ground Screw: Tri-Drive Steel with Green Chromate
• Material Mounting Screws: Tri-Drive Steel
• Finish: Satin
• Mounting Type: Box
• Wire Connection Type: Internal Pressure Plates
• Number of USBs: 2
• Number of Receptacles: 2
• Number of Poles: Double Pole
• Color: Light Almond
• Country of Origin: China
