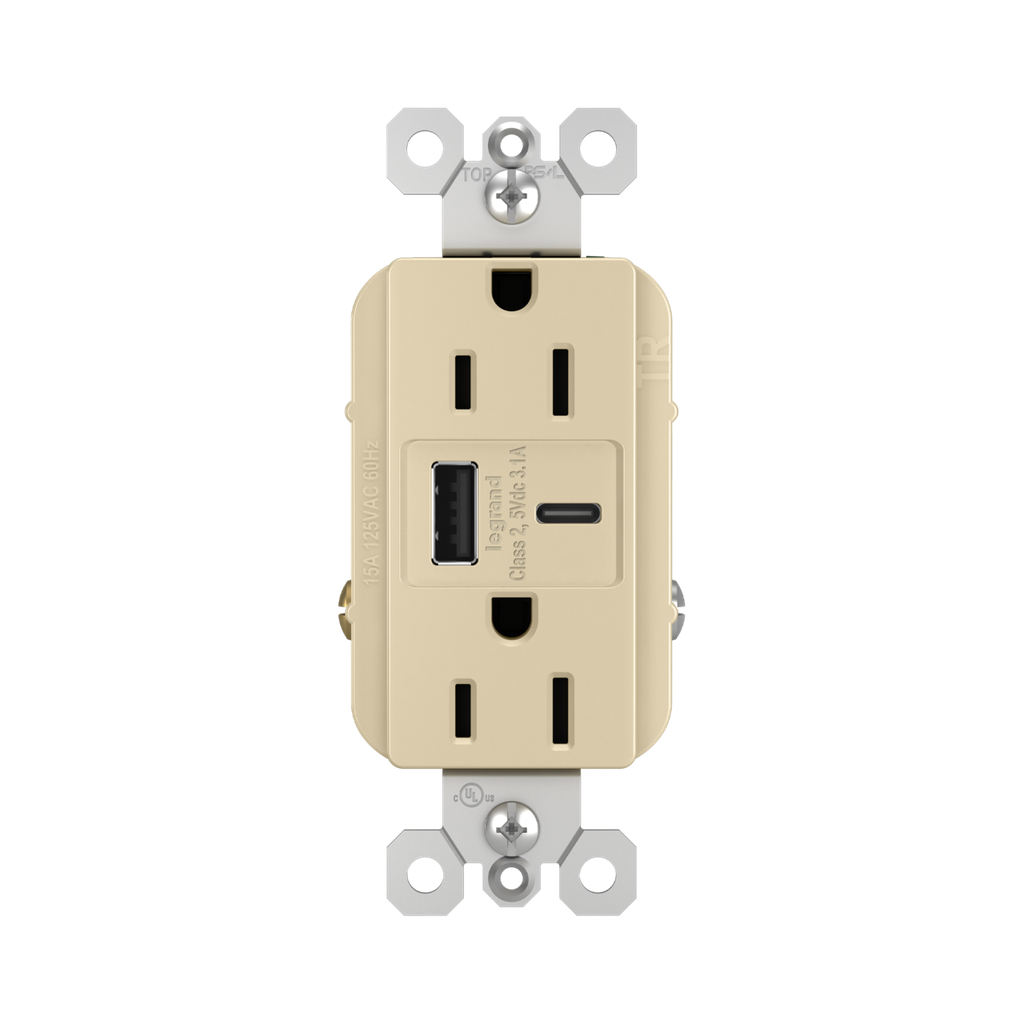

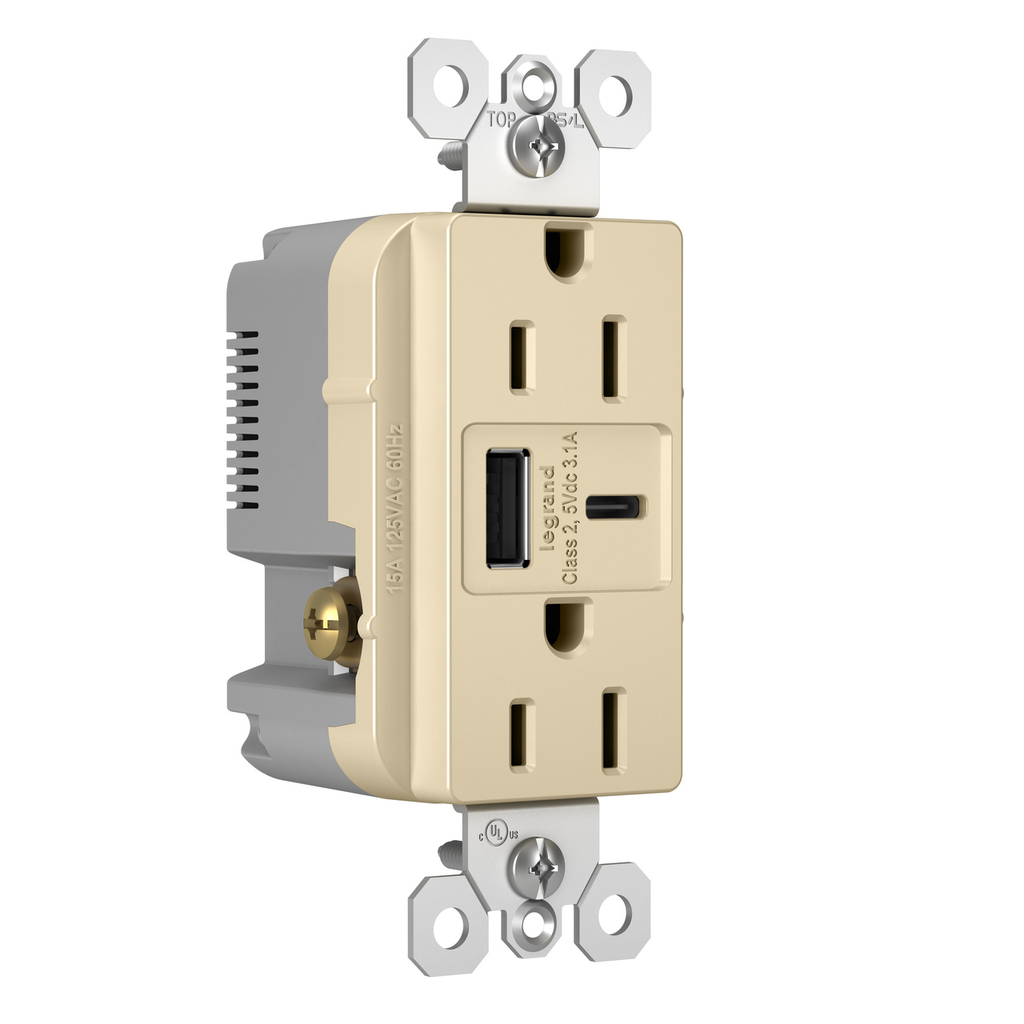

radiant R26USBACI USB Outlet 15A Tamper-Resistant 3.1A USB Type-A C Ivory Satin

Transform your charging experience with this innovative USB outlet that seamlessly combines functionality and style. The radiant® model accommodates all your mobile devices with two versatile ports, including traditional USB Type-A and the newer USB Type-C, making it perfect for various charging needs without the hassle of bulky adapters. With a tamper-resistant shutter system for child safety and high-quality manufacturing standards backed by a lifetime warranty, this outlet not only enhances convenience but also ensures peace of mind in residential settings. Available in an elegant ivory finish, it can easily replace a traditional outlet in about ten minutes, allowing you to update your space while coordinating with other stylish switches and outlets from the radiant® Collection.

• Tamper-resistant shutter system for child safety compliance
• Dual AC receptacles supporting 15A, 125V electrical devices
• Combination USB Type-A and Type-C ports for versatile device charging
• Overall 3.1A USB charging capacity for fast power delivery

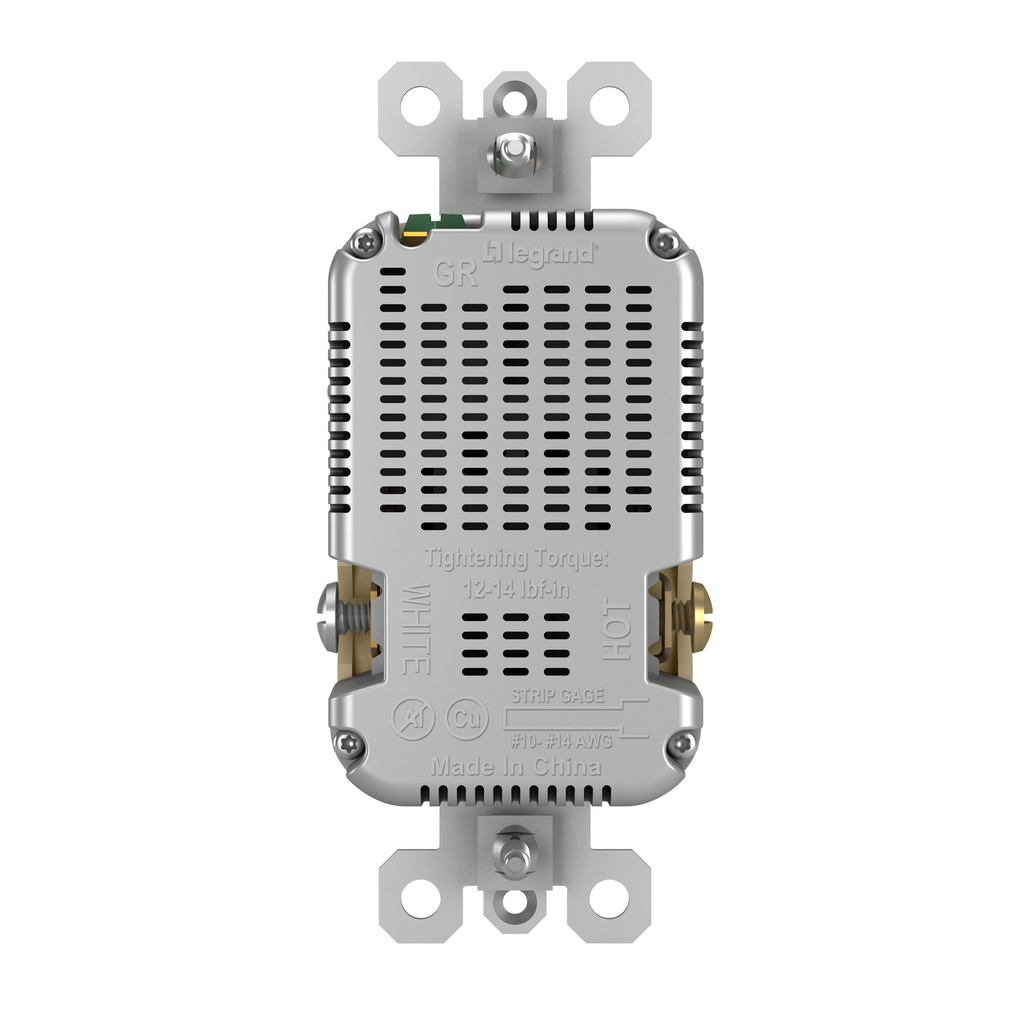

• Back and side wire termination options for flexible installation
• Screw terminals and internal pressure plates for secure wire connections
• Durable polycarbonate face and nylon back body construction
• UL94 V2 and 5V flammability rated for enhanced safety
• Operates reliably in temperatures from -40°C to +60°C
• Satin ivory finish coordinating with radiant® Collection styles

• Amperage: 15 A
• Voltage: 5 V
• USB Charging Capacity: 3.1 A
• Number of Receptacles: 2
• Number of USBs: 2
• Dimensions: 4.18 in (H) x 1.693 in (W) x 1.35 in (D)
• Connection Location: Back and Side
• Mounting Type: Box
• Wire Connection Type: Screw Terminals, Internal Pressure Plates
• Number of Wires: 3
• USB Ports: Type-A, Type-C
• Outlet Type: USB-Charging, Tamper-Resistant
• Material: Polycarbonate (face), Nylon (back body), CDA 260 Brass (line contacts), Zinc-Plated Steel (mounting strap, screws)
• Finish: Satin
• Tamper-Resistant: Yes
• Operating Temperature: -40°C to +60°C
• Dielectric Withstand Voltage: 1500V minimum
• Flammability Rating: UL94 V2 (cover), UL94 5V (body and frame)
• Country of Origin: China
