radiant R26USBACDBCCV4 Decorator Outlet 15A 3.1A USB-A USB-C Tamper-Resistant Dark Bronze Metallic
Specifications
Documents
Supporting Document
White Papers & Tech Bulletins
Sell Sheet
Downloads
Product Environmental Profile
Instruction Sheet

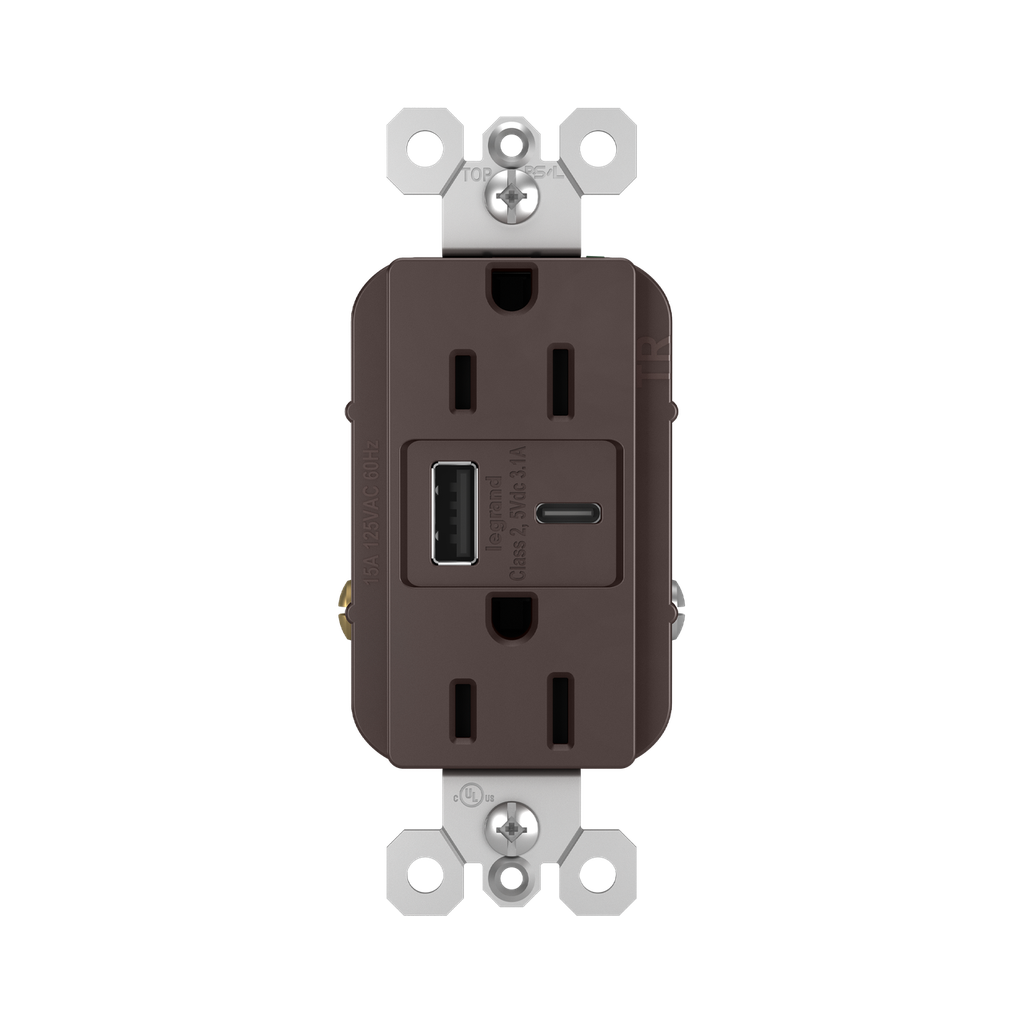

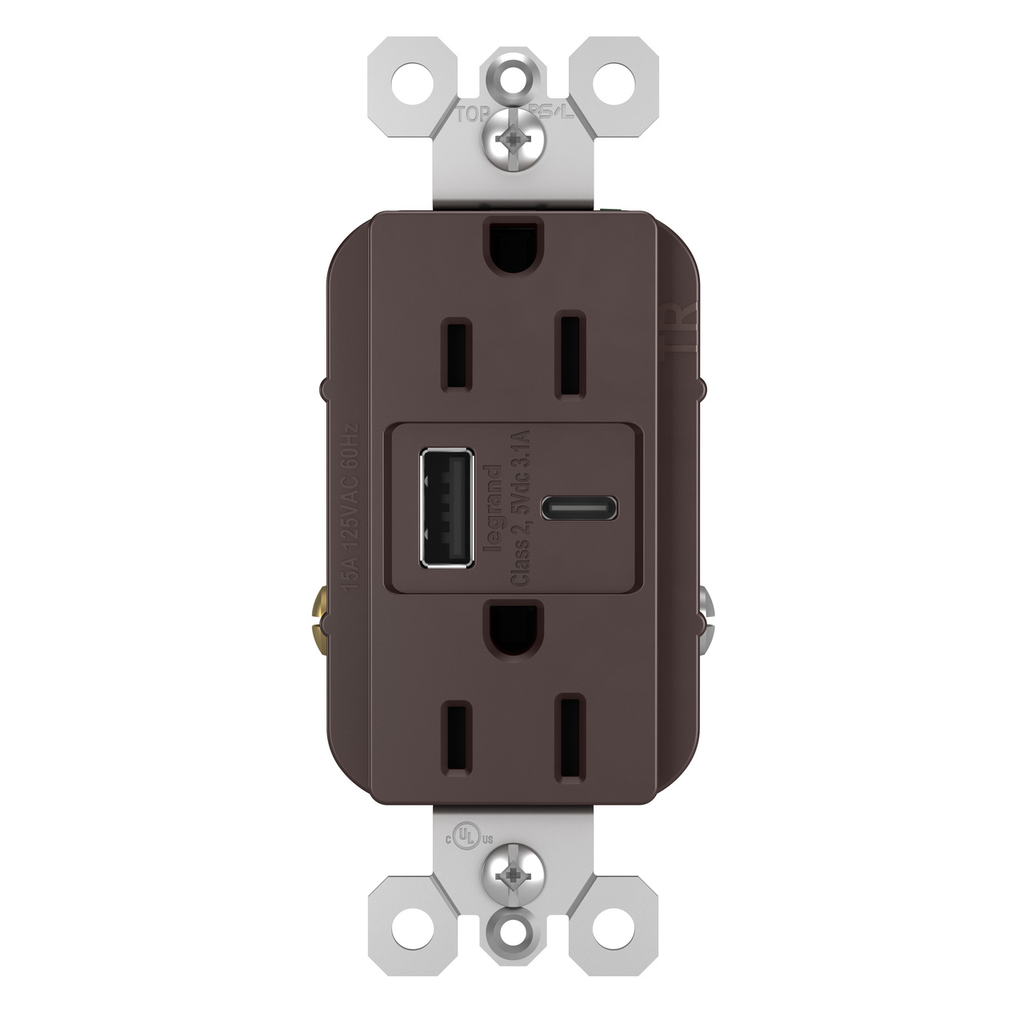

Transform the way you power up your devices with the radiant® 3.1A USB Outlet, designed for seamless integration into your home. This innovative outlet features both traditional USB Type-A and the newer USB Type-C ports, providing versatile and fast charging options for all your mobile devices without sacrificing precious wall socket space. Its sleek, tamper-resistant design not only enhances safety for children but also aligns beautifully with contemporary decor, particularly when paired with radiant® wall plates and the rest of the designer switches available in the collection. A straightforward installation process means you can replace a traditional outlet in as little as 10 minutes, allowing for instant upgrades to your electrical setup while enjoying the peace of mind that comes with high-quality manufacturing and a lifetime warranty. From its dark bronze finish to its advanced protective features, this USB outlet brings functional elegance to any indoor space, making it an essential addition to residential, hospitality, or multi-dwelling units.
- Tamper-resistant design with patented shutter for child safety
- UL Listed and cULus Listed for safety and code compliance
- Combination of USB Type-A and USB Type-C ports for versatile device charging
- Overall 3.1A USB charging capability for fast power delivery

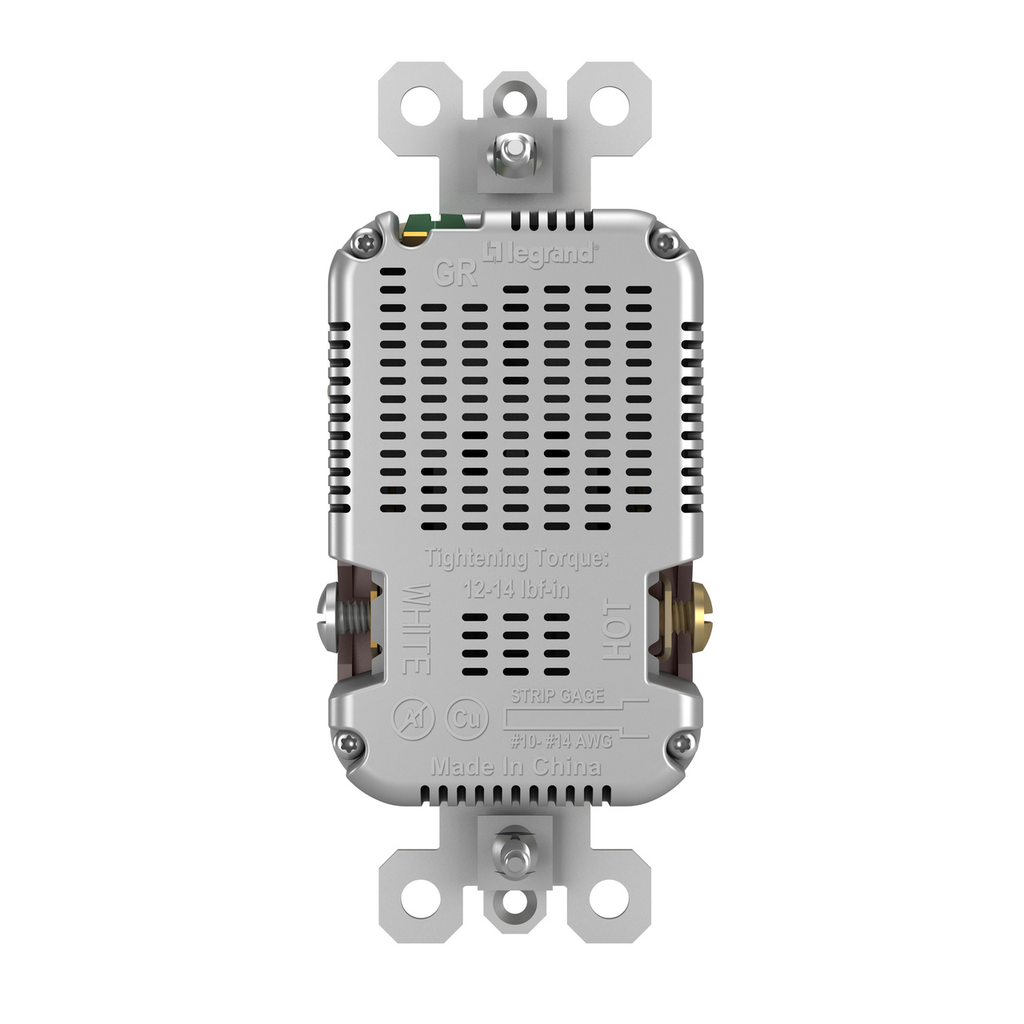

- Back and side wire termination options for flexible installation
- Screw-terminal connections with tri-drive zinc-plated steel screws for secure wiring
- Durable polycarbonate face and nylon back body for long-lasting use
- Corrosion-resistant CDA 260 brass line contacts for electrical reliability
- Operates safely in temperature range from -40°C to +60°C
- Sleek dark bronze metallic finish for stylish contemporary decor integration
- Amperage: 15 A
- Voltage: 5.0 V
- USB Charging Amperage: 3.1 A
- USB Ports: Type-A, Type-C
- Number of USB Ports: 2
- Number of Receptacles: 2
- Outlet Type: Tamper-Resistant, USB-Charging
- Wire Connection Type: Screw Terminals
- Connection Location: Back and Side
- Number of Poles: Double Pole
- USB Wattage: 15.0 W
- Height: 4.18 in
- Width: 1.693 in
- Depth: 1.35 in
- Mounting Type: Box
- Material Face: Polycarbonate
- Material Back Body: Nylon
- Material Line Contacts: CDA 260 Brass
- Material Mounting Strap: 0.049 in Zinc-Plated Steel
- Material Terminal Screws: Tri-Drive Zinc-Plated Steel with Clear or Black Chromate
- Material Ground Screw: Tri-Drive Steel with Green Chromate
- Material Mounting Screws: Tri-Drive Steel
- Finish: Metallic
- Dielectric Withstand Voltage: 1500 V minimum
- Maximum Temperature Rise: 300C after 50 cycles at full-rated current
- Flammability: UL94 V2 (cover), UL94 5V (body and frame)
- Compliance: UL Listed, cULus Listed, RoHS Compliant
- Operating Temperature: -40b0C to +60b0C
- Tamper-Resistant: Yes
- Color: Dark Bronze
- Country of Origin: China
- Application Sector: Residential, Multi-Dwelling Unit, Hospitality
- Indoor/Outdoor: Indoor
- Product Line: Pass & Seymour
- Warranty Type: Limited Lifetime Warranty
