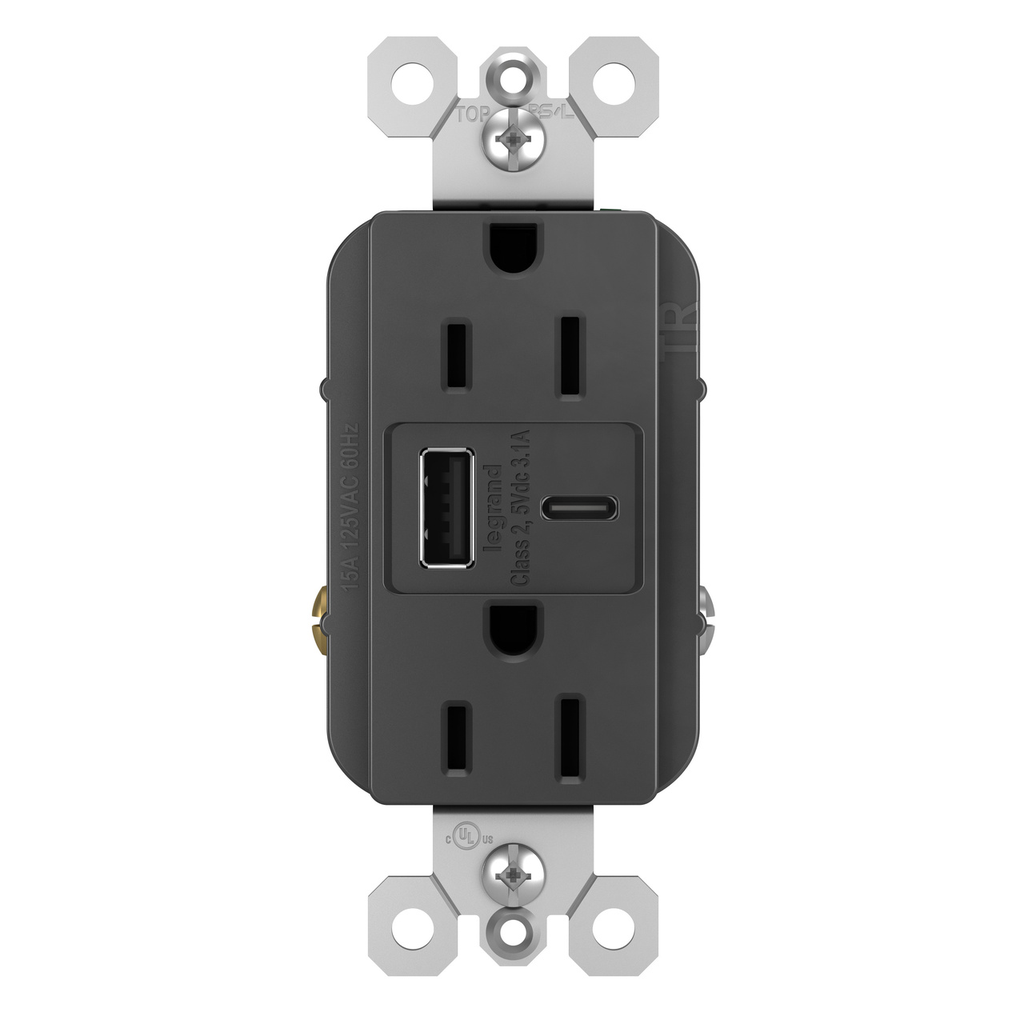

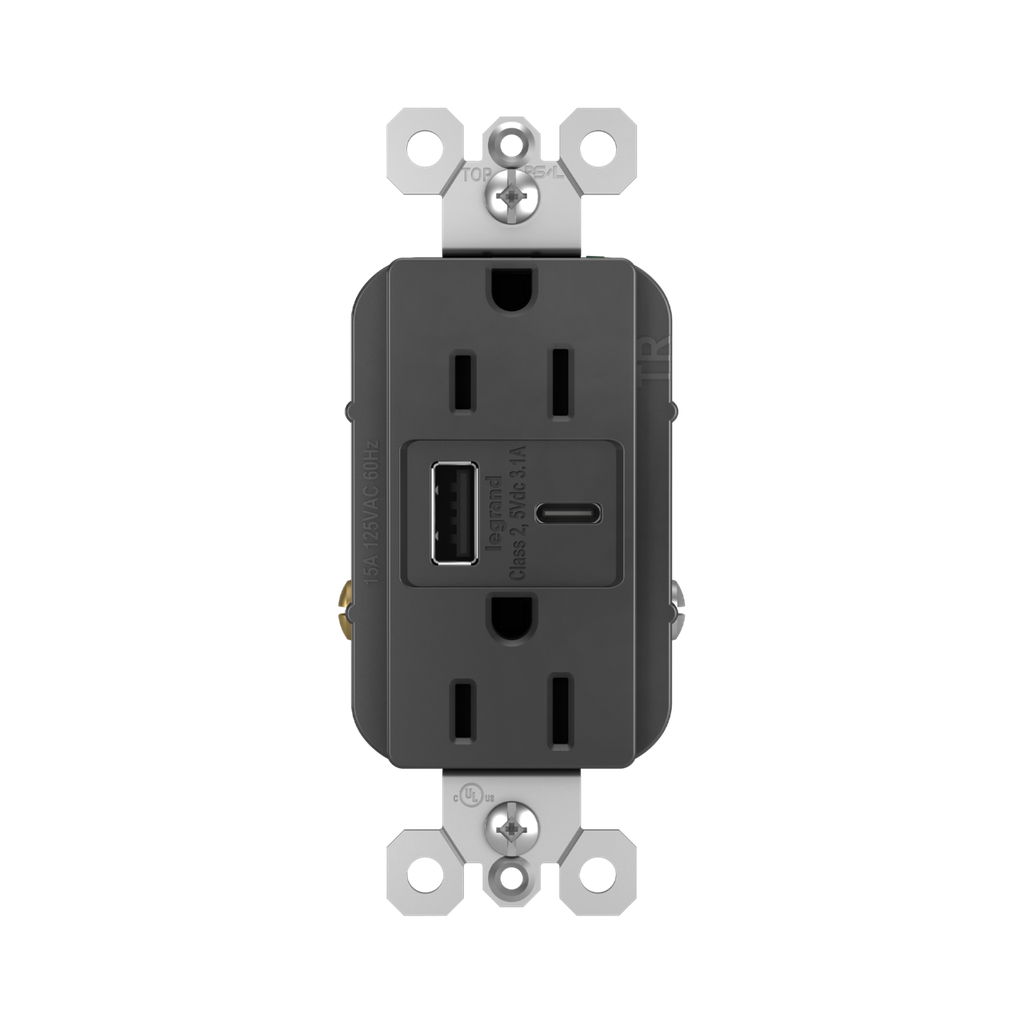

radiant R26USBACBK USB Outlet 15A Tamper-Resistant 3.1A USB Type-A Type-C Black Satin

Upgrade your charging experience with this innovative USB outlet designed to offer convenience and safety. Featuring a sleek black finish and tamper-resistant shutter system, it effectively prevents children from inserting foreign objects, ensuring peace of mind in any indoor setting. With dual USB ports accommodating both traditional USB Type-A and newer USB Type-C devices, you can enjoy hassle-free charging without the need for bulky adapters, all while maintaining access to standard power plugs. Installation is straightforward, replacing a traditional outlet in as little as 10 minutes, making it an ideal choice for residential, hospitality, and multi-dwelling environments. Each unit is backed by a limited lifetime warranty and UL Listing, reflecting high-quality engineering and design from radiant.

• UL Listed and cULus Listed for safety compliance
• Tamper-resistant shutter system for child safety
• Combined USB charging and 15A, 125V AC receptacles
• Dual USB ports supporting Type-A and Type-C devices
• Overall 3.1A USB charging capability for fast device charging

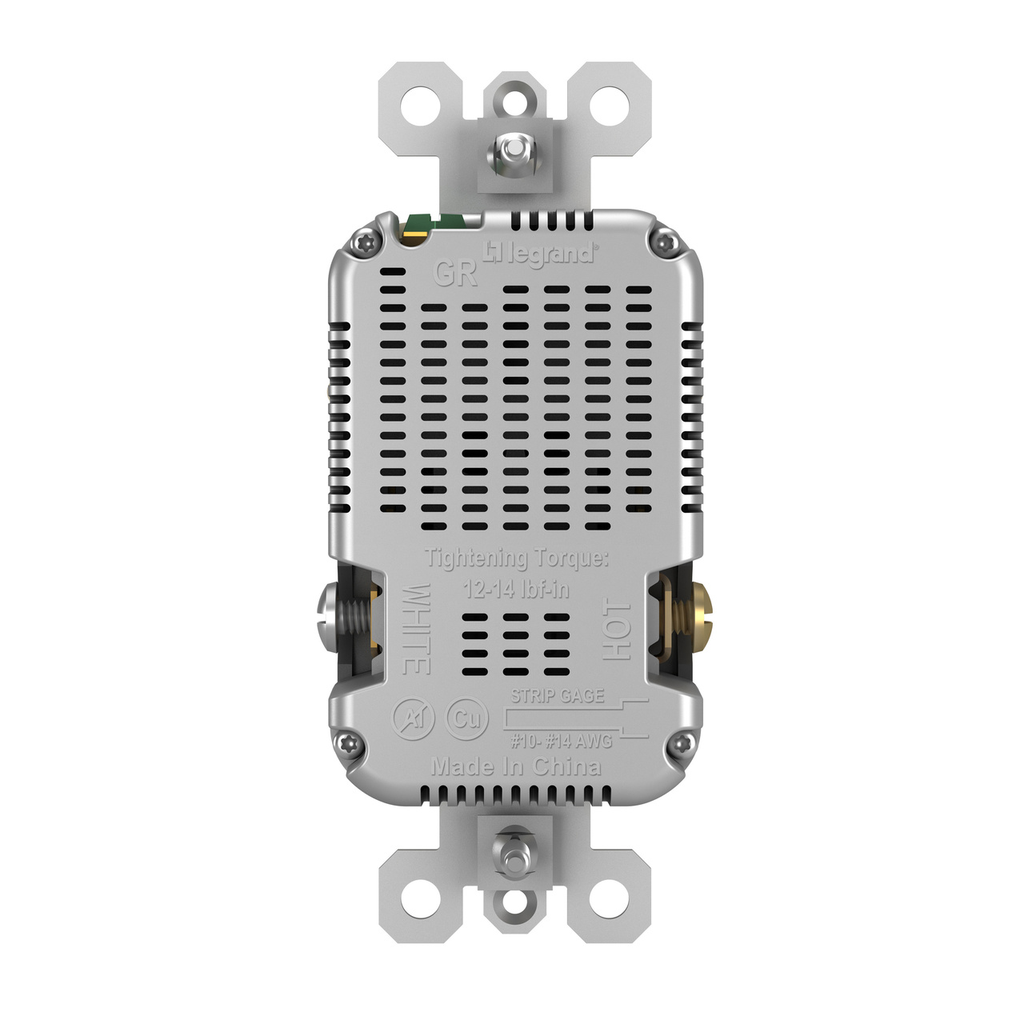

• Easy installation with back and side wire connections
• Durable polycarbonate face and nylon back body construction
• Satin black finish for aesthetic design compatibility
• Suitable for indoor use with wide operating temperature range (-40°C to +60°C)
• Limited lifetime warranty for long-term reliability

• Amperage: 15.0 A
• Voltage: 125 V
• USB Charging Current: 3.1 A
• USB Ports: Type A, Type C
• Number of Receptacles: 2
• Number of Poles: Double Pole
• Dimensions: 4.18 in (H) x 1.693 in (W) x 1.35 in (D)
• Mounting Type: Box
• Wire Connection Type: Screw Terminals, Internal Pressure Plates
• Material: Polycarbonate face, Nylon back body, CDA 260 Brass contacts, Zinc-Plated Steel mounting strap and screws
• Finish: Satin
• Color: Black
• Indoor/Outdoor: Indoor
• Environmental Conditions: 95% relative humidity, non-condensing
• Operating Temperature: -40°C to +60°C
• Flammability Rating: UL94 V2 (cover), UL94 5V (body and frame)
• Compliance: UL Listed, cULus Listed
• Outlet Type: Tamper-Resistant, USB-Charging
• USB Wattage: 15.0 W
• Connection Location: Back and Side
• Terminal Accommodation: #14–#10 AWG solid & stranded wires
• Country of Origin: China
• Application Sector: Hospitality, Residential, Multi-Dwelling Unit
• Product Line: Pass & Seymour
• Warranty: Limited Lifetime Warranty
