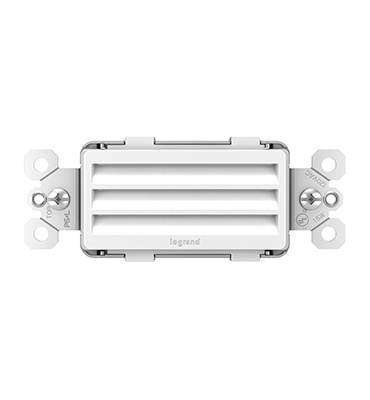

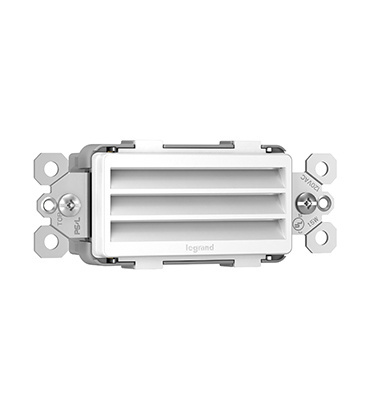

radiant NTLHORZWCC6 Horizontal Step Light Double Pole 15A Satin White

The radiant® Horizontal Step Light is designed to enhance both aesthetics and functionality in indoor spaces, particularly within hospitality and residential applications. Offering a sleek and modern satin finish, this step light perfectly complements the radiant® Collection, enabling seamless coordination with other designer switches and outlets. Compact in design, it measures 4.2 inches in height and 1.29 inches in width, making it an ideal choice for areas requiring subtle lighting without compromising on style. The product features a nightlight option and is equipped with internal pressure plates for easy and secure wire connections, ensuring reliable performance. With its double pole configuration and capability to handle up to 15 amps, this step light provides a practical solution for illuminating pathways and staircases, all backed by a 1-year limited warranty.

• UL20 flammability rating for safety assurance
• cULus listed and meets NEMA WD-1 and WD-6 standards
• Double pole configuration supports 15A load
• Internal pressure plates ensure secure wire connections
• Side-only screw terminals for easy wiring
• Nightlight option enhances nighttime visibility
• Satin finish for sleek, modern aesthetics
• Compact design fits subtle lighting needs
• Designed for indoor use in hospitality and residential settings
• Coordinates with other radiant® Collection switches and outlets

• Amperage: 15.0 A
• Voltage: 120/125 V
• NEMA Configuration Code: 5-15R
• Maximum Temperature Rise: 30°C
• Number of Poles: Double Pole
• Number of Wires: 3
• Height: 4.2 in
• Depth: 1.3 in
• Width: 1.29 in
• Wire Connection Type: Screw Terminals
• Connection Location: Side Only
• Material: Thermoplastic, Brass, Zinc-Plated Steel, Steel
• Finish: Satin
• Flammability: UL20 minimum rating
• Compliance: cULus Listed, NEMA WD-1, NEMA WD-6
• Indoor/Outdoor: Indoor
• Color: White
• Country of Origin: China
• Warranty Type: 1-Year Limited Warranty
