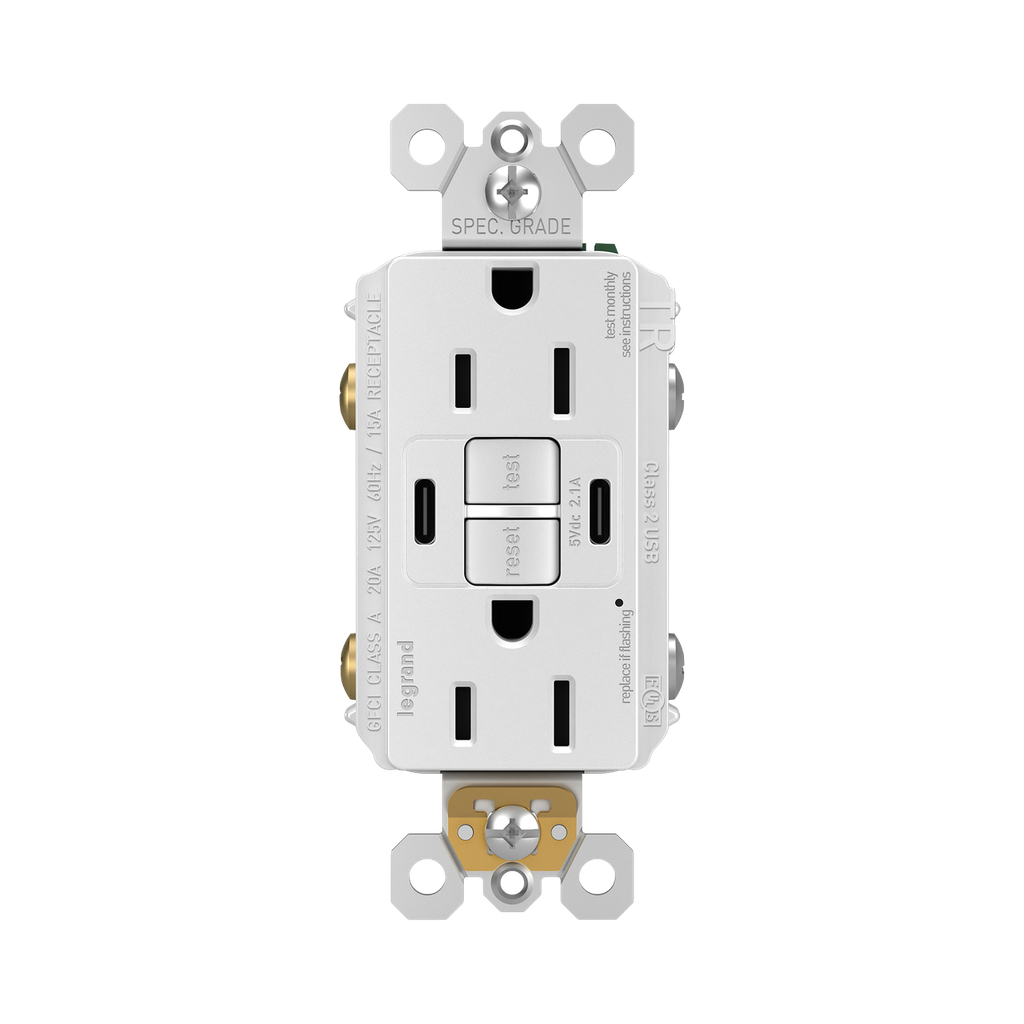

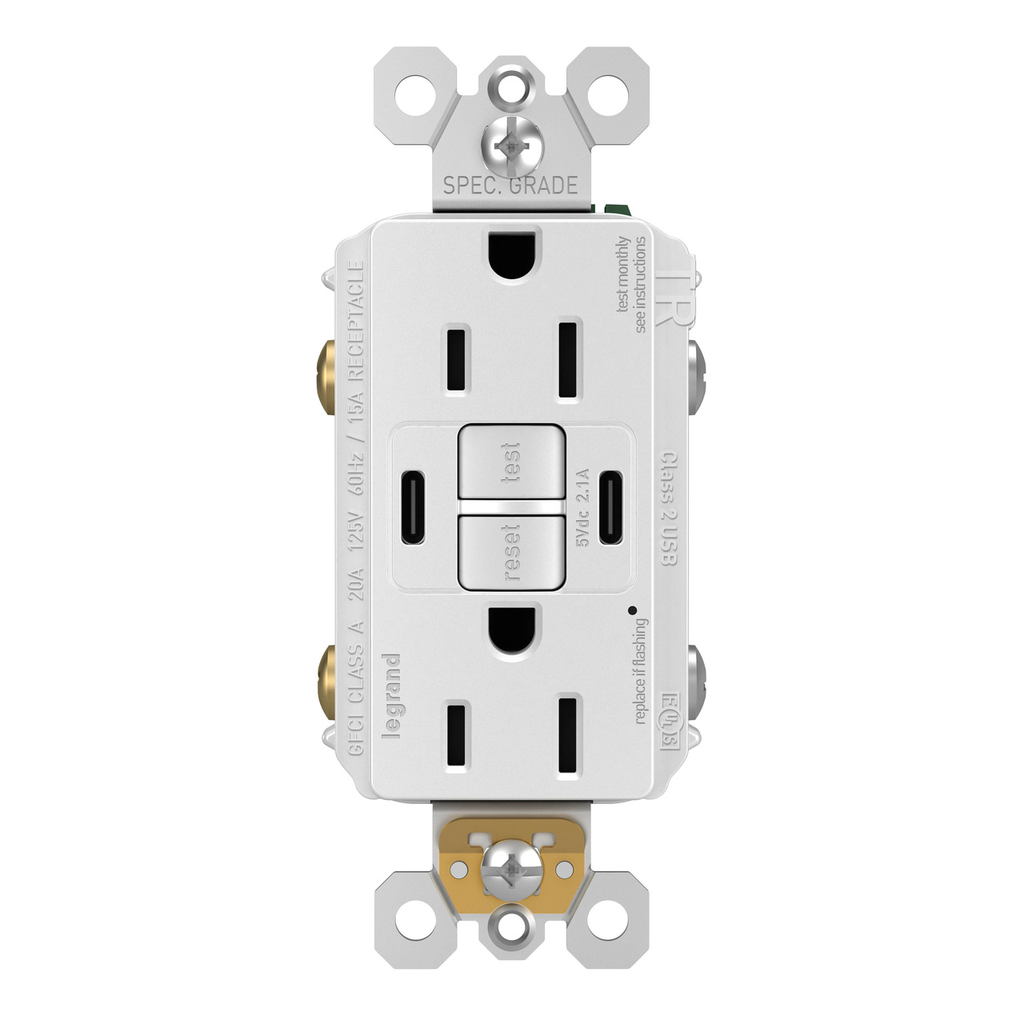

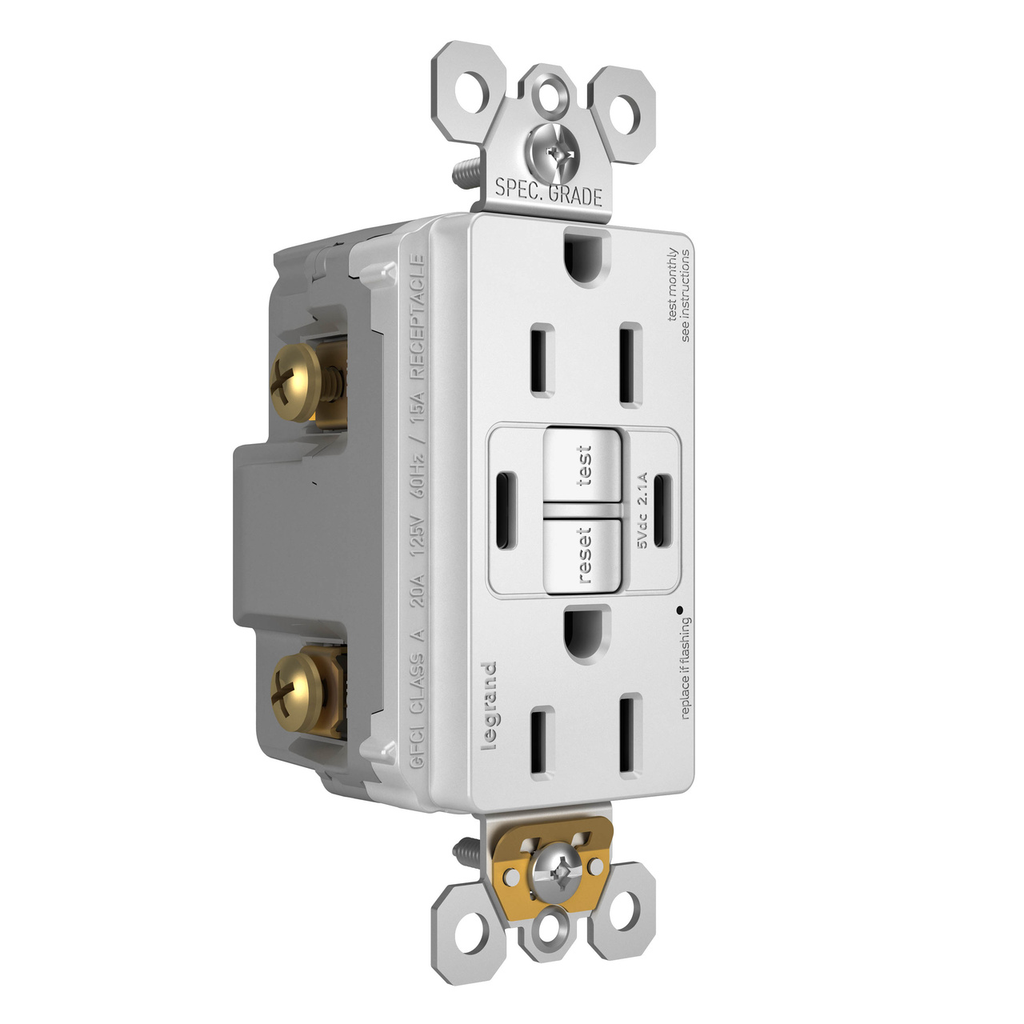

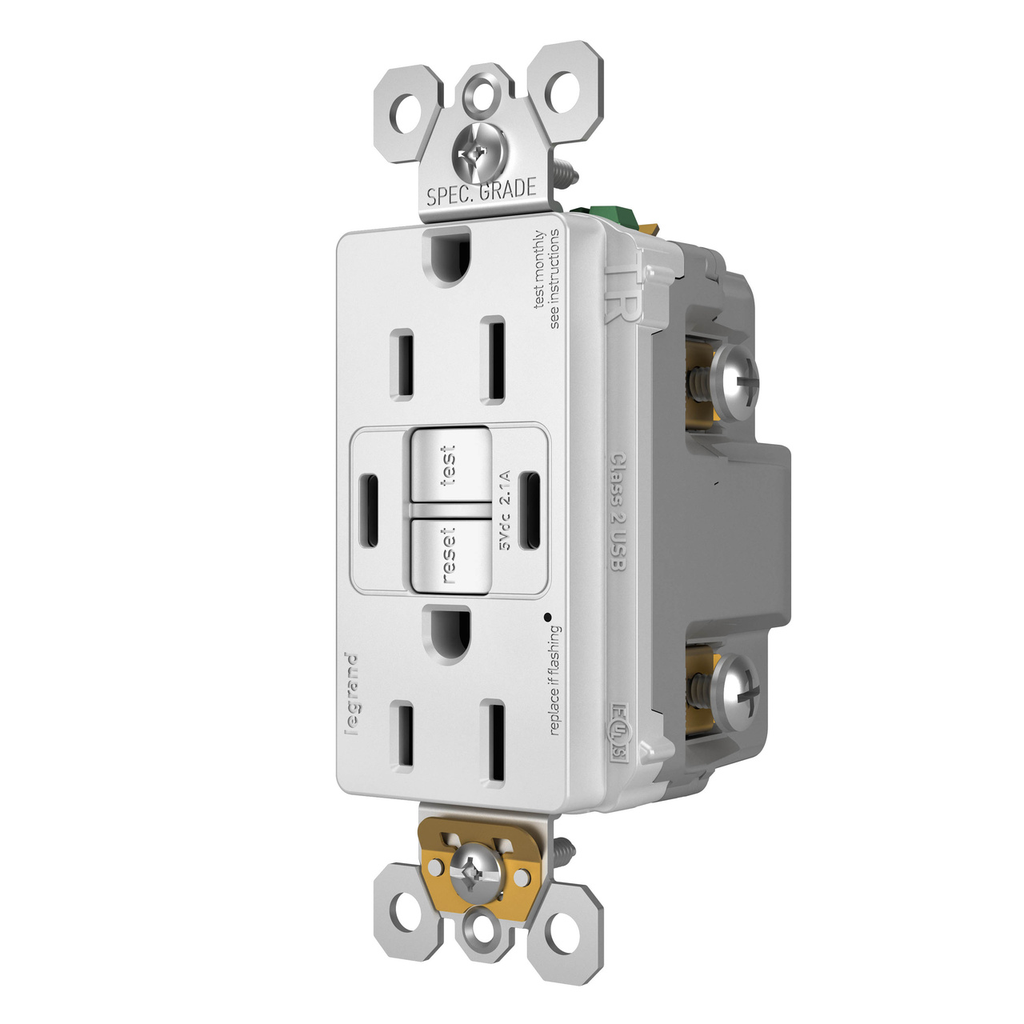

radiant 1597TRUSBCCW GFCI USB Outlet 15A Tamper-Resistant SafeLock Dual USB-C 2.0A White Satin
Specifications
Documents
Downloads
Supporting Document
Sell Sheet
Installation Instructions

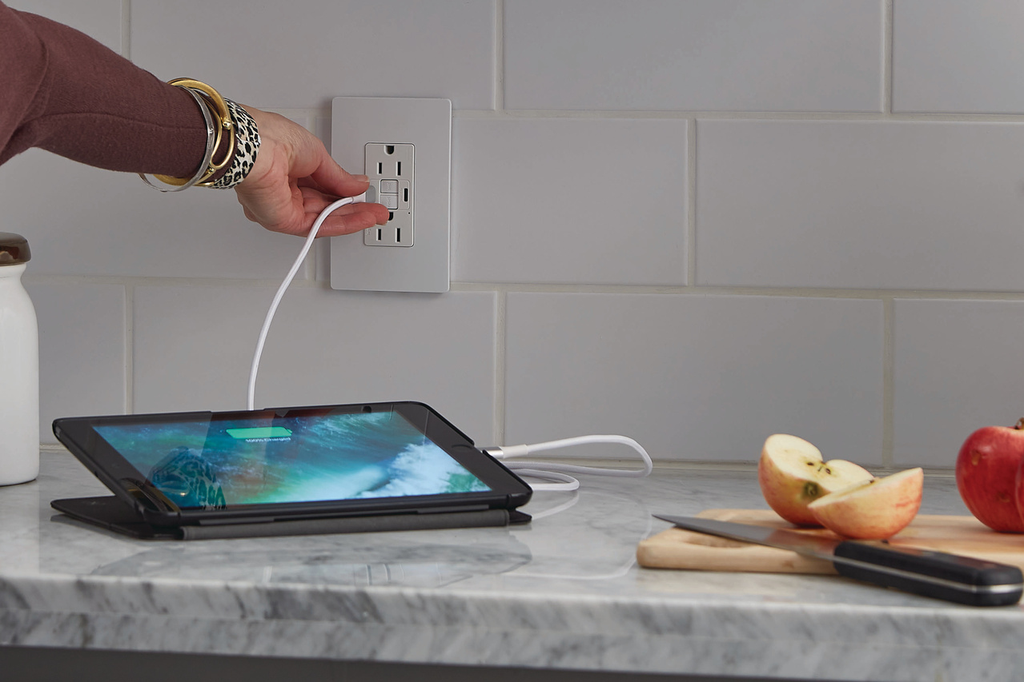

The radiant® GFCI USB Outlet with SafeLock® Protection combines safety and convenience in a sleek and modern design. Featuring both traditional power outlets and dual USB Type-C ports, this innovative outlet provides a total charging capacity of 2.0A, making it simple to power multiple devices at once. Enhanced with patented SafeLock® technology, the outlet ensures that power is automatically disconnected if any critical components are compromised, while its tamper-resistant design uses invisibility shutters to safeguard against accidental insertion of foreign objects, meeting NEC® standards for added reassurance. Designed for easy installation, the outlet allows for quick connections thanks to a redesigned side wire cavity. Additionally, it self-tests every three seconds, providing continuous ground fault protection and an accessible trip indicator light for troubleshooting. Ideal for both residential and commercial applications, this GFCI USB outlet not only enhances safety but also elevates the aesthetic of any space, particularly when paired with a matching screwless wall plate from the radiant® Collection.
- Equipped with SafeLock™ technology that disconnects power if critical components are damaged
- Tamper-resistant design with invisible shutters meets NEC® standards
- Self-tests every three seconds for continuous ground fault protection
- Trip indicator light and reset button for easy troubleshooting
- Combines traditional power outlets with dual USB Type-C ports for versatile charging
- Provides 2.0A shared charging capacity across USB Type-C ports
- Supports ground fault protection to downstream outlets through feed-thru wiring
- Redesigned side wire cavity enables quicker, easier installation
- Compatible with screwless radiant® wall plates for a sleek finish
- UL Listed, cULus Listed, CSA Listed, and RoHS compliant for safety and environmental standards
- Amperage: 15.0 A
- Voltage: 125.0 V
- Wattage: 1875.0 W
- Number of Receptacles: 2
- Number of USB Ports: 2
- USB Amperage: 2.0 A
- NEMA Configuration Code: 5-15R
- Number of Poles: Double Pole
- Number of Wires: 3

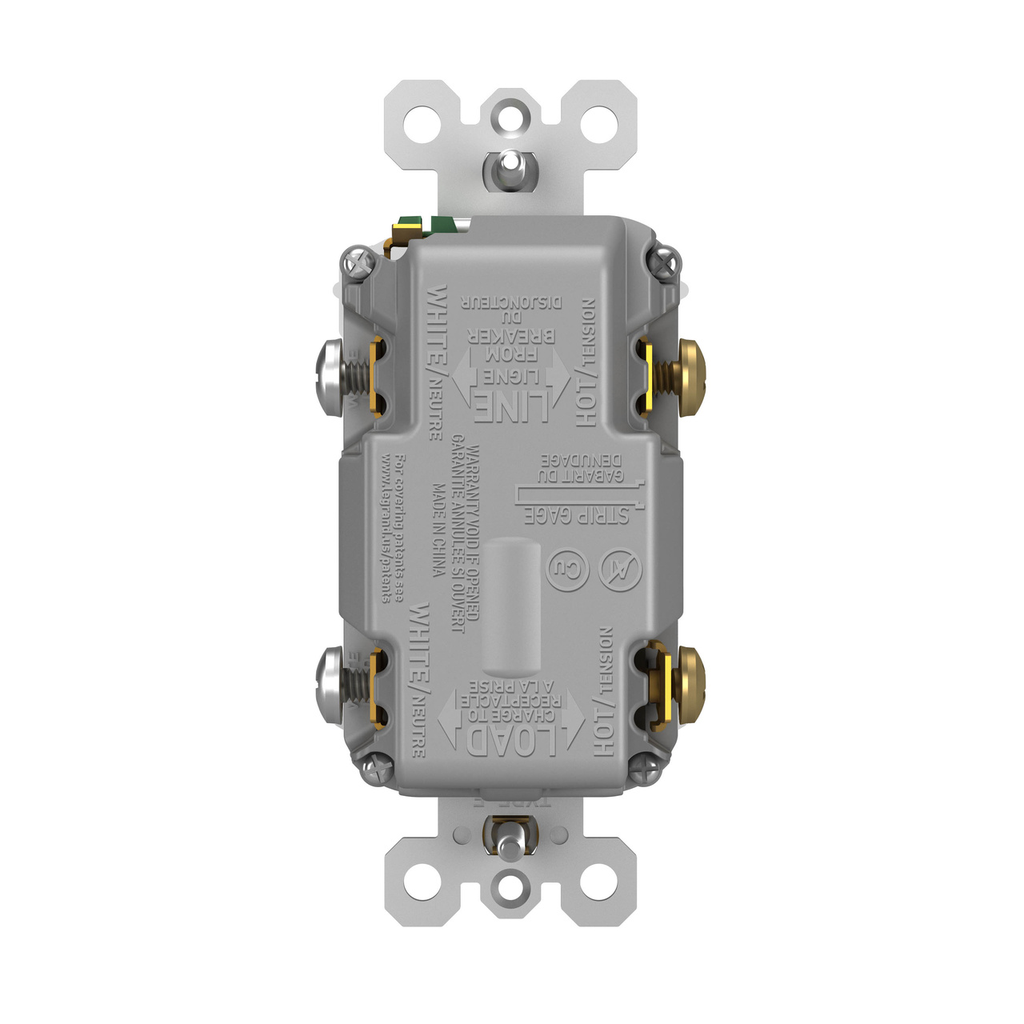

- Connection Location: Back and Side
- Wire Connection Type: Internal Pressure Plates, Screw Terminals
- Mounting Type: Box
- Dimensions: 1.73 in x 1.03 in x 4.2 in (W x D x H)
- Material Finish: Satin
- Color: White
- Environmental Conditions: 95% relative humidity, non-condensing
- Compliance: UL Listed, cULus Listed, CSA Listed, RoHS Compliant
- Country of Origin: China
