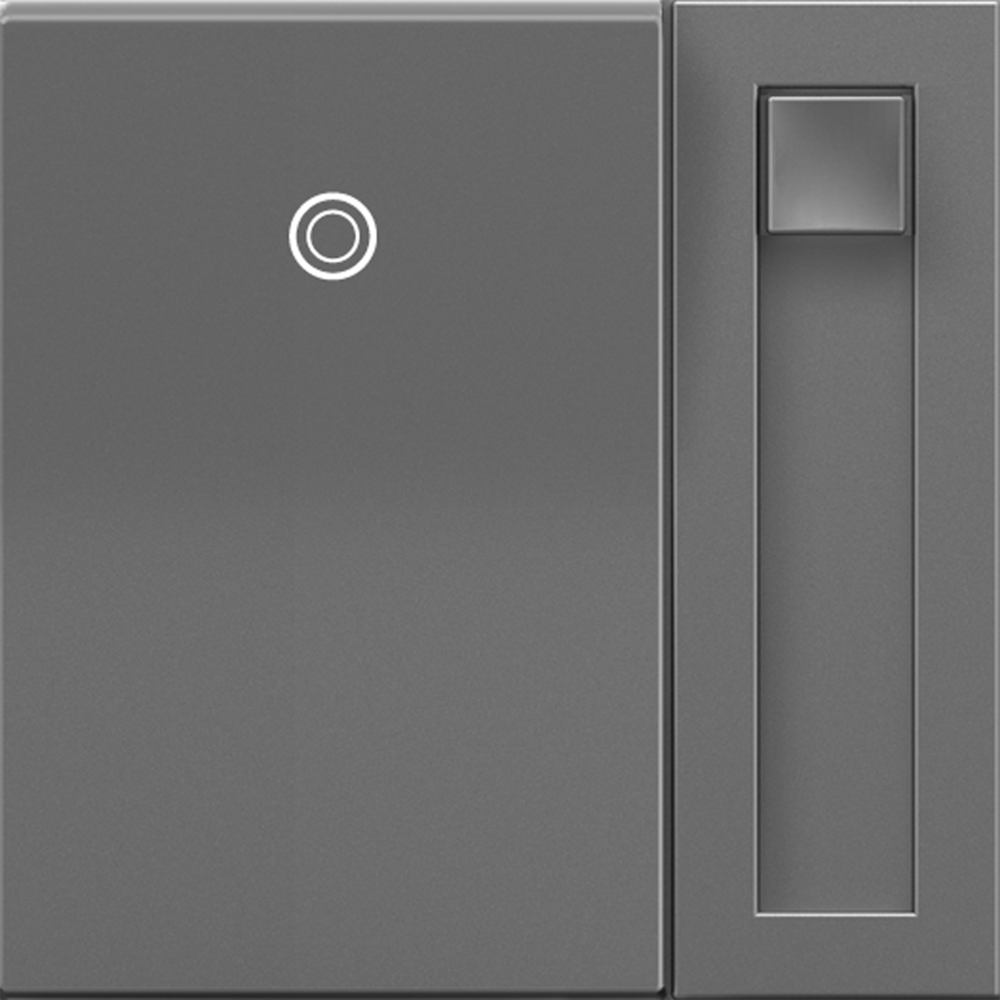

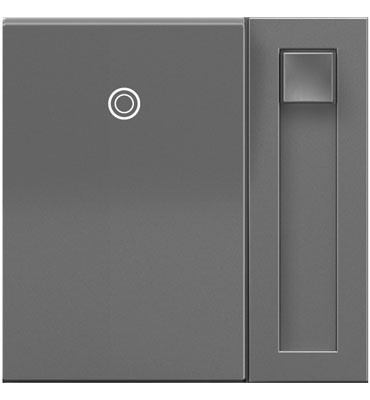

adorne ADPD4FBL3P2M4 Paddle Dimmer 0-10V Single Pole 3-Way Microban Antimicrobial Magnesium Polycarbonate
Specifications
Application
Single Pole 3-Way
Application Sector
Commercial / Residential, Hospitality
Depth
1.62 in
Finish
Metallic
Frequency Rating
60 Hz
Height
1.77 in
Load Rating
120V 10A (LED, Fluorescent), 277V 5A (LED, Fluorescent)
Load Type
LED, Fluorescent
Material
Polycarbonate, Magnesium, Brass, Steel, Silver
Mounting Type
Wall Box
Number of Poles
Single Pole 3-Way
Requires Neutral Wire
No
Standard
cULus
Switch Type
Paddle, Slider
Width
1.77 in
Wire Connection Type
Flying Leads (0-10V), Screw Terminals
Wire Size
#14 - #10 AWG
The adorne® 0-10V Paddle Dimmer in Magnesium is a cutting-edge solution that seamlessly blends style and functionality for modern lighting needs. Incorporating Microban® antimicrobial technology, this dimmer not only enhances your lighting control but also actively combats the growth of odor-causing bacteria, ensuring a cleaner environment. Its smooth paddle action facilitates effortless on/off functionality, while the easy slider allows for precise dimming to create the perfect ambiance, compatible with dimmable 0-10V bulbs or fixtures.

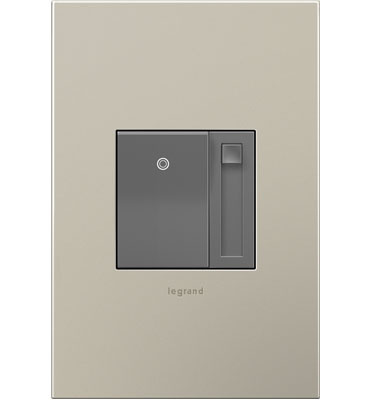

Designed for quick and straightforward installation in existing electrical boxes without the need for new wiring, it accommodates both single-pole and 3-way applications. For a complete and polished look, pair it with an adorne® screwless Wall Plate, available in contemporary colors to complement your décor. With a robust range of features and high standards of performance, this dimmer is ideal for residential, commercial, and hospitality sectors, ensuring you have total control over your lighting experience.
