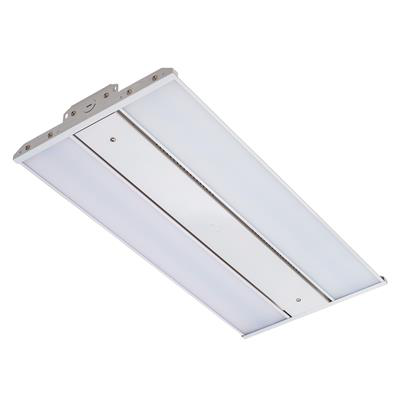

Topaz Lighting F-LHB110W/40K/F-96 LED High Bay 110W 4000K Frosted

Engineered to offer both efficiency and longevity, the 110W LED High Bay from Topaz Lighting is an exemplary choice for commercial lighting needs. With an impressive lumen output of 15,050 lumens, it provides exceptional illumination while consuming only 110 watts, making it a highly effective replacement for traditional 216W systems. This fixture operates at a color temperature of 4000K, presenting a frosted lens that softens light while achieving a broad beam angle of 100°, perfect for expansive areas. Designed for versatility, it suits a variety of environments with its damp location rating and robust construction featuring a steel body paired with a durable acrylic lens. The high bay light is not only dimmable with a 1-10V dimmer, allowing for tailored lighting solutions, but also boasts impressive efficacy of up to 143 lumens per watt. With excellent thermal and electrical specifications, including a power factor greater than 0.9 and a low total harmonic distortion, it stands out as a reliable option with a lifespan of 54,000 hours, ensuring substantial savings on both energy and replacement costs.

• Rated for damp locations suitable for diverse environments
• Surge protection rated to guard against electrical spikes
• Long functional life of 54,000 hours reduces maintenance and replacement costs
• 110W power consumption replaces traditional 216W lighting systems
• High efficacy up to 143 lumens per watt for energy efficiency
• Dimmable with 1-10V dimmer for customized lighting control
• Wide 100° beam angle for broad area illumination
• Robust steel body construction with frosted acrylic lens for durability and softened light
• Power factor greater than 0.9 for efficient electrical performance
• Complies with RoHS and DLC for safety and environmental standards

• Wattage: 110W
• Equivalent Wattage: 216W
• Lumen Output: 15,050 lumens
• Color Temperature: 4000K
• Beam Angle: 100°
• Input Voltage: 120-277V
• Input Current: 1.2/0.42A
• Power Factor: >0.9
• Total Harmonic Distortion (THD): <20%
• CRI: >80
• Efficacy: Up to 143 LPW
• Ambient Operating Temperature: -40°F to 122°F
• IP Rating: IP40
• Location Rating: Damp
• Material: Steel body, frosted acrylic lens
• Dimensions: 24.8 in x 11.8 in x 1.9 in
• Weight: 6.8 lbs
• Dimmable: Yes, 1-10V dimmer
• Surge Protection Rating: L-N: 4kV; LN-PE: 2kV
• Compliance: RoHS Compliant, DLC Listed
