Topaz Lighting F-L24/55WPCTS/D-79 LED Flat Panel 55W Power CCT Selectable 2x4
Documents
Downloads
- Installation Instructions-LED Flat Panel Power and CCT Selectable-79
- Spec Sheet
- IES File - FL2455WPCTSD79 AT 55W.ies
- IES File - FL2455WPCTSD79 AT 50W.ies
- LM79 File - FL2455WPCTSD79 AT 40W
- Indoor Fixtures Dimmer Compatibility
- LM79 Files - FL2455WPCTSD79 AT 55W
- LM79 file - FL2455WPCTSD79 AT 50W
- IES File - FL2455WPCTSD79 AT 40W.ies

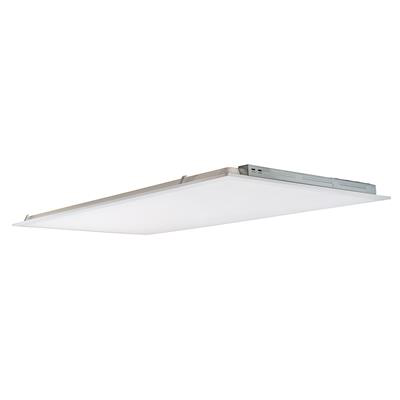

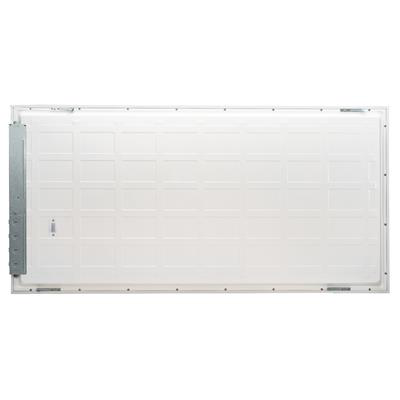

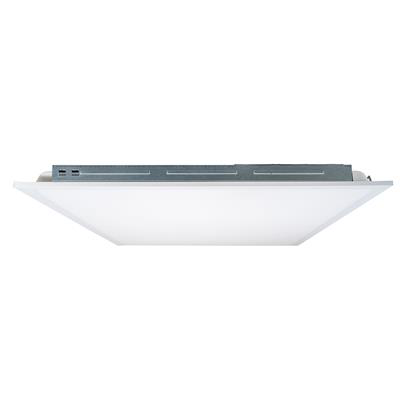

The Topaz Lighting F-L24/55WPCTS/D-79 LED flat panel is engineered for versatility and efficiency, featuring selectable power settings of 40W, 50W, and 55W, along with color temperature options of 3500K, 4000K, and 5000K to tailor lighting to specific needs. This 2x4 panel combines a sleek design with robust performance, offering an impressive luminous output ranging from 5000 to 6875 lumens while also boasting a lifespan of 50,000 hours, making it an excellent choice for long-term applications. Designed to operate effectively in varied environments, the panel is rated for damp locations and can function seamlessly within an ambient temperature range of -4°F to 113°F. With its steel housing finished in a crisp white powder coat and a wide 120-degree beam angle, this fixture not only delivers reliable illumination but also enhances contemporary spaces with a clean and modern aesthetic. The inclusion of 0-10V dimming capability allows for customizable brightness, enhancing both functionality and energy efficiency in commercial and industrial settings.
- Damp location rating for safe indoor use
- IC rated for installation in insulated ceilings
- Selectable 40W, 50W, and 55W power settings
- Adjustable color temperature options of 3500K, 4000K, and 5000K
- High luminous output from 5000 to 6875 lumens
- Long 50,000-hour lifespan for reduced maintenance
- 0-10V dimmable for customizable brightness and energy efficiency
- Wide 120-degree beam angle for even light distribution
- Steel housing with white powder coat finish for durability and modern look
- Polystyrene lens for consistent light diffusion
- Wattage: 40W, 50W, 55W
- Color Temperature: 3500K, 4000K, 5000K
- Lumens: 5000, 6250, 6875
- Input Voltage: 120-277V, 50/60Hz
- Power Factor: >0.9
- THD: <20%
- CRI: 80
- Beam Angle: 120°
- SDCM: <5
- Location Rating: Damp
- Ambient Operating Temperature: -4°F to 113°F
- IC Rated: Yes
- Size: 2' x 4'
- Material: Steel housing with white powder coat finish
- Lens Type: Polystyrene
- Weight: 9.25 lbs
- Lifespan: 50,000 hours
