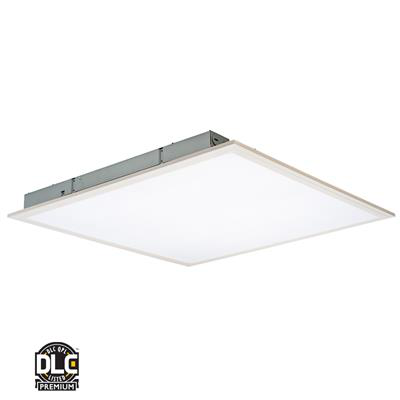

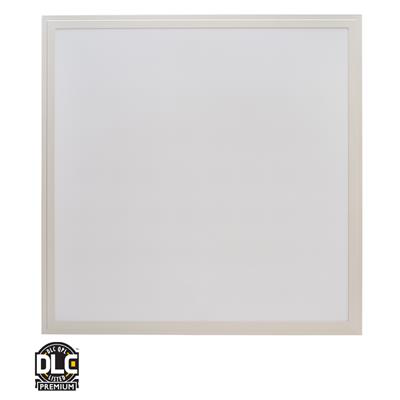

Topaz Lighting F-L22/35/CTS/D/BL-86 LED Panel 2x2 ft 30W CCT Selectable 3500K/4000K/5000K 80CRI

Elevate your lighting experience with this versatile 2x2 ft LED panel, a product of Topaz Lighting that showcases modern engineering and user-friendly features. With a wattage of 30W, it produces an impressive 4550 lumens, ensuring ample light for any setting while allowing users to choose between three color temperatures: 3500K, 4000K, and 5000K, all with an 80 CRI rating for natural color rendering. Crafted for longevity, this panel boasts a functional life of 50,000 hours and a damp location rating, making it an appropriate choice for various environments, including offices and commercial spaces. The dimmable options allow for tailored brightness (10%-100%) using 0-10V dimming, while compatibility with emergency backup systems means it can maintain illumination during outages. Designed with a steel housing and PMMA optical lens, this sleek panel not only enhances efficiency but also complements any architectural style with its clean white frame. Offering surge protection and a wide beam angle, it combines performance, safety, and aesthetics, making it an excellent addition to your lighting solutions.

• Compatible with emergency backup systems for uninterrupted lighting
• High lumen output of 4550 lm for bright illumination

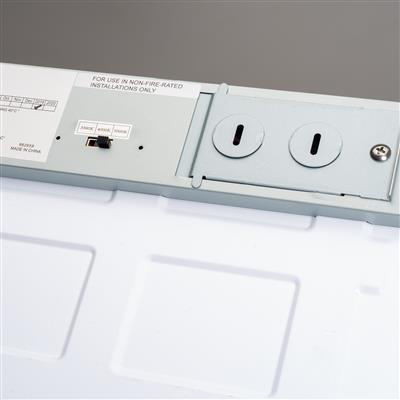

• Selectable color temperature with 3500K, 4000K, and 5000K options
• Dimmable from 10% to 100% via 0-10V dimming for customizable brightness
• Rated for damp locations suitable for indoor commercial environments
• Surge protection rated at L-N 1kV and L-G 2kV for enhanced safety
• Durable steel housing with PMMA optical lens for improved light diffusion
• Wide 120° beam angle for broad, even light distribution
• Lightweight and slim profile for easy ceiling installation
• Low total harmonic distortion (<20%) and high power factor (0.9) for efficient electrical performance

• Wattage: 35W
• Lumens: 4550 lm
• Color Temperature: 3500K, 4000K, 5000K
• CRI: 80
• Functional Life: 50,000 hours
• Location Rating: Damp
• Input Voltage: 120-277V
• Frequency: 50/60Hz
• Power Factor: 0.9
• THD: <20%
• Dimmable: 0-10V, 10%-100%
• Surge Protection: L-N 1kV, L-G 2kV
• Emergency Backup Compatible: Yes, 8W, 1000 lm, >90 min
• Beam Angle: 120°
• Panel Size: 2' x 2'
• Dimensions (L x W x D): 23.7 in x 23.7 in x 1.5 in
• Weight: 4.9 lbs
• Material: Steel housing, PMMA optical lens, white frame
