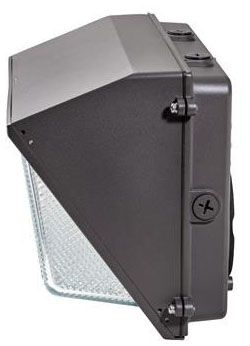

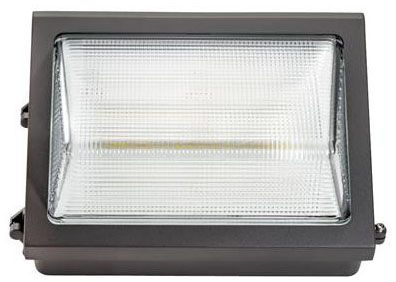

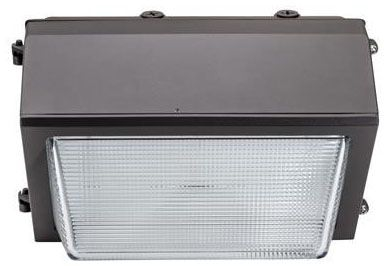

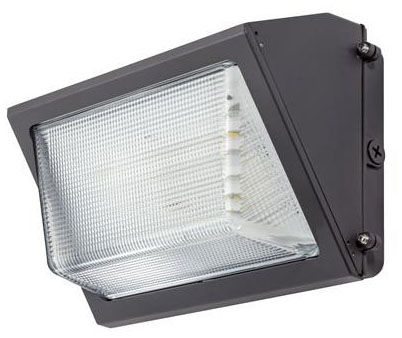

Topaz Lighting 74499 LED Wall Pack 120W 16945 Lumen IP65 Bronze Die-Cast Aluminum

The LED Wall Pack from Topaz Lighting is engineered for both durability and efficiency, making it an excellent choice for outdoor lighting applications. With a powerful intensity of 16,945 lumens and an impressive efficacy of 144 lumens per watt, this fixture provides bright illumination while being an environmentally friendly alternative to traditional 400W HID lights. Its shatter-resistant borosilicate lens and robust die-cast aluminum housing ensure long-lasting performance, while the IP65 enclosure rating guarantees protection against dust and water in wet locations. Designed for flexibility, the wall pack comes standard with a 0 to 10V driver for dimming and building control, allowing for tailored lighting solutions in varying environments. The temperature rating ranges from -22°F to 112°F, ensuring reliable operation across different weather conditions. With a rated life of 50,000 hours and surge protection of 6 kilovolts, this fixture not only enhances safety but also reduces maintenance costs over time. Boasting a bronze polyester powder coat finish, it seamlessly blends durability with aesthetic appeal, making it a smart addition to any exterior space.

• IP65 rated enclosure for dust and water resistance
• 6kV surge protection enhances safety and fixture longevity
• Shatter-resistant borosilicate glass lens for impact protection
• Long 50,000 hour rated life reduces maintenance
• High lumen output of 16,945 lumens for bright illumination
• High efficacy of 144 lumens per watt for energy efficiency
• 0-10V dimmable driver for flexible lighting control
• Wide operating temperature range from -22°F to 112°F
• Durable die-cast aluminum housing with internal heatsink
• Bronze polyester powder coat finish for corrosion resistance

• Lamp Type: LED
• Lamp Wattage: 120 Watt
• Voltage: 120-277 Volt AC, 60 Hz
• Input Current: 1.11 A at 120 V, 0.48 A at 277 V
• Lumen Output: 16,945 lumens
• Color Temperature: 5000 K
• Color Rendering Index: 80
• Driver Type: 0-10V dimmable
• Power Factor: 0.9
• Total Harmonic Distortion: <20%
• Rated Life: 50,000 hours
• Size: 14.7 in. Length x 9.5 in. Width x 7.7 in. Height
• Housing Material: Die-Cast Aluminum
• Lens Material: Borosilicate Glass
• Finish: Bronze Polyester Powder Coated
• Type: Semi-Cutoff, Traditional, Outdoor

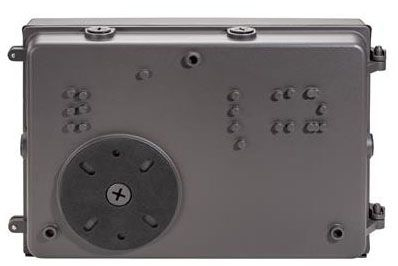

• Mounting Options: Five NPT 1/2 inch threaded hubs
• Surge Protection: 6 kV
• IP Rating: IP65
• Operating Temperature Range: -22°F to 112°F
• Environmental Rating: Wet Location
• Approval: ETL (Canada and US), DLC (Standard)
• Certification: RoHS Compliant
