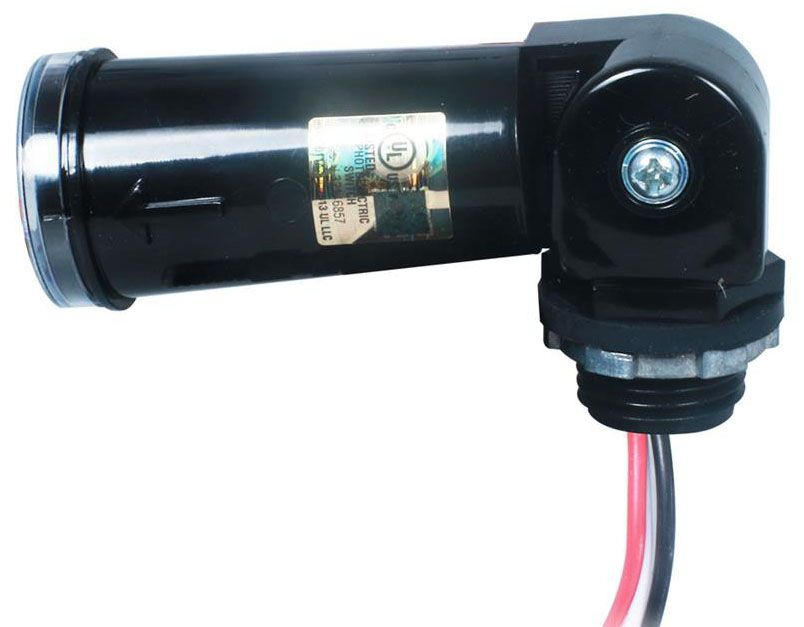

Topaz Lighting 72749 Stem and Swivel Photocell 120-277V UL DLC Certified
Documents
Downloads
This LED outdoor light fixture, designed by Topaz Lighting, features a versatile stem and swivel photocell that enhances its adaptability to various lighting needs. It operates effectively within a voltage range of 120 to 277 Volt AC, making it suitable for a wide array of applications. Engineered to meet both UL standards for Canada and the US as well as DLC certification, this photocell ensures reliable performance and energy efficiency. Ideal for use with the F-WP-28W/40K/BZ/HE LED outdoor lighting fixture or wall pack, it's an essential component for optimizing outdoor illumination.
- UL Listed and DLC certified for safety and energy efficiency
- High rated loading capacity supporting up to 1,800W Tungsten and 1,000W Ballast
- Operates reliably across a wide ambient temperature range (-40°F to 158°F)
- Voltage rating 120 to 277 Volt AC for broad compatibility
- Adjustable stem and swivel design for versatile positioning
- Light sensitivity with 10-20 Lx on level and 30-60 Lx off level for automated control
- AWG 18 leads for standardized and secure electrical connections
- Designed specifically for use with F-WP-28W/40K/BZ/HE outdoor LED wall packs
- Type: Stem and Swivel Photocell
- Used On: F-WP-28W/40K/BZ/HE LED Outdoor Lighting Fixture/Wall Pack
- Input Voltage: 120-277V AC
- Wattage: 1.5W
- Rated Loading: 1,800W Tungsten, 1,000W Ballast
- On Level: 10-20 Lx
- Off Level: 30-60 Lx
- Leads: AWG 18
- Ambient Operating Temperature: -40°F to 158°F
- Dimensions: 3.46 in x 1.06 in x 180°
- Weight: 0.5 lbs
- Compliance: UL Listed, DLC
