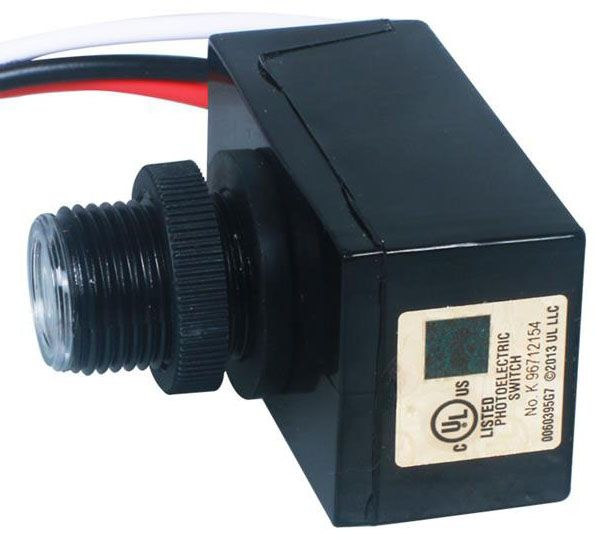

Topaz Lighting 72748 Photocell 850W Ballast Load 120/277V AC Button Outdoor

Constructed with attention to both functionality and reliability, this LED outdoor fixture lighting button photocell from Topaz Lighting is an essential component for any outdoor lighting application. Designed to operate effectively with a ballast load rating of up to 850 watts, it ensures optimal performance across various settings such as low profile wall packs, flood lights, and canopy lights. Operating within a voltage range of 120 to 277 volts AC at 50/60 hertz, this photocell features a precise turn on light level of 10 to 20 lux and a turn off light level of 30 to 80 lux, making it adept at adjusting to changing light conditions. Its robust temperature rating guarantees reliable operation in extreme environments, from -40 to 158 degrees Fahrenheit, while its compact design allows for seamless integration into a range of outdoor lighting fixtures, providing a dependable solution for controlling your outdoor illumination efficiently.

• UL listed for safety in Canada and the US
• Compatible with ballast load ratings up to 850 watts
• Operates across 120 to 277 volts AC for flexible installation
• Adjusts lighting with precise turn on/off light levels (10-20 Lux on, 30-80 Lux off)
• Wide temperature range (-40 to 158 °F) for reliable outdoor use
• Compact button design for seamless integration into outdoor fixtures
• 18 AWG terminals ensure secure electrical connections
• Supports multiple outdoor lighting applications including wall packs, flood, and canopy lights
• Low power consumption at 2 watts for energy-efficient operation

• Ballast Load Rating: 850 Watt
• Voltage Rating: 120/277 Volt AC 50/60 Hertz
• Temperature Rating: -40 to 158 °F
• Turn OFF Light Level: 30 to 80 Lux
• Turn ON Light Level: 10 to 20 Lux
• Tungsten Load Rating: 500 Watt
• Wattage: 2 W
• Type: Button
• Size: 2.14 in x 1.14 in x 1.73 in
• Weight: 0.5 lbs
• Terminal Type: 18 AWG
• Ballast Type: 5A E-Ballast
• Approval: UL (Canada and US)
• Application: Outdoor, Low Profile Wall Pack, Flood Light, Canopy Light
