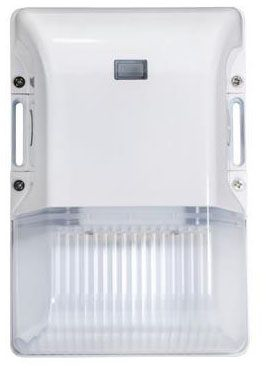

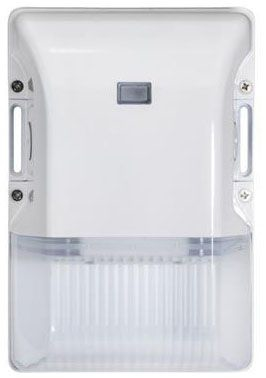

Topaz Lighting 71030 LED Wall Pack 2500 Lumen 20 Watt Integrated Photocell IP65 White Die-Cast Aluminum

The LED Wall Pack from Topaz Lighting is a versatile outdoor lighting solution designed for both commercial and residential applications. With a powerful output of 2500 lumens and an efficacy of 125 lumens per watt, it ensures bright illumination, ideal for entryways, stairwells, and security lighting. Featuring a unique integrated dusk-to-dawn photocell, this fixture automatically adjusts to ambient light conditions while providing selectable color temperatures of 3000K, 4000K, and 5000K, allowing you to customize the lighting to suit your environment. Constructed with durable die-cast aluminum and equipped with a diffused polycarbonate lens, the wall pack is not only IP65 rated for wet locations but also capable of withstanding a wide operating temperature range from -40 to 113 degrees Fahrenheit. It operates efficiently on voltages from 120 to 277 volts, making it suitable for a variety of mounting heights up to 15 feet. Designed with longevity in mind, it has a rated life of 50,000 hours and is both RoHS compliant and UL approved for safety and performance. Whether you’re enhancing visibility or adding security, this LED Wall Pack stands out for its reliable functionality and enhanced energy efficiency.

• Integrated dusk-to-dawn photocell for automatic lighting adjustment
• IP65 rated for wet location suitability
• High luminous efficacy of 125 lumens per watt
• Long rated life of 50,000 hours reduces maintenance

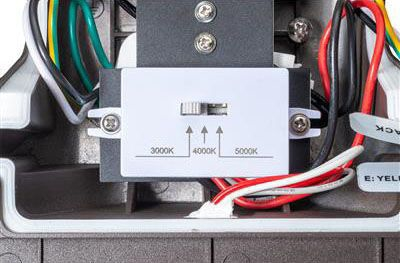

• Selectable color temperatures of 3000K, 4000K, and 5000K
• Durable die-cast aluminum housing for weather resistance
• Diffused polycarbonate lens for uniform light distribution
• Wide ambient operating temperature range from -40°F to 113°F
• Compatible with 120 to 277 Volt AC for versatile installation
• Supports dimming with standard 0-10V control systems

• Voltage: 120 to 277 Volt AC 50/60 Hz
• Wattage: 20 Watt
• Lamp Included: Yes
• Lamp Type: LED
• Lumen Output: 2500 lumens
• Beam Angle: 100°
• Color Temperature: 3000K, 4000K, 5000K
• CRI: 80
• Power Factor: 0.9
• Total Harmonic Distortion: < 20%
• Efficacy: 125 LPW
• Rated Life: 50,000 hours
• Ambient Operating Temperature: -40°F to 113°F
• Dimmable: 0-10V
• Size: 5.79 in. Length x 3.07 in. Width x 8.58 in. Height
• Housing Material: Die-Cast Aluminum
• Refractor/Lens Type: Polycarbonate
• Finish: White
• IP Rating: IP65
• Location Rating: Wet
• Mounting Height: Up to 15 ft
• Compliance: UL (Canada and US), DLC, RoHS Compliant
