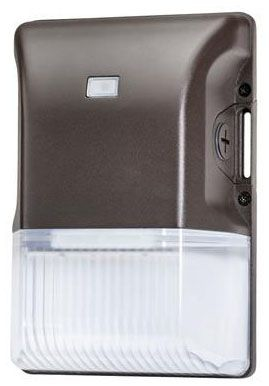

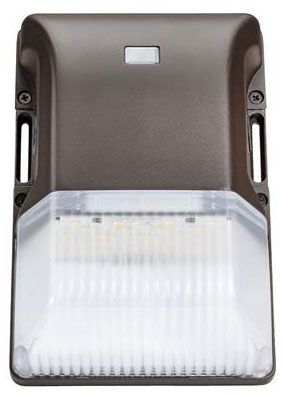

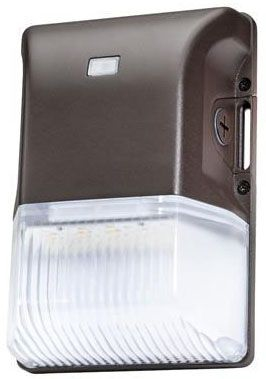

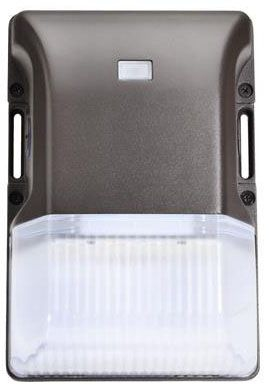

Topaz Lighting 71029 LED Wall Pack 20W 2500 Lumen Dusk-to-Dawn IP65 Bronze Die-Cast Aluminum

This LED wall pack from Topaz Lighting combines durability and practicality to meet the lighting demands of both commercial and residential environments. Featuring a robust die-cast aluminum housing and a diffused polycarbonate lens, it ensures longevity and reliable performance, while offering a remarkable 50,000-hour rated life. With its integrated dusk-to-dawn photocell and selectable color temperature options of 3000K, 4000K, or 5000K, this versatile fixture adapts easily to different settings—from entryways to security lighting—while providing a powerful 2,500 lumens output. Designed for wet locations and suitable for mounting up to 15 feet high, this wall pack is not only RoHS compliant but also exhibits a high power factor and low total harmonic distortion, making it an energy-efficient choice. Its 100-degree beam angle and dimmable features further enhance its usability, ensuring that it effectively illuminates any space while maintaining a color rendering index of 80 for natural color accuracy. Overall, this wall pack is a practical solution for those looking to enhance safety and visibility in outdoor areas.

• Integrated dusk-to-dawn photocell for automatic operation
• IP65 rated for reliable wet location performance
• Durable die-cast aluminum housing with bronze powder coat finish
• High-efficiency 20W LED output delivering 2,500 lumens

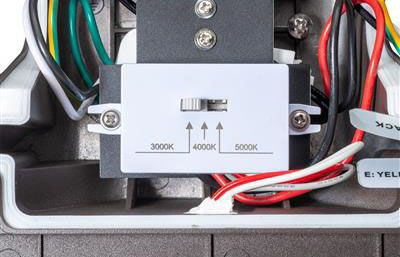

• Selectable 3000K, 4000K, and 5000K color temperature options
• Rated 50,000 hours lifespan for reduced maintenance
• Dimmable with 0-10V control for customizable brightness
• Diffused polycarbonate lens for even light distribution
• Suitable for mounting heights up to 15 feet
• Compliant with UL, DLC, and RoHS safety and environmental standards

• Voltage: 120 to 277 Volt AC 50/60 Hz
• Wattage: 20 Watt
• Input Current: 0.26A at 120V, 0.065A at 277V
• Operating Temperature: -40°F to 113°F
• Lamp Type: LED
• Luminous Intensity: 2500 Lumens
• Power Factor: ≥0.9
• Total Harmonic Distortion: <20%
• Size: 5.79 in x 3.07 in x 8.58 in
• Weight: 1.98 lbs
• Material: Die-Cast Aluminum, Polycarbonate
• Finish: Bronze Polyester Powder Coated
• Refractor/Lens Type: Polycarbonate
• Compliance: UL (Canada and US), DLC, RoHS Compliant
• IP Rating: IP65
• Location Rating: Wet
• Lamp Included: Yes
• Type: Compact, Outdoor
• Photocell: Integrated Dusk-To-Dawn
• Color Temperature: 3000K, 4000K, 5000K
• Lifespan: 50,000 Hours
• CRI: 80
• Dimmable: 0-10V
• Efficacy: 125 LPW
• Mounting Height: Up to 15 ft
