Topaz Lighting 639SI EMT Connector 3-1/2 in Set Screw Insulated Throat Steel Zinc Plated Concrete Tight
Documents
Downloads

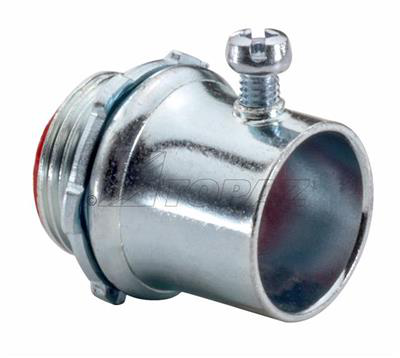

Crafted by Topaz Lighting, this steel set screw type connector features an insulated throat designed for secure and effective connections in rigid and EMT conduit installations. Its construction ensures a concrete-tight seal when taped, making it ideal for applications where moisture and environmental factors are a concern. The steel-zinc plating not only enhances durability but also provides resistance to corrosion, ensuring long-lasting performance. With a size of 3-1/2 inches, this connector meets the demands of various electrical installations while ensuring safety and reliability.
- UL listed for safety assurance
- Set screw type connector with insulated throat
- Concrete-tight seal when taped to prevent moisture ingress
- Steel construction for high strength and durability
- Zinc plating provides corrosion resistance
- Designed for EMT and rigid conduit use
- Compliant with NEMA FB1-2014 standards
- Size: 3-1/2 in
- Material: Steel
- Finish: Zinc plated
- Connector Type: Set screw with insulated throat
- Concrete Tight: Yes, when taped
- Compliance: UL Listed, NEMA FB1-2014
