Topaz Lighting 62 Rigid Elbow 90° 3/4 in Galvanized Steel
Documents
Downloads

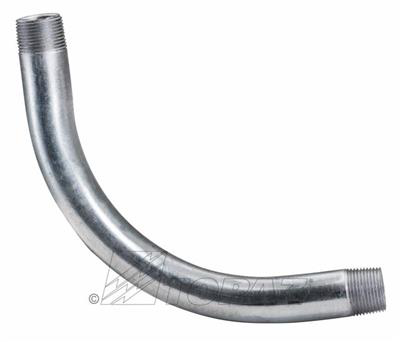

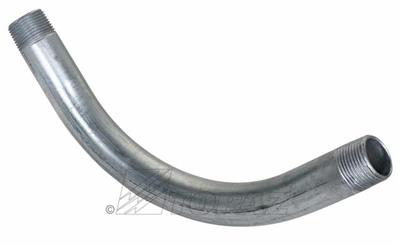

Constructed from durable galvanized steel, this 3/4" rigid elbow is expertly designed to provide a reliable 90-degree turn in rigid conduit systems. Ideal for various electrical and construction applications, it facilitates smooth transitions while ensuring a sturdy connection that can withstand environmental stresses. This elbow not only meets industry standards for performance but also enhances the longevity and stability of your conduit installations.
- UL Listed for safety and compliance assurance
- Durable galvanized steel construction for corrosion resistance
- Hot dip galvanized finish for enhanced environmental protection
- Provides reliable 90-degree directional change in conduit systems
- Facilitates sturdy and secure connection in rigid conduit installations
- Smooth interior and exterior for unobstructed conduit flow
- Optimized minimum bending radius to prevent conduit damage
- Designed to meet Federal Specification WW-C-563 standards
- Size: 3/4 in
- Angle: 90°
- Minimum Radius: 4.50 in
- Straight Leg Each End: 2.875 in
- Offset: 6.781 in
- Material: Galvanized Steel
- Finish: Hot Dip Galvanized
- Compliance: UL Listed
- Standard: Federal Specification WW-C-563
Downloads
Spec Sheet
