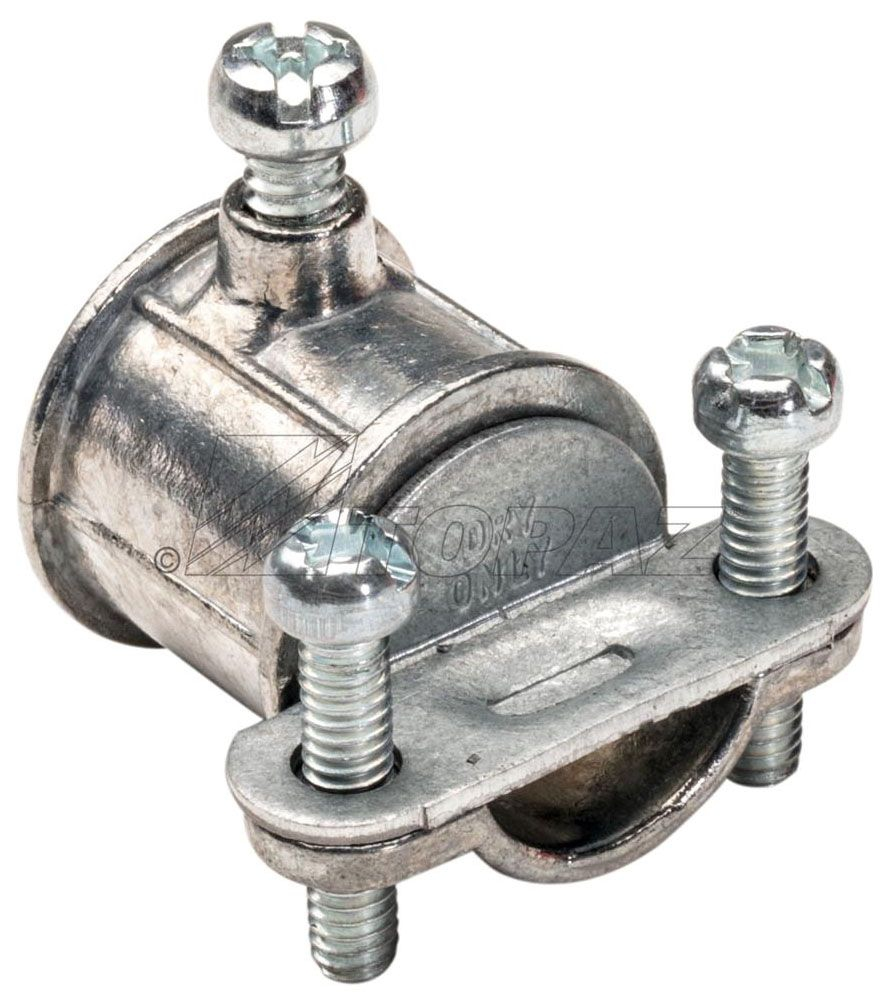

Topaz Lighting 180 Combination Coupling 3/8 to 1/2 in Trade Size Set Screw to Clamp Die-Cast Zinc
Documents
Downloads
This efficient combination coupling from Topaz Lighting is expertly designed for seamless connection between non-metallic (NM) cables and EMT conduit, making it an essential component for any indoor electrical installation. Featuring a robust die-cast zinc construction, it ensures durability and reliable performance under various conditions. The coupling supports trade sizes ranging from 3/8 to 1/2 inch and utilizes a set screw to clamp design, enhancing security during setup. With its zinc-plated steel strap, this coupling offers exceptional corrosion resistance, reinforcing its suitability for long-term use. Meeting UL approval for both Canada and the US, it is packaged in sets of 500, making it a practical choice for large-scale projects.
- UL Listed for safety compliance in Canada and US
- Set screw to clamp connection design for secure installation
- Die-cast zinc construction for durability
- Zinc-plated steel strap for corrosion resistance
- Designed to join non-metallic sheathed cable to EMT conduit
- Suitable for 3/8 to 1/2 inch trade sizes
- Two-screw assembly for reliable installation
- Indoor use application
- Size: 0.63 in Diameter x 1.35 in Length
- Trade Size: 3/8 to 1/2 in
- Connection Type: Set Screw to Clamp
- Used On: EMT Conduit/BX/NM Cable
- Material: Die-Cast Zinc, Zinc Plated Steel
- Approval: UL Listed (Canada and US)
- Assembly: 2 Screw
- Application: Indoor
