Steel Electric Products T6 Malleable Iron Threaded Conduit Body 2 in Zinc Plated
Documents
Downloads
Steel Electric Products has crafted these malleable iron threaded conduit bodies to offer durable and efficient solutions for electrical installations, particularly in challenging environments such as concrete settings. Featuring tapered threaded hubs for a secure fit, the flat back design allows for straightforward mounting close to walls, ensuring minimal space usage without compromising accessibility. With a generous volume capacity and the capability to accommodate substantial wire sizes, these conduit bodies are built to provide reliable access to conductors for easy pulling. Additionally, their zinc plating enhances corrosion resistance, while options for hot-dipped galvanization provide added protection for demanding applications, making them a strong choice for any industrial project.
- UL Listed for safety assurance
- Tapered NPT threaded hubs for secure conduit connection
- Malleable iron construction for durable performance
- Zinc plated finish for corrosion resistance
- Optional hot-dipped galvanized finish for enhanced corrosion protection
- Flat back design for easy mounting close to walls
- Generous 75 cu in volume capacity for conductor access
- Supports large conductors up to 3 #1/0 AWG
- Suitable for use in concrete environments
- Trade Size: 2 in
- Max Wire Size: 3 #1/0 AWG
- Volume: 75 cu in

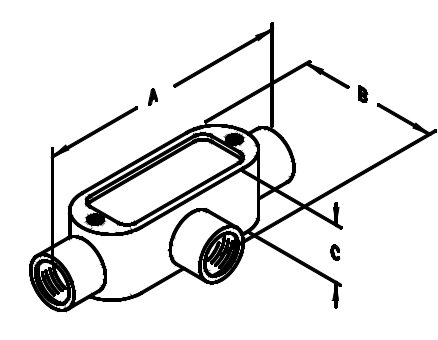

- Length (Dim A): 11.5 in
- Height (Dim B): 4.125 in
- Depth (Dim C): 3.125 in
- Material: Malleable Iron
- Finish: Zinc Plated, Optional Hot Dipped Galvanized
- Thread Type: Tapered NPT
- UL Listing: E198259
