Steel Electric Products MLB300G Hot Dipped Galvanized Malleable Iron Mogul 3 in with Cover Gasket Rollers Stainless Steel Screws
Documents
Downloads
Designed for robust cable management, these malleable iron and hot-dipped galvanized moguls come equipped with a cover, gasket, and rollers, ensuring reliable performance in demanding environments. The bodies and covers are constructed from durable malleable iron, providing a sturdy foundation for pulling large and heavy conductors. Captive stainless steel screws enhance installation speed and prevent any issues with freezing. Each unit features accurately tapered threads to ensure tight, rigid joints and maintain ground continuity, while built-in rollers facilitate the smooth pulling of cables ranging from 1 1/4” to 4”. With specially designed raised cast covers, the product offers increased wiring area, making it an ideal choice for applications requiring straight pulls, 45°, or 90° angle turns, as well as making taps and splices.
- UL Listed for safety and compliance assurance
- Neoprene gasket for effective sealing and protection
- Captive stainless steel screws speed installation and prevent freezing
- Accurately tapered threads ensure tight, rigid joints and ground continuity
- Built-in rollers facilitate smooth cable pulling for sizes 1 1/4” to 4”
- Malleable iron and hot-dipped galvanized construction for durability and corrosion resistance
- Raised cast covers provide additional wiring area
- Smooth, rounded integral bushing protects conductor insulation
- Suitable for pulling large and heavy conductors up to 3 #700 MCM
- Designed for straight pulls, 45°, 90° angle turns, taps, and splices
- Size: 3 in
- Max Wire Size: 3 #700 MCM
- Material: Malleable Iron, Hot-Dipped Galvanized
- Gasket Material: Neoprene
- Screw Material: Stainless Steel

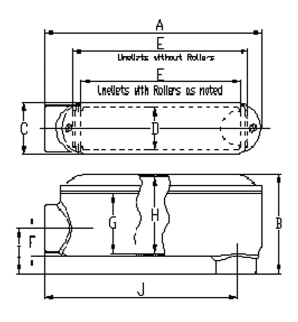

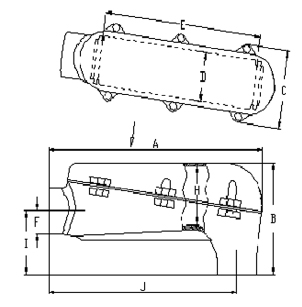

- Dim A: 21.33 in
- Dim B: 10.37 in
- Dim C: 5.79 in
- Dim D: 3.47 in
- Dim E: 16.95 in
- Dim F: 2.75 in
- Dim H: 5.27 in
- Dim I: 5.61 in
- Dim J: 18.62 in
- Number of cover holes: 6
- Volume: 345.00 cu. in.
- Compliance: UL Listed E198259
