Steel Electric Products LR3 Malleable Iron Threaded Conduit Body 1 in Trade Size Zinc Plated
Documents
Downloads
This malleable iron threaded conduit body is expertly designed to provide easy access to conductors for pulling, splicing, and maintenance, making it an essential component for electrical installations. The unit features tapered threaded hubs (NPT) that are compatible with rigid conduit and IMC, ensuring a secure connection and reliable performance. With its flat back design, this conduit body can be easily mounted close to walls, optimizing space in various applications. Additionally, it is suitable for use in concrete environments, and for enhanced corrosion protection, a hot-dipped galvanized finish can be specified by simply adding a suffix ‘G’ to the catalog number. Capable of accommodating wire sizes up to three #4 AWG, this conduit body combines practical functionality with robust manufacturing to meet the needs of any project.
- UL listed for safety and compliance
- Tapered threaded hubs (NPT) for secure rigid conduit and IMC connection
- Provides easy access for pulling, splicing, and maintenance
- Flat back design allows close mounting to walls
- Suitable for use in concrete applications
- Optional hot-dipped galvanized finish for enhanced corrosion protection
- Accommodates wire sizes up to three #4 AWG
- Constructed from durable malleable iron
- Zinc plated for standard corrosion resistance
- Size: 1 in

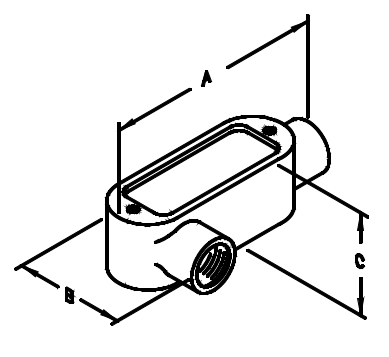

- Dimensions: 6.188 x 2.625 x 1.875 in.
- Volume: 12.50 in³
- Max Wire Size: 3 #4 AWG
- Material: Malleable Iron
- Finish: Zinc Plated, Optional Hot Dipped Galvanized
- Thread Type: NPT
- UL Listing: E198259
