Steel Electric Products LR1ACG Aluminum Threaded Conduit Body 1/2 in Tapered NPT Hubs Aluminum
Documents
Downloads
Crafted from high-strength, copper-free aluminum alloy, these aluminum threaded conduit bodies are designed for durability and efficiency in electrical installations. Engineered with tapered threaded hubs, they facilitate reliable connections for rigid conduit and IMC, ensuring secure support for your electrical systems. Each unit features a flat back design that allows for easy mounting, making it convenient to fit close to walls while providing ample access to conductors for smooth pulling, splicing, and maintenance. Assembled with a neoprene gasket and a stamped cover, these conduit bodies are also resistant to corrosion and weather elements, delivering dependable performance in a variety of environments.
- UL Listed for safety assurance
- Die cast from high-strength, corrosion and weather resistant copper-free aluminum alloy
- Tapered threaded hubs (NPT) for secure conduit connections
- Assembled with neoprene gasket and stamped cover for moisture protection
- Flat back design for easy mounting close to walls
- Provides access for pulling, splicing, and maintenance with threaded connections for rigid conduit and IMC
- Trade Size: 1/2 in.
- Volume: 4.35 in³

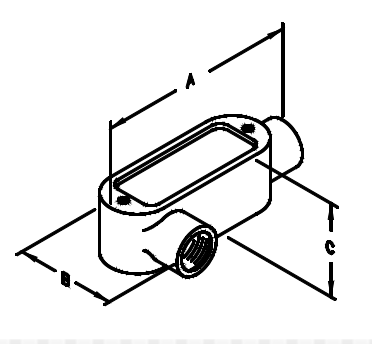

- Dimensions: Dim A: 4.31 in, Dim B: 2.06 in, Dim C: 1.38 in
- Material: Copper-free Aluminum Alloy
- Finish: Aluminum Enameled
- Thread Type: NPT Tapered Threaded Hubs
- Sealing: Neoprene Gasket with Stamped Cover
- Compliance: UL Listed E198259
