Steel Electric Products LL2ACG Aluminum Threaded Conduit Body 3/4 in Tapered Threaded Hubs Neoprene Gasket Aluminum
Documents
Downloads
Manufactured by Steel Electric Products, this 3/4” aluminum threaded conduit body is designed for durability and efficiency in electrical installations. Constructed from high-strength, corrosion-resistant, and weatherproof copper-free aluminum alloy, it ensures long-lasting performance even in challenging environments. Its flat back design allows for easy mounting against walls, while the tapered threaded hubs facilitate secure connections with rigid conduit and IMC. Equipped with a neoprene gasket and a cover for accessibility, this conduit body simplifies the process of pulling, splicing, and maintaining conductors, accommodating wire sizes up to three #6 AWG.
- UL Listed for safety assurance
- Tapered threaded hubs (NPT) for secure conduit connection
- Assembled with neoprene gasket and stamped cover for environmental protection
- Die cast from high-strength, corrosion and weather resistant copper-free aluminum alloy
- Flat back design enables easy mounting close to walls
- Aluminum enameled finish for enhanced durability
- Compatible with threaded rigid conduit and IMC applications
- Supports conductor access for pulling, splicing, and maintenance
- Trade Size: 3/4 in.
- Max Wire Size: 3 #6 AWG
- Volume: 7.30 in³

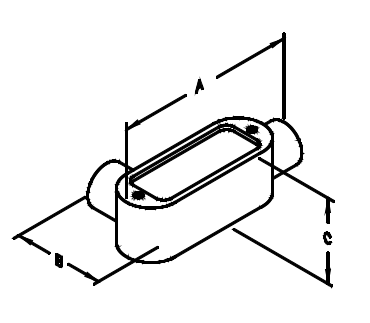

- Dimensions: Dim A: 5.06 in, Dim B: 2.25 in, Dim C: 1.63 in
- Material: Copper-free Aluminum
- Finish: Aluminum Enameled
- Thread Type: Tapered NPT
- Gasket Material: Neoprene
- Compliance: UL Listed E198259
