Steel Electric Products LL2 Threaded Conduit Body 3/4 in Trade Size Malleable Iron Zinc Plated
Documents
Downloads
Crafted from high-quality malleable iron, these conduit bodies are designed for robust and reliable performance in a variety of applications, including concrete environments. The tapered threaded hubs ensure a secure fit for rigid conduit and intermediate metal conduit (IMC), providing essential access to conductors for effective pulling, splicing, and maintenance. Their zinc-plated finish enhances durability while resisting corrosion, and the flat back design allows for easy mounting against walls, maximizing space efficiency. With a maximum wire capacity accommodating up to three #6 AWG wires, this conduit body meets the demands of any electrical installation with precision and reliability.
- UL Listed for safety and compliance assurance
- Constructed from high-quality malleable iron for strength and durability
- Zinc-plated finish for enhanced corrosion resistance
- Tapered NPT threaded hubs ensure secure conduit connections
- Flat back design enables easy, space-efficient mounting close to walls
- Provides access for conductor pulling, splicing, and maintenance
- Suitable for use in concrete environments
- Accommodates up to three #6 AWG wires for versatile wiring needs
- Max Wire Size: 3 #6 AWG
- Trade Size: 3/4 in

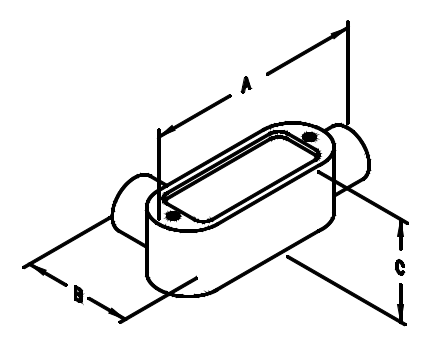

- Dimensions: 5.375 in x 2.250 in x 1.688 in (A x B x C)
- Volume: 7.50 in³
- Material: Malleable Iron
- Finish: Zinc Plated
- Thread Type: NPT
- Compliance: UL Listed (E198259)
