Steel Electric Products LB2ACG Aluminum Threaded Conduit Body 3/4 in Tapered Threaded Hubs UL Listed Copper-Free Aluminum
Documents
Downloads
Constructed from high-strength, copper-free aluminum alloy, the aluminum threaded conduit body is designed to provide reliable access to conductors for pulling, splicing, and maintenance. This UL-listed body features tapered threaded hubs for compatibility with rigid conduit and IMC, ensuring a secure connection. Its assembled neoprene gasket and stamped cover enhance protection against environmental factors, making it suitable for various applications. The flat back design allows for convenient mounting close to walls, and it accommodates wire sizes up to three #6 AWG, making it a versatile choice for electrical installations.
- UL Listed for safety assurance
- Threaded for rigid conduit and IMC for secure connection
- Tapered threaded hubs (NPT) for reliable fit
- Assembled with neoprene gasket and stamped cover for moisture protection
- Die cast from high-strength, corrosion and weather resistant copper-free aluminum alloy
- Flat back design for easy mounting close to walls
- Provides access to conductors for pulling, splicing, and maintenance
- Trade Size: 3/4 in
- Maximum Wire Size: 3 #6 AWG
- Volume: 7.25 in³

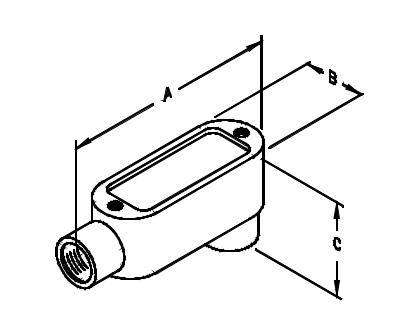

- Dimensions (A x B x C): 5.06 x 1.56 x 2.44 in.
- Material: Copper-free Aluminum
- Finish: Aluminum Enameled
- Thread Type: NPT
- Gasket Material: Neoprene
- Compliance: UL Listed
Downloads
Specification Sheet
