Steel Electric Products C7 Malleable Iron Threaded Conduit Body 2-1/2 in Zinc Plated
Documents
Downloads
The malleable iron threaded conduit bodies provide a robust solution for accessing conductors in a variety of electrical installations. Designed with tapered threaded hubs, they ensure compatibility with rigid conduit and intermediate metal conduits (IMC), making them versatile for different applications. Their flat back design simplifies installation close to walls, while the zinc plating offers essential corrosion protection. With an option for hot-dipped galvanization, these conduit bodies can withstand even the harshest conditions, ensuring a long-lasting and reliable performance in concrete environments.
- UL Listed for safety assurance
- Tapered NPT threaded hubs for secure conduit connection
- Compatible with rigid conduit and intermediate metal conduit (IMC)
- Flat back design for easy mounting close to walls
- Zinc plated finish for corrosion resistance
- Optional hot-dipped galvanized finish for enhanced durability
- Suitable for use embedded in concrete
- Made of malleable iron for strength and durability
- Large volume capacity supporting up to 3 #250 MCM wires
- Trade Size: 2-1/2 in
- Volume: 138 in³

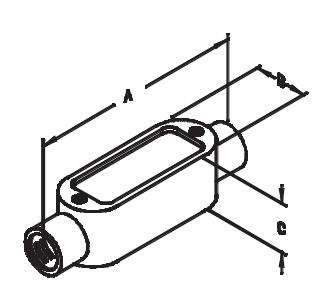

- Dim A: 15 in
- Dim B: 4.313 in
- Dim C: 3.875 in
- Max Wire Size: 3 #250 MCM
- Material: Malleable Iron
- Finish: Zinc Plated
- Thread Type: NPT Tapered Threaded Hubs
- Compliance: UL Listed E198259
