Steel Electric Products C1ACG Aluminum Threaded Conduit Body 1/2 in Flat Back Tapered Threaded Hubs Aluminum Enameled

Steel Electric Products presents a robust solution with their aluminum threaded conduit bodies, designed specifically for efficiency and reliability in electrical installations. This model features a flat back design, ensuring easy mounting close to walls, which is critical for space-constrained environments. Crafted from high-strength, corrosion and weather resistant, copper-free aluminum alloy, these conduit bodies are not only durable but also suited for various outdoor applications. The tapered threaded hubs are designed for compatibility with rigid conduit and intermediate metal conduit (IMC), offering versatility for different installation needs. Additionally, the assembly includes a neoprene gasket and a stamped cover, providing accessibility to conductors for pulling, splicing, and maintenance. With a trade size of 1/2 inch and a volume of 4.35 cubic inches, these conduit bodies combine form and function to deliver lasting performance in demanding conditions.

• UL Listed for safety assurance
• Die cast from high-strength, corrosion and weather resistant copper-free aluminum alloy
• Tapered threaded hubs (NPT) for secure conduit connection
• Assembled with neoprene gasket and stamped cover for moisture resistance
• Flat back design for easy mounting close to walls
• Threaded for rigid conduit and IMC conduit access, pulling, and splicing

• Trade Size: 1/2 in.
• Volume: 4.35 in³

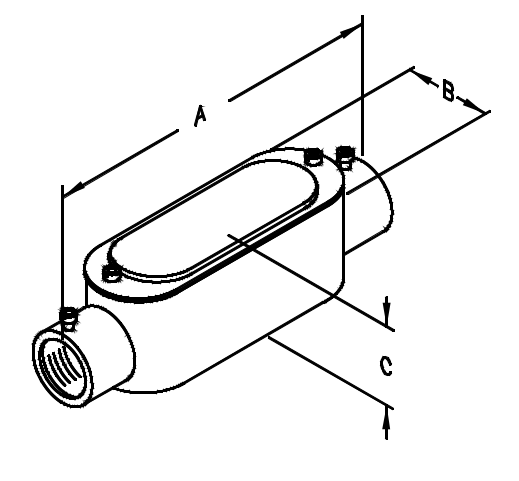

• Dim A: 4.69 in.
• Dim B: 1.38 in.
• Dim C: 1.31 in.
• Material: Copper-free Aluminum
• Finish: Aluminum Enameled
• Thread Type: Tapered NPT
• Gasket Material: Neoprene
• Compliance: UL Listed E198259
