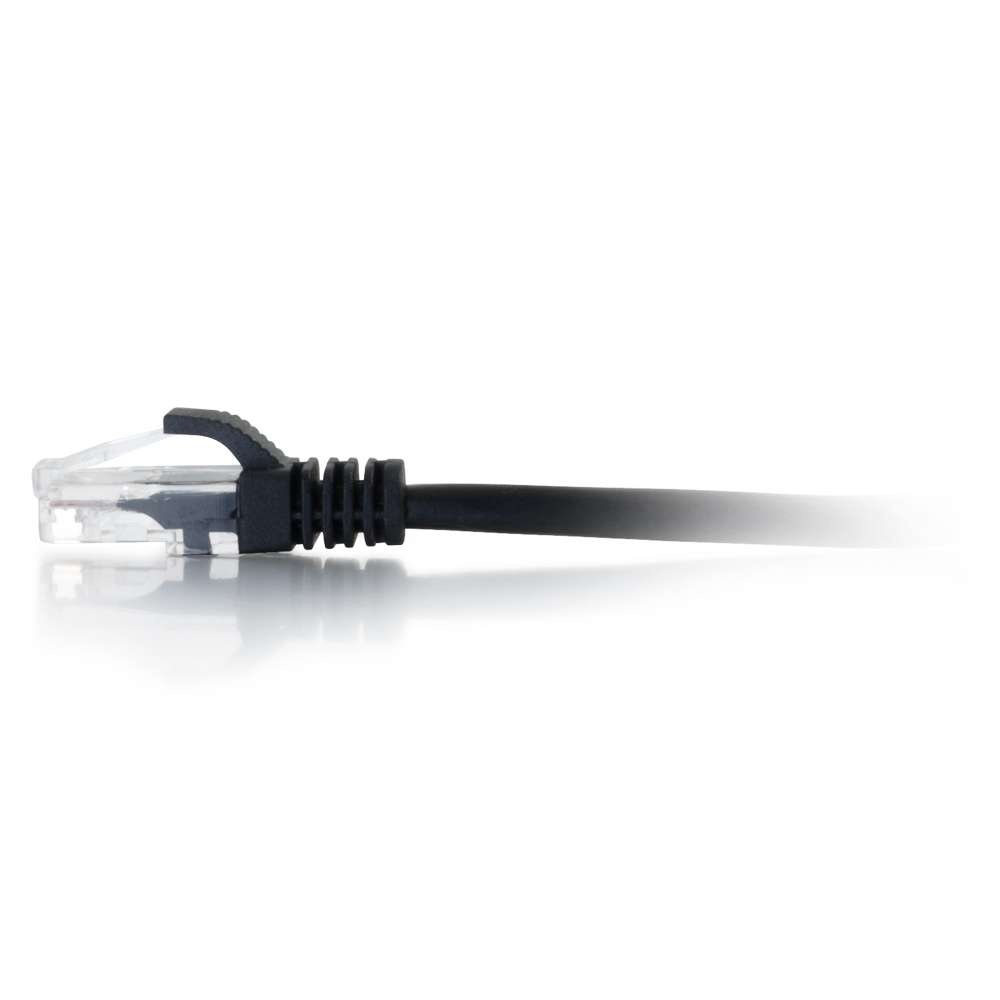

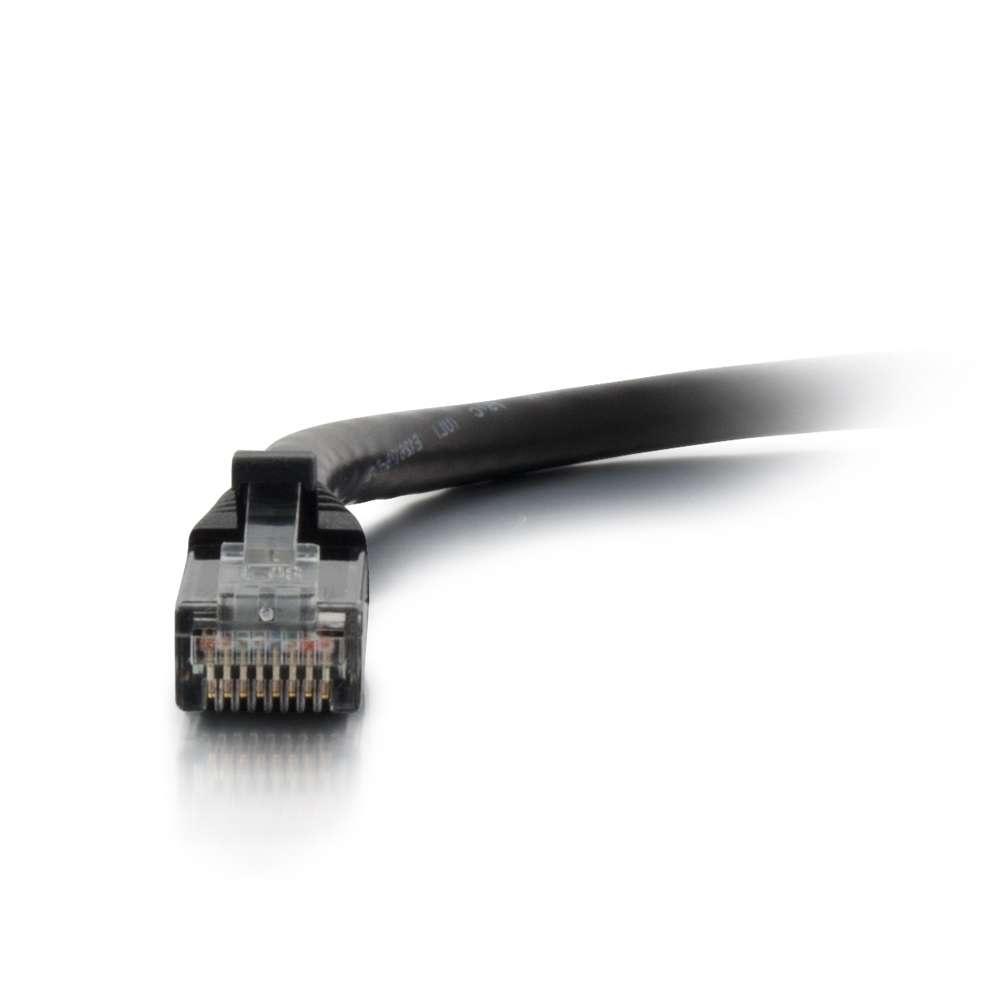

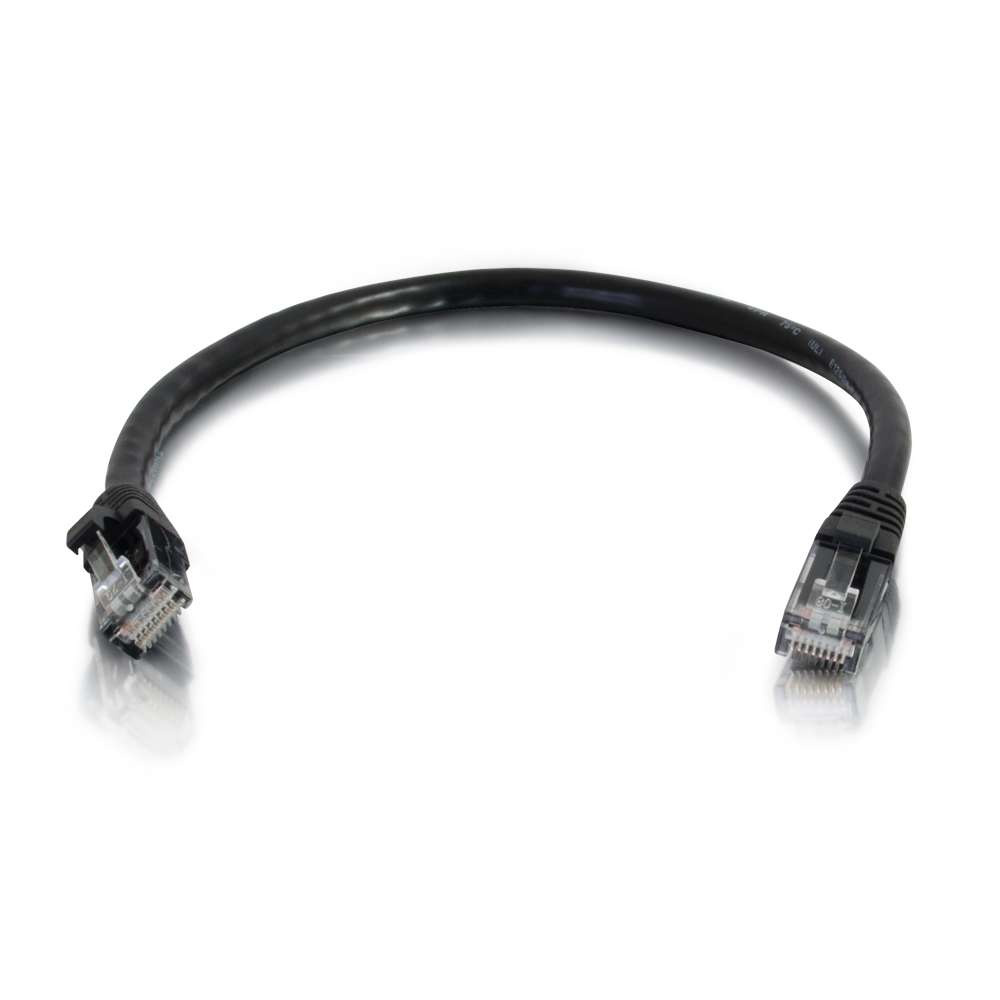

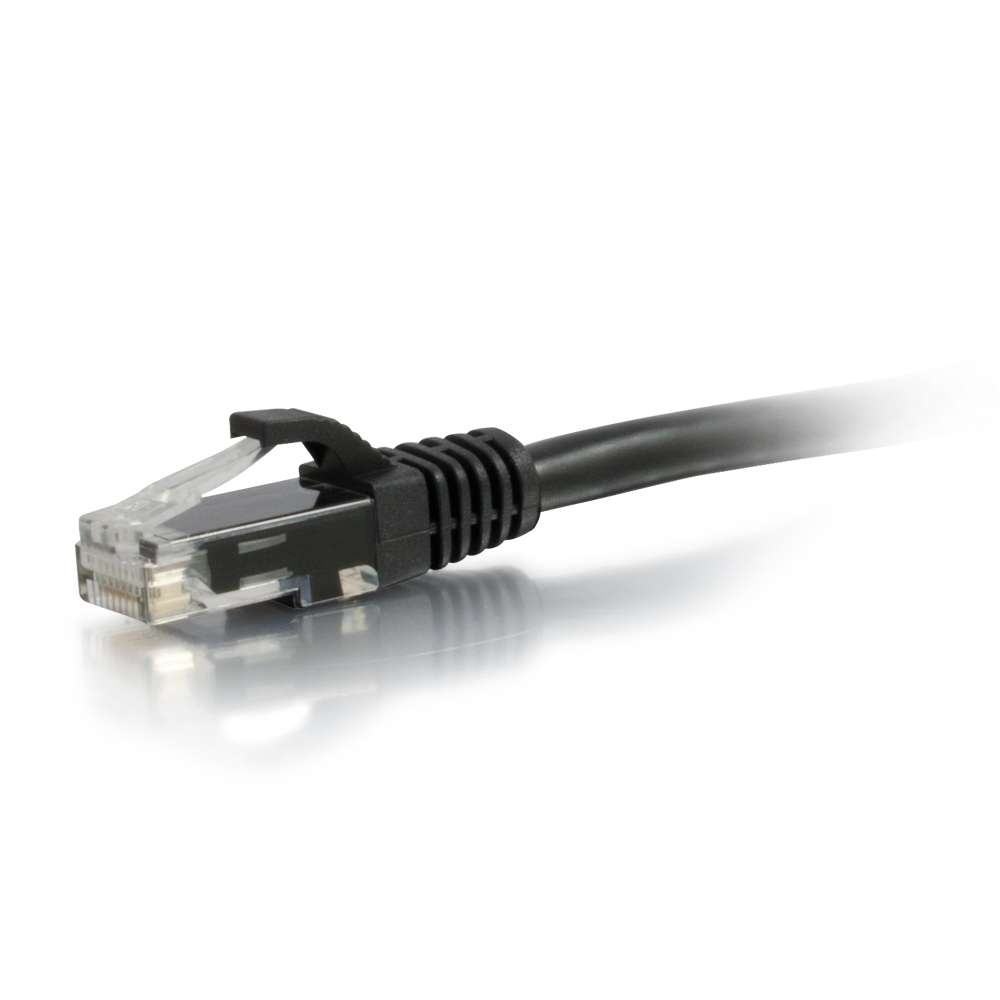

Quiktron 576-A35-010 Ethernet Patch Cable Cat6a 10 ft Snagless 24AWG Stranded Copper Black

Engineered for efficient networking, this 10-foot Q-Series Cat6a snagless Ethernet patch cable from Quiktron stands out with its reliable performance and cost-effective design. Constructed with 24AWG stranded copper conductors and featuring 50-micron gold plated RJ45 connectors on both ends, it ensures excellent connectivity while adhering to TIA-568.2-D standards. The cable is versatile for use in both commercial and industrial applications, and its CM-rated jacket guarantees suitability for riser spaces, providing peace of mind amid a range of environmental conditions, including operating temperatures from -10°C to 60°C and humidity levels of 0-90% RH. Additionally, this cable is RoHS compliant and comes with a lifetime warranty, underscoring its quality and durability for long-term use.

• CM-rated, riser-rated jacket for safe use in riser spaces
• 50-micron gold plated RJ45 connectors for enhanced connectivity
• 24AWG stranded copper conductors ensuring reliable signal transmission
• Snagless design prevents cable damage and ensures easy installation
• Meets TIA-568.2-D standards for guaranteed Cat6a performance
• Wide operating temperature range of -10°C to 60°C for environmental versatility
• Supports humidity levels from 0-90% RH non-condensing for durability
• RoHS compliant for environmental safety
• Suitable for both commercial and industrial networking applications
• Lifetime warranty providing long-term reliability assurance

• Voltage: 300 V
• Operating Temperature Range: -10°C to 60°C
• Length: 10 ft
• Cable Diameter: 0.236 in
• Bend Radius: 0.944 in
• Connector Type: RJ-45 Male to Male, 50 µ in Gold Plated
• Conductor Material: Copper
• Conductor Stranding: Stranded, 7 strands, 24 AWG
• Shielding: Unshielded
• Cable Type: Snagless Copper Patch Cord
• Jacket Rating: CM Rated
• Jacket Application: Riser Rated
• Category Performance: Cat6a
• Operating Humidity: 0-90% RH Non-Condensing
• Storage Humidity: 0-90% RH Non-Condensing
• Storage Temperature Range: -40°C to 60°C
• Braid: Non-braided Wiring
• Warranty Type: 5-Year
• Color: Black
• Country of Origin: Vietnam
• Product Line: Quiktron
• Application Sector: Industrial, Commercial
