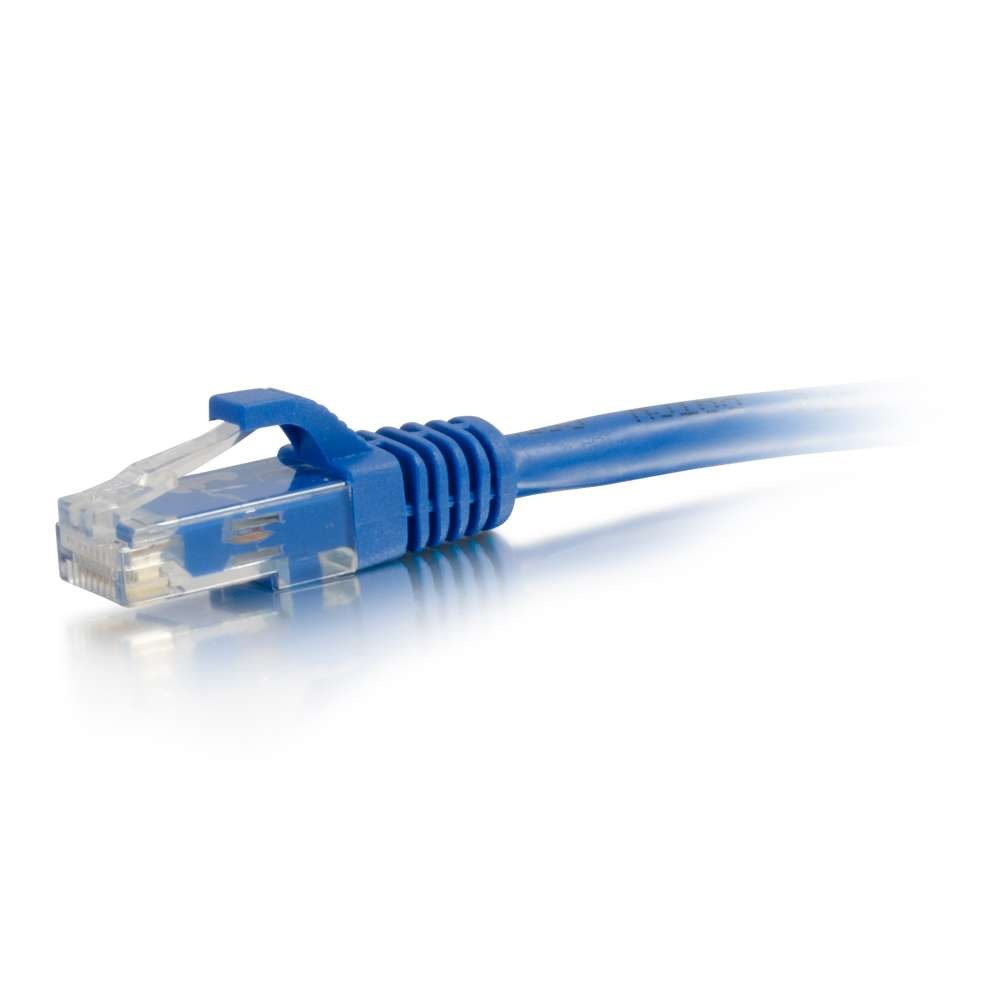

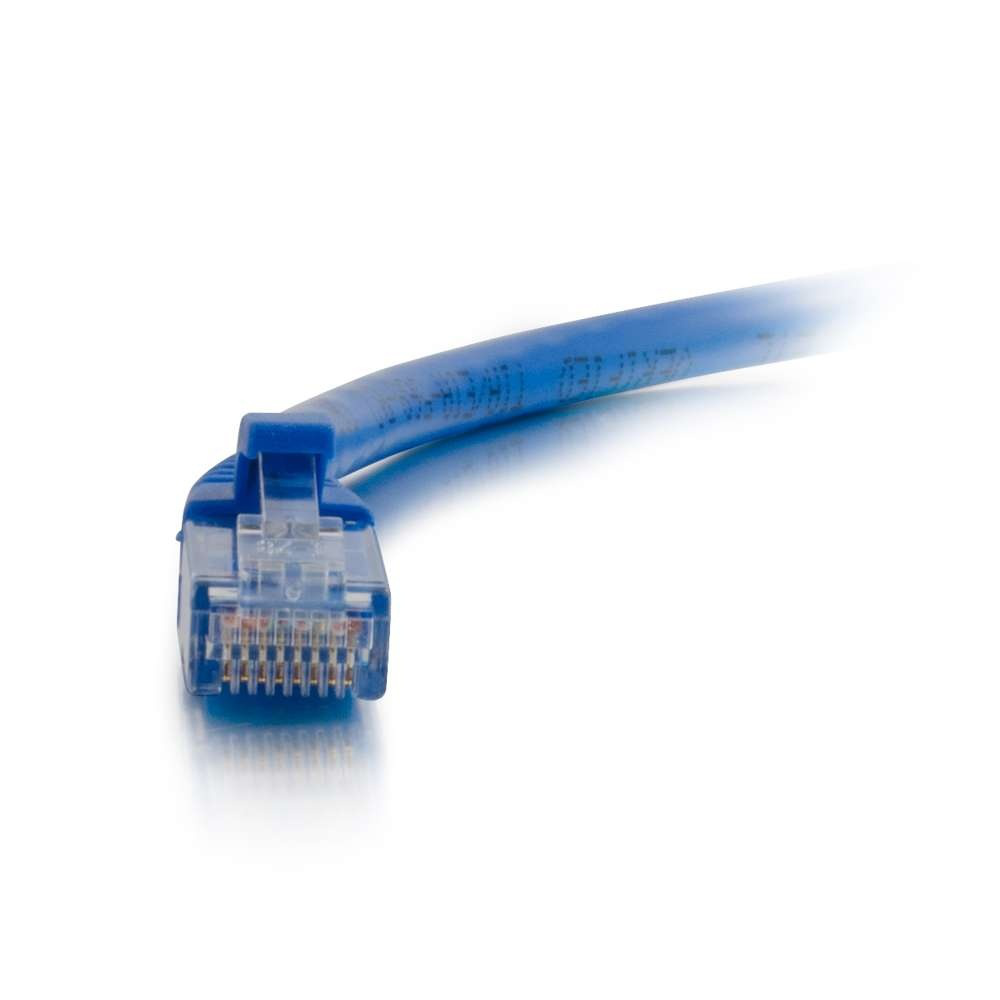

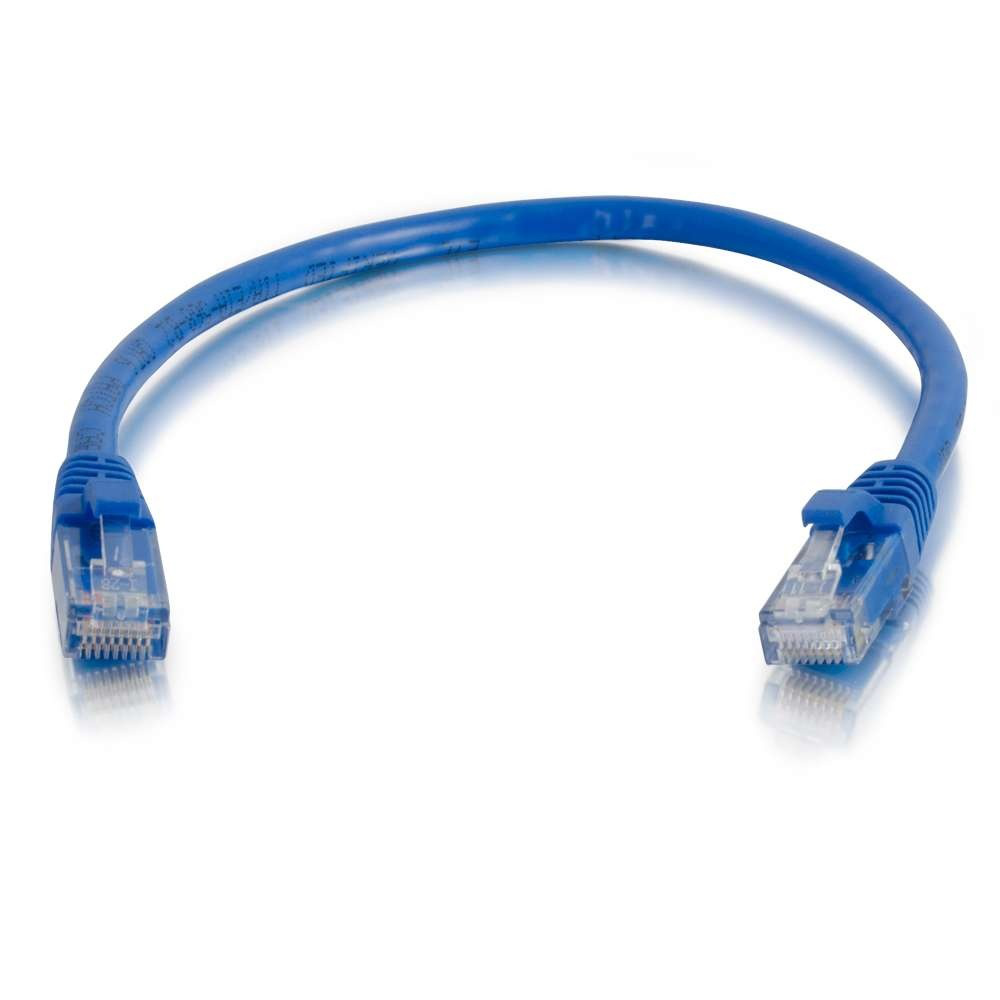

Quiktron 576-A10-007 Ethernet Patch Cable Cat6a 24AWG Stranded Copper Snagless Blue

Engineered for enhanced network performance, this 7ft Q-Series Cat6a snagless Ethernet patch cable from Quiktron provides a reliable connection for both commercial and industrial applications. Featuring 24AWG stranded copper conductors and 50-micron gold-plated RJ-45 connectors, it ensures minimal signal loss while delivering adherence to TIA-568.2-D standards. This unshielded, CM rated cable not only supports high-speed data transfer but also boasts a lifetime warranty, making it an excellent choice for budget-conscious consumers who prioritize both cost and speed of delivery. With a robust design capable of operating in challenging environments, this cable is a dependable solution for your networking needs.

• CM rated jacket for fire resistance in riser applications
• Compliant with TIA-568.2-D standards for reliable network performance
• 50-micron gold-plated RJ-45 connectors for minimal signal loss
• 24AWG stranded copper conductors for enhanced flexibility and conductivity
• Snagless design to prevent cable damage and ease installation
• Unshielded cable suitable for commercial and industrial environments
• Supports Cat6a performance for high-speed data transfer
• Operates reliably within -10°C to 60°C for use in varying environments
• Pre-terminated RJ-45 male-to-male connectors for plug-and-play convenience
• Lifetime warranty providing long-term reliability assurance

• Voltage: 300 V
• Operating Temperature: -10 to 60 °C
• Storage Temperature: -40 to 60 °C
• Operating Humidity: 0-90% RH (Non-Condensing)
• Storage Humidity: 0-90% RH (Non-Condensing)
• Cable Length: 7 ft
• Length: 7 ft
• Cable Diameter: 0.236 in
• Number of Strands: 7
• Wire Gauge: 24 AWG
• Conductor Stranding: Stranded
• Cable Type: Snagless
• Shielded/Unshielded Cable: Unshielded
• Termination Style: Pre-Terminated
• Compatibility: RJ-45 Male to Male
• Conductor Material: Copper
• Plating Specification: 50 µin Gold
• Jacket Application: Riser Rated
• Jacket Rating: CM Rated
• Bend Radius: 0.944 in
• Category Performance Application: Cat6a
• Weight: 0.245 lb
• RoHS Compliance: Yes
• Country of Origin: Vietnam
• Color: Blue
• Warranty Type: 5-Year
• Application Sector: Commercial, Industrial
• Product Line: Quiktron
• Type: Copper Patch Cord
• Braid: Non-braided Wiring
