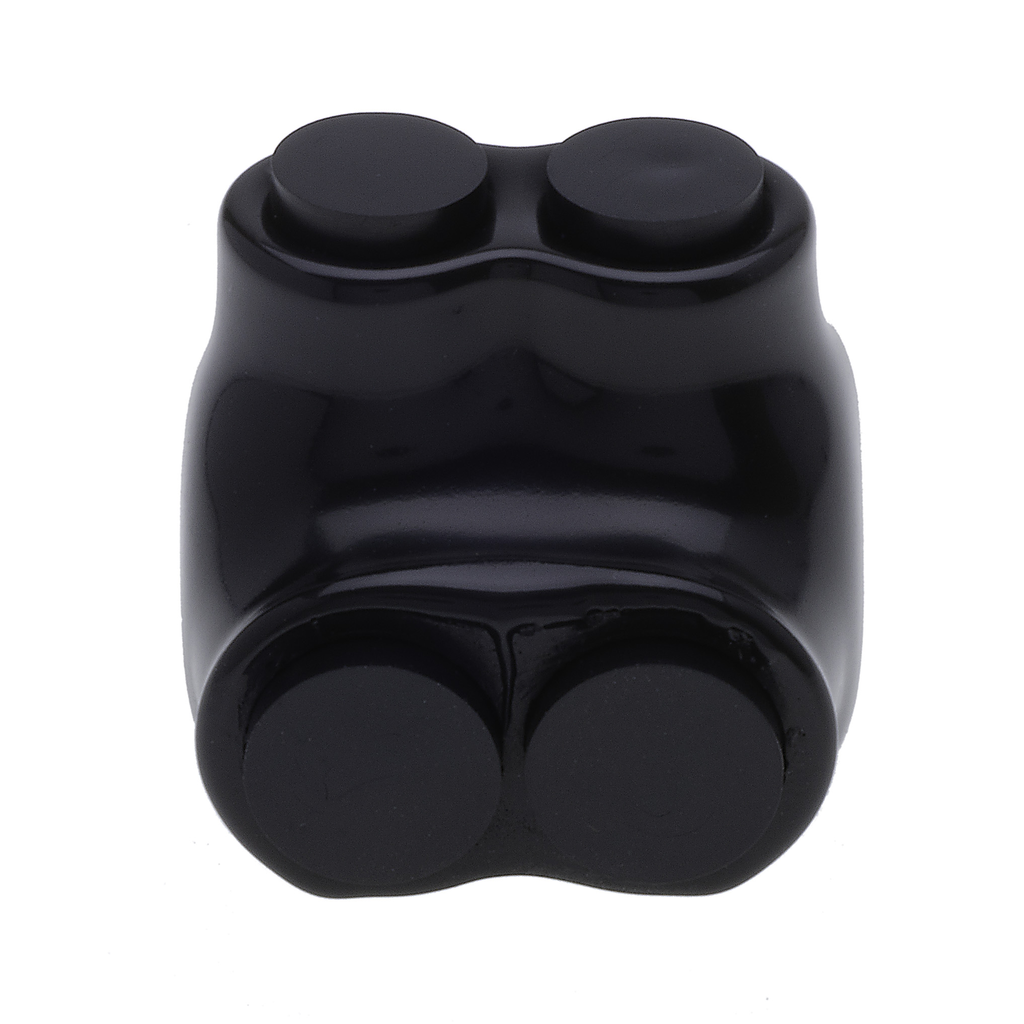

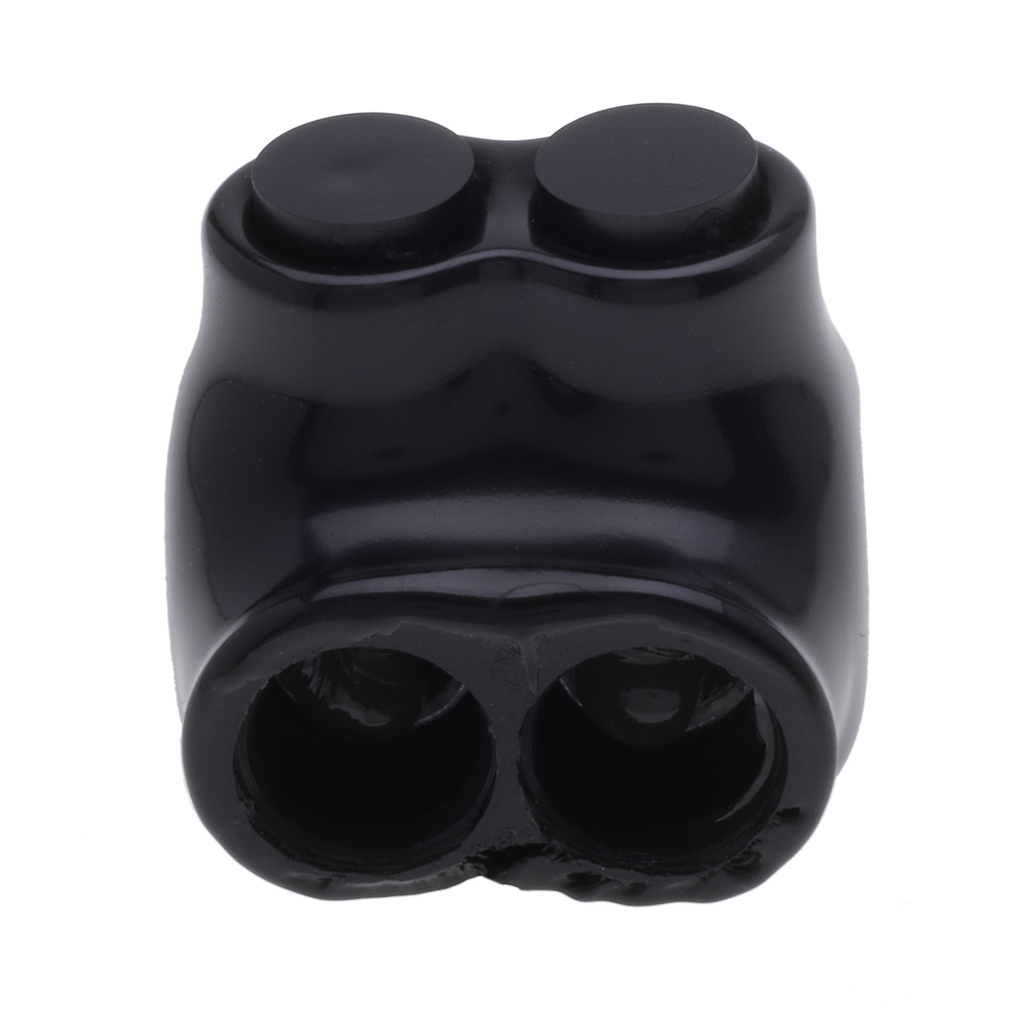

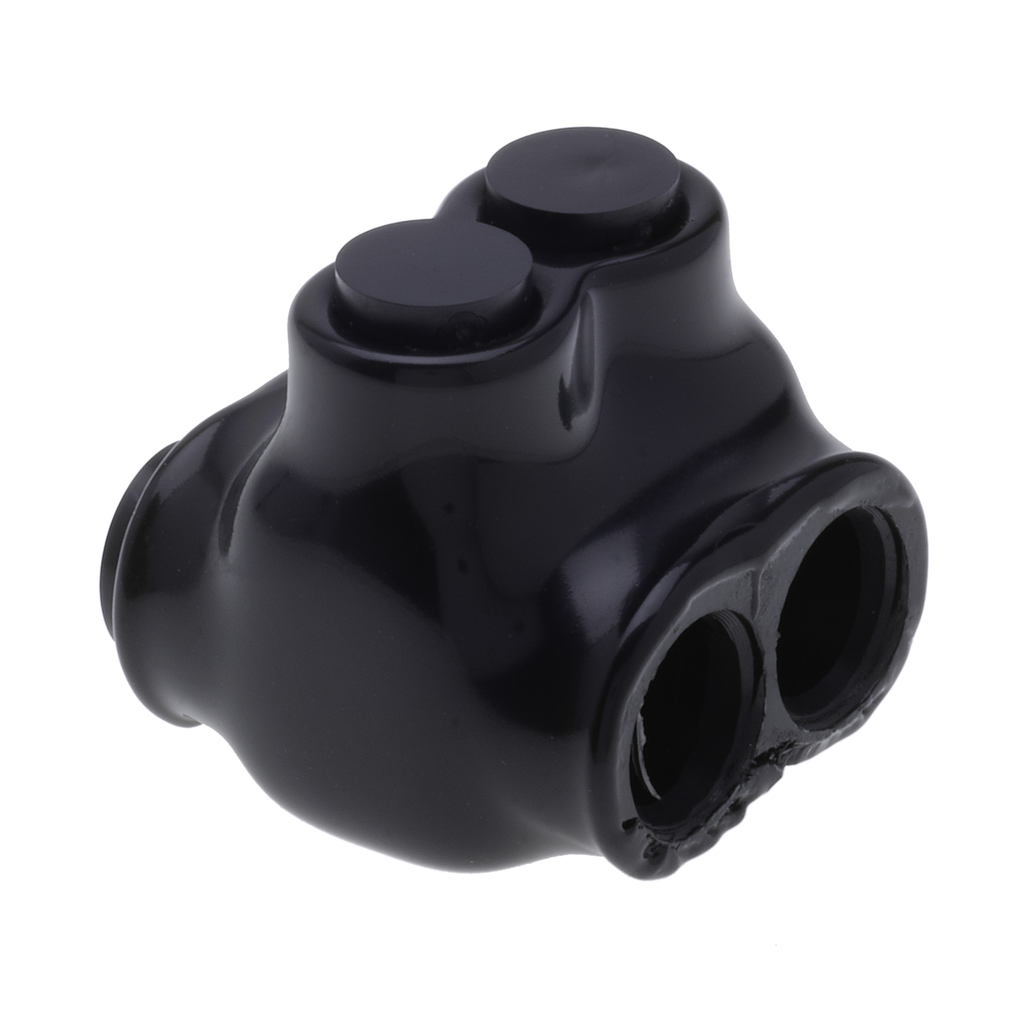

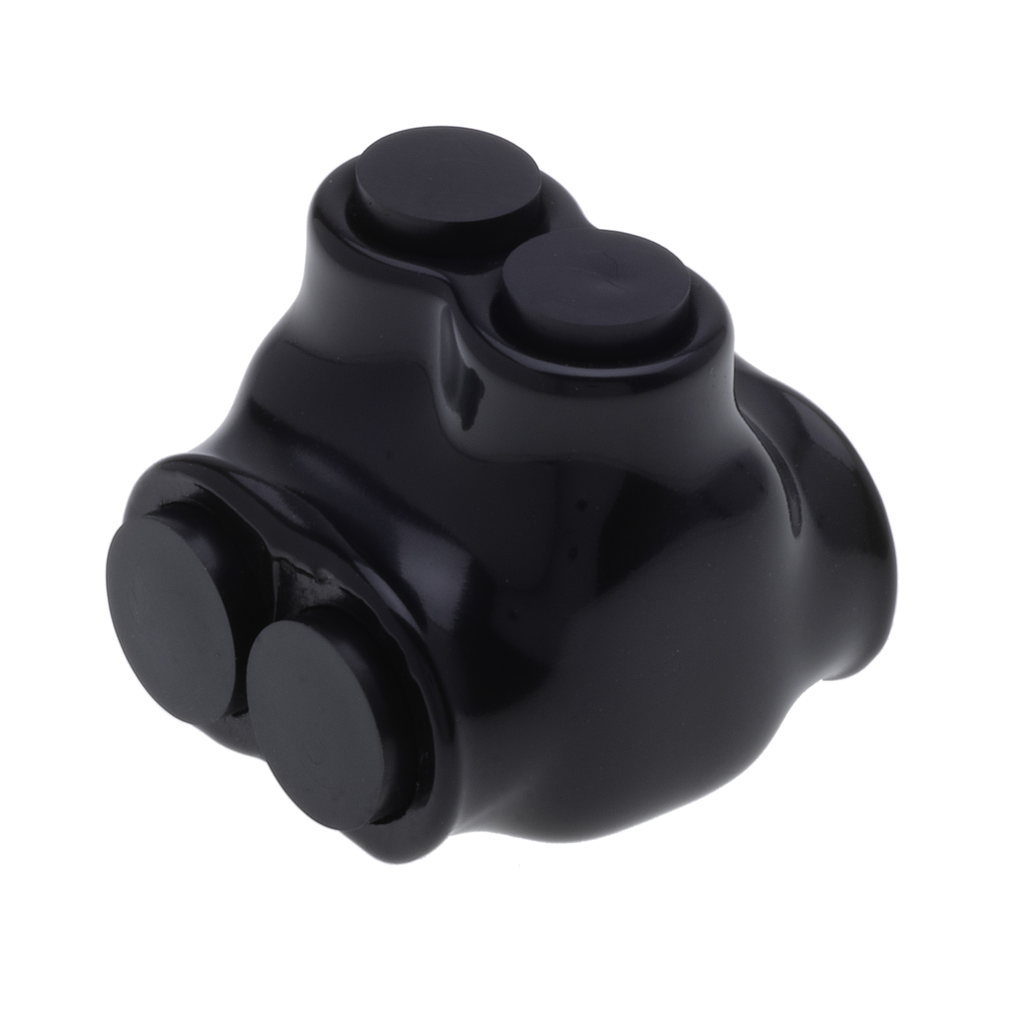

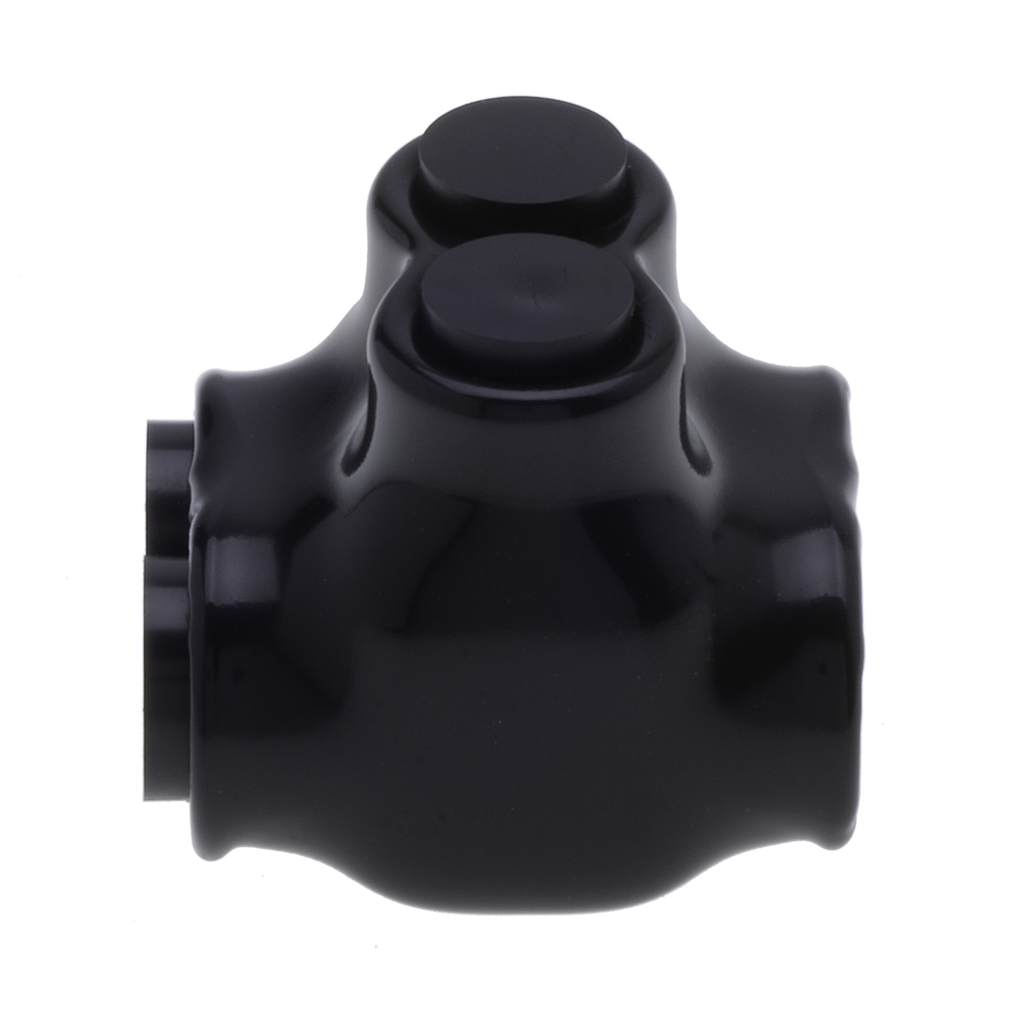

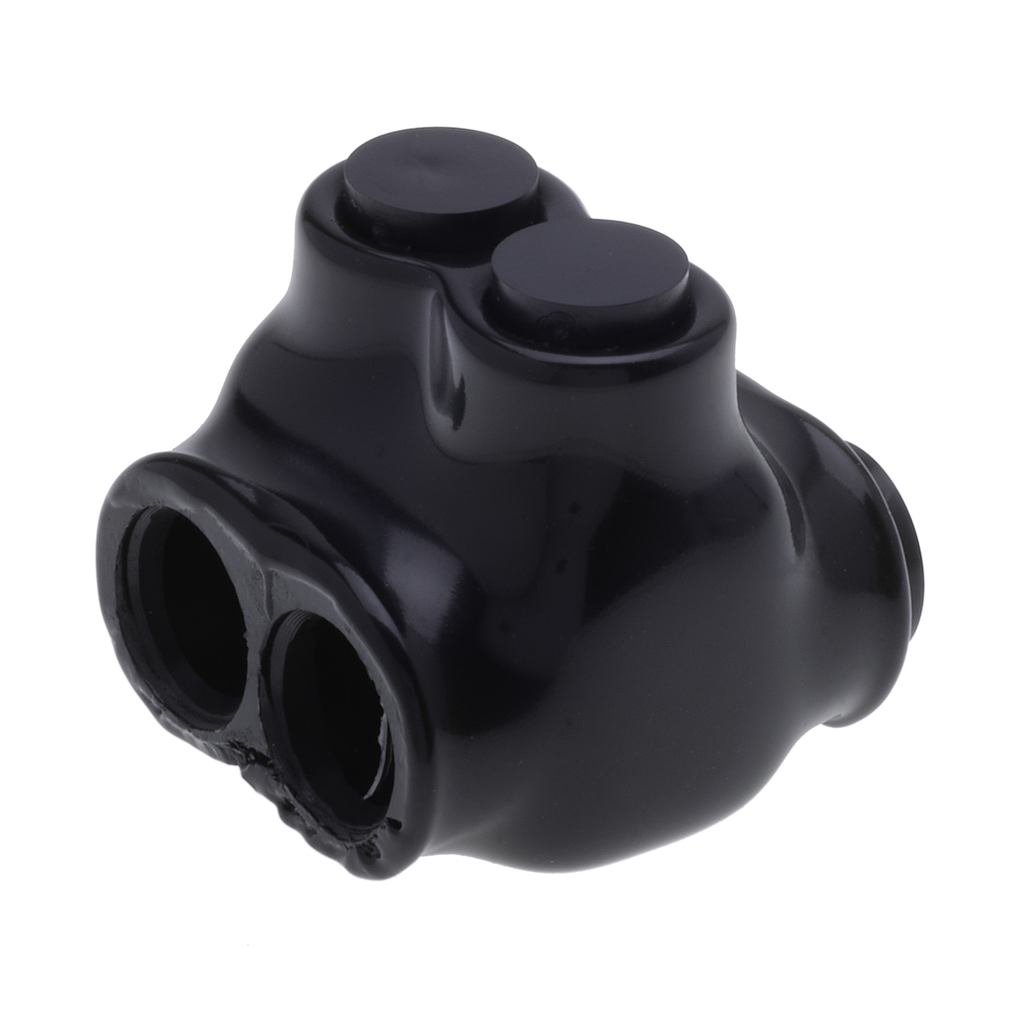

Polaris IT-2 Pre-Insulated Connector Dual-Side Entry 2 to 14 AWG 600V Aluminum Black Plastisol Insulated
Specifications
Engineered for efficiency and reliability, the 2-Port Black Multi-Tap Pre-Insulated Connector from Polaris is designed to accommodate copper or aluminum cables ranging from 2 to 14 AWG. Its dual-sided wire entry feature facilitates quick and secure connections, making it ideal for splicing applications, particularly on the line side of service equipment as stipulated by NEC article 230.46. The connector boasts a durable plastisol insulation that is not only UV and abrasion-resistant but also pre-filled with an oxide inhibitor to minimize corrosion and maintain low-contact resistance, ensuring optimal performance even in extreme conditions, with a temperature rating down to -45°C. Designed with ergonomics in mind, the rounded corners and smooth exterior provide a comfortable grip for reliable handling, while each port is equipped with removable plugs to shield against debris and moisture. With its professional-grade construction and adherence to UL 486A/B and cULus standards, this connector delivers dependable performance for electrical connectivity needs.
- Meets UL 486A/B and cULus safety standards
- Pre-filled oxide inhibitor minimizes corrosion and contact resistance
- Durable plastisol insulation resists UV exposure and abrasion
- Temperature rated down to -45°C for extreme conditions
- Dual-sided wire entry enables quick and secure connections
- Removable plugs protect ports against debris and moisture
- Compatible with copper and aluminum cables from 2 to 14 AWG
- Designed for line side service equipment splicing per NEC 230.46
- Rounded corners and smooth exterior ensure comfortable ergonomic grip
- Voltage Rating: 600 V
- Aluminum Conductor Max AMP: 100 A
- Copper Conductor Max AMP: 130 A
- Max Torque Value: 65 in-lbs
- Temperature Rating: 90C, AL9CU, Cold Rated to -45C
- Length: 1.32 in
- Width: 1.24 in
- Height: 1.39 in
- Number of Conductors/Circuits/Terminals: 2
- Wire Size Range: 2 AWG to 14 AWG
- Conductor Type: Copper, Aluminum
- Material: Aluminum Alloy, Plastisol Insulation
- Finish: Plastisol Insulated, Black UV Coated
- Pre-filled Oxide Inhibitor: Yes
- Removable Plugs: Yes
- Country of Origin: United States
