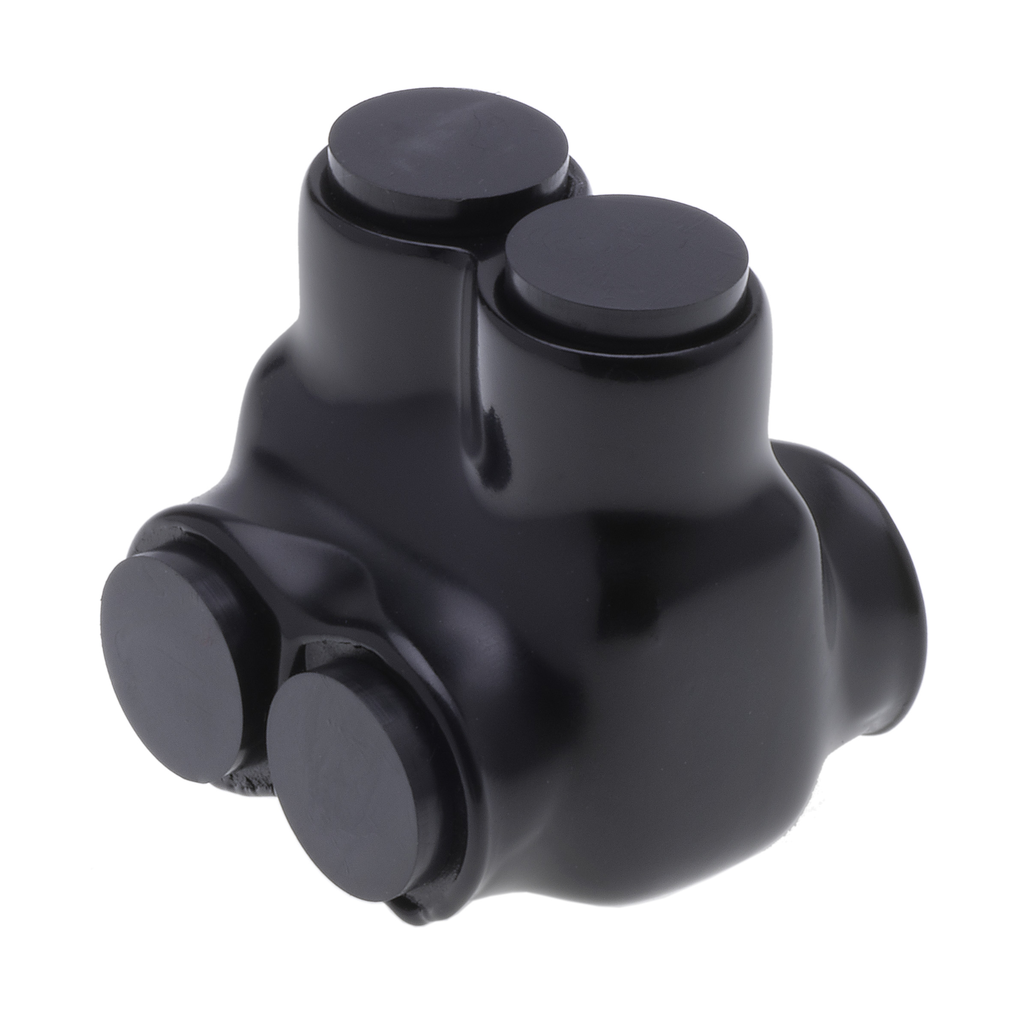

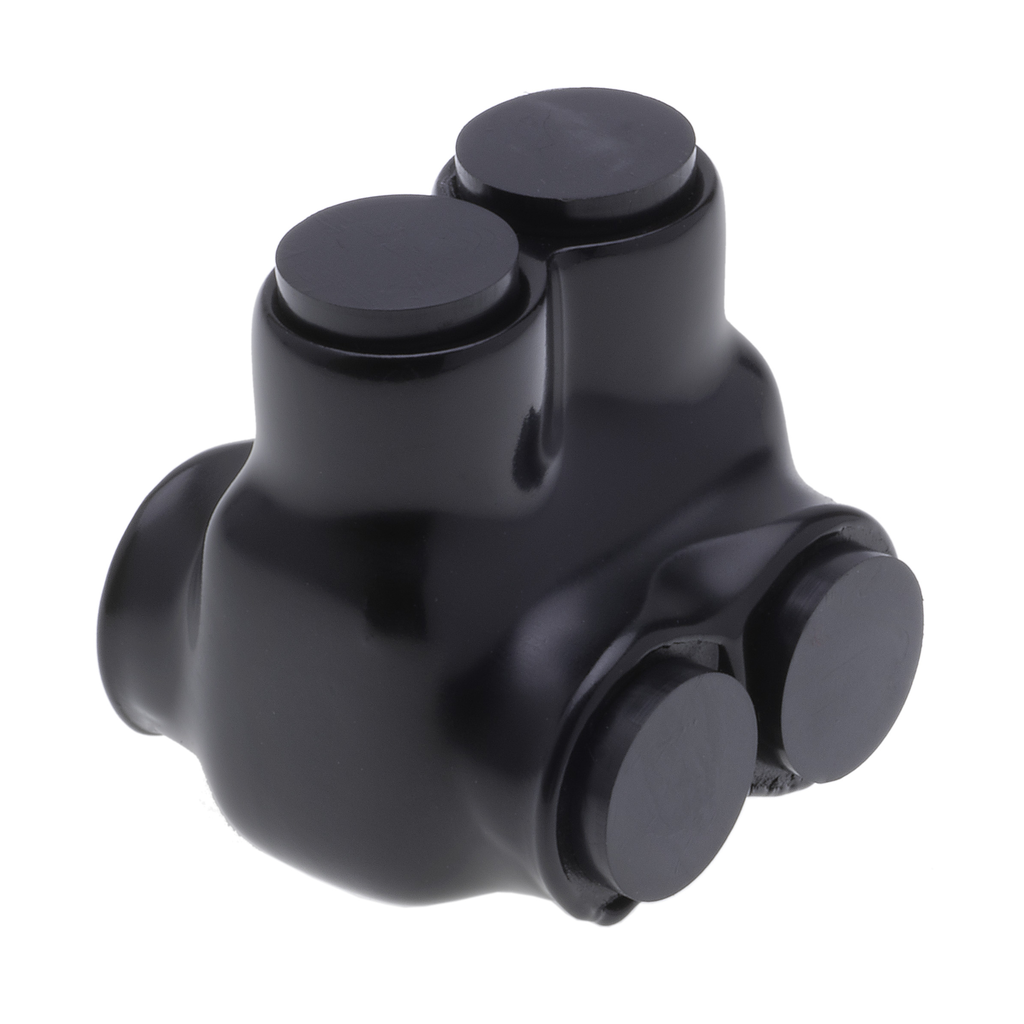

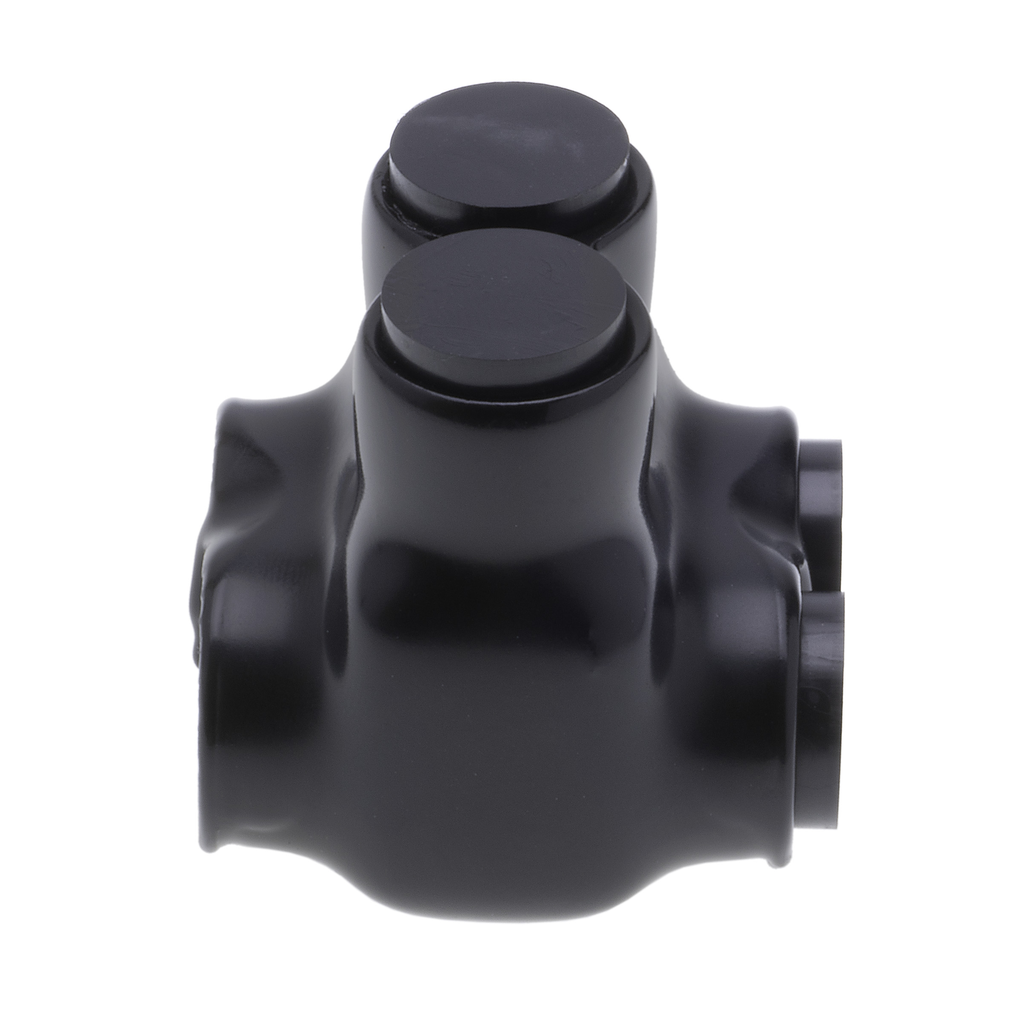

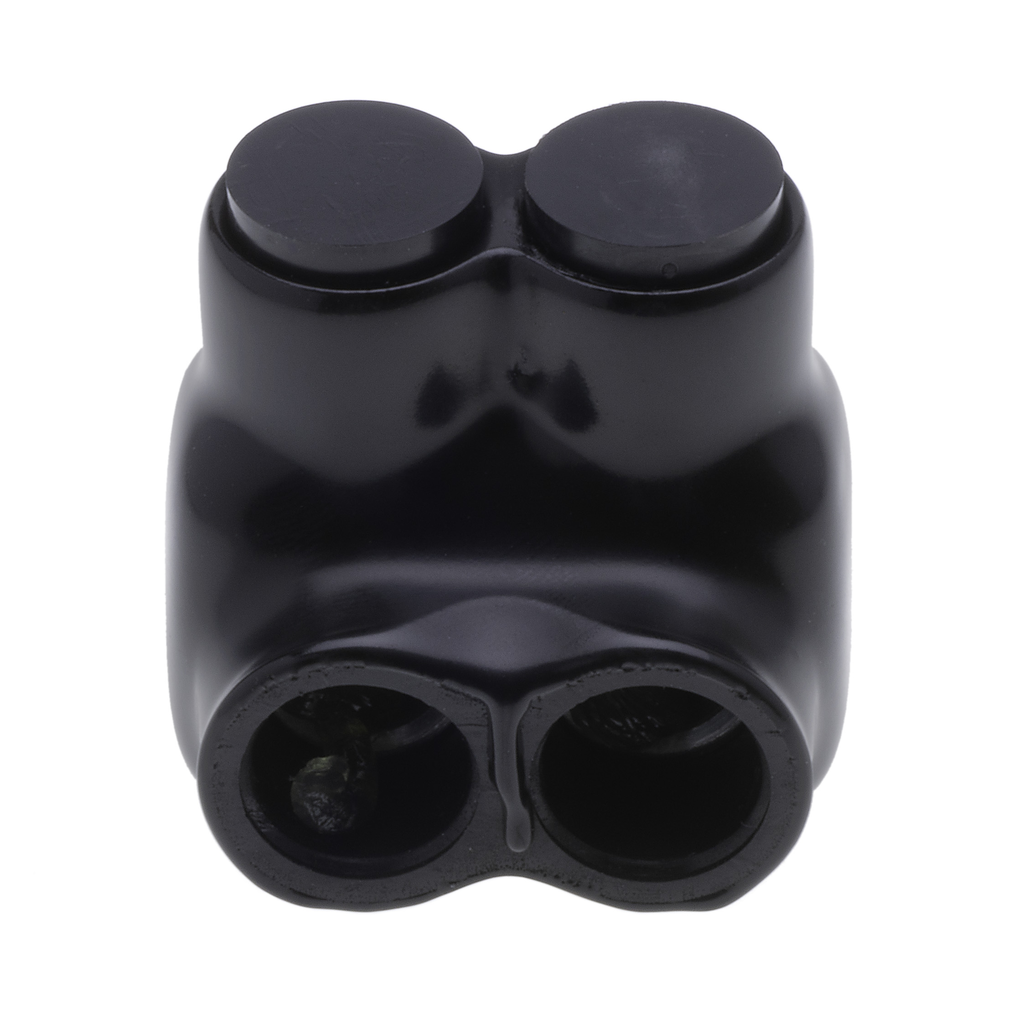

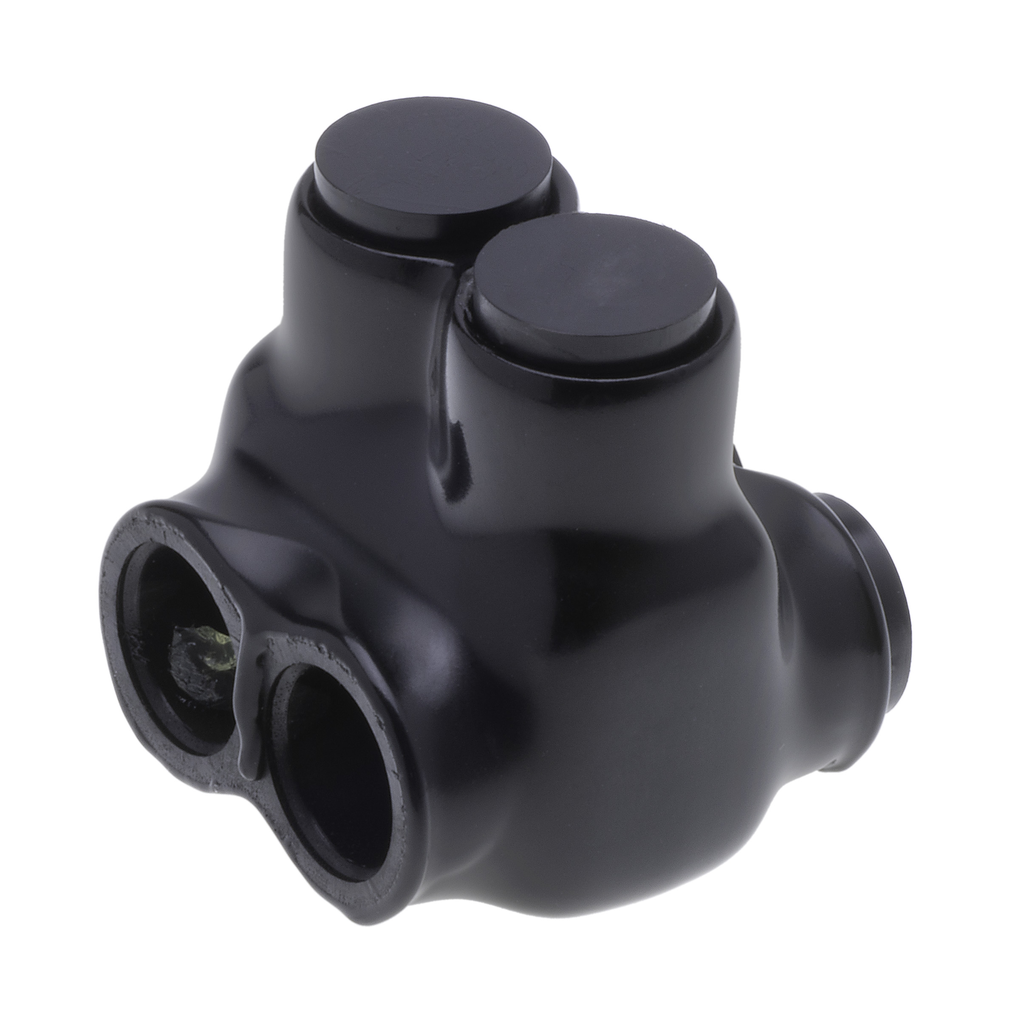

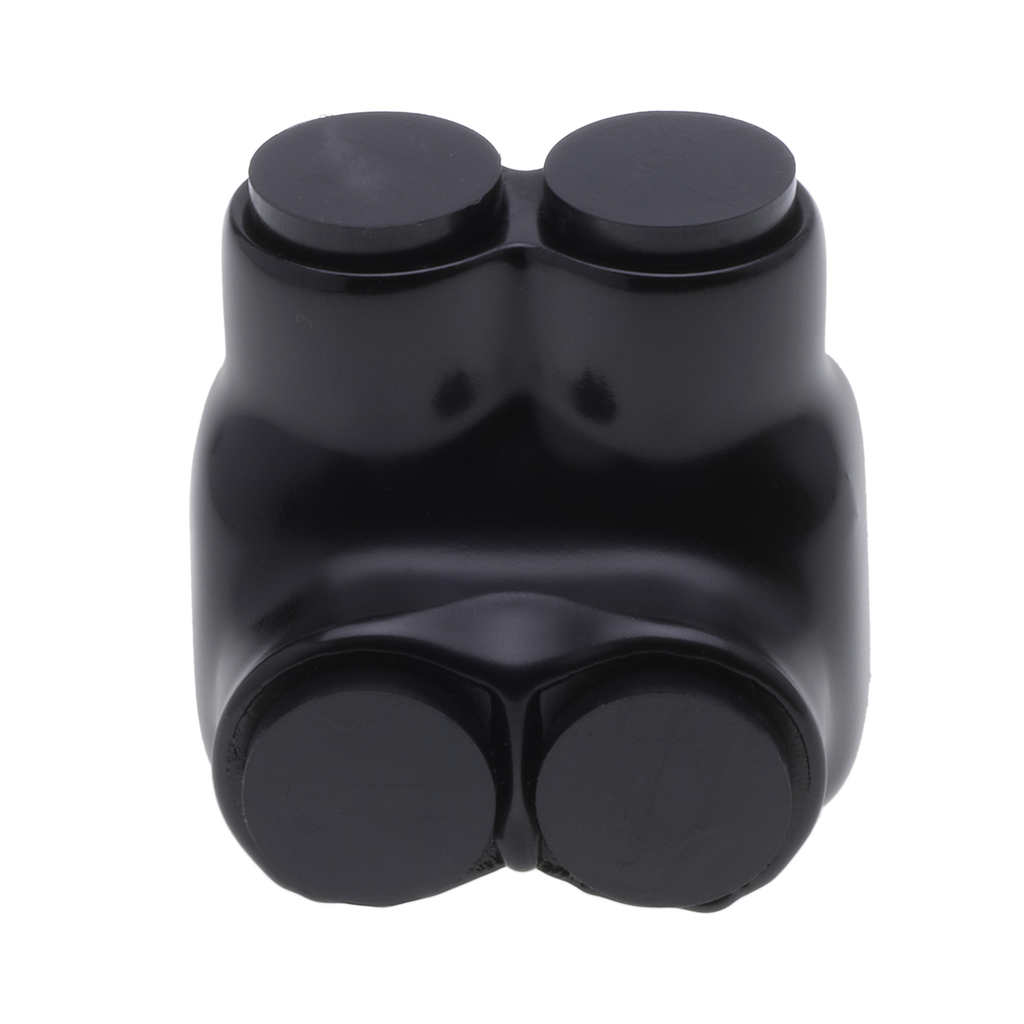

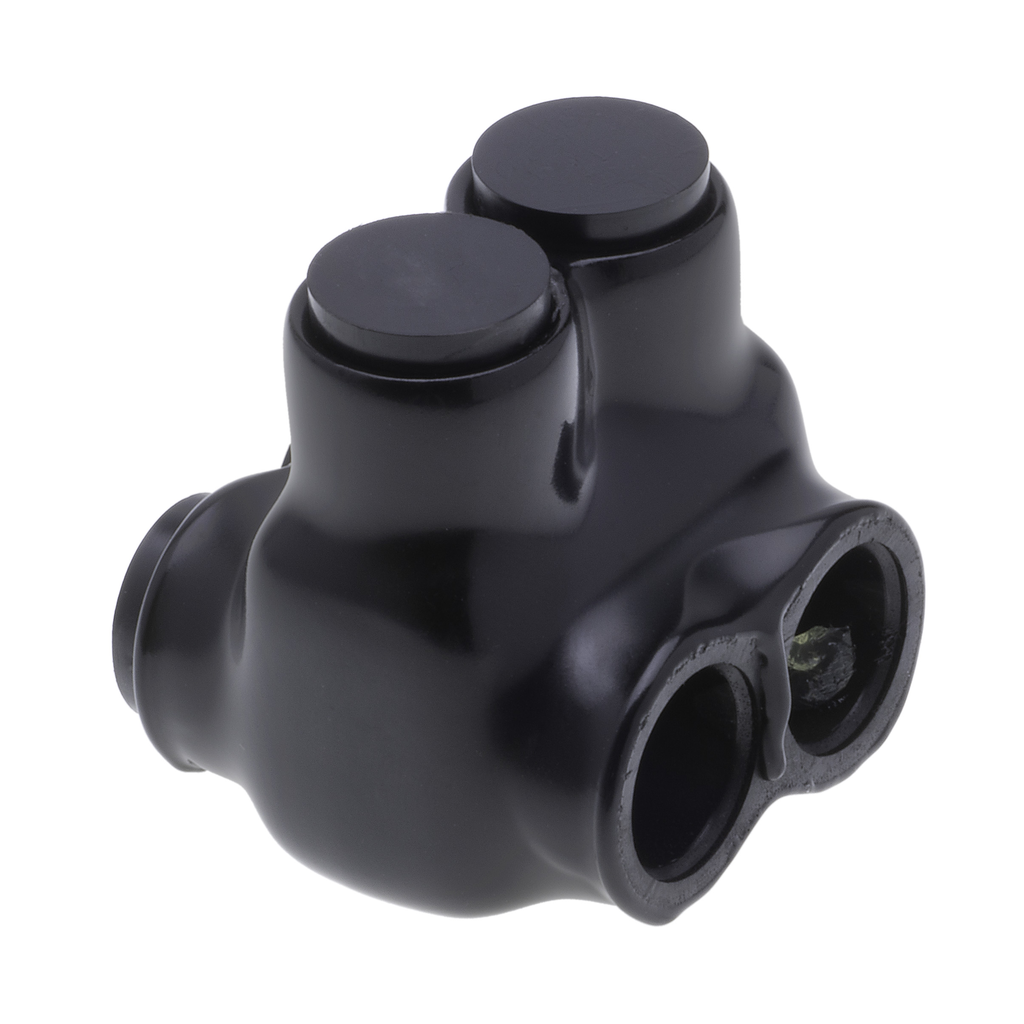

Polaris IT-2/0 Pre-Insulated Dual-Side Entry Connector 2-Port 2/0-14 AWG 600V Black Aluminum
Specifications
The 2-Port Black Multi-Tap Pre-Insulated Connector by Polaris is crafted to ensure reliable electrical connectivity with its dual-rated compatibility for both copper and aluminum cables, making it a versatile choice for various applications. This connector meets UL 486A/B standards and is suitable for the line side of service equipment as outlined in NEC 230.46, ensuring compliance and safety in your installations. Designed with pre-filled oxide inhibitor gel in its dual-sided entry ports, it effectively prevents corrosion and maintains low-contact resistance, which is crucial for long-lasting performance. With a robust temperature rating that allows for operation in extreme conditions down to -45°C, coupled with a durable insulation layer that is resistant to UV, abrasion, and chemicals, this connector is built for professionals who demand reliability in challenging environments. The ergonomic design features rounded corners and smooth finishes for comfortable handling, while removable plugs protect the entry points from debris and moisture, enhancing the overall robustness of the connection. Whether tackling residential or commercial electrical needs, this well-engineered connector series stands out with its reliable specifications and ease of use.
- UL 486A/B and cULus certified for safety compliance
- Meets NEC 230.46 for line side of service equipment
- Pre-filled oxide inhibitor gel prevents corrosion
- Low-contact resistance for reliable electrical performance
- Dual-rated for copper and aluminum cables (2/0-14 AWG), excluding fine-stranded flexible cables
- Insulation resistant to UV, abrasion, and chemicals
- Operates in extreme temperatures down to -45°C
- Ergonomic rounded corners and smooth finishes for comfortable handling
- Removable plugs protect entry points from debris and moisture
- Versatile 2-port design supporting multiple conductor sizes
- Voltage Rating: 600 V
- Aluminum Conductor Max Amp: 150
- Copper Conductor Max Amp: 195
- Temperature Rating: 90C, AL9CU
- Conductor Size Range: 2/0 AWG - 14 AWG
- Number of Conductors: 2
- Length: 1.78 in
- Width: 1.55 in
- Height: 1.77 in
- Material: Aluminum, Plastisol Insulation
- Finish: Plastisol Insulated
- Compliance: UL 486A/B, cULus, UL File # E186991
- Environmental Temperature: Rated to -45C
- Country of Origin: United States
