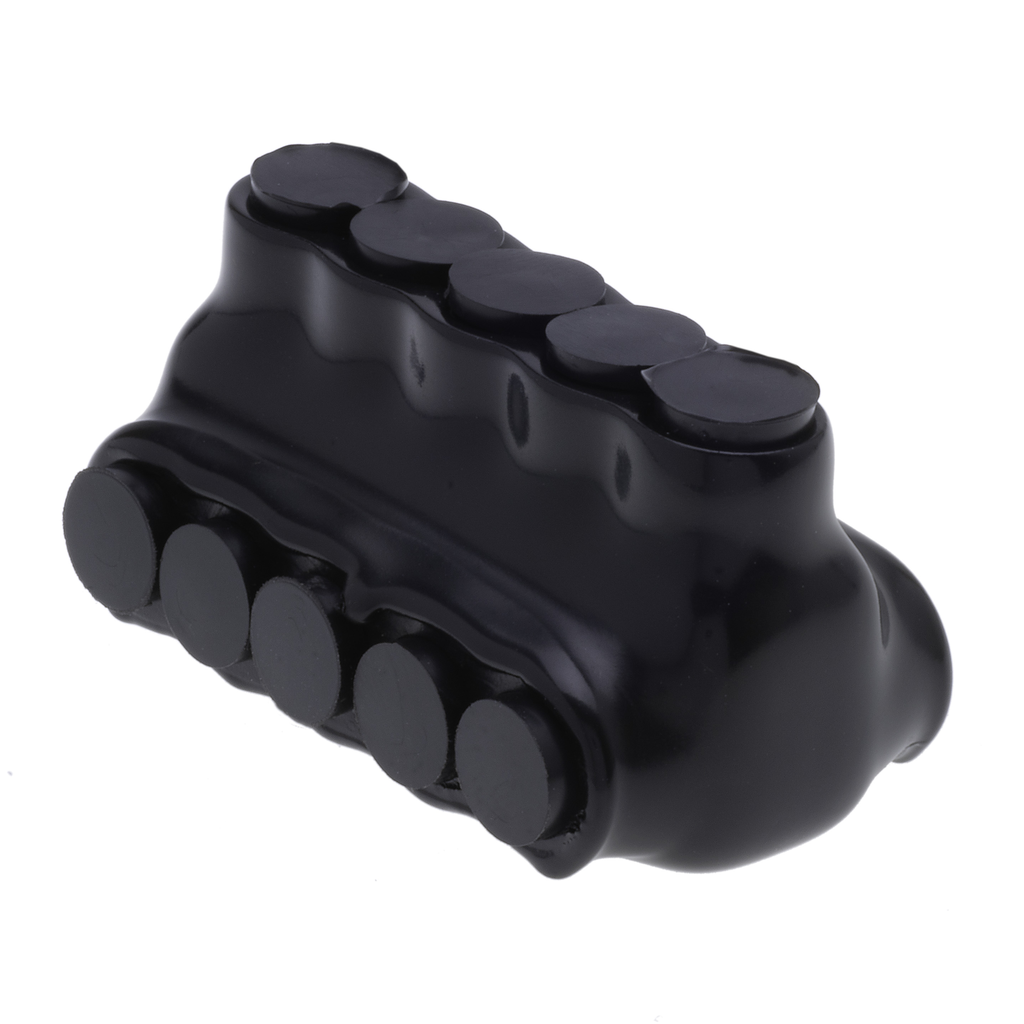

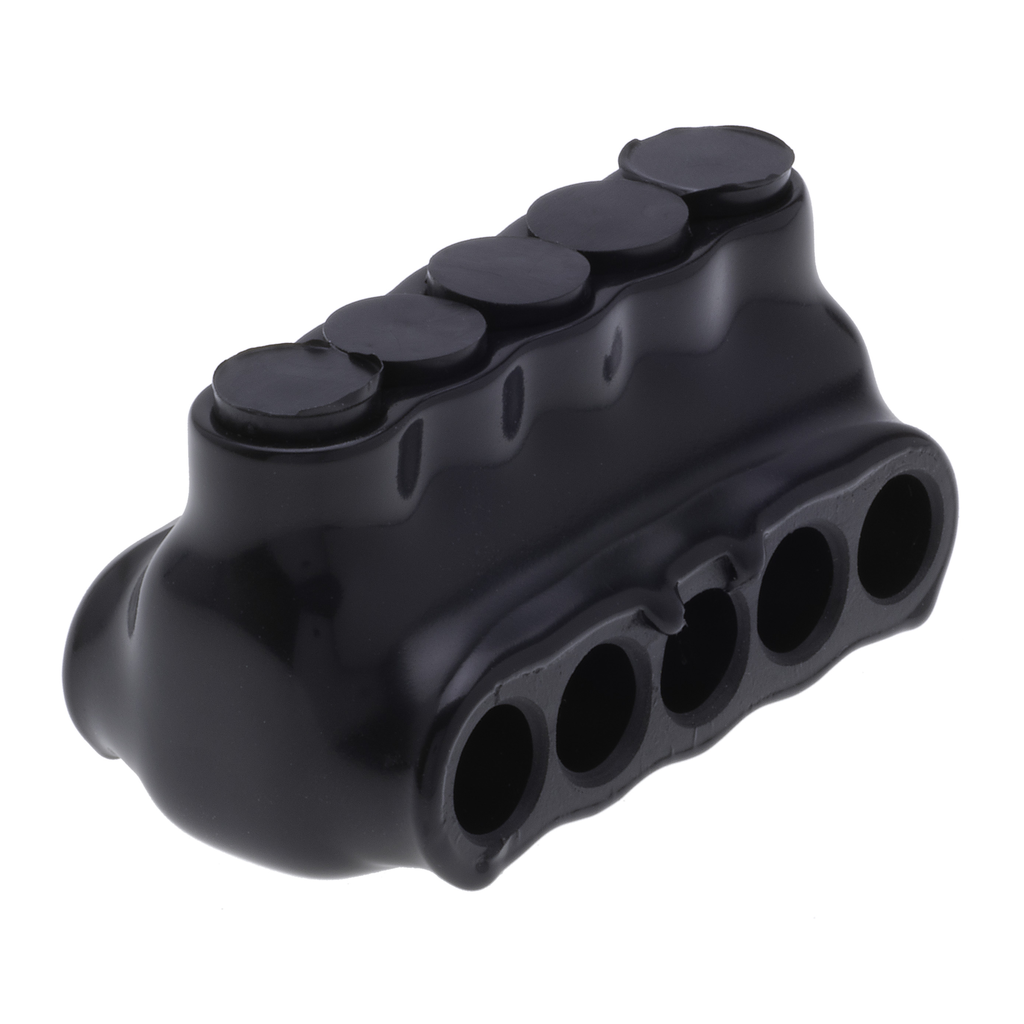

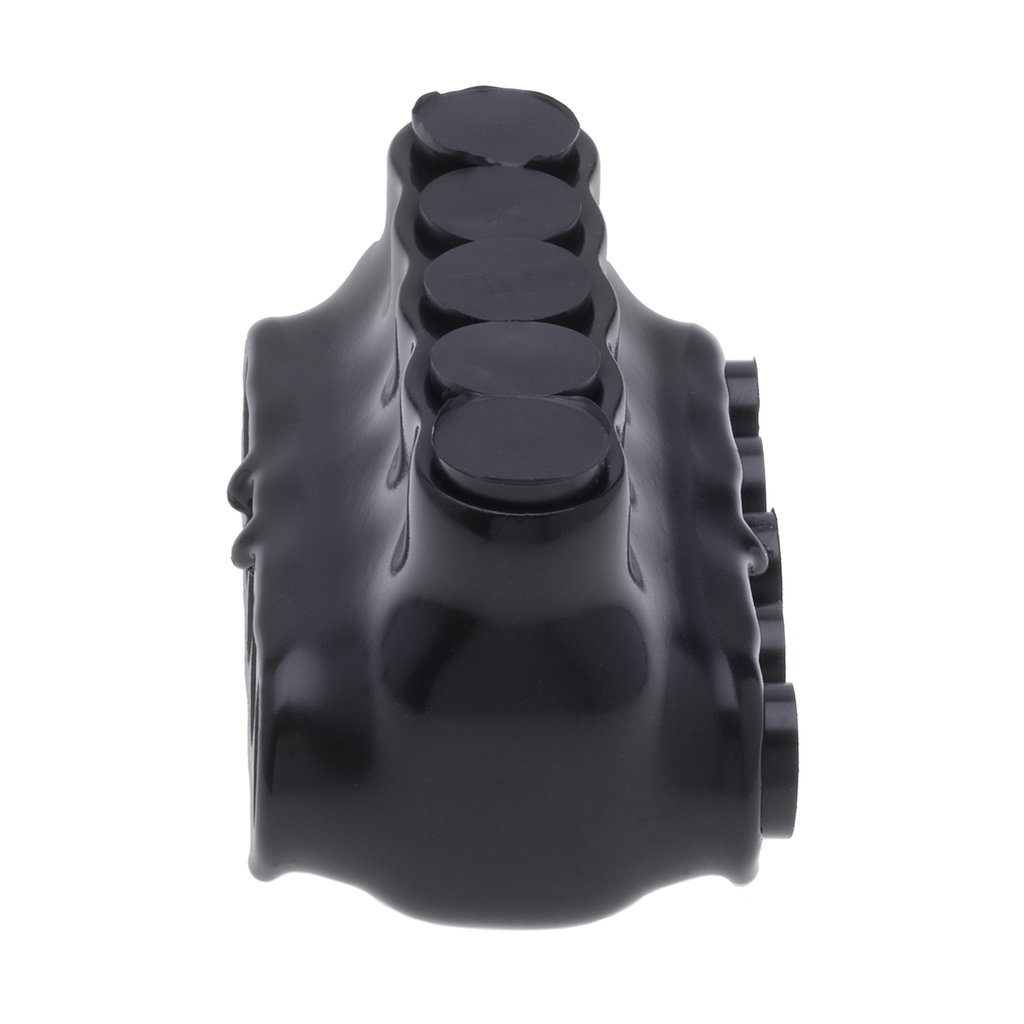

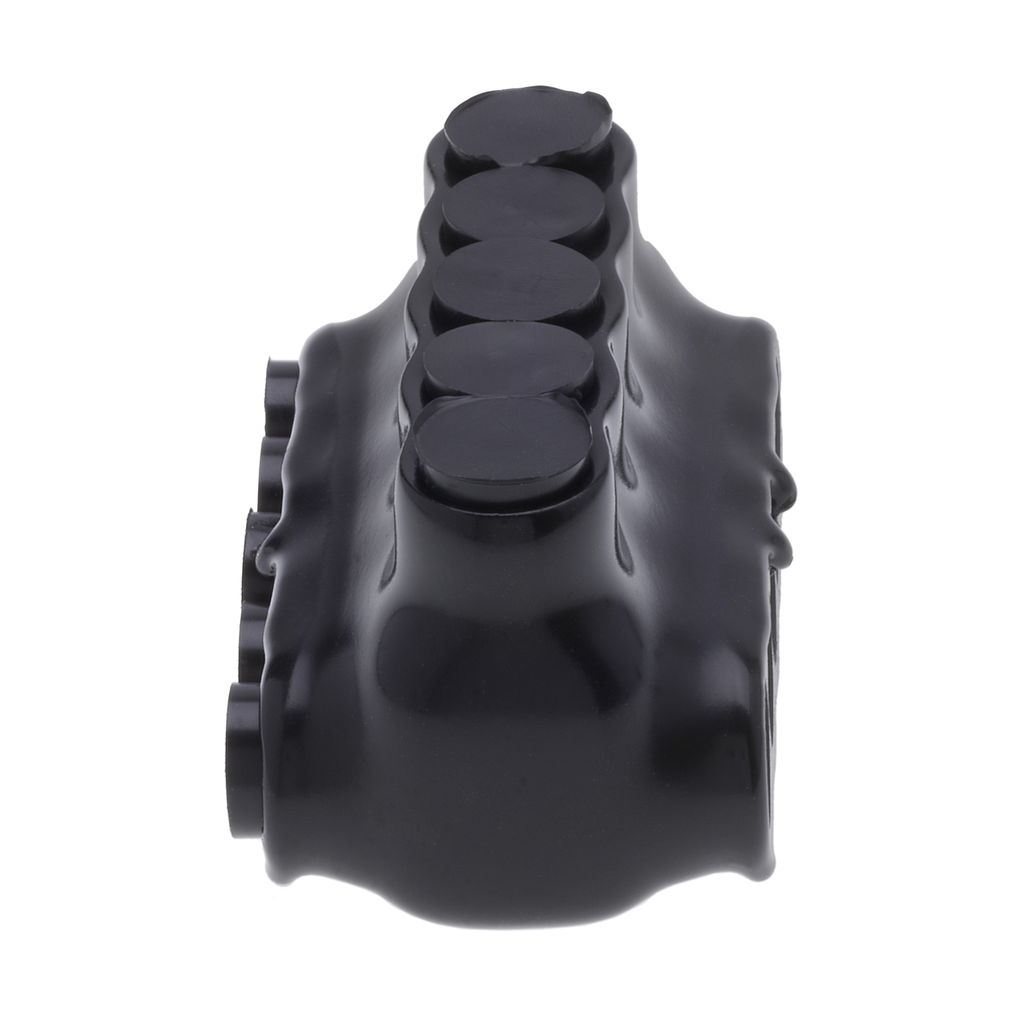

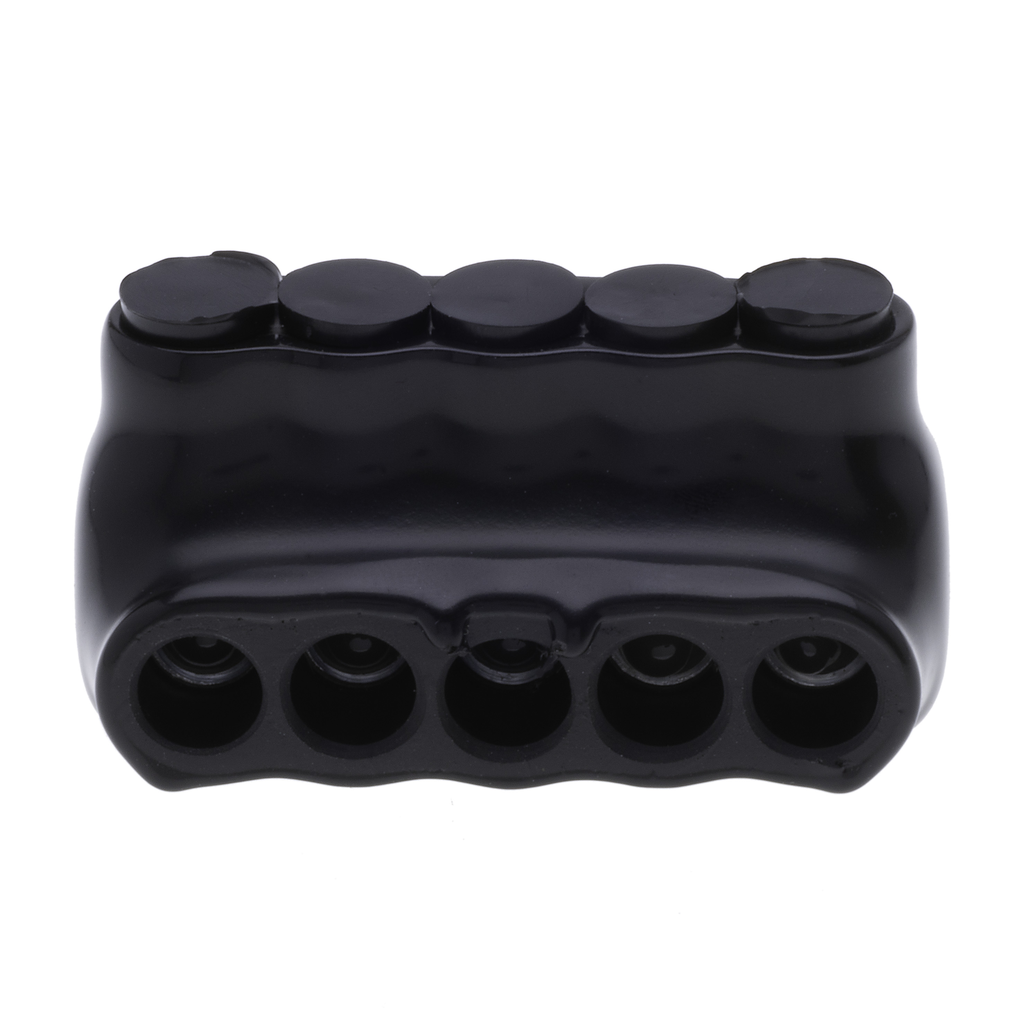

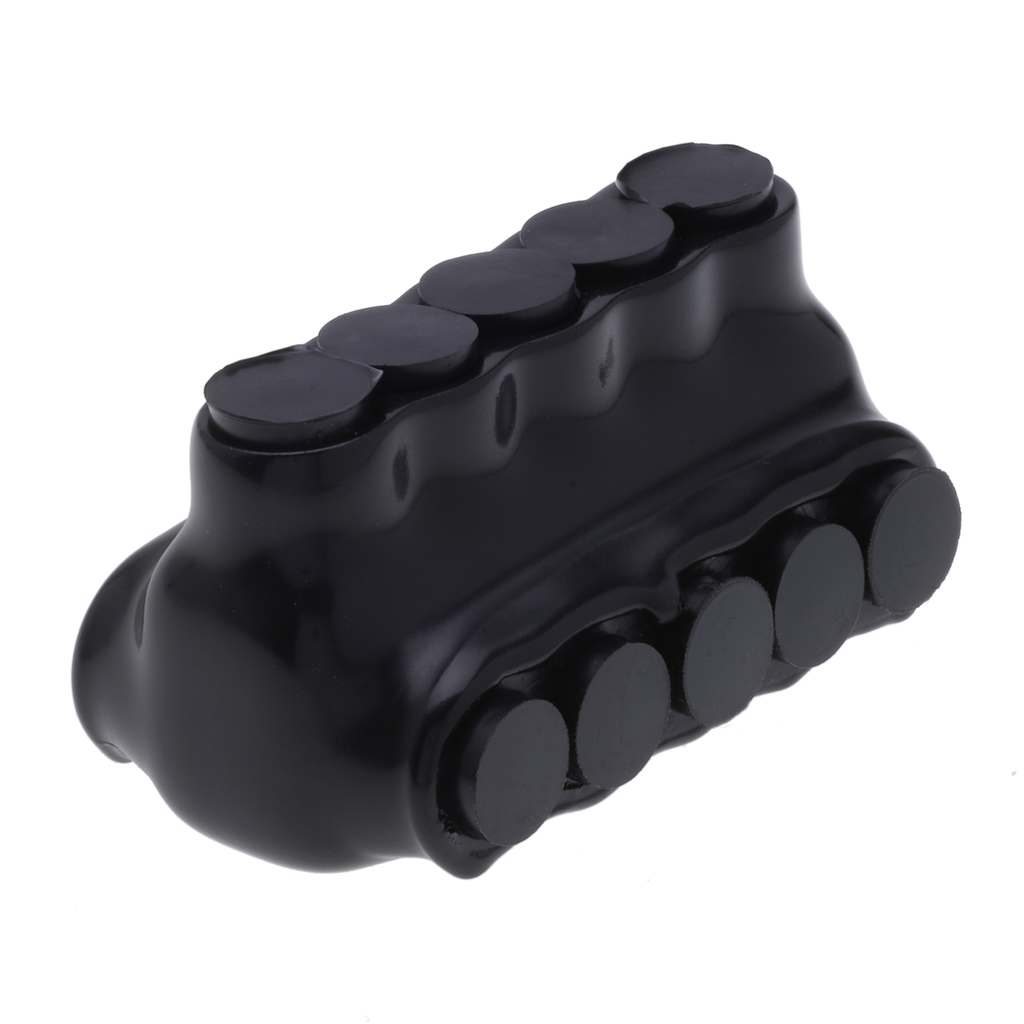

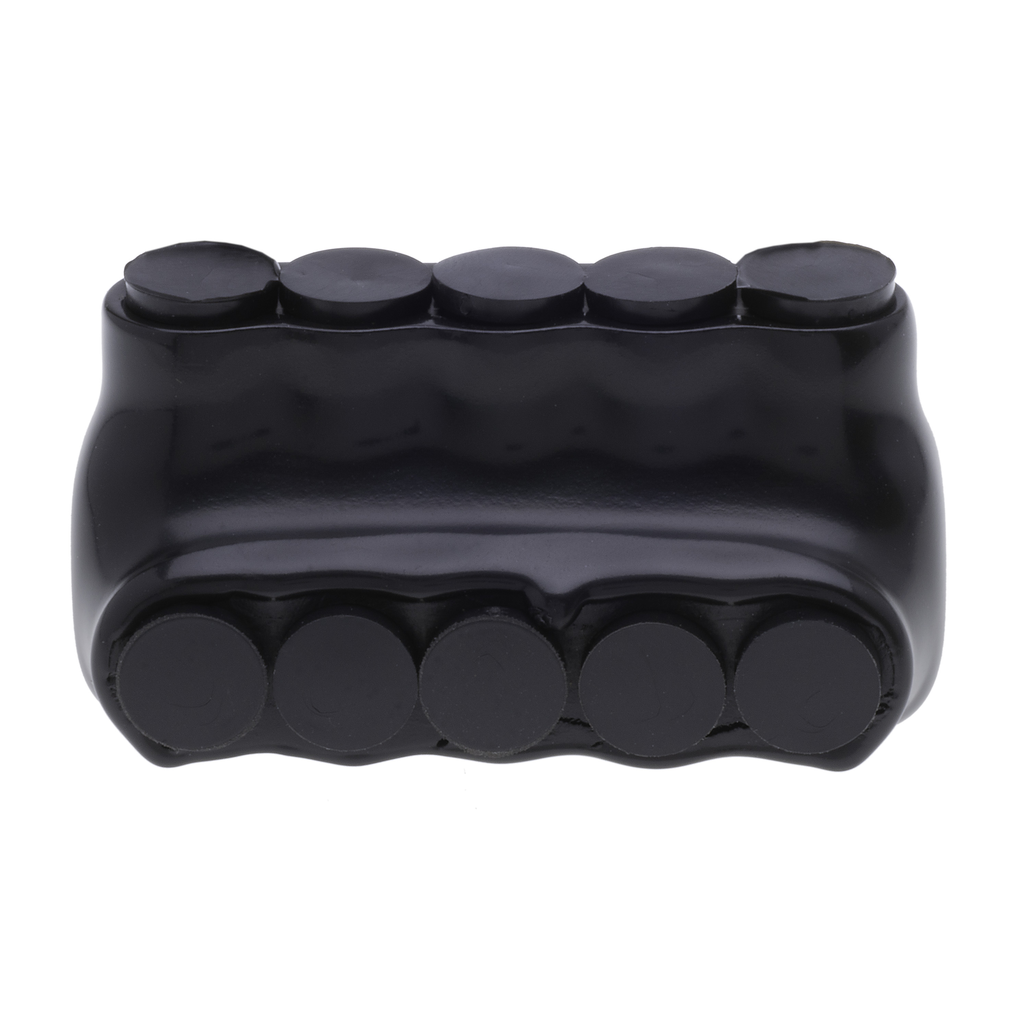

Polaris IPLD4-5 Multi-Tap Connector 5-Port Dual-Side Entry 600V Aluminum Black Plastisol
Specifications
The 5-Port Black Multi-Tap Pre-Insulated Connector by Polaris offers a robust solution for electrical splicing and tapping, accommodating copper and aluminum cables with ease. Designed to meet stringent safety standards, including NEC 230.46 requirements and UL 486A/B certifications, this connector ensures reliable performance as it allows for dual-sided wire entry, making it easy to form strong connections among five conductors. Each port is pre-filled with an oxide inhibitor gel, which protects against corrosion and maintains low-contact resistance, thereby enhancing electrical consistency. Crafted from durable aluminum and featuring a comfortable, ergonomically designed grip, this black connector is suitable for use in environments with temperatures as low as -45°C, making it an ideal choice for a range of applications in both residential and industrial settings.
- UL 486A/B certified and NEC 230.46 compliant for assured safety
- Pre-insulated with Plastisol for electrical insulation and protection
- Dual rated for use with copper and aluminum cables up to 95A and 75A respectively
- Supports up to five conductors for multi-tap connections
- Dual-sided wire entry for versatile connections
- Pre-filled ports with oxide inhibitor gel to prevent corrosion
- Rated for operation in temperatures as low as -45°C
- Aluminum construction for durable, lightweight performance
- Ergonomically designed grip for comfortable handling
- Voltage Rating: 600 V
- Copper Conductor Max AMP: 95 A
- Aluminum Conductor Max AMP: 75 A
- Number of Conductors: 5
- Wire Size Range: 4 AWG - 14 AWG
- Length: 2.48 in
- Width: 1.37 in
- Height: 1.36 in
- Material: Aluminum, Plastisol Insulated
- Finish: Plastisol Insulated
- Color: Black
- Environmental Temperature: Rated to -45°C
- Temperature Rating: 90°C, AL9CU
- UL File Number: E186991
- Compliance: UL 486A/B, cULus, NEC 230.46 Compliant
- Country of Origin: United States
